Model Electrolux GF780KXW3 RANGE – Common Parts & Diagrams

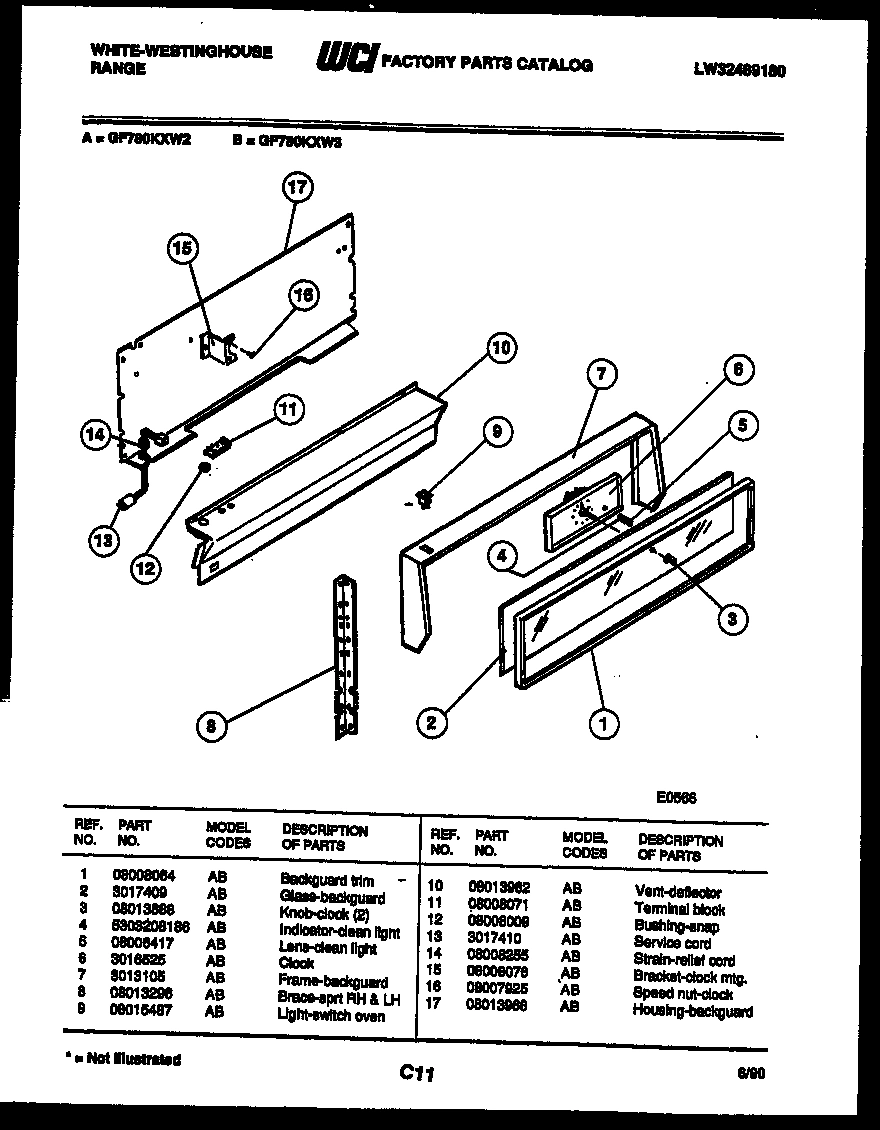

02 - BACKGUARD

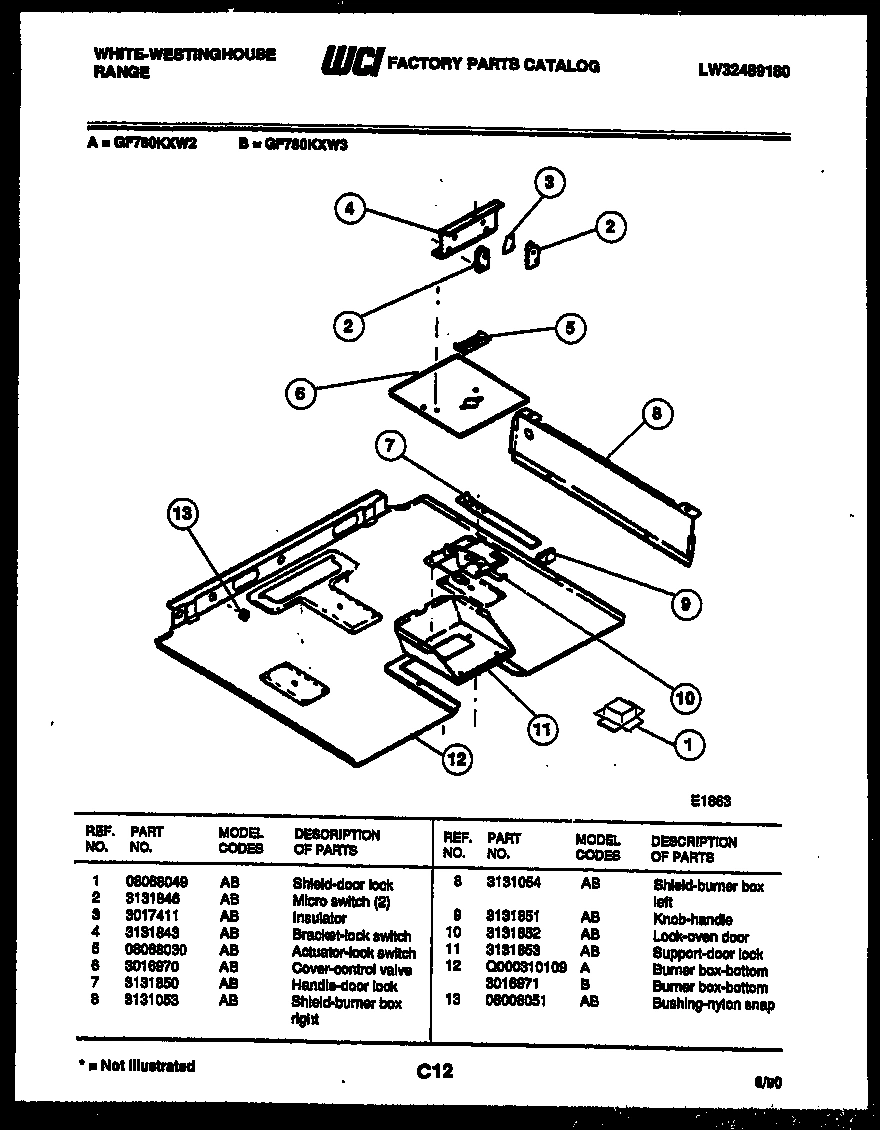

03 - BURNER BOX PARTS

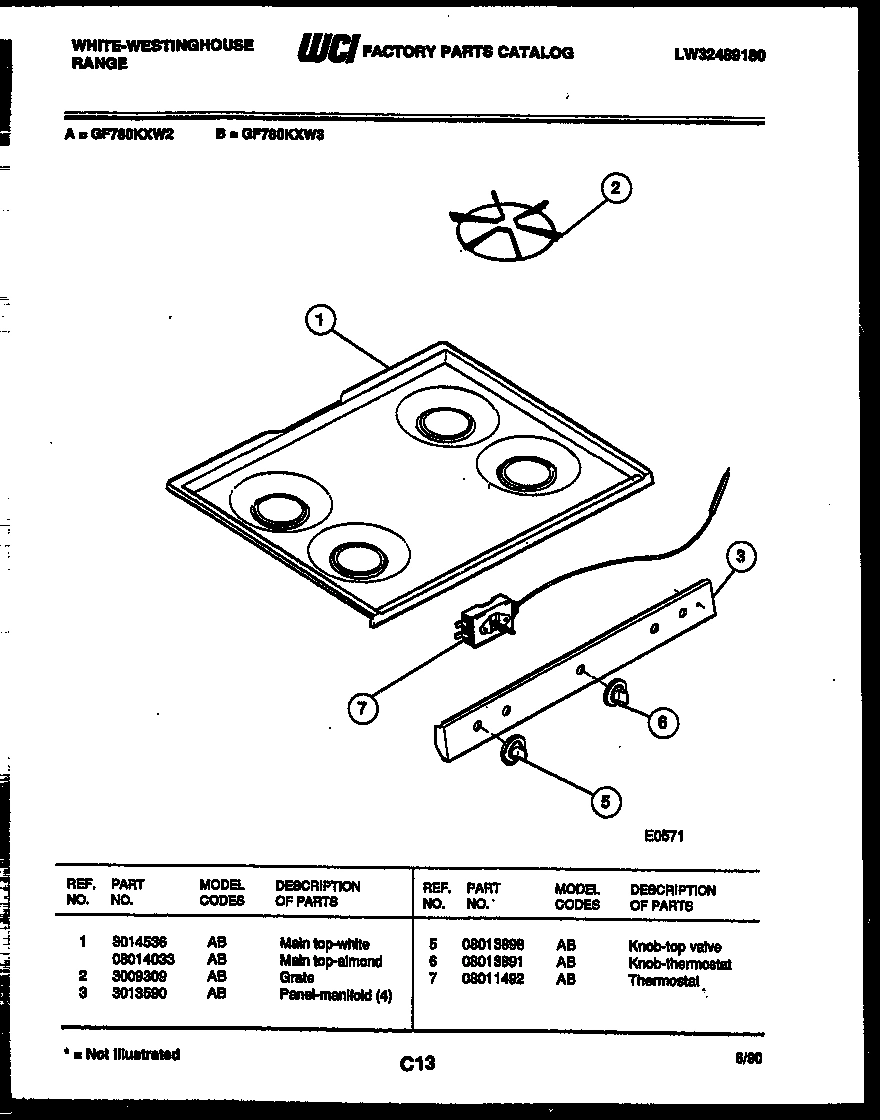

04 - COOKTOP PARTS

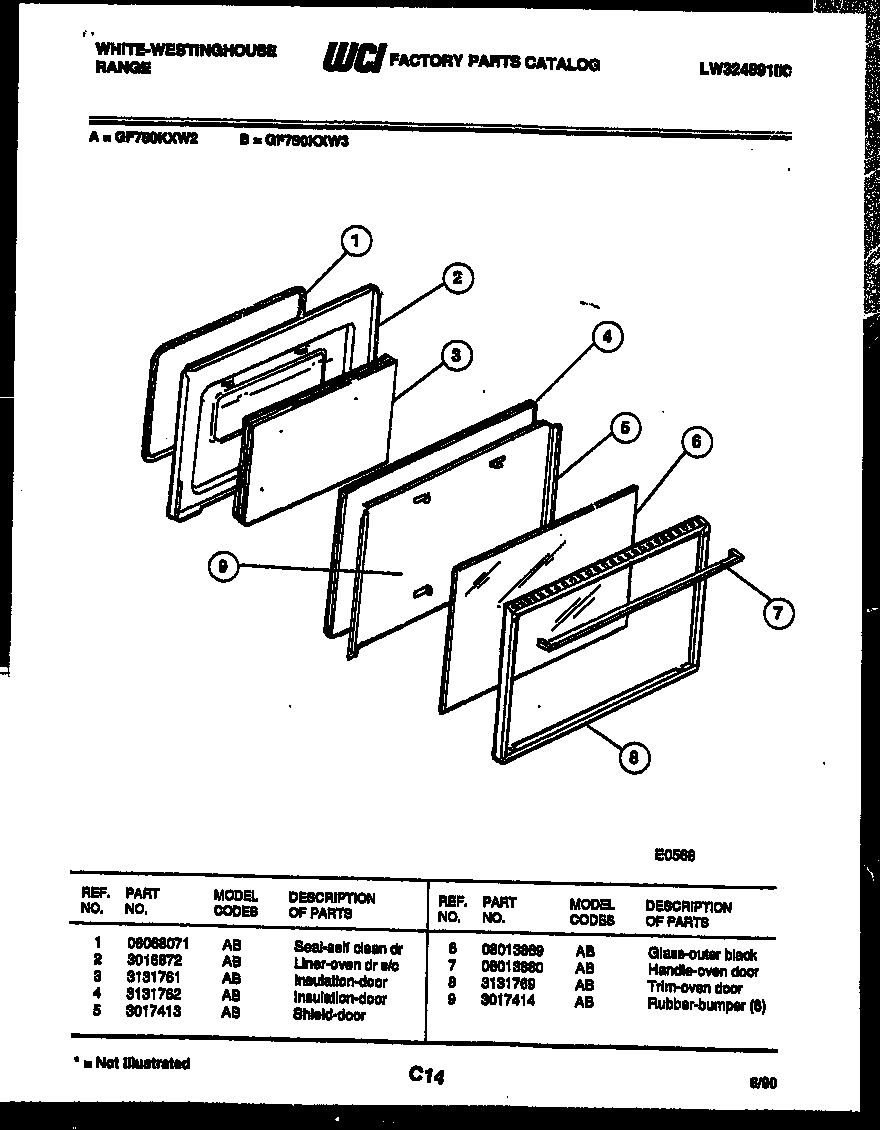

05 - DOOR PARTS

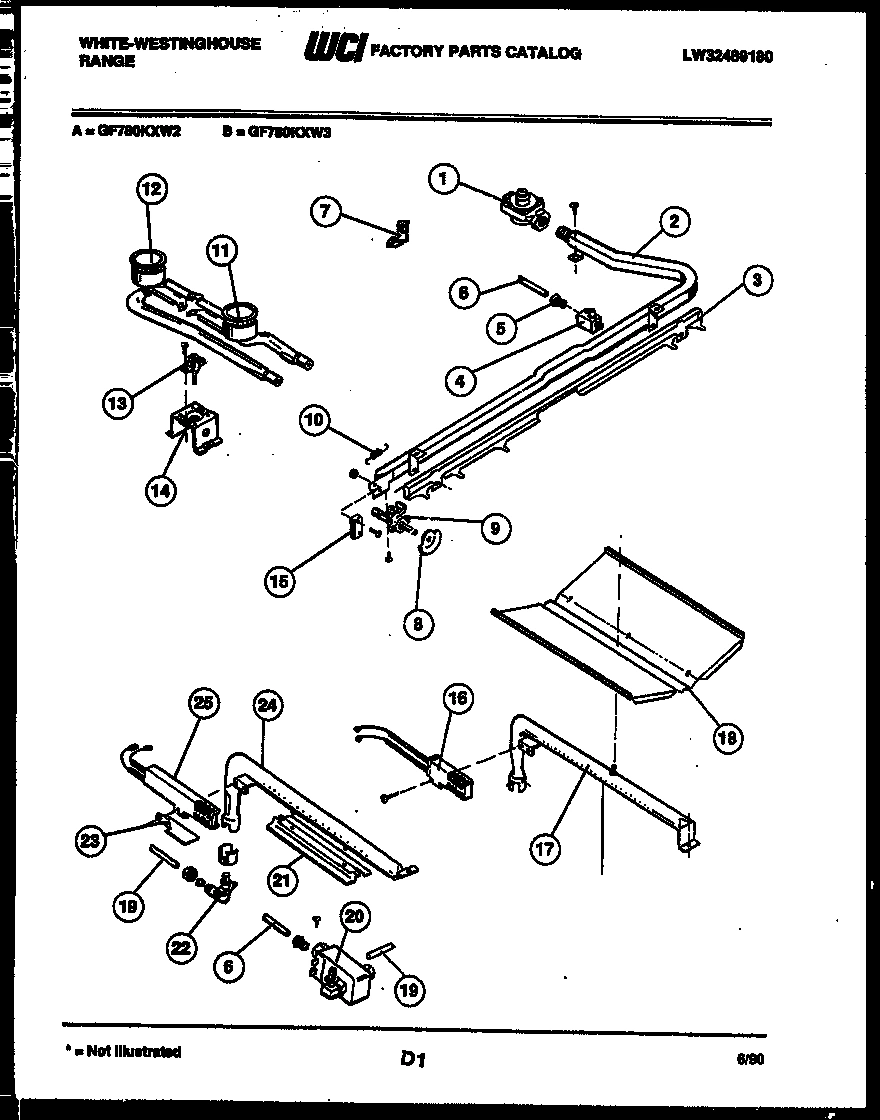

06 - BURNER, MANIFOLD AND GAS CONTROL

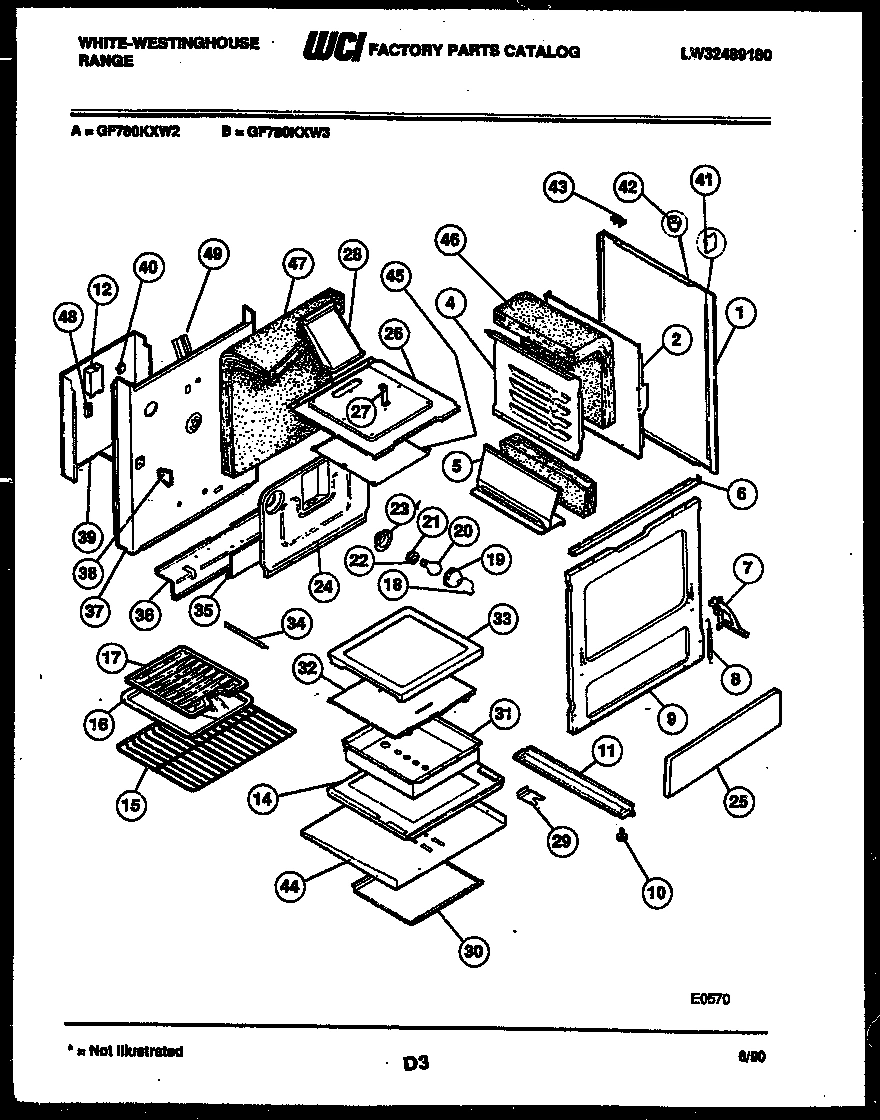

07 - BODY PARTS
Common parts from model Electrolux GF780KXW3 RANGE
*30998
WCI 08007999 WCI 08007999 Contact Us For Availability
1
SHIELD DOOR LOCK WCI 08068049 Contact Us For Availability
1
WCI 08014033 WCI 08014033 Contact Us For Availability
1
WCI 3014536 WCI 3014536 Contact Us For Availability
1
BODYSIDE-PANEL WHITE (2) WCI 3051061 Contact Us For Availability
2
WCI 3017409 WCI 3017409 Contact Us For Availability
2
MICRO SWITCH (2) WCI 3131846 Contact Us For Availability
2
GRATE WCI 3009309 Contact Us For Availability
2
LINER-OVEN DR S/C WCI 3016872 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
SHIELD SIDE HEAT (2) WCI 3131794 Contact Us For Availability
3
KNOB-CLOCK (2) WCI 08013888 Contact Us For Availability
3
WCI 3017411 WCI 3017411 Contact Us For Availability
3
PANEL MANIFOLD (4) WCI 3013590 Contact Us For Availability
3
WCI 3131761 WCI 3131761 Contact Us For Availability
3
WCI 3131856 WCI 3131856 Contact Us For Availability
4
INDICATOR-CLEAN LIGHT WCI 5303208186 Contact Us For Availability
4
BRACKET LOCK SWITCH WCI 3131843 Contact Us For Availability
4
WCI 3131762 WCI 3131762 Contact Us For Availability
4
WCI 3131099 WCI 3131099 Contact Us For Availability
4
LINER-RIGHT SIDE WCI 3016533 Contact Us For Availability
4A
LINER-LEFT SIDE WCI 3016534 Contact Us For Availability
5
WCI 08006417 WCI 08006417 Contact Us For Availability
5
WCI 08068030 WCI 08068030 Contact Us For Availability
5
SHIELD-BURNER BOX RS WCI 3131053 Contact Us For Availability
5
KNOB - TOP VALVE WCI 08013898 Contact Us For Availability
5
SHIELD-DOOR WCI 3017413 Contact Us For Availability
5
NUT-LOXIT WCI 3131064 Contact Us For Availability
5A
SHIELD-BURNER BOX, LS WCI 3131054 Contact Us For Availability
6
WCI 3016525 WCI 3016525 Contact Us For Availability
6
COVER-CONTROL VALVE WCI 3016970 Contact Us For Availability
6
WCI 08013891 WCI 08013891 Contact Us For Availability
6
GLASS-OUTER BLACK WCI 08013869 Contact Us For Availability
6
WCI 3131863 WCI 3131863 Contact Us For Availability
6
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
7
FRAME-BACKGUARD WCI 3013105 Contact Us For Availability
7
WCI 3131850 WCI 3131850 Contact Us For Availability
7
WCI 08011492 WCI 08011492 Contact Us For Availability
7
WCI 08013880 WCI 08013880 Contact Us For Availability
7
WCI 9126 WCI 9126 Contact Us For Availability
7A
HINGE-OVEN DOOR LEFT WCI 3205894 Contact Us For Availability
8
BRACE-SPRT RH & LH WCI 08013296 Contact Us For Availability
8
TRIM OVEN DOOR WCI 3131769 Contact Us For Availability
8
WCI 08008002 WCI 08008002 Contact Us For Availability
8
SPRING OVEN DOOR (2) WCI 3009435 Contact Us For Availability
9
KNOB HANDLE WCI 3131851 Contact Us For Availability
9
RUBBER BUMPER (6) WCI 3017414 Contact Us For Availability
9
WCI 3131057 WCI 3131057 Contact Us For Availability
9
FRAME-FRONT WCI 3205905 Contact Us For Availability
10
VENT - DEFLECTOR WCI 08013962 Contact Us For Availability
10
LOCK-OVEN DOOR WCI 3131852 Contact Us For Availability
10
WCI 3131096 WCI 3131096 Contact Us For Availability
10
LEG LEVELER (4) WCI 3051080 Contact Us For Availability
11
WCI 08008071 WCI 08008071 Contact Us For Availability
11
WCI 3131853 WCI 3131853 Contact Us For Availability
11
BURNER FRONT TOP (2) WCI 3131080 Contact Us For Availability
11
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
12
WCI 08008009 WCI 08008009 Contact Us For Availability
12
WCI 3016971 WCI 3016971 Contact Us For Availability
12
WCI Q000310109 WCI Q000310109 Contact Us For Availability
12
BURNER REAR TOP (2) WCI 3131079 Contact Us For Availability
13
SERVICE CORD WCI 3017410 Contact Us For Availability
13
WCI 08008051 WCI 08008051 Contact Us For Availability
13
IGNITER-TOP (2) WCI 3203971 Contact Us For Availability
14
STRAIN-RELIEF CORD WCI 08008255 Contact Us For Availability
14
SUPPORT-TOP BURNER (2) WCI 3202964 Contact Us For Availability
14
LINING-OVEN BOTTOM WCI 3016875 Contact Us For Availability
15
BRACKET CLOCK MTG WCI 08008076 Contact Us For Availability
15
SWITCH-MICRO FRONT MTG WCI 3131094 Contact Us For Availability
15
WCI 3015714 WCI 3015714 Contact Us For Availability
16
WCI 08007925 WCI 08007925 Contact Us For Availability
16
PAN-BROILER WCI 3016973 Contact Us For Availability
17
HOUSING-BACKGUARD WCI 08013966 Contact Us For Availability
17
WCI 3131860 WCI 3131860 Contact Us For Availability
18
RETAINER OVEN LIGHT LENS WCI 3205904 Contact Us For Availability
19
TUBE BROIL FEED WCI 3131866 Contact Us For Availability
20
WCI 3017415 WCI 3017415 Contact Us For Availability
21
WCI 08011509 WCI 08011509 Contact Us For Availability
21
SOCKET HOUSING WCI 3016399 Contact Us For Availability
22
PIN ELBOW MIXER WCI 08011470 Contact Us For Availability
23
WCI 3051511 WCI 3051511 Contact Us For Availability
23
SHIELD IGNITER WCI 3131871 Contact Us For Availability
24
WCI 3131873 WCI 3131873 Contact Us For Availability
24
LINER OVEN BACK WCI 3200915 Contact Us For Availability
25
WCI 3012963 WCI 3012963 Contact Us For Availability
26
WCI 3131802 WCI 3131802 Contact Us For Availability
27
WCI 3131800 WCI 3131800 Contact Us For Availability
28
VENT BOX ASSEMBLY WCI 3016877 Contact Us For Availability
29
BRACKET-INSULATION WCI 3131041 Contact Us For Availability
30
SHIELD WCI 08068050 Contact Us For Availability
31
WCI 08068046 WCI 08068046 Contact Us For Availability
32
BAFFLE OVEN BOTTOM WCI 3131823 Contact Us For Availability
33
WCI 3016975 WCI 3016975 Contact Us For Availability
34
SHIELD-CAPILLARY BULB WCI 3016976 Contact Us For Availability
35
COVER CONTROL VALVE WCI 08068039 Contact Us For Availability
36
SUPPORT CONTROL VALVE WCI 3131831 Contact Us For Availability
37
MAIN BACK- 30 S/C WCI 3131833 Contact Us For Availability
38
Support,oven rear WCI 3051096 Contact Us For Availability
39
WCI 3131835 WCI 3131835 Contact Us For Availability
40
THERMOSTAT BAKE BROIL SELECT WCI 3131839 Contact Us For Availability
41
CLIP-BACKSPLASH COVER WCI 3131791 Contact Us For Availability
42
GROMMET PLASTIC WCI 3051063 Contact Us For Availability
43
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
44
RETAINER-BOTTOM INSULATION WCI 3131820 Contact Us For Availability
45
BAFFLE BROILER BURNER WCI 08011508 Contact Us For Availability
46
WCI 3131795 WCI 3131795 Contact Us For Availability
47
WCI 3131840 WCI 3131840 Contact Us For Availability
48
TERMINAL BOARD WCI 08007985 Contact Us For Availability
49
CHANNEL BK WIRE WCI 3131046 Contact Us For Availability
× ![]()
