Model Electrolux GF770HXW3 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

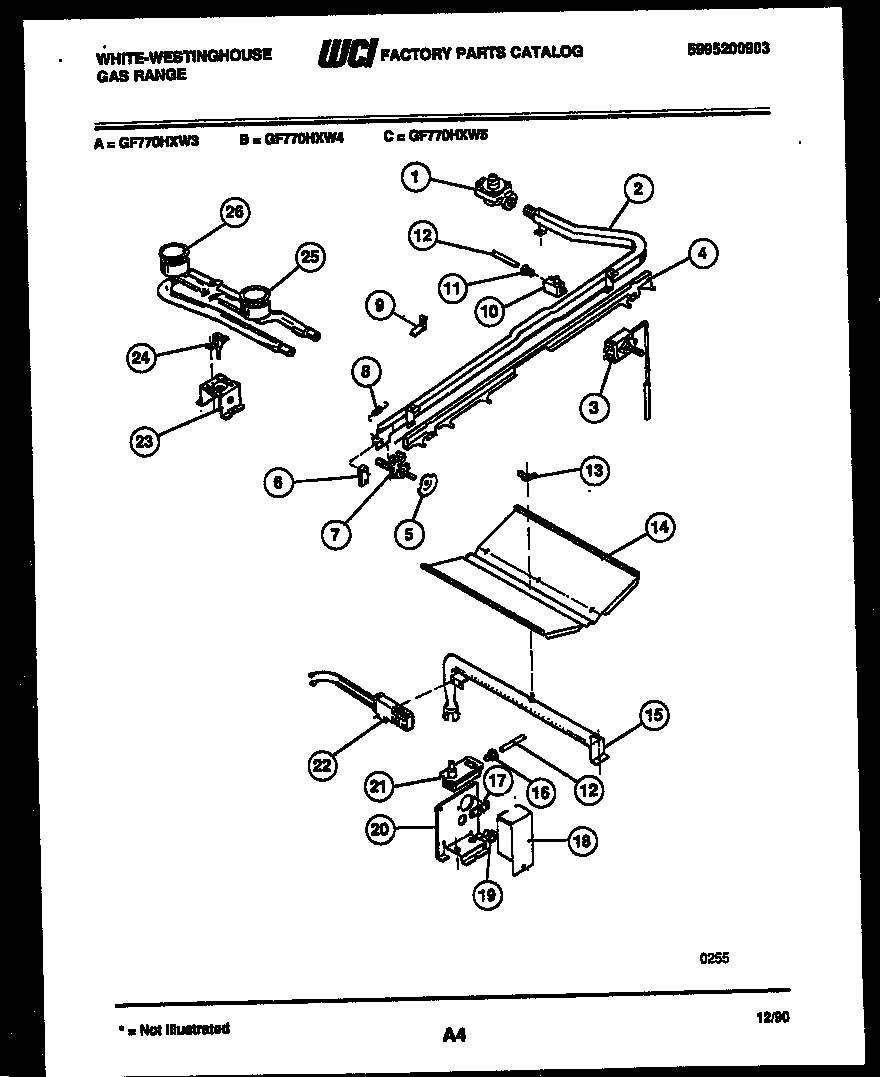

04 - BURNER, MANIFOLD AND GAS CONTROL

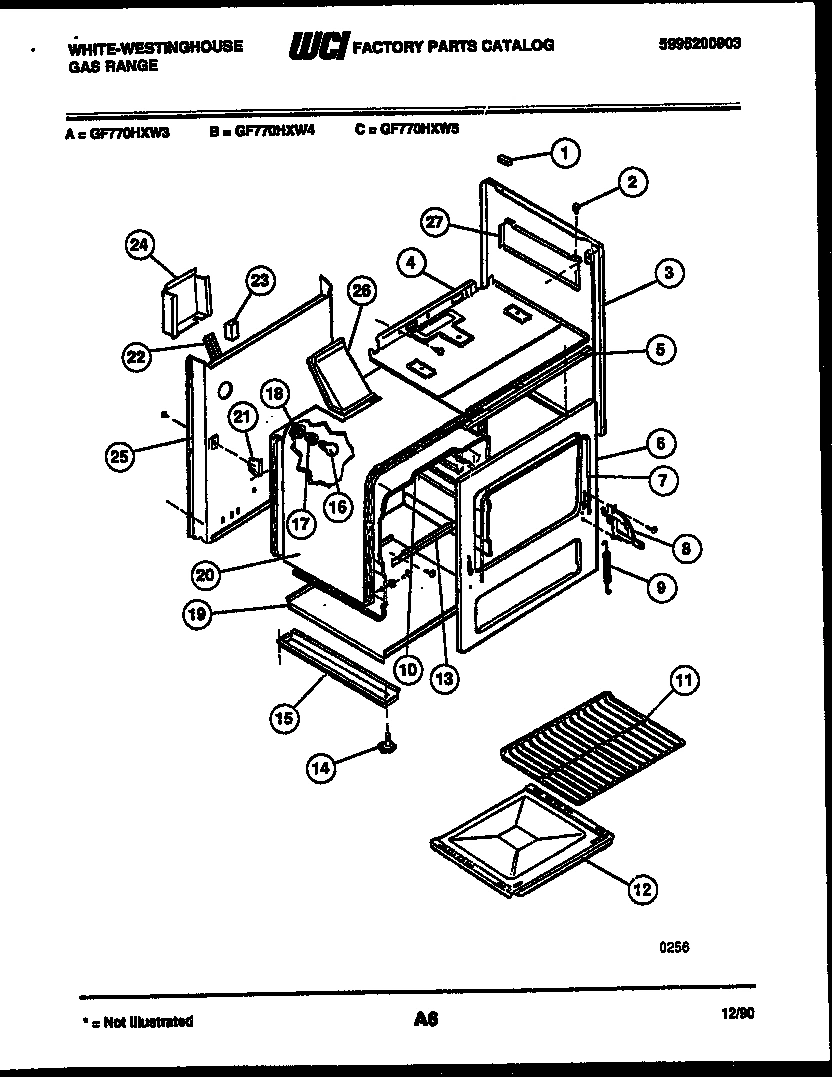

05 - BODY PARTS

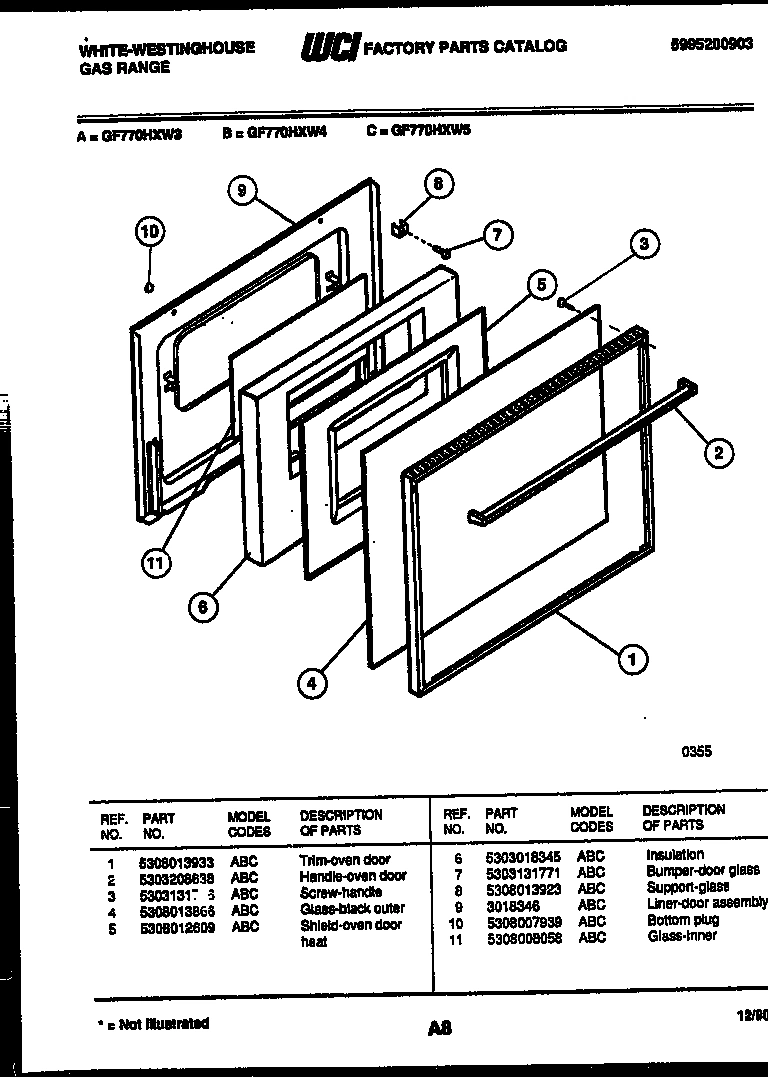

06 - DOOR PARTS

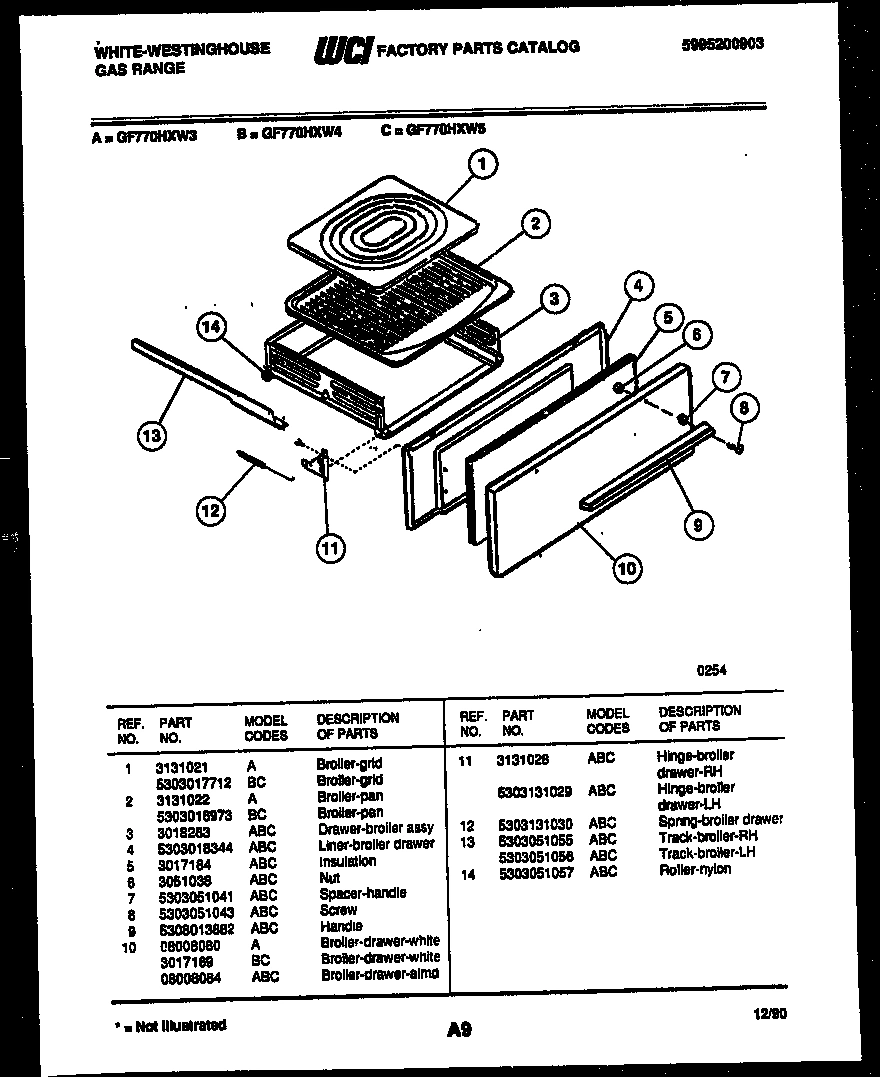

07 - BROILER DRAWER PARTS
Common parts from model Electrolux GF770HXW3 RANGE
*18132
DIAGRAM-WIRE-(NOT FOR PURCHASE) WCI 191S018F271 Contact Us For Availability
*18132
ANTI-TIP KIT WCI 3934059 Contact Us For Availability
1
WCI 5303013590 WCI 5303013590 Contact Us For Availability
1
WCI 5303016129 WCI 5303016129 Contact Us For Availability
1
TRIM-OVEN DOOR WCI 5308013933 Contact Us For Availability
1
BROILER-GRID WCI 3131021 Contact Us For Availability
2
KNOB-TOP VALVE WCI 5308013898 Contact Us For Availability
2
WCI 5308013906 WCI 5308013906 Contact Us For Availability
2
GROMMET PLASTIC WCI 3051063 Contact Us For Availability
2
WCI 5303208638 WCI 5303208638 Contact Us For Availability
3
SCREW HANDLE WCI 5303131766 Contact Us For Availability
3
WCI 5303131019 WCI 5303131019 Contact Us For Availability
3
WCI 5308013926 WCI 5308013926 Contact Us For Availability
3
PANEL-BODY SIDE (WHITE) WCI 5303051061 Contact Us For Availability
4
GLASS-BLACK OUTER WCI 5308013866 Contact Us For Availability
4
WCI 5303014536 WCI 5303014536 Contact Us For Availability
4
SLIDE BAR WCI 3131856 Contact Us For Availability
4
BURNER BOX BOTTOM WCI 3017174 Contact Us For Availability
4
WCI 5303018344 WCI 5303018344 Contact Us For Availability
5
WCI 5303009309 WCI 5303009309 Contact Us For Availability
5
WCI 5308008002 WCI 5308008002 Contact Us For Availability
5
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
5
SHIELD-OVEN DOOR HEAT WCI 5308012609 Contact Us For Availability
5
WCI 3017184 WCI 3017184 Contact Us For Availability
6
WCI 5303131094 WCI 5303131094 Contact Us For Availability
6
WCI 3017790 WCI 3017790 Contact Us For Availability
6
WCI 5303018345 WCI 5303018345 Contact Us For Availability
7
Seal,oven door WCI 5308008022 Contact Us For Availability
7
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
7
WCI 5303131771 WCI 5303131771 Contact Us For Availability
7
SPACER HANDLE WCI 5303051041 Contact Us For Availability
8
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
8
HINGE-OVEN DOOR RH WCI 5303204670 Contact Us For Availability
8
WCI 5308013923 WCI 5308013923 Contact Us For Availability
9
WCI 5300009126 WCI 5300009126 Contact Us For Availability
9
SPRING-OVEN DOOR WCI 5308008028 Contact Us For Availability
9
LINER-DOOR ASSEMBLY WCI 3018346 Contact Us For Availability
9
WCI 5308013882 WCI 5308013882 Contact Us For Availability
10
WCI 5303131099 WCI 5303131099 Contact Us For Availability
10
LINER-RIGHT SIDE WCI 3018709 Contact Us For Availability
10
BOTTOM PLUG WCI 5308007939 Contact Us For Availability
10
WCI 08008080 WCI 08008080 Contact Us For Availability
10A
LINER-LEFT SIDE WCI 3018710 Contact Us For Availability
10B
WCI 3018713 WCI 3018713 Contact Us For Availability
10C
WCI 3018712 WCI 3018712 Contact Us For Availability
11
RACK-OVEN WCI 5303015714 Contact Us For Availability
11
LOCK NUT WCI 5303131064 Contact Us For Availability
11
WCI 5308008058 WCI 5308008058 Contact Us For Availability
11
HINGE-BROILER DRAWER-RH WCI 3131028 Contact Us For Availability
11A
HINGE-BROILER DRAWER-LH WCI 5303131029 Contact Us For Availability
12
TUBE - OVEN FEED WCI 3131085 Contact Us For Availability
12
LINER BTTM WCI 3018282 Contact Us For Availability
12
SPRING-BROILER DRAWER WCI 5303131030 Contact Us For Availability
13
WCI 08007979 WCI 08007979 Contact Us For Availability
13
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
13
TRACK - BROILER RH WCI 5303051055 Contact Us For Availability
13A
TRACK - BROILER LH WCI 5303051056 Contact Us For Availability
14
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
14
SCREW-LEVELING WCI 5303051080 Contact Us For Availability
14
ROLLER-NYLON WCI 5303051057 Contact Us For Availability
15
WCI 5303202752 WCI 5303202752 Contact Us For Availability
15
BASE RAIL WCI 5308068047 Contact Us For Availability
16
LOCK NUT WCI 5308007983 Contact Us For Availability
17
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
18
WCI 3051511 WCI 3051511 Contact Us For Availability
18
COVER-VALVE WCI 3131088 Contact Us For Availability
19
WCI 3051101 WCI 3051101 Contact Us For Availability
19
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
20
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
20
INSULATION-WRAPPER WCI 3017171 Contact Us For Availability
20A
WCI 3017172 WCI 3017172 Contact Us For Availability
21
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
21
Support,oven rear WCI 3051096 Contact Us For Availability
22
CHANNEL - WIRE WCI 3131046 Contact Us For Availability
23
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
24
IGNITER 36`` TOP BURNER WCI 3015196 Contact Us For Availability
24
WCI 08013953 WCI 08013953 Contact Us For Availability
25
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
25
MAIN BACK WCI 5303013340 Contact Us For Availability
26
Burner,top ,rear WCI 5303131079 No Longer Available
26
VENT BOX WCI 3017173 Contact Us For Availability
27
SHIELD-BURNER BOX RH WCI 5303131053 Contact Us For Availability
27A
SHIELD-BURNER BOX LH WCI 5303131054 Contact Us For Availability
× ![]()
