Model Electrolux GF750NW6 RANGE – Common Parts & Diagrams

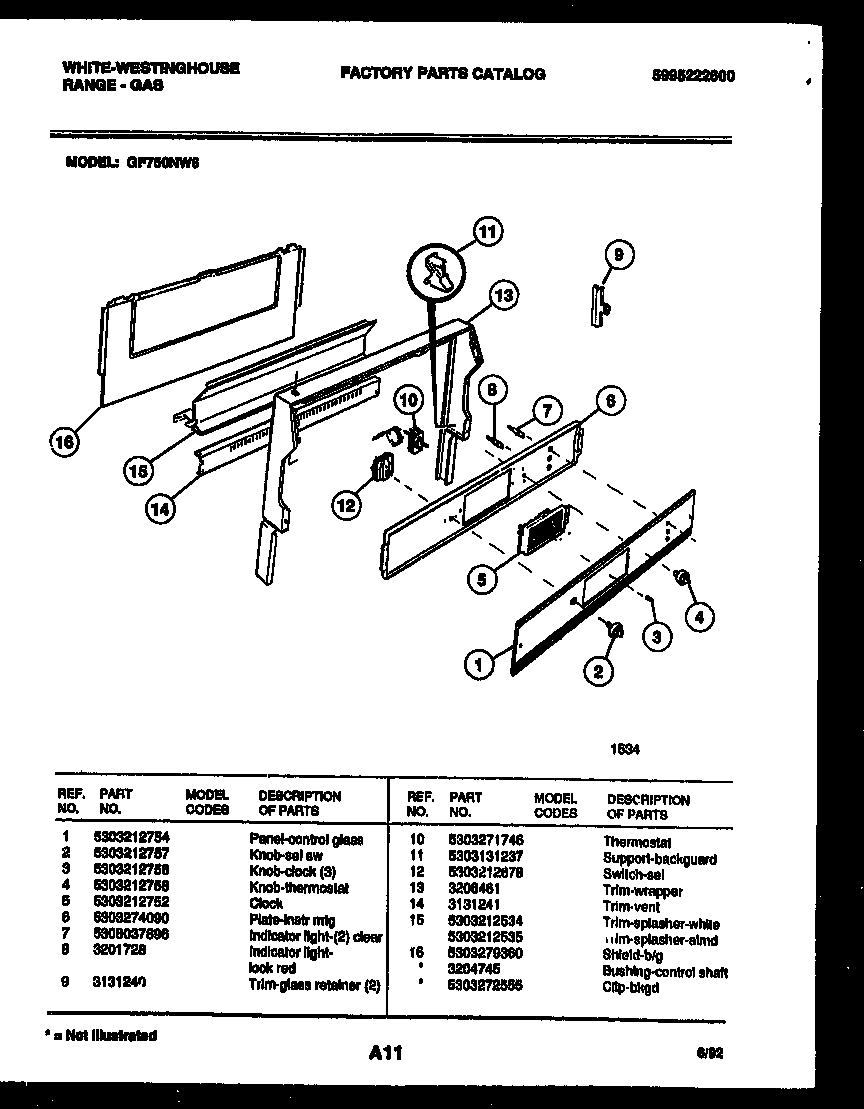

02 - BACKGUARD

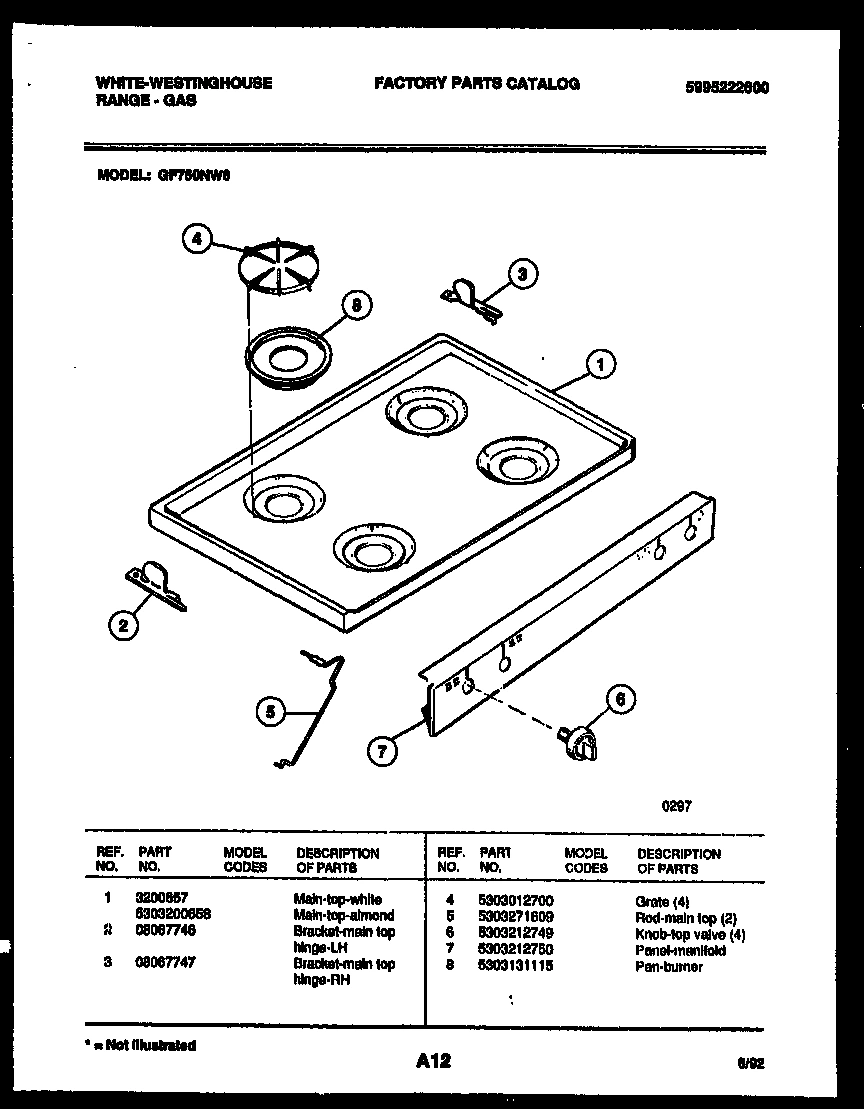

03 - COOKTOP PARTS
04 - BURNER, MANIFOLD AND GAS CONTROL
05 - BODY PARTS
06 - DOOR PARTS
Common parts from model Electrolux GF750NW6 RANGE
*65048
BRACKET-BURNER MTG (2) WCI 3200277 Contact Us For Availability
*65054
WCI 19100180305 WCI 19100180305 Contact Us For Availability
*65054
PLUG-BUMPER WCI 3018702 Contact Us For Availability
*65054
INSULATION-TOP WCI 3131304 Contact Us For Availability
*65054
WCI 3131314 WCI 3131314 Contact Us For Availability
*65054
WCI 3200834 WCI 3200834 Contact Us For Availability
*65054
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*65055
WCI 08010570 WCI 08010570 Contact Us For Availability
*65055
COVER-ROD END WCI 5303285692 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
GLASS-FRONT WCI 3018822 Contact Us For Availability
2
BRACKET-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
2
WCI 5303273127 WCI 5303273127 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
BRACKET-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
3
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
ROD-MAIN TOP (2) WCI 5303271609 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
WCI 5303212749 WCI 5303212749 Contact Us For Availability
6
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
6
WCI 5303209518 WCI 5303209518 Contact Us For Availability
7
WCI 5303281378 WCI 5303281378 Contact Us For Availability
7
WCI 5303212750 WCI 5303212750 Contact Us For Availability
7
WCI 5303283665 WCI 5303283665 Contact Us For Availability
8
WCI 316007001 WCI 316007001 Contact Us For Availability
8
WCI 5303283666 WCI 5303283666 Contact Us For Availability
8
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 5303283667 WCI 5303283667 Contact Us For Availability
10
WCI 5303283668 WCI 5303283668 Contact Us For Availability
10
WCI 5303270104 WCI 5303270104 Contact Us For Availability
11
BASE IGNITOR (2) WCI 3200276 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 5303271375 WCI 5303271375 Contact Us For Availability
13
WCI 5303269499 WCI 5303269499 Contact Us For Availability
13
VALVE, TOP, 2 POS, (4) WCI 316031900 Contact Us For Availability
14
SWITCH-IGNITOR WCI 316032001 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
RODLIGHT WCI 5303269501 Contact Us For Availability
18
WCI 08067979 WCI 08067979 Contact Us For Availability
19
TUBE ALUM W/ FIT (REG/MANIFOLD PIPE) WCI 5303208495 Contact Us For Availability
19
SHIELD-WALL REAR WCI 316014401 Contact Us For Availability
20
TUBE ALUM W/ FIT (VALVE/REG) WCI 5303208494 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
TUBE-ALUM W/ FIT (VALVE/MIXER) WCI 5303208493 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
WCI 316014301 WCI 316014301 Contact Us For Availability
22A
WASHER-REPAIR (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25A
SHIELD-BI METAL LATCH (NON-ILLUSTRATED) WCI 3051413 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
NUT, SPECIAL WCI 3013279 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
WCI 5303269519 WCI 5303269519 Contact Us For Availability
34A
WCI 5303269518 WCI 5303269518 Contact Us For Availability
35
SCREW, LEVELLING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
OVEN BOTTOM WCI 5303212540 Contact Us For Availability
39A
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
WCI 3204582 WCI 3204582 Contact Us For Availability
39E
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
WCI 08068018 WCI 08068018 Contact Us For Availability
40
PANEL-DUMMY DRAWER (WHITE) WCI 3051201 Contact Us For Availability
41
WCI 3131975 WCI 3131975 Contact Us For Availability
42
SHIELD-LATCH WCI 3131593 Contact Us For Availability
× ![]()
