Model Electrolux GF720ND3 RANGE – Common Parts & Diagrams

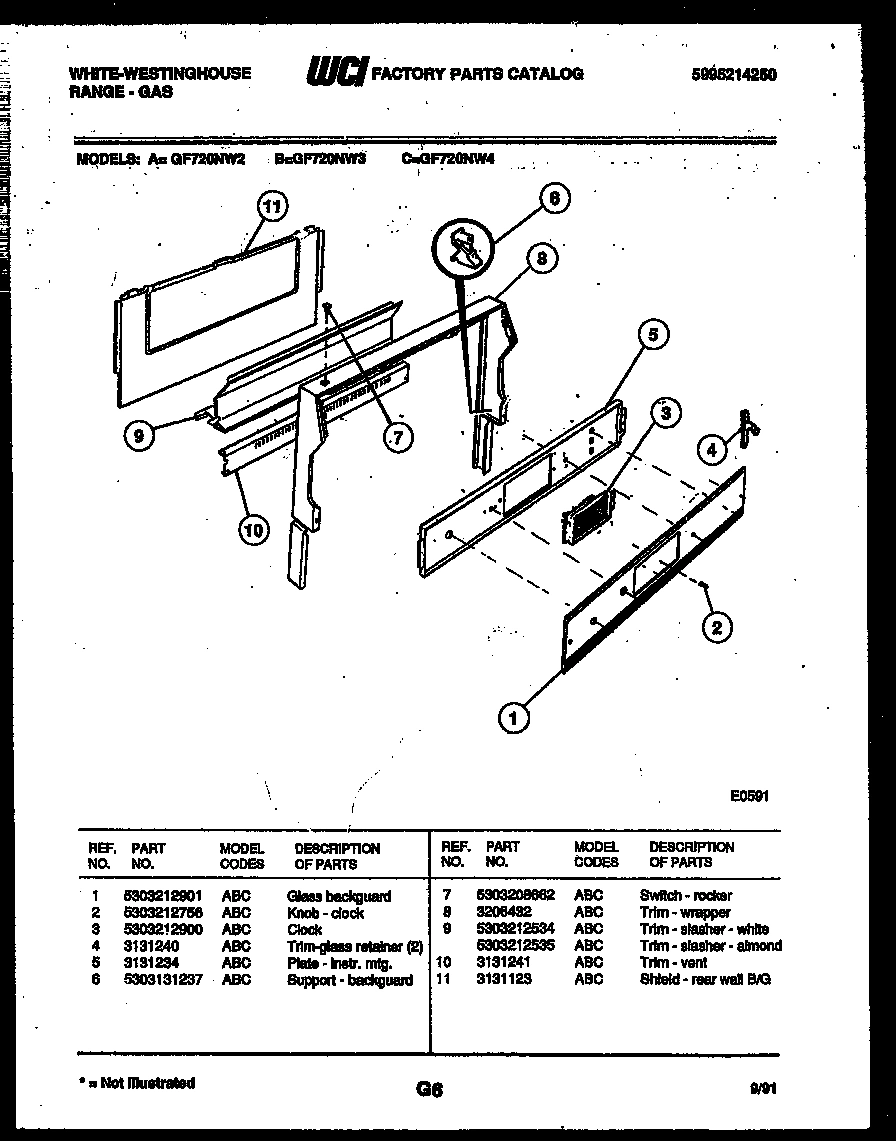

02 - BACKGUARD

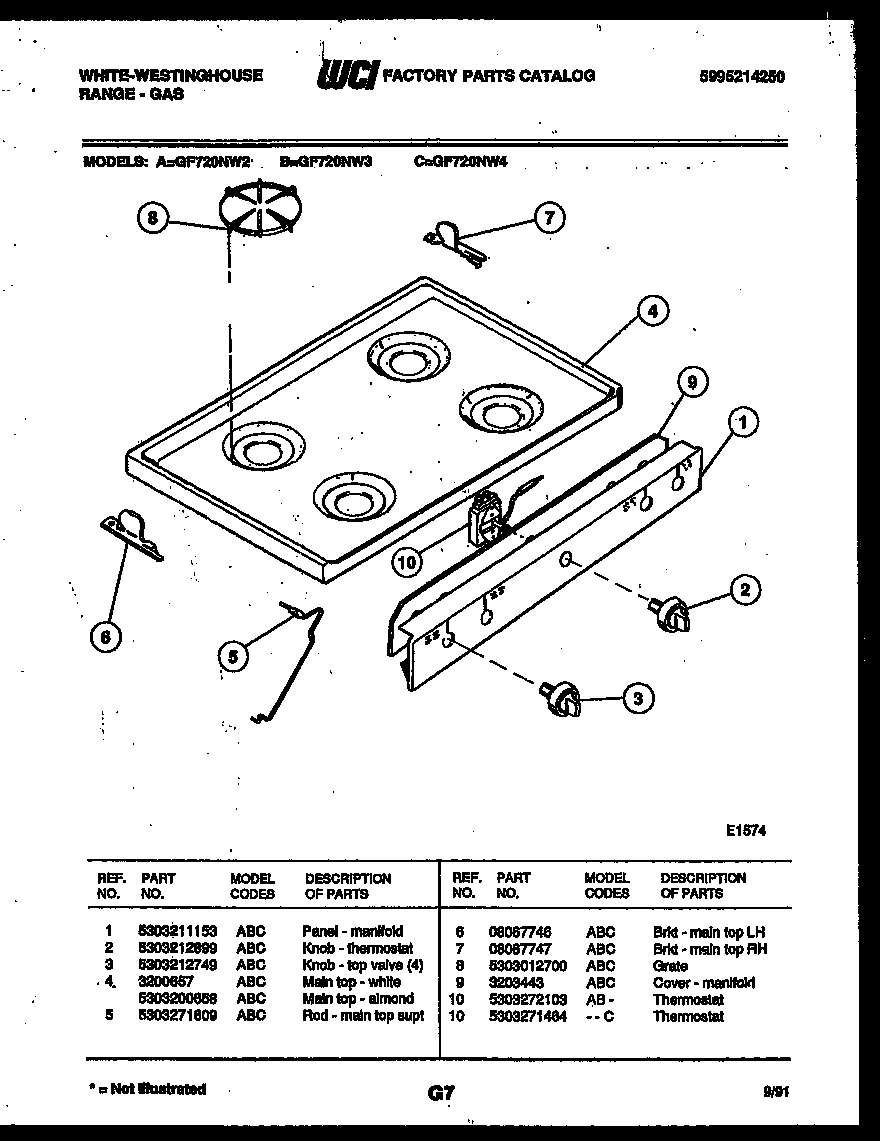

03 - COOKTOP PARTS

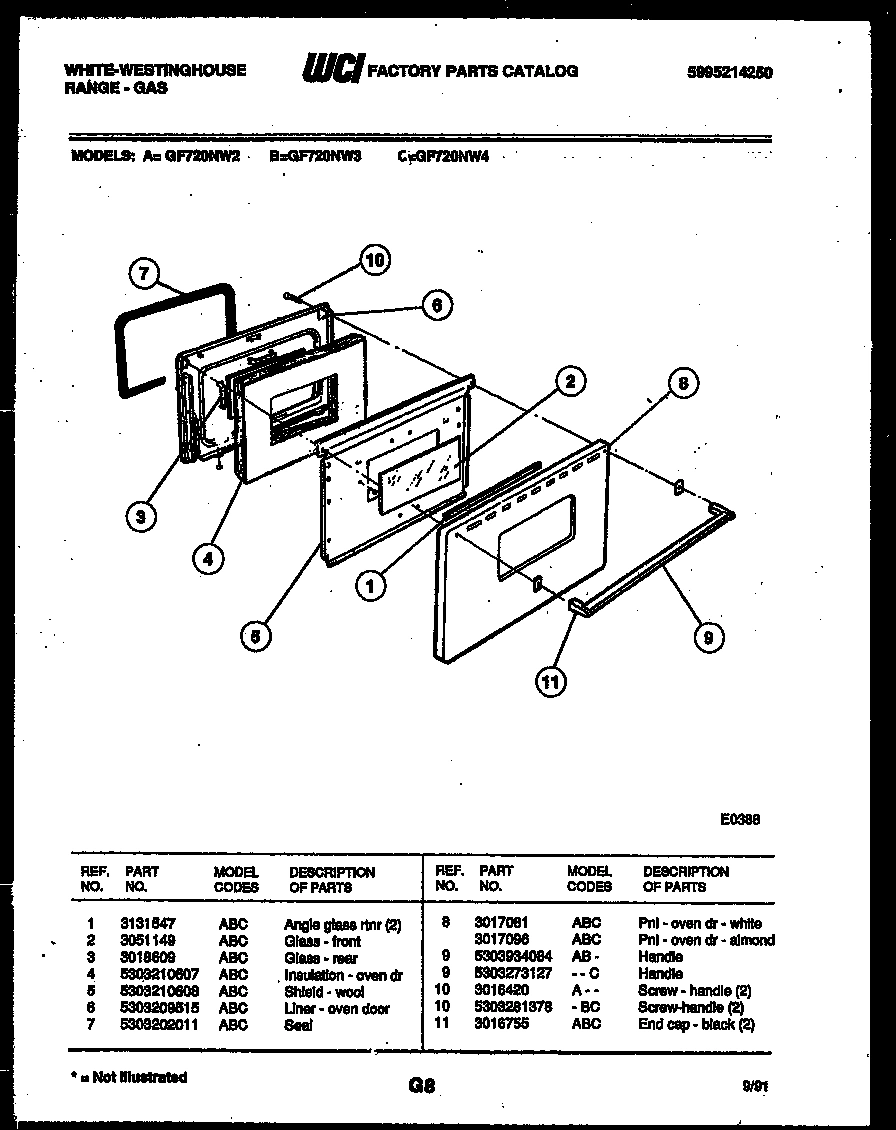

04 - DOOR PARTS

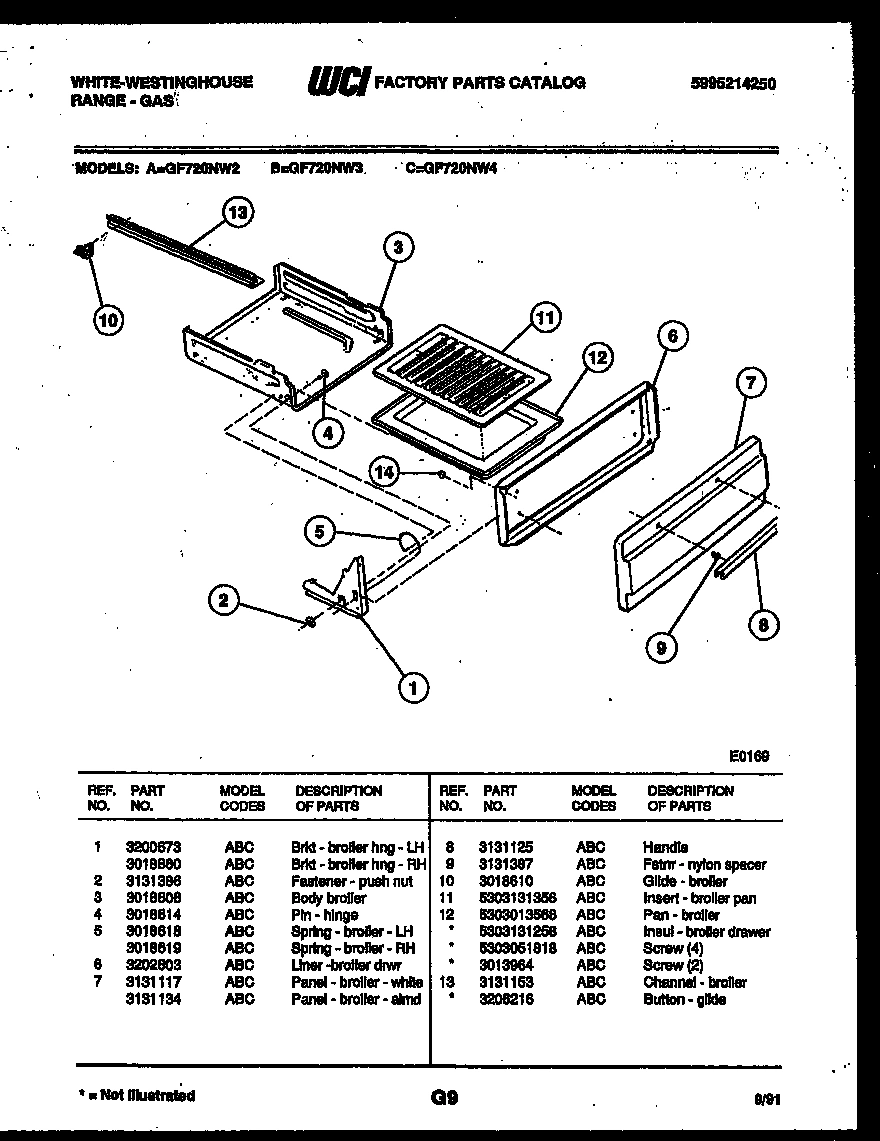

05 - BROILER DRAWER PARTS

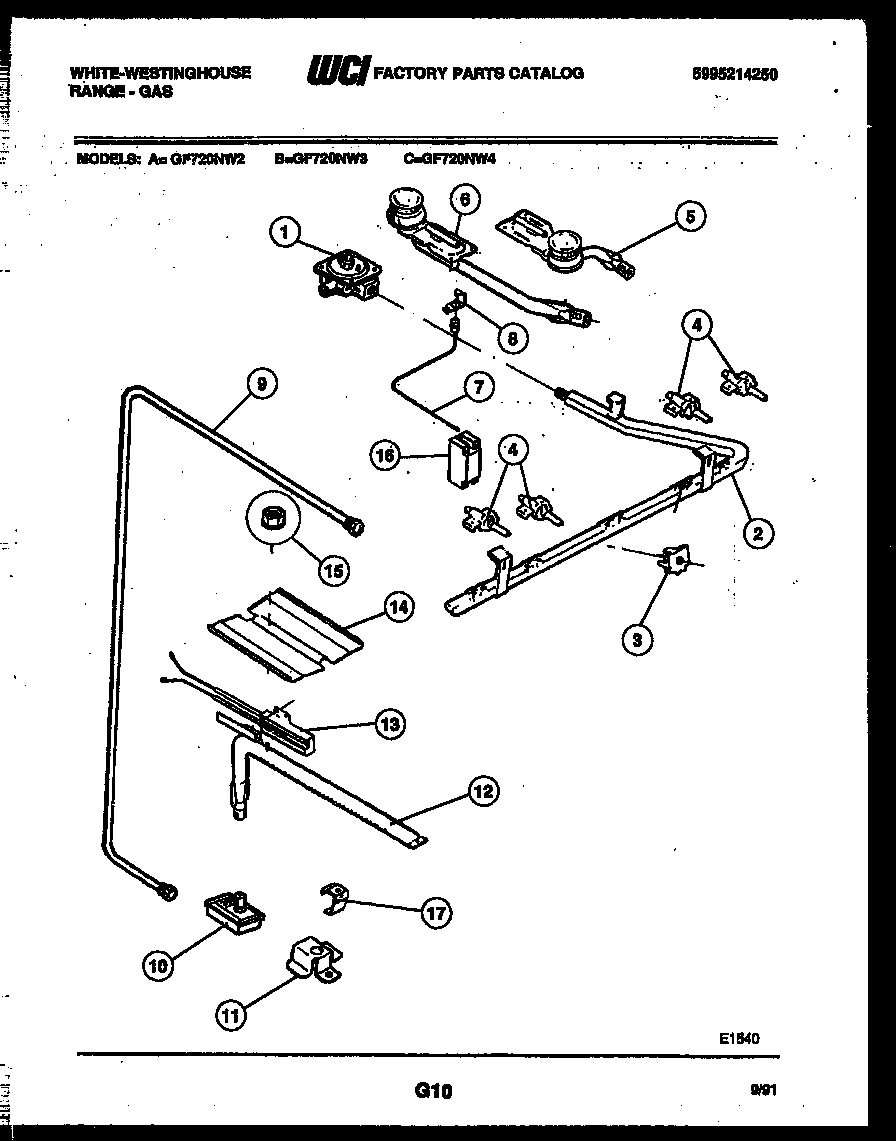

06 - BURNER, MANIFOLD AND GAS CONTROL

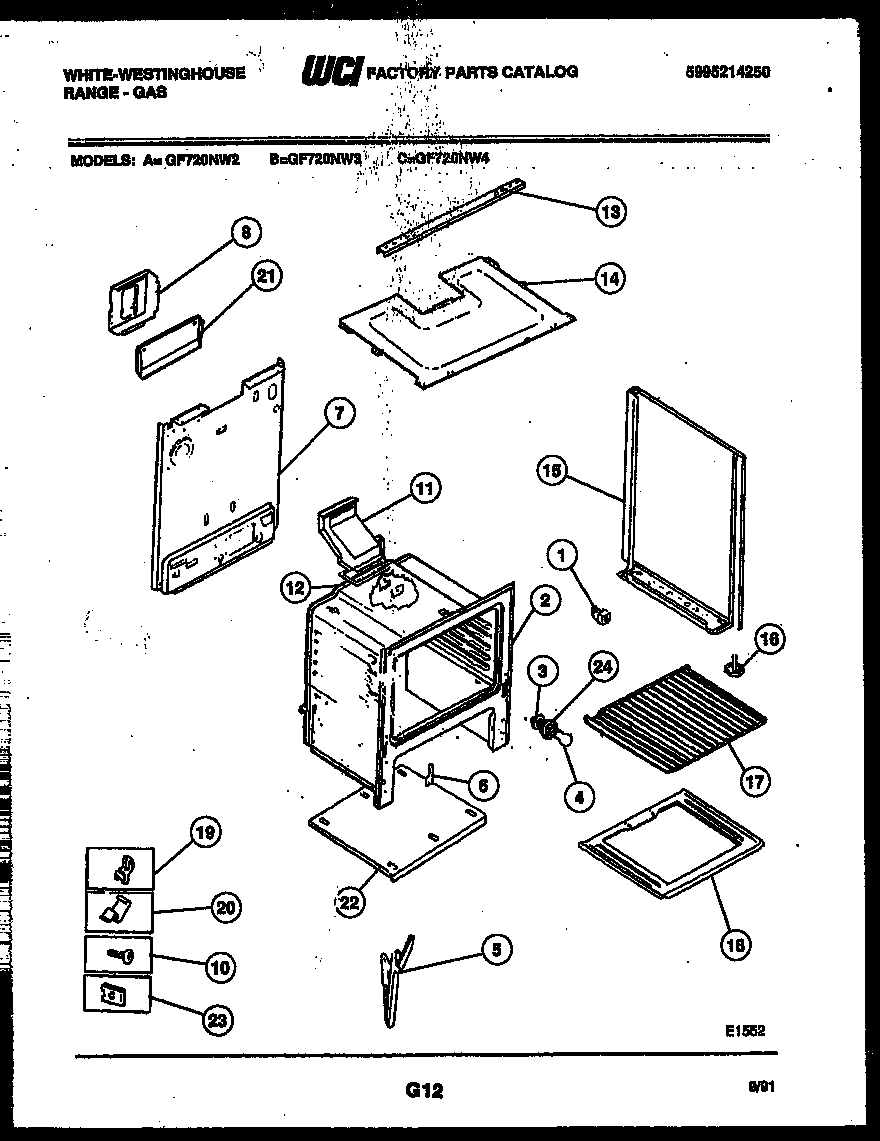

07 - BODY PARTS
Common parts from model Electrolux GF720ND3 RANGE
*54608
WCI 3206216 WCI 3206216 Contact Us For Availability
*54621
DIAGRAM (NOT FOR PURCHASE.) WCI 19100180225 Contact Us For Availability
*54621
WCI 3131348 WCI 3131348 Contact Us For Availability
*54621
SHIELD-TOP WCI 3203455 Contact Us For Availability
*54621
WCI 3934056 WCI 3934056 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
ANGLE GLASS RTNR (2) WCI 3131547 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1
CONTROL REGUL WCI 5303208384 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
WCI 3051149 WCI 3051149 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 5303272435 WCI 5303272435 Contact Us For Availability
3
WCI 3018609 WCI 3018609 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
SWITCH-IGNITOR WCI 3131568 Contact Us For Availability
4
INSULATION-OVEN DR WCI 5303210607 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4B
VALVE - TOP 2 POS (4) WCI 5303272436 Contact Us For Availability
5
ROD - MAINTOP SUPT WCI 5303271609 Contact Us For Availability
5
WCI 5303210608 WCI 5303210608 Contact Us For Availability
5
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
5
CHANNEL-DOOR HNG WCI 316007000 Contact Us For Availability
5A
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
6
WCI 5303209515 WCI 5303209515 Contact Us For Availability
6
LINER - BROILER DRWR WCI 3202803 Contact Us For Availability
7
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
7
PANEL - BROILER ALMD WCI 3131134 Contact Us For Availability
7
BASE IGNITOR (2) WCI 3200276 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
8
PNL - OVEN DR - ALMOND WCI 3017096 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
9
WCI 3203443 WCI 3203443 Contact Us For Availability
9
WCI 5303934084 WCI 5303934084 Contact Us For Availability
9
FSTNR - NYLON SPACER WCI 3131387 Contact Us For Availability
9
WCI 3203458 WCI 3203458 Contact Us For Availability
10
SCREW, HANDLE (2) WCI 5303281378 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3131438 WCI 3131438 Contact Us For Availability
11
WCI 3131904 WCI 3131904 Contact Us For Availability
12
WCI 3131439 WCI 3131439 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12A
INSUL - BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12C
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
13
CHANNEL BURNER WCI 3203441 Contact Us For Availability
14
WCI 3203265 WCI 3203265 Contact Us For Availability
14
WCI 3204962 WCI 3204962 Contact Us For Availability
15
WCI 5303269543 WCI 5303269543 Contact Us For Availability
15A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
16
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
17
BRKT - OVEN BRNR SUPT WCI 3018603 Contact Us For Availability
17B
SHIELD - LOWER WALL (NON-ILLUSTRATED) WCI 3131252 Contact Us For Availability
18
WCI 5303212540 WCI 5303212540 Contact Us For Availability
18A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
18B
INSUL - OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
19
CLIP - THERMO WCI 145T025P03 Contact Us For Availability
19A
WCI 08067961 WCI 08067961 Contact Us For Availability
21
WCI 3202799 WCI 3202799 Contact Us For Availability
22
WCI 5303270160 WCI 5303270160 Contact Us For Availability
22A
COVER-PLATE (NON-ILLUSTRATED) WCI 3018607 Contact Us For Availability
22B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
23A
COVER, FRONT MAIN (NON-ILLUSTRATED) WCI 5303015372 Contact Us For Availability
24
WCI 5303271606 WCI 5303271606 Contact Us For Availability
× ![]()
