Model Electrolux GF716HXW3 RANGE – Common Parts & Diagrams

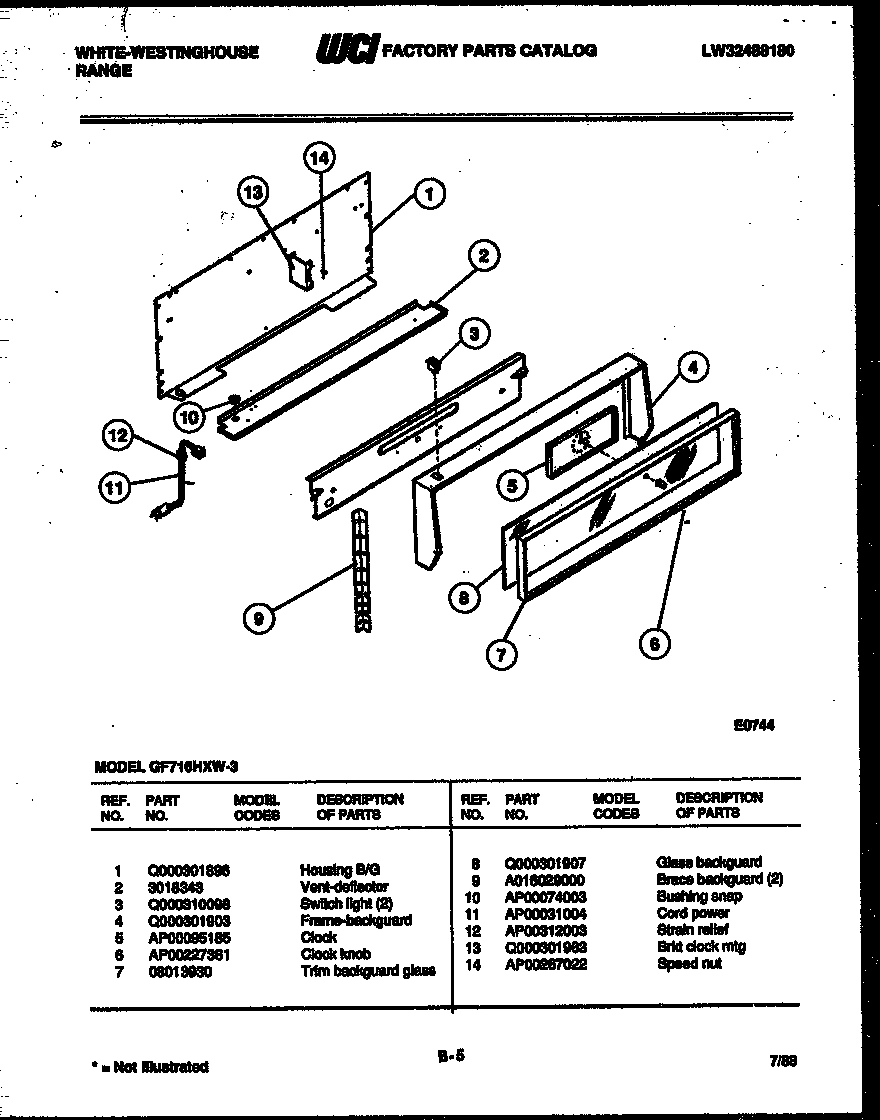

02 - BACKGUARD

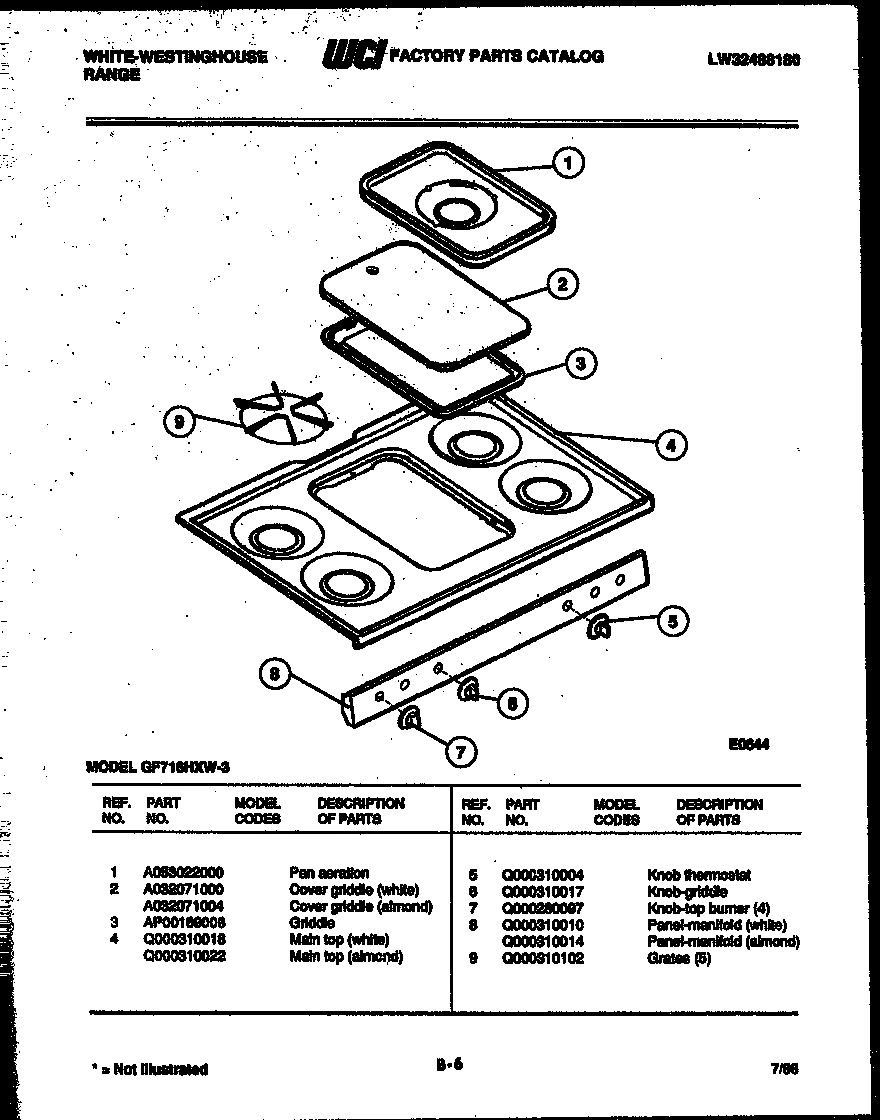

03 - COOKTOP PARTS

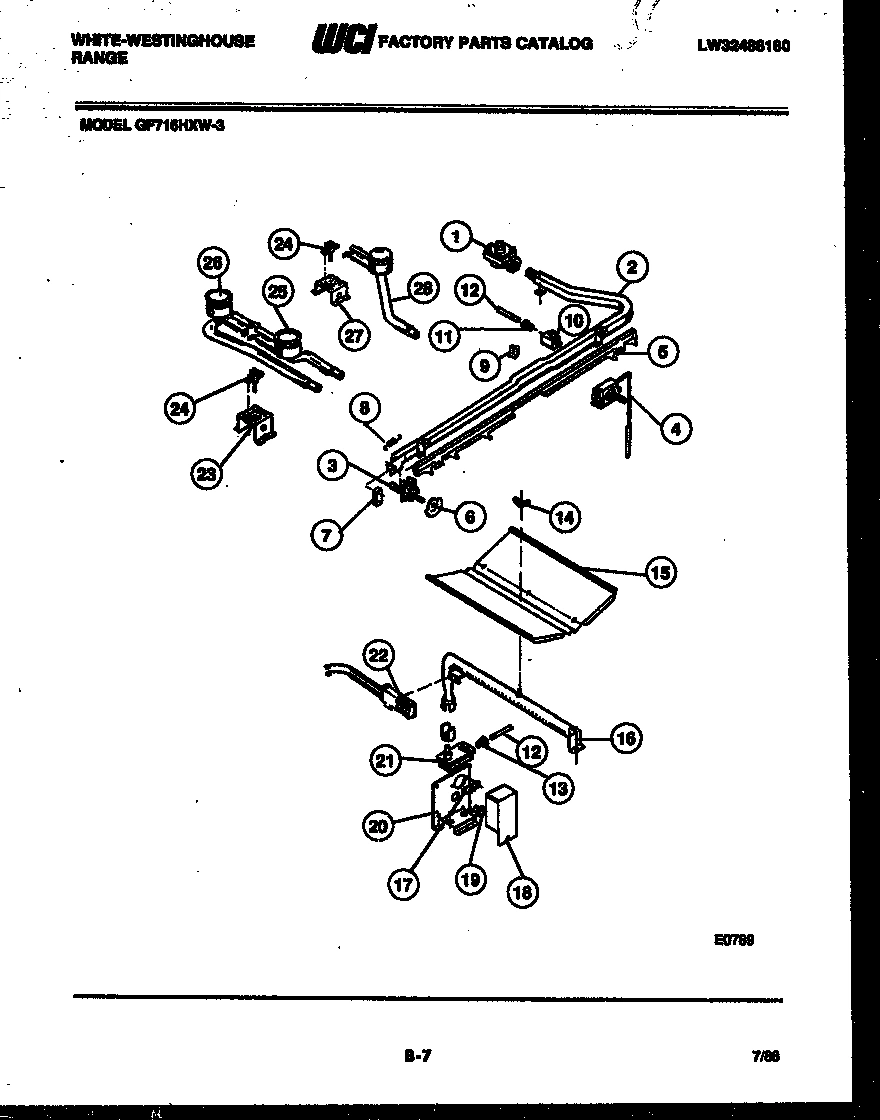

04 - BURNER, MANIFOLD AND GAS CONTROL

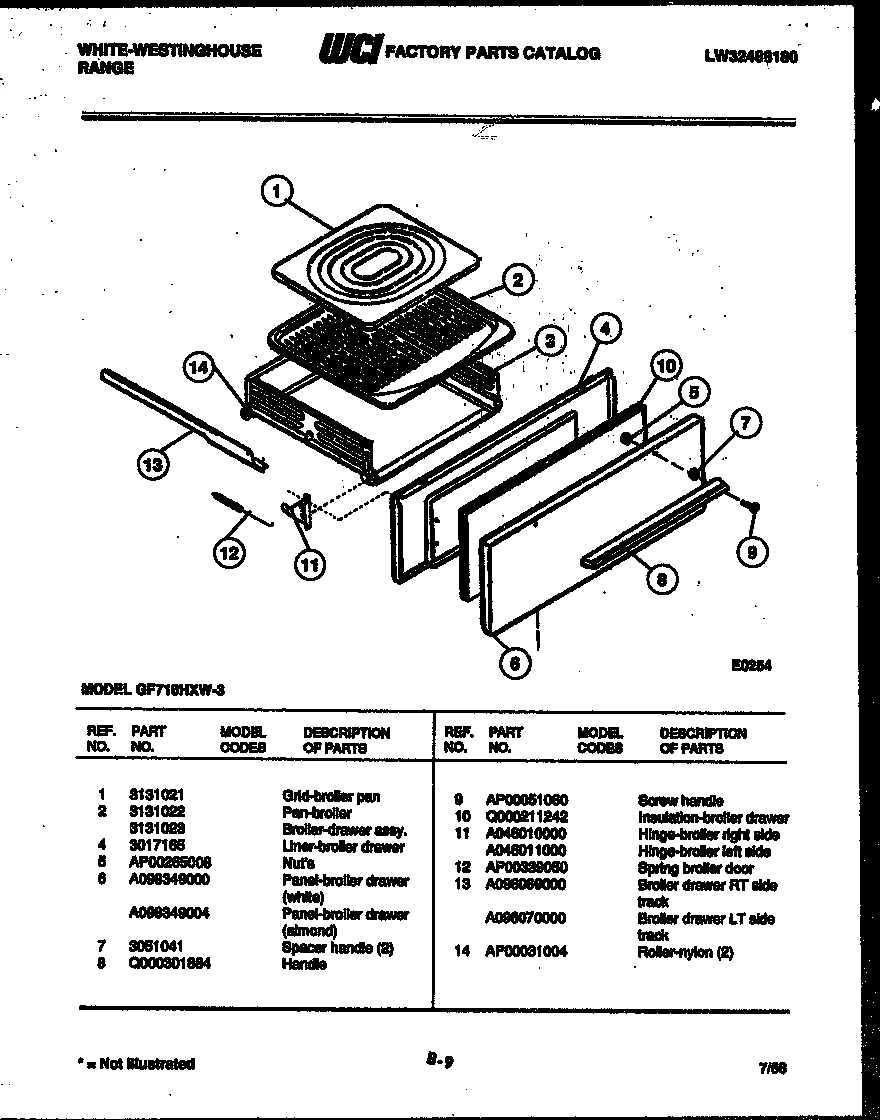

05 - BROILER DRAWER PARTS

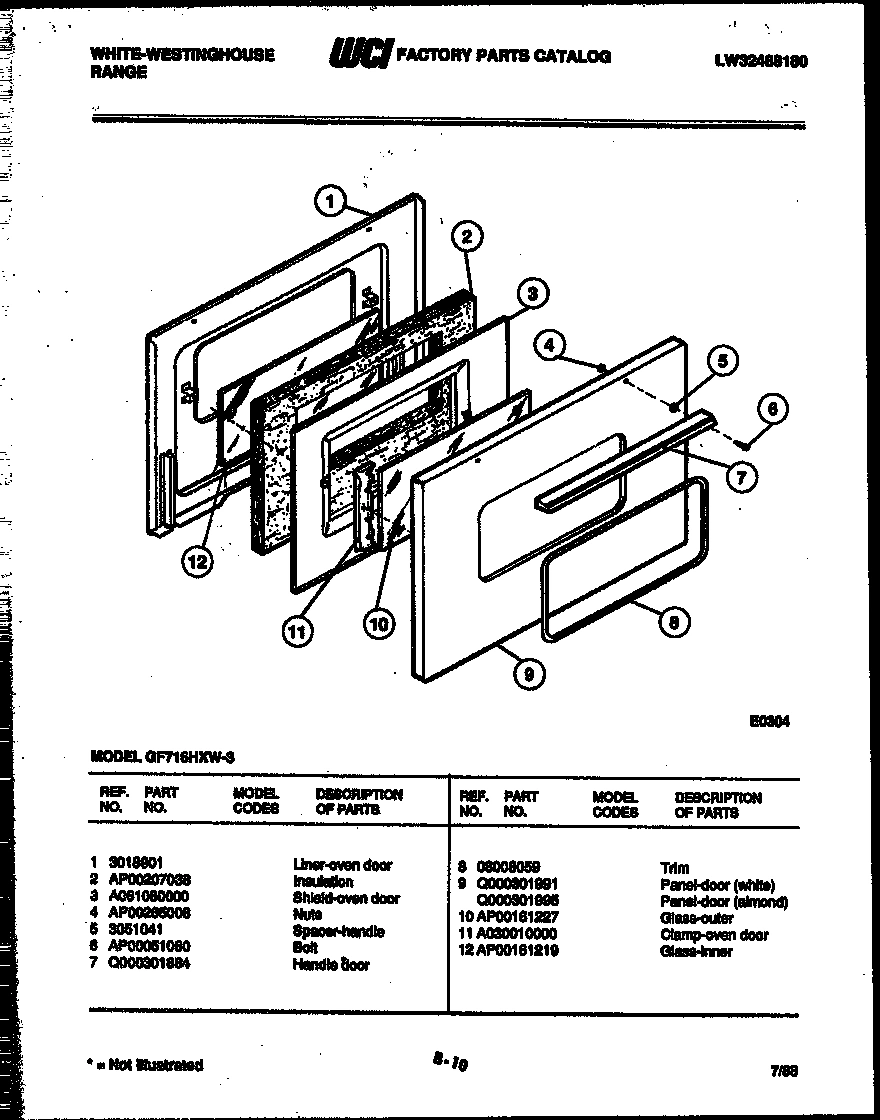

06 - DOOR PARTS

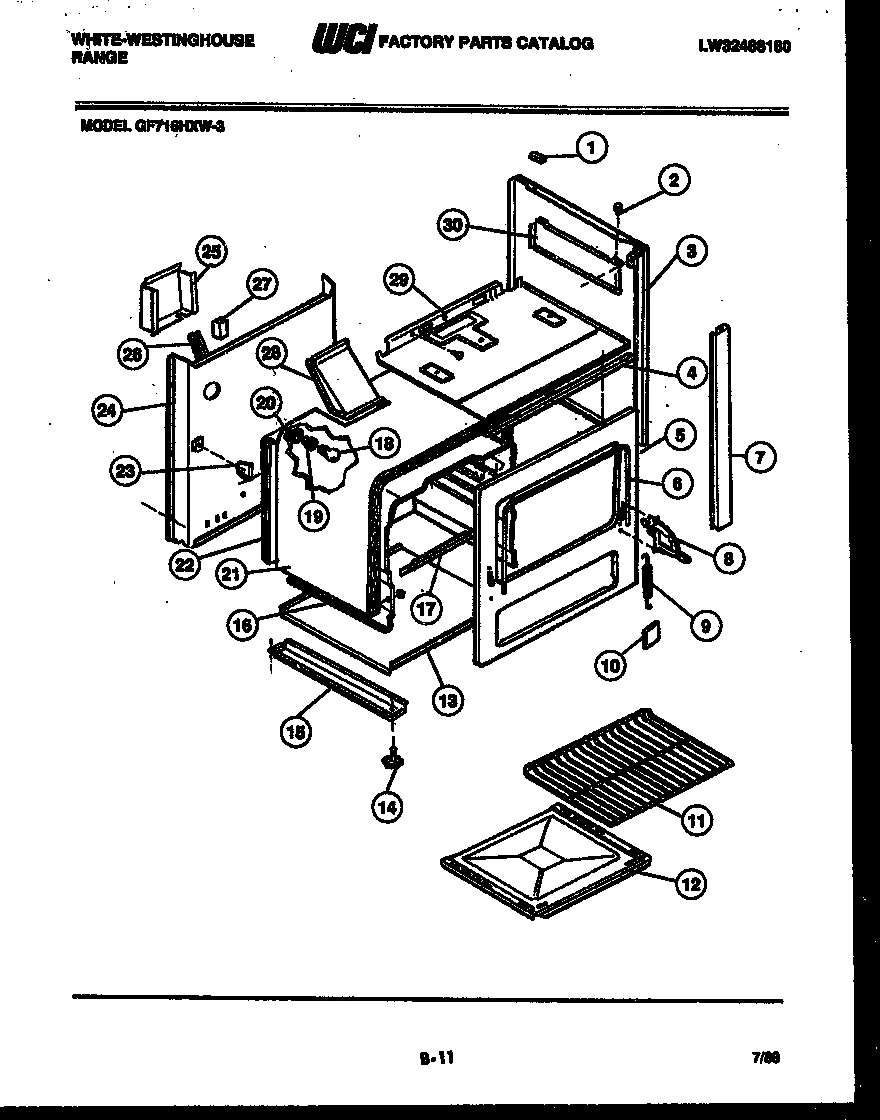

07 - BODY PARTS
Common parts from model Electrolux GF716HXW3 RANGE
*12088
CLIP-BODY SIDE WCI 3009582 Contact Us For Availability
*12088
WCI 3018339 WCI 3018339 Contact Us For Availability
1
WCI A053022000 WCI A053022000 Contact Us For Availability
1
GRID-BROILER PAN WCI 3131021 Contact Us For Availability
1
WCI 3018901 WCI 3018901 Contact Us For Availability
1
WCI 3015712 WCI 3015712 Contact Us For Availability
2
WCI 3018343 WCI 3018343 Contact Us For Availability
2
WCI A032071000 WCI A032071000 Contact Us For Availability
2
WCI Q000301852 WCI Q000301852 Contact Us For Availability
2
WCI AP00207038 WCI AP00207038 Contact Us For Availability
2
GROMMET WCI AP00172002 Contact Us For Availability
2A
BROILER DRAWER ASSY WCI 3131023 Contact Us For Availability
3
WCI AP00169006 WCI AP00169006 Contact Us For Availability
3
WCI Q000301273 WCI Q000301273 Contact Us For Availability
3
WCI A061080000 WCI A061080000 Contact Us For Availability
3
PANEL BODYSIDE-WHITE WCI Q000301942 Contact Us For Availability
3A
WCI Q000301870 WCI Q000301870 Contact Us For Availability
4
WCI Q000301903 WCI Q000301903 Contact Us For Availability
4
WCI Q000310018 WCI Q000310018 Contact Us For Availability
4
WCI Q000301858 WCI Q000301858 Contact Us For Availability
4
SUPPORT-CONTROL PANEL WCI A074065000 Contact Us For Availability
5
WCI AP00095185 WCI AP00095185 Contact Us For Availability
5
WCI Q000310004 WCI Q000310004 Contact Us For Availability
5
WCI 3018341 WCI 3018341 Contact Us For Availability
5
LINER-BROILER DRAWER WCI 3017165 Contact Us For Availability
5
SPACER-HANDLE WCI 3051041 Contact Us For Availability
5
FRAME - FRONT WCI 3017048 Contact Us For Availability
6
CLOCK KNOB WCI AP00227361 Contact Us For Availability
6
WCI Q000310017 WCI Q000310017 Contact Us For Availability
6
CAM TOP BURNER WCI A022002000 Contact Us For Availability
6
PANEL-BROILER DRAWER (WHITE) WCI A098349000 Contact Us For Availability
6
WCI AP00326052 WCI AP00326052 Contact Us For Availability
6A
WCI Q000301875 WCI Q000301875 Contact Us For Availability
7
TRIM BACKGUARD GLASS WCI 08013930 Contact Us For Availability
7
WCI Q000280097 WCI Q000280097 Contact Us For Availability
7
WCI Q000301874 WCI Q000301874 Contact Us For Availability
7
HANDLE - DOOR WCI Q000301884 Contact Us For Availability
7
FILLER PANEL BODY SIDE (WHITE) WCI A054143000 Contact Us For Availability
8
WCI Q000301907 WCI Q000301907 Contact Us For Availability
8
WCI Q000310010 WCI Q000310010 Contact Us For Availability
8
WCI Q000301869 WCI Q000301869 Contact Us For Availability
8
WCI 08008059 WCI 08008059 Contact Us For Availability
8
OVEN DOOR HINGE RT. WCI A096068000 Contact Us For Availability
9
BRACE BACKGUARD (2) WCI A016029000 Contact Us For Availability
9
GRATES (5) WCI Q000310102 Contact Us For Availability
9
CLIP - CAPILLARY WCI AP00091011 Contact Us For Availability
9
WCI Q000301991 WCI Q000301991 Contact Us For Availability
9
WCI AP00339042 WCI AP00339042 Contact Us For Availability
10
WCI AP00074003 WCI AP00074003 Contact Us For Availability
10
WCI AP00385174 WCI AP00385174 Contact Us For Availability
10
INSULATION-BROILER DRAWER WCI Q000211242 Contact Us For Availability
10
WCI AP00161227 WCI AP00161227 Contact Us For Availability
10
SUPPORT-BASE RAIL WCI A074061000 Contact Us For Availability
11
WCI AP00269017 WCI AP00269017 Contact Us For Availability
11
HINGE-BROILER RIGHT SIDE WCI A046010000 Contact Us For Availability
11
WCI A030010000 WCI A030010000 Contact Us For Availability
11
RACK-OVEN WCI 3015714 Contact Us For Availability
11A
HINGE-BROILER LEFT SIDE WCI A046011000 Contact Us For Availability
12
WCI AP00312003 WCI AP00312003 Contact Us For Availability
12
TUBE - OVEN FEED WCI 3131085 Contact Us For Availability
12
SPRING BROILER DOOR WCI AP00339050 Contact Us For Availability
12
WCI AP00161219 WCI AP00161219 Contact Us For Availability
12
BOTTOM OVEN LINER WCI 3017168 Contact Us For Availability
13
BRKT CLOCK MTG WCI Q000301963 Contact Us For Availability
13
WCI AP00269033 WCI AP00269033 Contact Us For Availability
13
BROILER DRAWER RT SIDE TRACK WCI A096069000 Contact Us For Availability
13
WCI A011069000 WCI A011069000 Contact Us For Availability
13A
BROILER DRAWER LT SIDE TRACK WCI A096070000 Contact Us For Availability
14
ROLLER NYLON (2) WCI AP00031004 Contact Us For Availability
14
WCI AP00267022 WCI AP00267022 Contact Us For Availability
14
WCI AP00269004 WCI AP00269004 Contact Us For Availability
14
LEG LEVELER WCI Q000310108 Contact Us For Availability
15
WCI A009010000 WCI A009010000 Contact Us For Availability
15
BASE-RAIL WCI 3051081 Contact Us For Availability
16
WCI AP00072025 WCI AP00072025 Contact Us For Availability
16
LINER - SIDE RT WCI 3131032 Contact Us For Availability
16A
LINER - SIDE LT WCI 3131033 Contact Us For Availability
16B
WCI 3018902 WCI 3018902 Contact Us For Availability
16C
WCI 3018903 WCI 3018903 Contact Us For Availability
17
TERMINAL BOARD WCI AP00042025 Contact Us For Availability
17
WCI A074055000 WCI A074055000 Contact Us For Availability
18
COVER, OVEN VALVE WCI A032130000 Contact Us For Availability
19
BUSHING SNAP WCI AP00074001 Contact Us For Availability
20
WCI 3051511 WCI 3051511 Contact Us For Availability
20
SUPPORT OVEN VALVE WCI A074054000 Contact Us For Availability
21
WCI AP00385181 WCI AP00385181 Contact Us For Availability
21
WCI 3017171 WCI 3017171 Contact Us For Availability
22
WCI 3017172 WCI 3017172 Contact Us For Availability
23
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
23
WCI A074060000 WCI A074060000 Contact Us For Availability
24
IGNITOR (3) WCI 3016869 Contact Us For Availability
24
WCI A005088000 WCI A005088000 Contact Us For Availability
25
WCI Q002500101 WCI Q002500101 Contact Us For Availability
25
WCI A032138000 WCI A032138000 Contact Us For Availability
26
WCI Q002500102 WCI Q002500102 Contact Us For Availability
26
CHANNEL WIRE WCI Q000310003 Contact Us For Availability
27
SUPPORT - GRID BURNER WCI 3018342 Contact Us For Availability
27
WCI 3018338 WCI 3018338 Contact Us For Availability
28
WCI Q002500103 WCI Q002500103 Contact Us For Availability
28
VENT BOX WCI 3017173 Contact Us For Availability
29
WCI 3017993 WCI 3017993 Contact Us For Availability
30
WCI A061044000 WCI A061044000 Contact Us For Availability
30A
WCI A061074000 WCI A061074000 Contact Us For Availability
× ![]()
