Model Electrolux GF716HXH1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, CONTROL PANEL

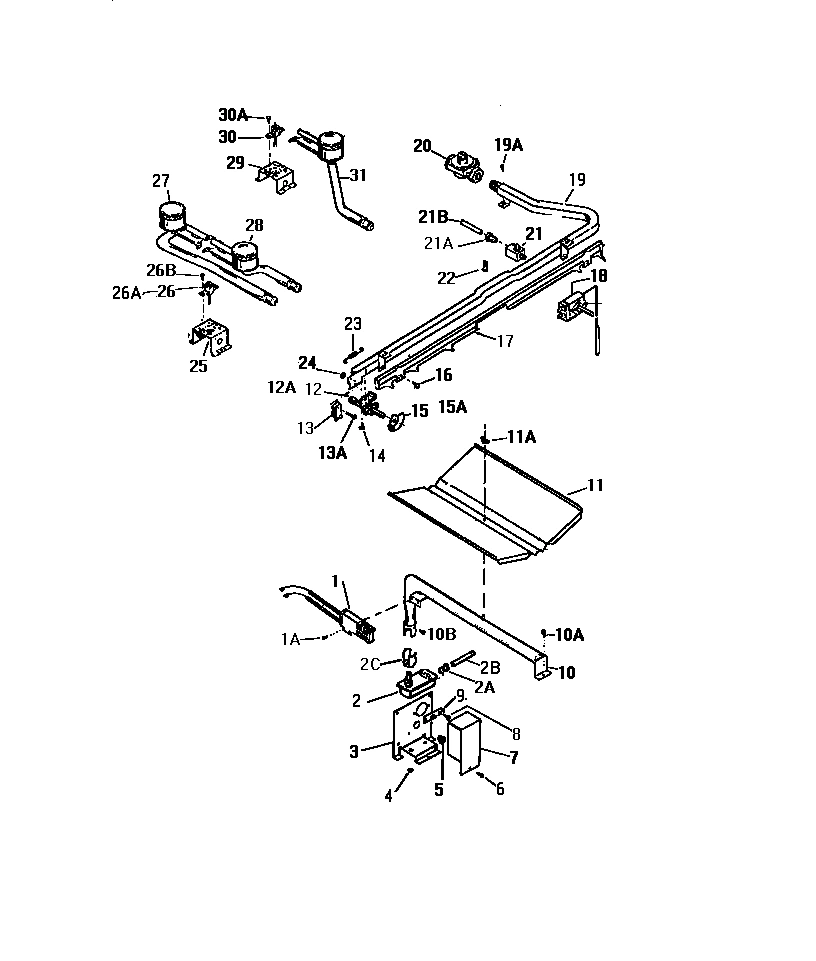

04 - BURNER ASSEMBLY

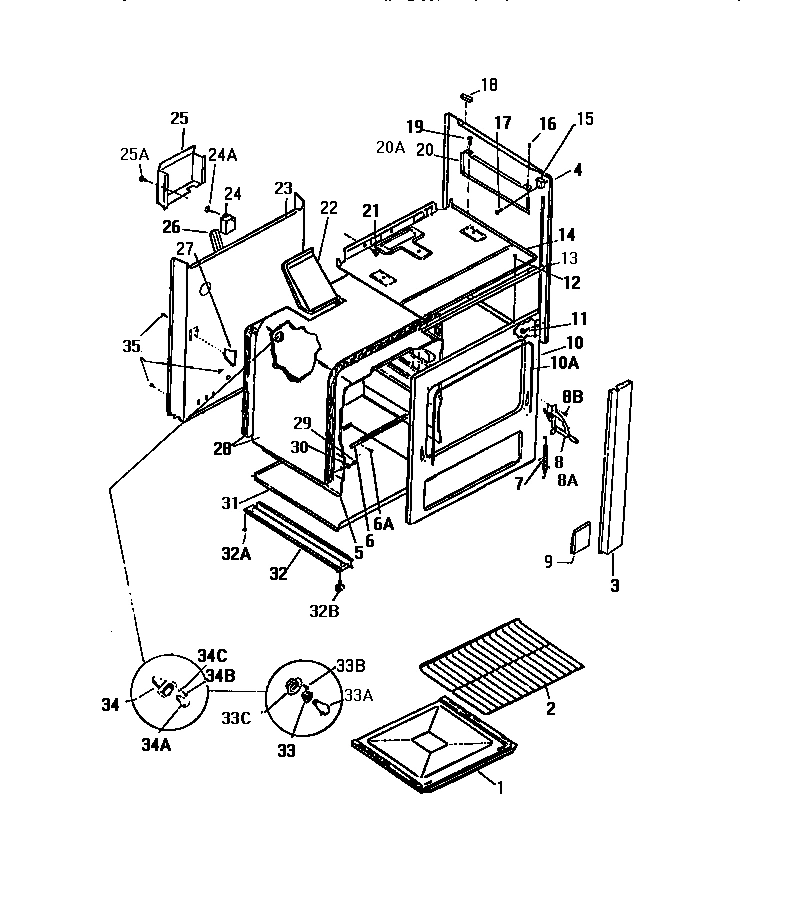

05 - BODY, SIDE PANELS

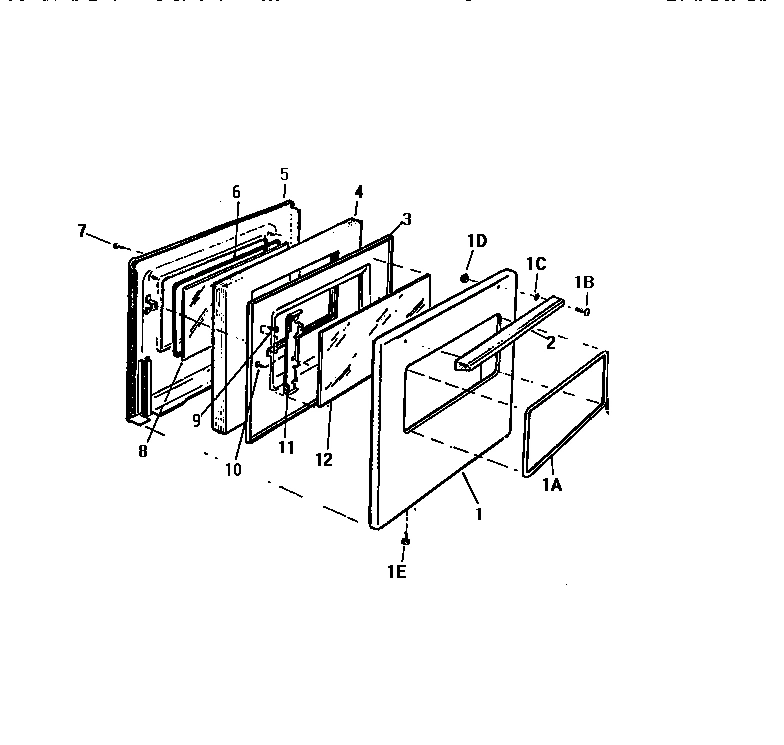

06 - DOOR

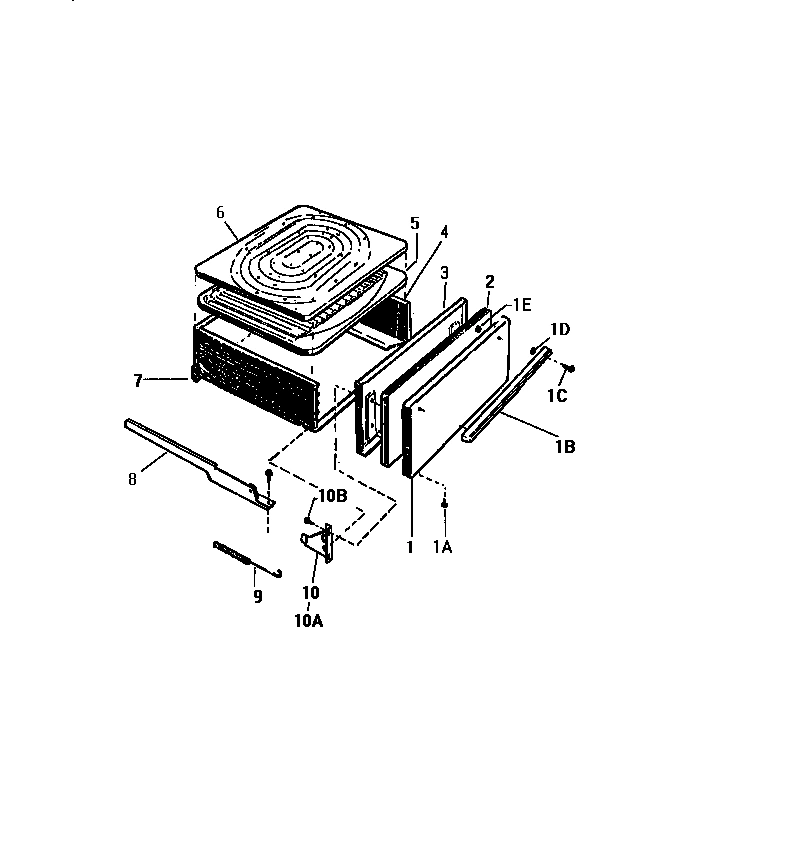

07 - BROILER DRAWER
Common parts from model Electrolux GF716HXH1 RANGE
1
WCI Q301907 WCI Q301907 Contact Us For Availability
1
WCI A32071003 WCI A32071003 Contact Us For Availability
1
WCI Q301977 WCI Q301977 Contact Us For Availability
1
PANEL, OVEN DOOR, WHEAT WCI Q301994 Contact Us For Availability
1
WCI A98349003 WCI A98349003 Contact Us For Availability
1A
SCREW WCI AP051046 Contact Us For Availability
1A
WCI Q301939 WCI Q301939 Contact Us For Availability
1B
WCI Q301884 WCI Q301884 Contact Us For Availability
1D
WCI Q61664 WCI Q61664 Contact Us For Availability
1E
NUT WCI AP265008 Contact Us For Availability
2
WCI Q310007 WCI Q310007 Contact Us For Availability
2
WCI Q310021 WCI Q310021 Contact Us For Availability
2
WCI Q301871 WCI Q301871 Contact Us For Availability
2
RACK WCI AP301046 Contact Us For Availability
2
WCI Q138829 WCI Q138829 Contact Us For Availability
2A
NUT WCI AP269033 Contact Us For Availability
2C
SHUTTER WCI AP330001 Contact Us For Availability
3
WCI Q301903 WCI Q301903 Contact Us For Availability
3
WCI Q310013 WCI Q310013 Contact Us For Availability
3
SUPPORT WCI A74054000 Contact Us For Availability
3
WCI A54143003 WCI A54143003 Contact Us For Availability
3
SHIELD WCI A61080000 Contact Us For Availability
3
WCI Q301882 WCI Q301882 Contact Us For Availability
3A
SCREW WCI AP056004 Contact Us For Availability
4
TIMER WCI AP095185 Contact Us For Availability
4
KNOB, BURNER WCI Q280097 Contact Us For Availability
4
BODY PANEL, WHEAT WCI Q301945 Contact Us For Availability
4
INSULATION WCI AP207038 Contact Us For Availability
4
WCI Q301881 WCI Q301881 Contact Us For Availability
4A
KNOB, TIMER WCI AP227361 Contact Us For Availability
5
WCI Q301911 WCI Q301911 Contact Us For Availability
5
WCI Q310017 WCI Q310017 Contact Us For Availability
5
OVEN WRAPPER PANELS, RH SIDE WCI Q301971 Contact Us For Availability
5
WCI Q301930 WCI Q301930 Contact Us For Availability
5
PAN, BROIL WCI A53002000 Contact Us For Availability
5A
WCI Q301972 WCI Q301972 Contact Us For Availability
5B
WCI Q301973 WCI Q301973 Contact Us For Availability
5C
WCI Q310085 WCI Q310085 Contact Us For Availability
6
WCI Q301894 WCI Q301894 Contact Us For Availability
6
WCI Q310004 WCI Q310004 Contact Us For Availability
6
SUPPORT, BOTTOM WCI A74055000 Contact Us For Availability
6
SEAL WCI AP326048 Contact Us For Availability
6
GRID, BROIL WCI A43001000 Contact Us For Availability
7
BRACE RH & LH WCI Q301891 Contact Us For Availability
7
PAN, AERATION WCI A53022000 Contact Us For Availability
7
VALVE COVER WCI A32130000 Contact Us For Availability
7
SPRING WCI AP339042 Contact Us For Availability
7
ROLLER WCI AP031004 Contact Us For Availability
8
WCI Q301910 WCI Q301910 Contact Us For Availability
8
WCI AP169006 WCI AP169006 Contact Us For Availability
8
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
8
WCI AP161230 WCI AP161230 Contact Us For Availability
8
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
8A
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
9
WCI Q301963 WCI Q301963 Contact Us For Availability
9
GRATE WCI AP165005 Contact Us For Availability
9
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
9
SUPPORT WCI A74061000 Contact Us For Availability
9
BOLT WCI AP051052 Contact Us For Availability
9
SPRING WCI AP339050 Contact Us For Availability
9A
CLIP WCI AP267022 Contact Us For Availability
10
WCI Q301896 WCI Q301896 Contact Us For Availability
10
BURNER WCI AP072025 Contact Us For Availability
10
WCI Q301967 WCI Q301967 Contact Us For Availability
10
WCI AP051051 WCI AP051051 Contact Us For Availability
10
HINGE ASSY, LH WCI A46011000 Contact Us For Availability
10A
SEAL WCI AP326052 Contact Us For Availability
10A
HINGE ASSY, RH WCI A46010000 Contact Us For Availability
10B
SCREW WCI AP325005 Contact Us For Availability
10B
SCREW WCI AP051056 Contact Us For Availability
11
WCI AP312003 WCI AP312003 Contact Us For Availability
11
BAFFLE WCI A9010000 Contact Us For Availability
11
CLAMP WCI A30010000 Contact Us For Availability
11A
WING NUT WCI AP269004 Contact Us For Availability
12
WCI Q301900 WCI Q301900 Contact Us For Availability
12
VALVES, TOP BURNERS WCI Q301873 Contact Us For Availability
12
WCI AP161227 WCI AP161227 Contact Us For Availability
12A
WCI Q301870 WCI Q301870 Contact Us For Availability
13
WCI Q301874 WCI Q301874 Contact Us For Availability
13
WCI A74065000 WCI A74065000 Contact Us For Availability
13A
SCREW WCI AP055031 Contact Us For Availability
14
BLOCK, TERMINAL WCI AP042003 Contact Us For Availability
14
WCI Q310002 WCI Q310002 Contact Us For Availability
14
WCI Q301976 WCI Q301976 Contact Us For Availability
14A
SCREW WCI AP051022 Contact Us For Availability
15
CAM VALVE, TOP BURNERS WCI A22002000 Contact Us For Availability
15
PAD, CORNER (2) WCI Q310084 Contact Us For Availability
15A
WCI Q301875 WCI Q301875 Contact Us For Availability
16
WCI Q301839 WCI Q301839 Contact Us For Availability
16
WCI AP172002 WCI AP172002 Contact Us For Availability
17
WCI Q301856 WCI Q301856 Contact Us For Availability
18
WCI Q301858 WCI Q301858 Contact Us For Availability
18
WCI Q301831 WCI Q301831 Contact Us For Availability
19
WCI Q301852 WCI Q301852 Contact Us For Availability
20
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
20A
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
21
WCI AP074001 WCI AP074001 Contact Us For Availability
21
WCI AP385174 WCI AP385174 Contact Us For Availability
21A
LOCK NUT WCI AP269017 Contact Us For Availability
21B
WCI Q301867 WCI Q301867 Contact Us For Availability
22
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
22
WCI A92049000 WCI A92049000 Contact Us For Availability
23
WCI Q301869 WCI Q301869 Contact Us For Availability
23
WCI A5088000 WCI A5088000 Contact Us For Availability
24
NUT WCI AP265009 Contact Us For Availability
24
WCI Q301975 WCI Q301975 Contact Us For Availability
25
SUPPORT WCI Q301866 Contact Us For Availability
25
WCI A32138000 WCI A32138000 Contact Us For Availability
26
IGNITOR, RH WCI Q301863 Contact Us For Availability
26
WCI Q310003 WCI Q310003 Contact Us For Availability
26A
WCI Q301864 WCI Q301864 Contact Us For Availability
27
BURNER, REAR WCI Q301865 Contact Us For Availability
27
SUPPORT, REAR OVEN WCI A74060000 Contact Us For Availability
28
BURNER, FRONT WCI Q301861 Contact Us For Availability
28
INSULATION WCI Q134234 Contact Us For Availability
29
WCI Q310025 WCI Q310025 Contact Us For Availability
29
WCI AP051045 WCI AP051045 Contact Us For Availability
30
IGNITOR WCI Q301862 Contact Us For Availability
30
WCI AP391021 WCI AP391021 Contact Us For Availability
31
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
32
BASE RAIL WCI A98373000 Contact Us For Availability
32B
LEG WCI AP059009 Contact Us For Availability
33
WCI Q310061 WCI Q310061 Contact Us For Availability
33A
WCI Q63749 WCI Q63749 Contact Us For Availability
33C
WCI Q310063 WCI Q310063 Contact Us For Availability
× ![]()
