Model Electrolux GF710HXW2 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, CONTROL PANEL

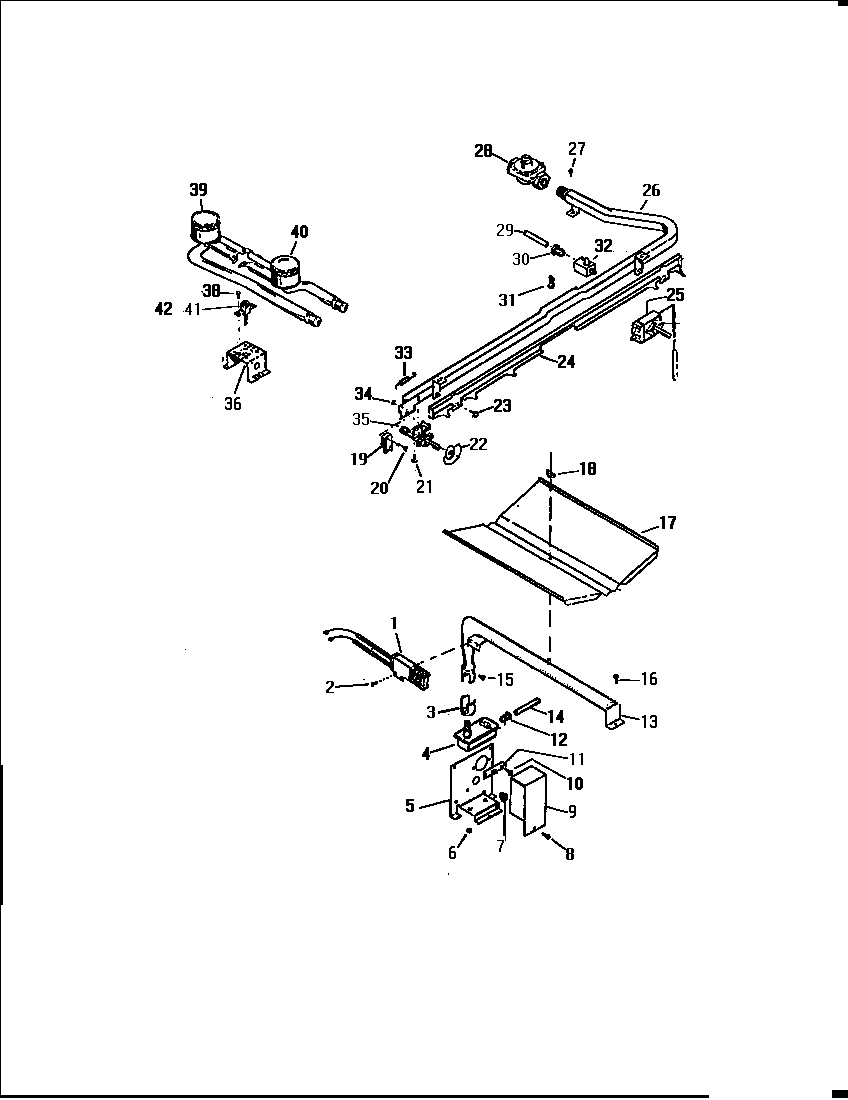

04 - BURNER ASSEMBLY

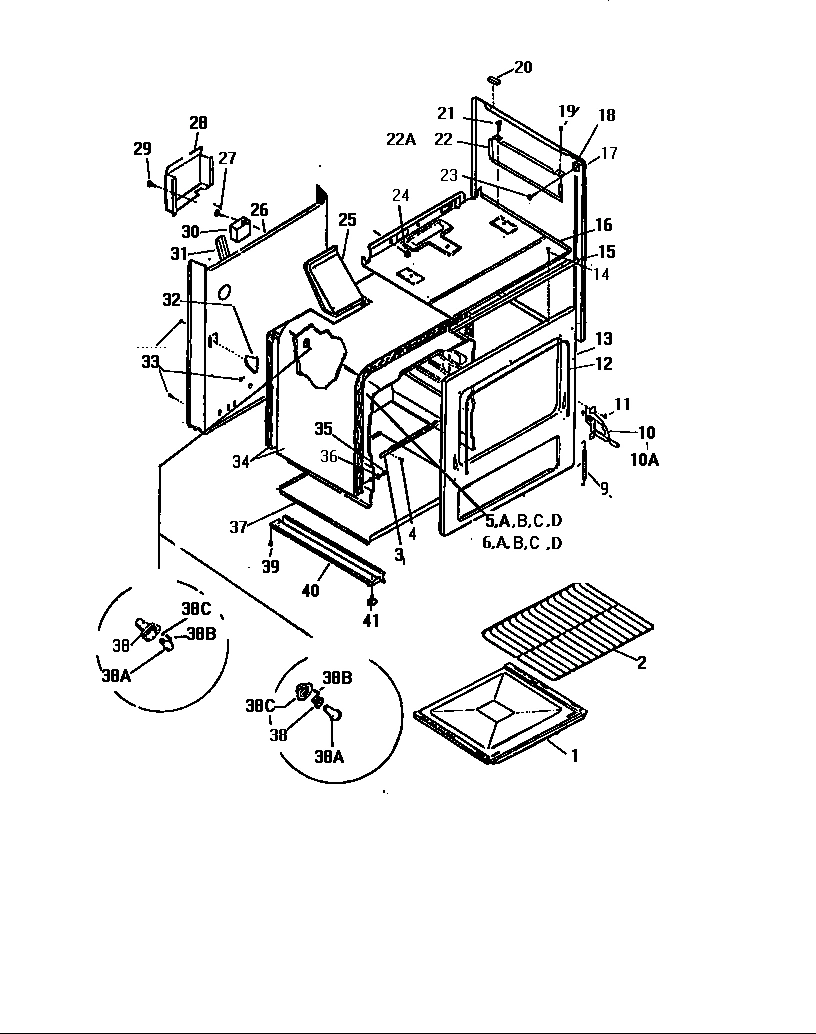

05 - BODY

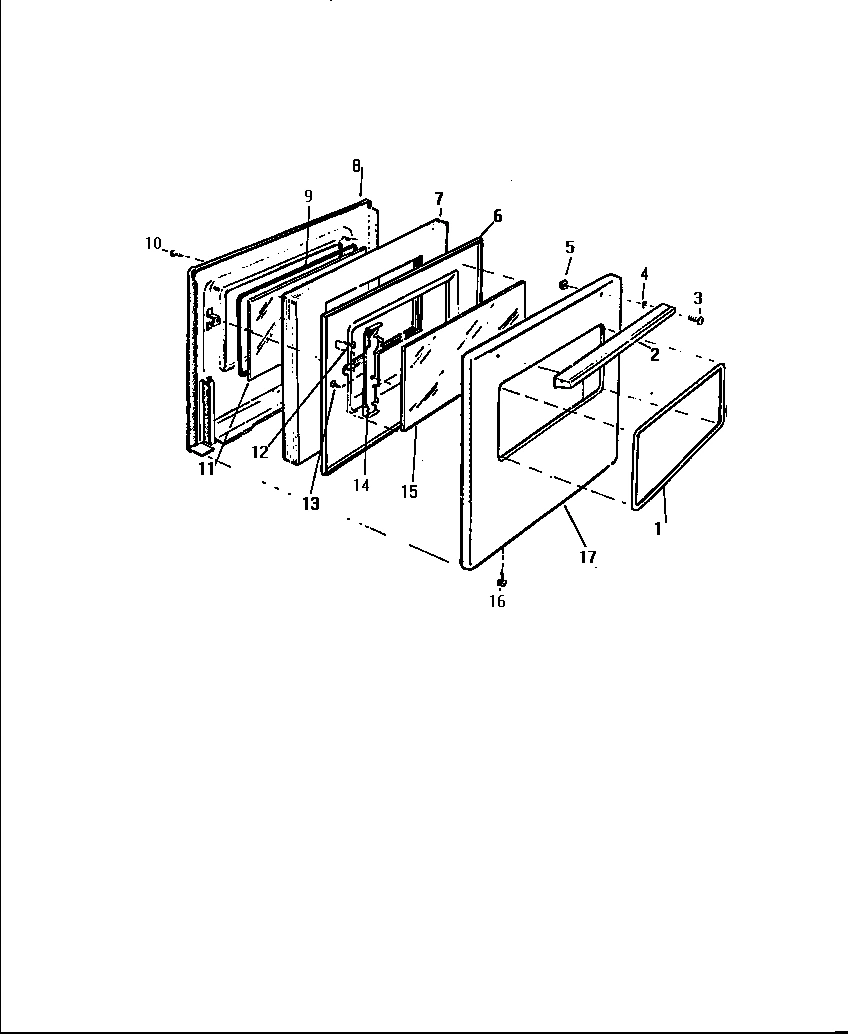

06 - DOOR, GF710H

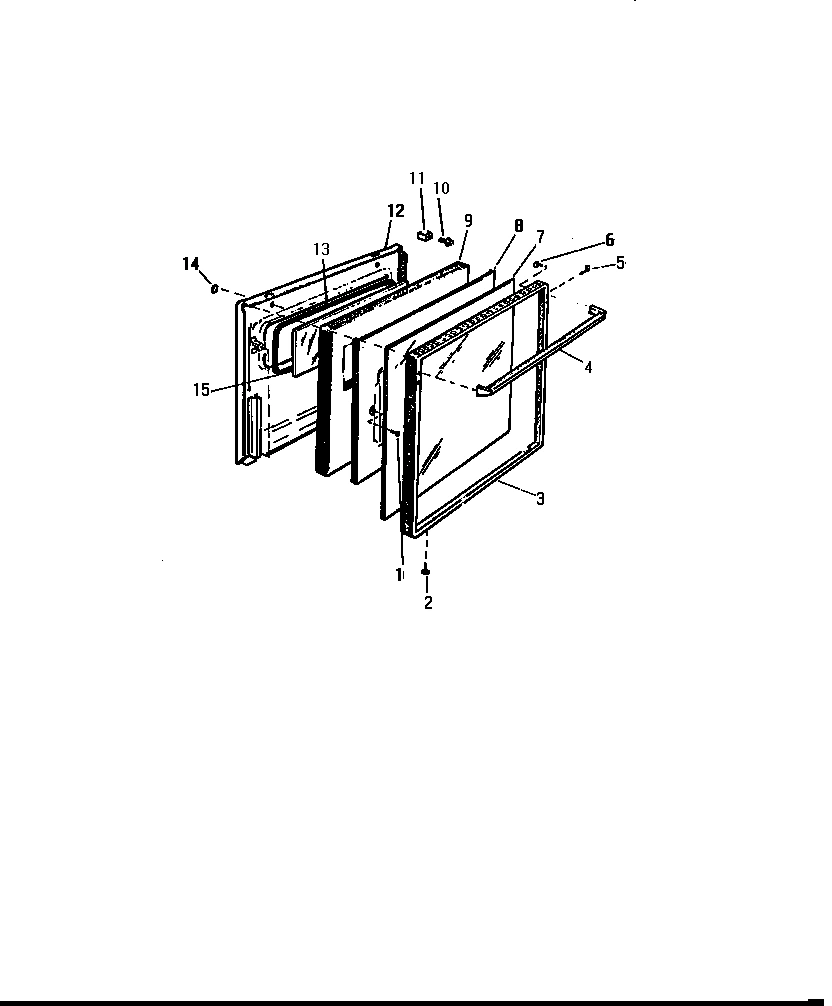

07 - DOOR, GF770H

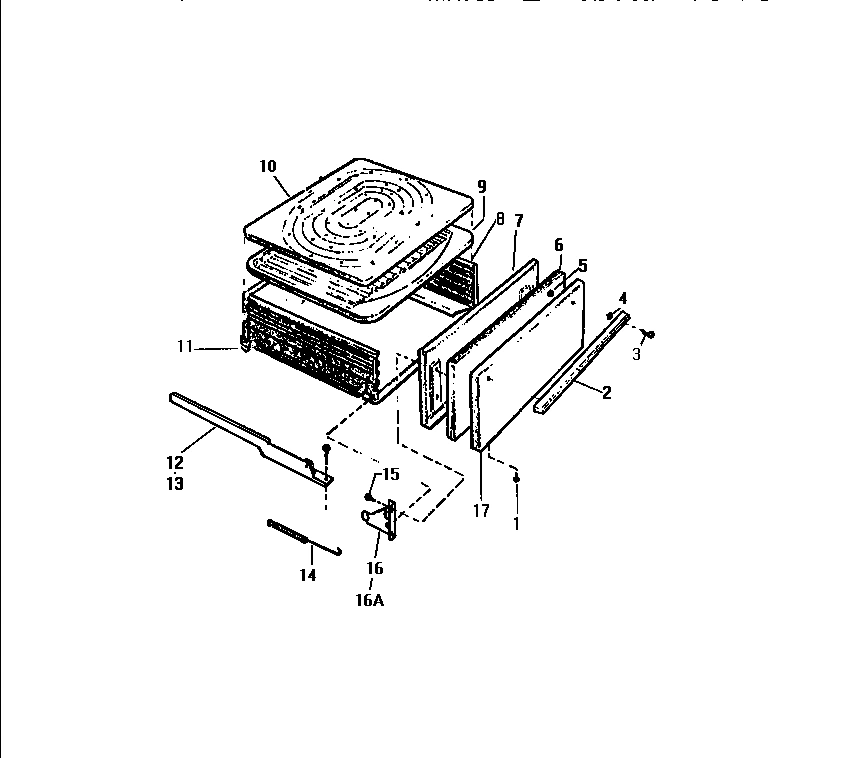

08 - BROILER DRAWER
Common parts from model Electrolux GF710HXW2 RANGE
1
WCI Q301895 WCI Q301895 Contact Us For Availability
1
WCI Q280099 WCI Q280099 Contact Us For Availability
1
WCI Q301977 WCI Q301977 Contact Us For Availability
1
WCI Q301939 WCI Q301939 Contact Us For Availability
1
BOLT WCI AP051052 Contact Us For Availability
2
BRACE RH & LH WCI Q301891 Contact Us For Availability
2
KNOB, BURNER WCI Q280097 Contact Us For Availability
2
SCREW WCI AP051046 Contact Us For Availability
2
RACK WCI AP301046 Contact Us For Availability
2
WCI Q301884 WCI Q301884 Contact Us For Availability
2
WCI AO053033 WCI AO053033 Contact Us For Availability
3
WCI Q301906 WCI Q301906 Contact Us For Availability
3
WCI Q310004 WCI Q310004 Contact Us For Availability
3
SHUTTER WCI AP330001 Contact Us For Availability
3
SUPPORT, BOTTOM WCI A74055000 Contact Us For Availability
3
WCI Q301938 WCI Q301938 Contact Us For Availability
4
TRIM WCI AP375273 Contact Us For Availability
4
WCI Q310102 WCI Q310102 Contact Us For Availability
4
WCI Q301871 WCI Q301871 Contact Us For Availability
4
WCI Q61664 WCI Q61664 Contact Us For Availability
4
WCI Q301935 WCI Q301935 Contact Us For Availability
5
KNOB, TIMER WCI AP227361 Contact Us For Availability
5
WCI Q280083 WCI Q280083 Contact Us For Availability
5
SUPPORT WCI A74054000 Contact Us For Availability
5
NUT WCI AP265008 Contact Us For Availability
5
OVEN WRAPPER PANEL, RH WCI Q301971 Contact Us For Availability
5A
OVEN WRAPPER PANEL, LH WCI Q301972 Contact Us For Availability
5B
WCI Q301973 WCI Q301973 Contact Us For Availability
5D
WCI Q310085 WCI Q310085 Contact Us For Availability
6
TIMER WCI AP095185 Contact Us For Availability
6
OVEN WRAPPER PANEL, RH WCI Q301979 Contact Us For Availability
6
SCREW WCI AP057025 Contact Us For Availability
6
WCI Q138829 WCI Q138829 Contact Us For Availability
6A
OVEN WRAPPER PANEL, LH WCI Q301980 Contact Us For Availability
6B
OVEN WRAPPER PANEL, TOP WCI Q301981 Contact Us For Availability
6D
OVEN WRAPPER PANEL, BACK WCI Q310062 Contact Us For Availability
7
SCREW WCI AP056004 Contact Us For Availability
7
WCI Q301934 WCI Q301934 Contact Us For Availability
7
WCI Q301882 WCI Q301882 Contact Us For Availability
8
WCI Q301902 WCI Q301902 Contact Us For Availability
8
WCI AO051056 WCI AO051056 Contact Us For Availability
8
SHIELD WCI A61080000 Contact Us For Availability
8
WCI Q301881 WCI Q301881 Contact Us For Availability
9
WCI Q301911 WCI Q301911 Contact Us For Availability
9
VALVE COVER WCI A32130000 Contact Us For Availability
9
SPRING WCI AP339042 Contact Us For Availability
9
INSULATION WCI AP207038 Contact Us For Availability
9
SEAL WCI AP326048 Contact Us For Availability
9
PAN, BROIL WCI A53002000 Contact Us For Availability
10
BUSHING WCI AP074003 Contact Us For Availability
10
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
10
WCI Q301937 WCI Q301937 Contact Us For Availability
10
GRID, BROIL WCI A43001000 Contact Us For Availability
11
WCI Q301898 WCI Q301898 Contact Us For Availability
11
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
11
WCI Q301936 WCI Q301936 Contact Us For Availability
11
ROLLER WCI AP031004 Contact Us For Availability
12
WCI AP312003 WCI AP312003 Contact Us For Availability
12
NUT WCI AP269033 Contact Us For Availability
12
SEAL WCI AP326052 Contact Us For Availability
12
WCI Q301930 WCI Q301930 Contact Us For Availability
12
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
13
BURNER WCI AP072025 Contact Us For Availability
13
WCI Q301967 WCI Q301967 Contact Us For Availability
13
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
14
WCI Q301897 WCI Q301897 Contact Us For Availability
14
CLAMP WCI A30010000 Contact Us For Availability
14
PLUG WCI AP075019 Contact Us For Availability
14
SPRING WCI AP339050 Contact Us For Availability
15
WCI Q301963 WCI Q301963 Contact Us For Availability
15
SCREW WCI AP325005 Contact Us For Availability
15
SCREW WCI AP051056 Contact Us For Availability
15
WCI A74076000 WCI A74076000 Contact Us For Availability
15
WCI AP161230 WCI AP161230 Contact Us For Availability
15
WCI AP161227 WCI AP161227 Contact Us For Availability
16
CLIP WCI AP267022 Contact Us For Availability
16
WCI Q301968 WCI Q301968 Contact Us For Availability
16
WCI AP051051 WCI AP051051 Contact Us For Availability
16
HINGE-LH WCI A46011000 Contact Us For Availability
16A
HINGE-RH WCI A46010000 Contact Us For Availability
17
WCI Q301909 WCI Q301909 Contact Us For Availability
17
BAFFLE WCI A9010000 Contact Us For Availability
17
BODY PANEL, WHITE WCI Q301942 Contact Us For Availability
17
PANEL, OVEN DOOR, WHITE WCI Q301991 Contact Us For Availability
17
OUTER PANEL DRAWER, WHITE WCI A98349000 Contact Us For Availability
18
SCREW WCI AP051022 Contact Us For Availability
18
WING NUT WCI AP269004 Contact Us For Availability
18
WCI Q310084 WCI Q310084 Contact Us For Availability
19
BLOCK, TERMINAL WCI AP042003 Contact Us For Availability
19
WCI Q301874 WCI Q301874 Contact Us For Availability
19
WCI AP172002 WCI AP172002 Contact Us For Availability
20
SCREW WCI AP055031 Contact Us For Availability
20
WCI Q301831 WCI Q301831 Contact Us For Availability
21
WCI Q310002 WCI Q310002 Contact Us For Availability
22
WCI A22002000 WCI A22002000 Contact Us For Availability
22
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
22A
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
23
WCI Q301839 WCI Q301839 Contact Us For Availability
24
WCI AP074001 WCI AP074001 Contact Us For Availability
24
WCI Q301857 WCI Q301857 Contact Us For Availability
25
WCI Q301858 WCI Q301858 Contact Us For Availability
25
WCI A92049000 WCI A92049000 Contact Us For Availability
26
WCI Q301855 WCI Q301855 Contact Us For Availability
26
WCI A5087000 WCI A5087000 Contact Us For Availability
28
COVER, MODULE WCI A32137000 Contact Us For Availability
29
WCI Q301867 WCI Q301867 Contact Us For Availability
30
LOCK NUT WCI AP269017 Contact Us For Availability
30
WCI Q301950 WCI Q301950 Contact Us For Availability
31
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
31
WCI Q310003 WCI Q310003 Contact Us For Availability
32
VALVE, SHUT OFF WCI AP386174 Contact Us For Availability
32
SUPPORT WCI A74060000 Contact Us For Availability
33
WCI Q301869 WCI Q301869 Contact Us For Availability
33
WCI A051056 WCI A051056 Contact Us For Availability
34
NUT WCI AP265009 Contact Us For Availability
34
INSULATION WCI Q134234 Contact Us For Availability
35
WCI Q301873 WCI Q301873 Contact Us For Availability
35
WCI AP051045 WCI AP051045 Contact Us For Availability
36
SUPPORT WCI Q301866 Contact Us For Availability
36
WCI AP391021 WCI AP391021 Contact Us For Availability
37
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
38
WCI Q310061 WCI Q310061 Contact Us For Availability
38A
WCI Q63749 WCI Q63749 Contact Us For Availability
38C
WCI Q310063 WCI Q310063 Contact Us For Availability
39
BURNER, REAR WCI Q301865 Contact Us For Availability
40
WCI Q301961 WCI Q301961 Contact Us For Availability
40
BASE RAIL WCI A98373000 Contact Us For Availability
41
WCI Q301862 WCI Q301862 Contact Us For Availability
41
LEG WCI AP059009 Contact Us For Availability
42
WCI Q301864 WCI Q301864 Contact Us For Availability
× ![]()
