Model Electrolux GF680RXD1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BURNER, MANIFOLD AND GAS CONTROL

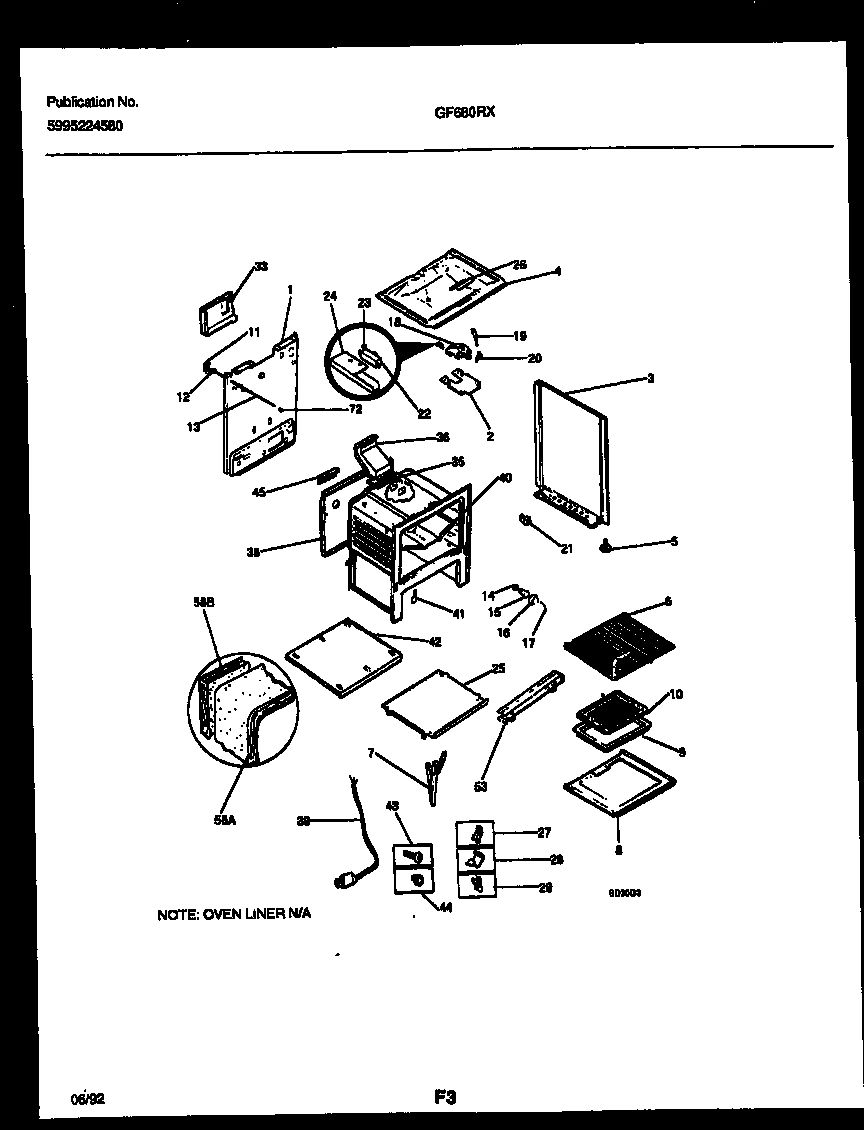

04 - BODY PARTS

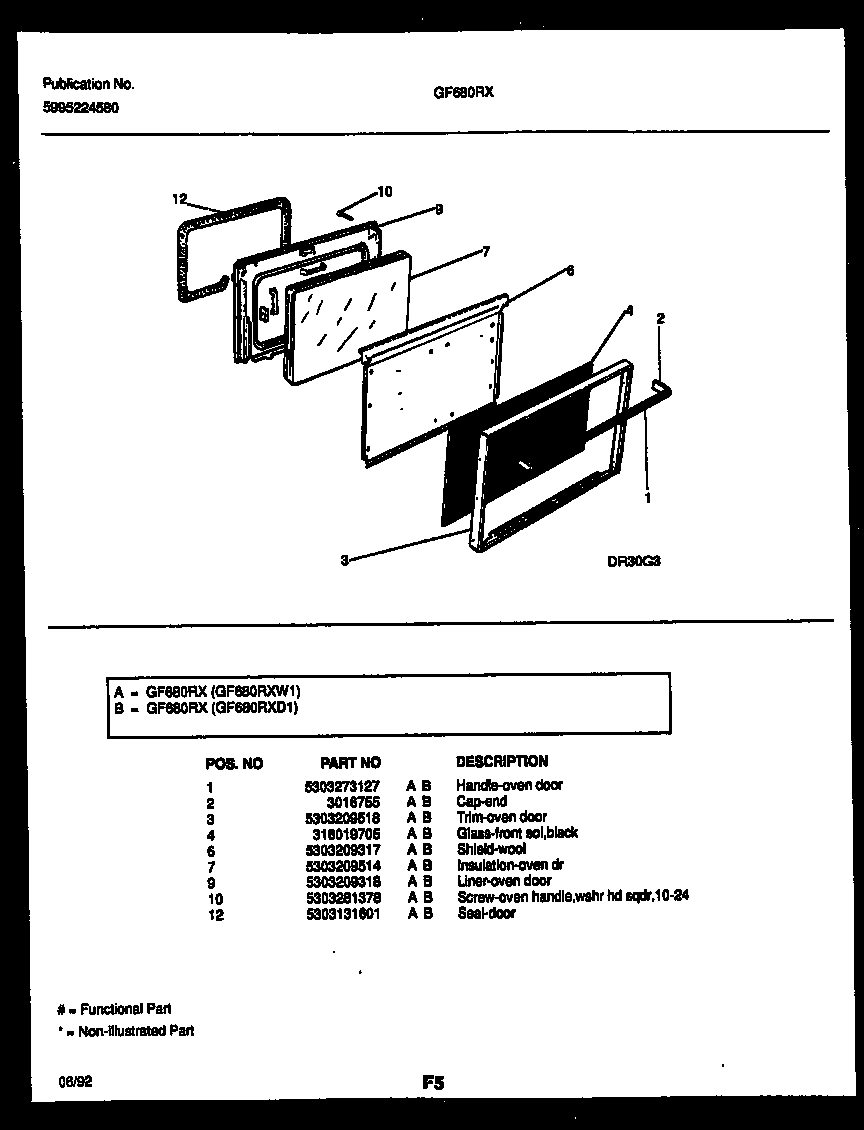

05 - DOOR PARTS

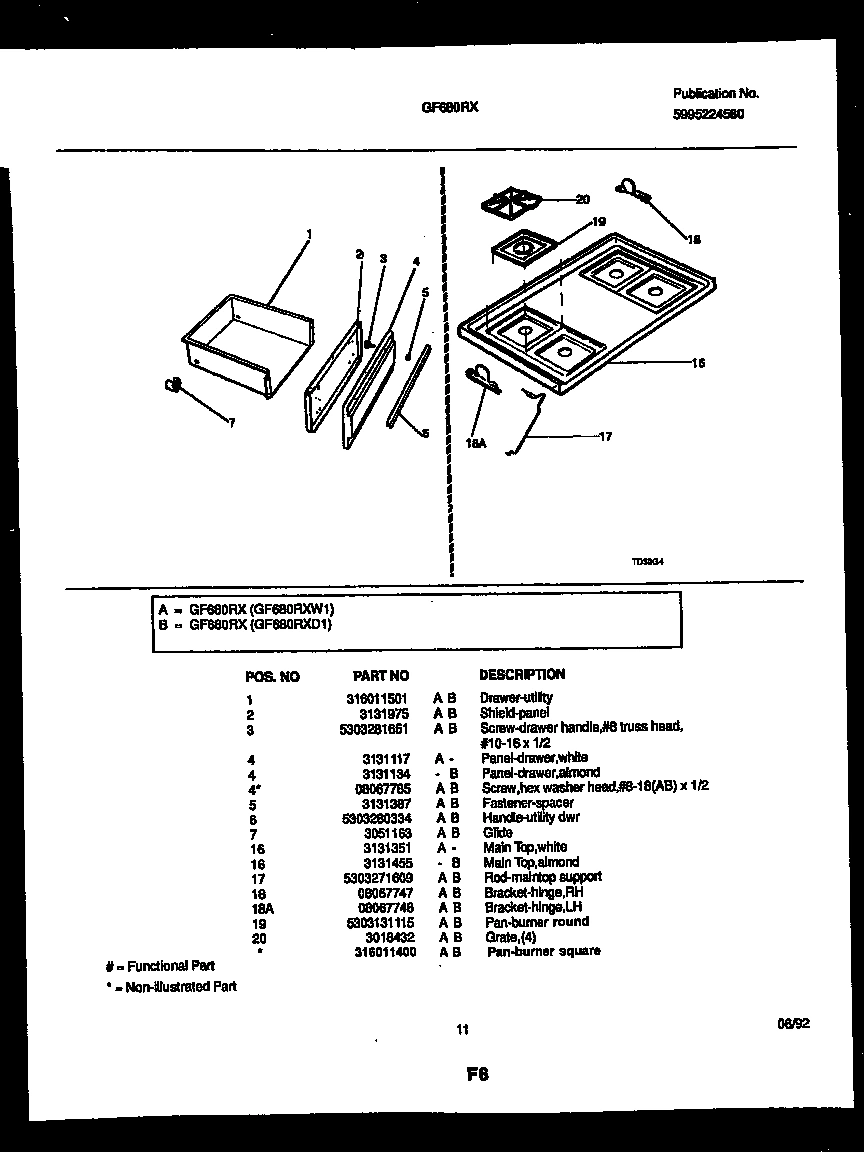

06 - DRAWER AND COOKTOP PARTS
Common parts from model Electrolux GF680RXD1 RANGE
*64691
PAN-BURNER SQUARE WCI 316011400 Contact Us For Availability
1
HANDLE-OVEN DOOR WCI 5303273127 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
VALVE, TOP, 2 POS, (4) WCI 316031900 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316032001 WCI 316032001 Contact Us For Availability
3
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
WCI 5303209518 WCI 5303209518 Contact Us For Availability
3A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3C
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
3D
FASTENER-EDGE MTG (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
3E
WCI 08067992 WCI 08067992 Contact Us For Availability
4
BOX-BURNER WCI 3011597 Contact Us For Availability
4
TUBE-BURNER, RF WCI 5303283665 Contact Us For Availability
4
GLASS-FRONT SOL, BLACK WCI 316019705 Contact Us For Availability
4
WCI 3131134 WCI 3131134 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
TUBE-BURNER, LF WCI 5303283666 Contact Us For Availability
5
FASTENER, SPACER WCI 3131387 Contact Us For Availability
5A
BRACKET, ANTI-TIP (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
NUT-TEE, LEVELING LEG (NON-ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
TUBE-BURNER, RR WCI 5303283667 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
HANDLE-UTILITY DWR WCI 5303280334 Contact Us For Availability
7
HINGE-OVEN DOOR WCI 316007001 Contact Us For Availability
7
TUBE-BURNER, LR WCI 5303283668 Contact Us For Availability
7
INSULATION - OVEN DR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 3013279 WCI 3013279 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-OVEN HANDLE, WSHR HD SQDR, 10-24 WCI 5303281378 Contact Us For Availability
10
BURNER-TOP, DOUBLE, (4) WCI 5303131147 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
IGNITER-TOP BURNER, BASE, (2) WCI 3200276 Contact Us For Availability
11
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
12
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
13
TUBE, ALUMINUM, RGLTR TO MANF, WITH FITTINGS WCI 5303208495 Contact Us For Availability
13
WCI 5303269501 WCI 5303269501 Contact Us For Availability
16
TUBE-VALVE TO RGLTR WCI 5303208494 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 3131455 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
18
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
WCI 08067747 WCI 08067747 Contact Us For Availability
18A
WCI 08067746 WCI 08067746 Contact Us For Availability
18A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
PAN-BURNER ROUND WCI 5303131115 No Longer Available
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
20
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
20
GRATE (4) WCI 3018432 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
22
WCI 5303269499 WCI 5303269499 Contact Us For Availability
22
TUBE-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
22A
WCI 08067978 WCI 08067978 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
SHIELD-BI METAL LATCH WCI 3051413 Contact Us For Availability
24
WCI 5303208640 WCI 5303208640 Contact Us For Availability
25
SHIELD-HEAT, LOWER UTILITY WCI 3131313 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
33
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
33
WCI 5303285182 WCI 5303285182 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
38
WCI 5303285181 WCI 5303285181 Contact Us For Availability
39A
WCI 08067961 WCI 08067961 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
53
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58A
INSULATION-WRAPPER WCI 3200833 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
58C
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
72
WCI 5303285692 WCI 5303285692 Contact Us For Availability
× ![]()
