Model Electrolux GF670HXW2 RANGE – Common Parts & Diagrams

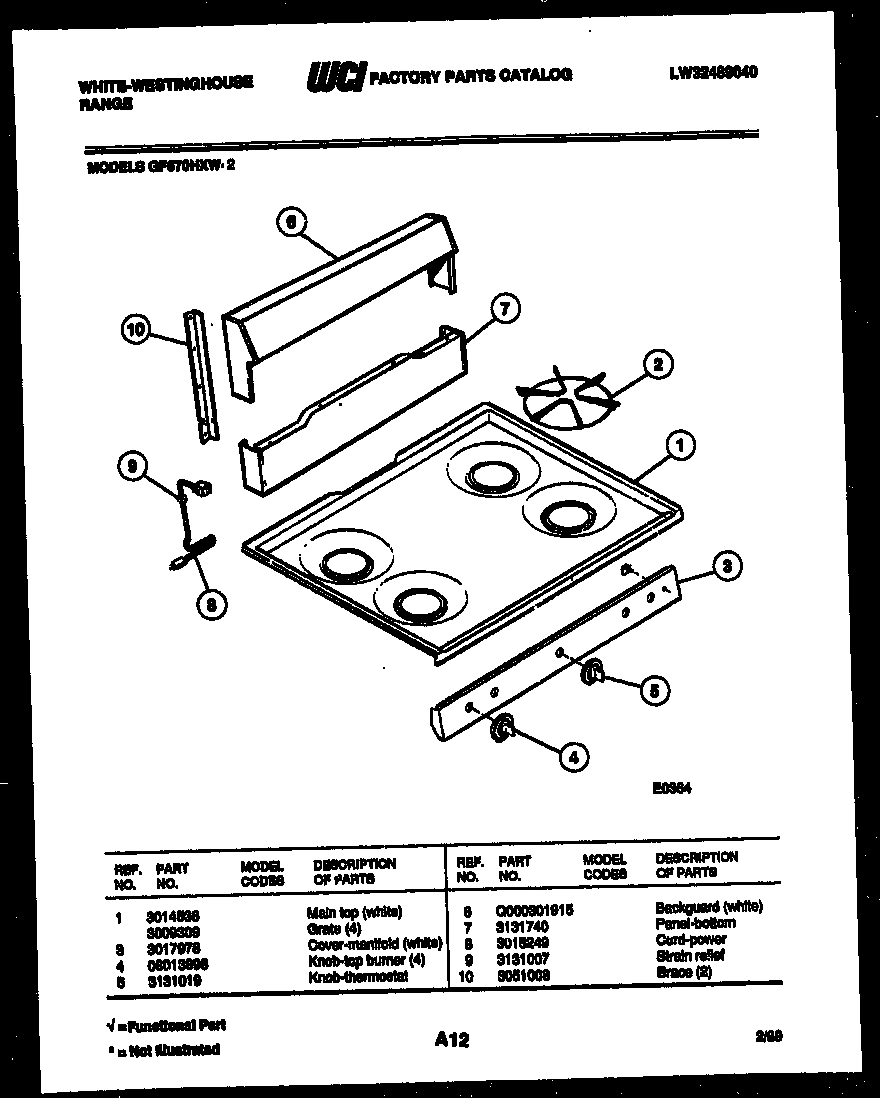

02 - COOKTOP PARTS AND BACKGUARD

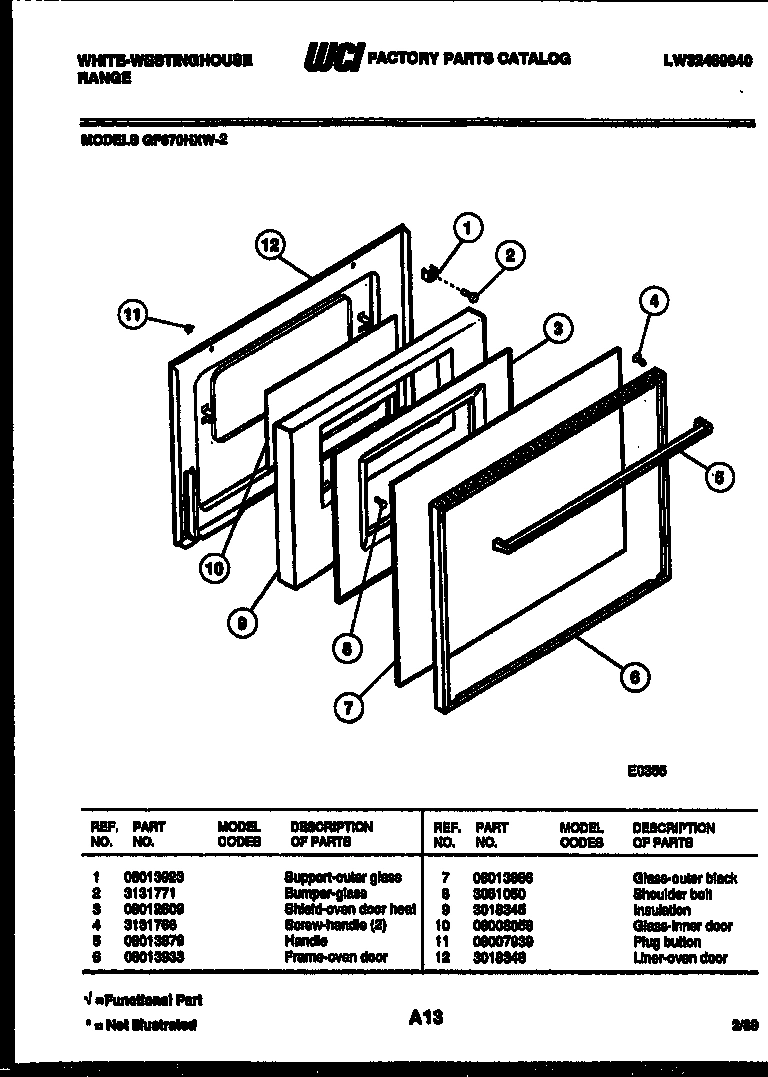

03 - DOOR PARTS

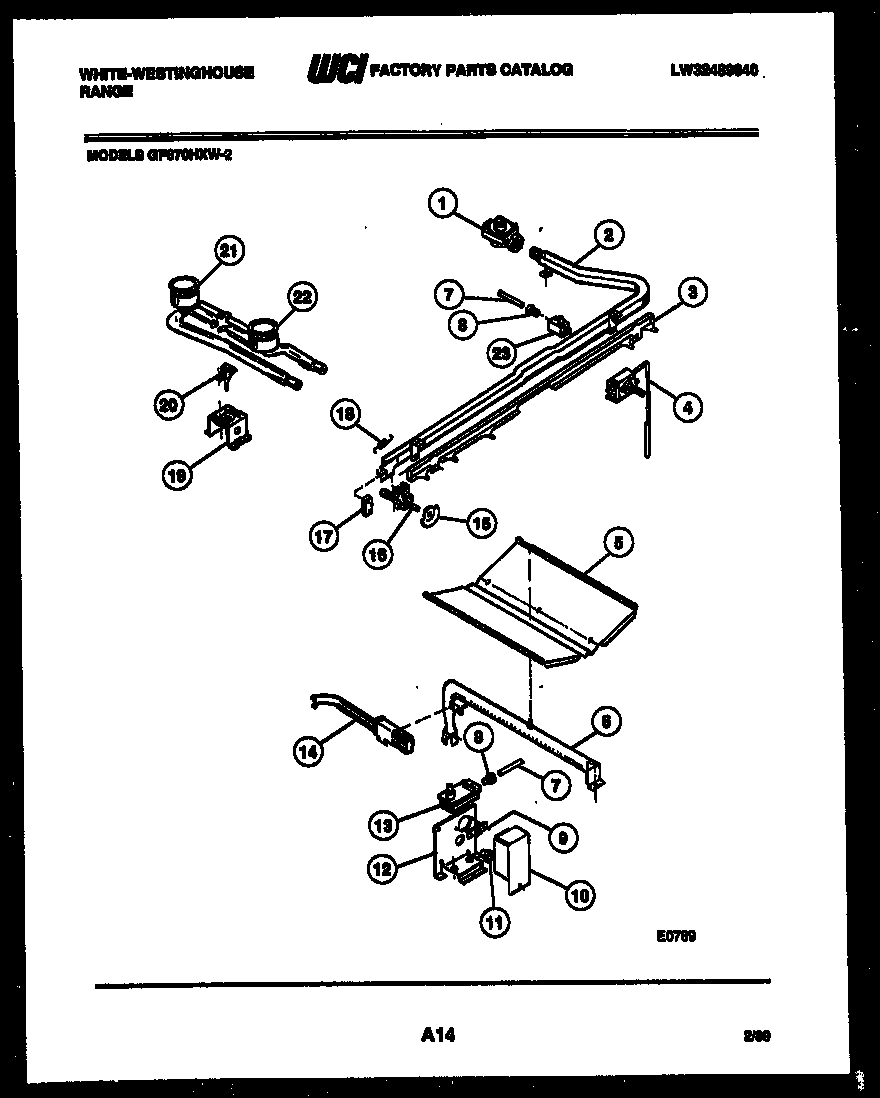

04 - BURNER, MANIFOLD AND GAS CONTROL

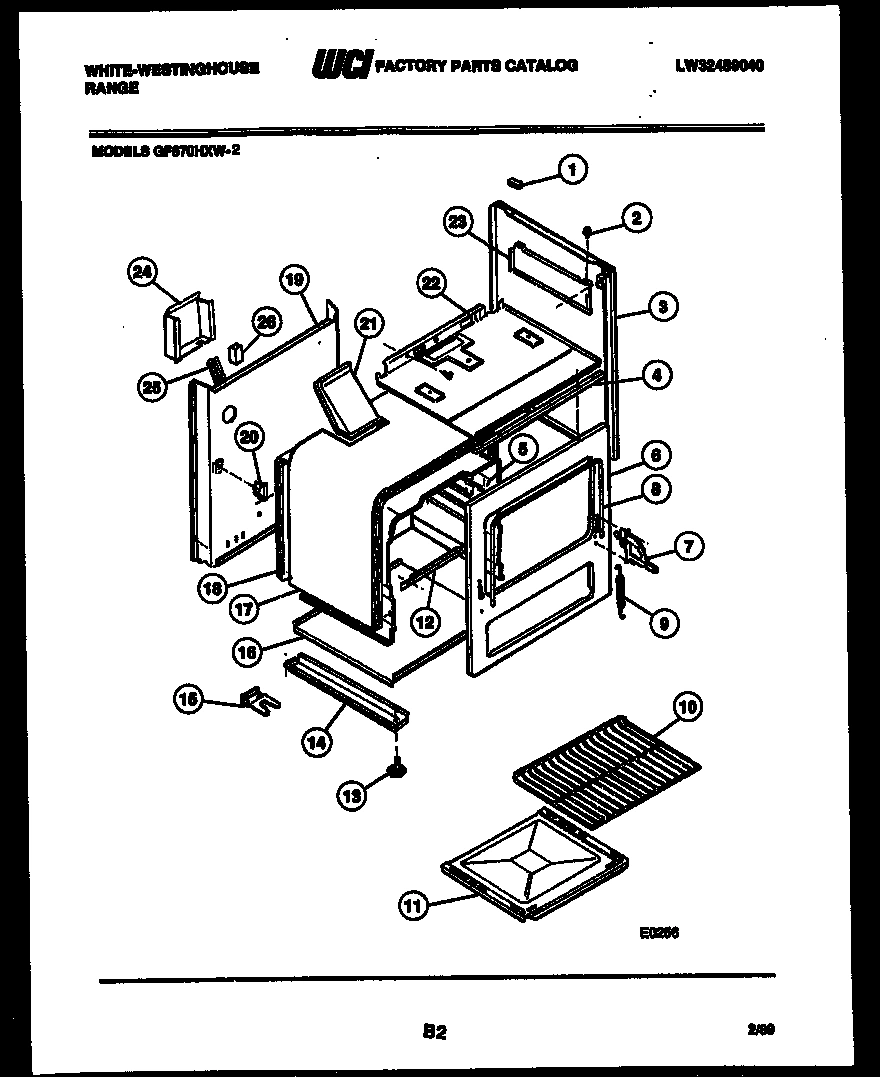

05 - BODY PARTS
06 - BROILER DRAWER PARTS
Common parts from model Electrolux GF670HXW2 RANGE
1
WCI 3014536 WCI 3014536 Contact Us For Availability
1
SUPPORT-OUTER GLASS WCI 08013923 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
1
WCI 3131021 WCI 3131021 Contact Us For Availability
1A
GRATE (4) WCI 3009309 Contact Us For Availability
2
BUMPER - GLASS WCI 3131771 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
COVER-MANIFOLD (WHITE) WCI 3017978 Contact Us For Availability
3
SHIELD OVEN DOOR HEAT WCI 08012609 Contact Us For Availability
3
WCI 3131856 WCI 3131856 Contact Us For Availability
3
B/S LH & RH (WHITE) WCI 08014018 Contact Us For Availability
4
KNOB - TOP BURNER (4) WCI 08013898 Contact Us For Availability
4
SCREW-HANDLE (2) WCI 3131766 Contact Us For Availability
4
WCI 3131083 WCI 3131083 Contact Us For Availability
4
SUPPORT CONTROL PNL WCI 3131811 Contact Us For Availability
4
LINER-BROILER BLUE WCI 3018344 Contact Us For Availability
5
WCI 3131019 WCI 3131019 Contact Us For Availability
5
HANDLE WCI 08013879 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
LINER-OVEN SIDE RH WCI 3018709 Contact Us For Availability
5
INSULATION-BROILER DRWR WCI 3017184 Contact Us For Availability
5A
LINER-OVEN SIDE LH WCI 3018710 Contact Us For Availability
5B
LINER-OVEN TOP WCI 3018711 Contact Us For Availability
5C
WCI 3202933 WCI 3202933 Contact Us For Availability
6
BACKGUARD (WHITE) WCI Q000301915 Contact Us For Availability
6
WCI 08013933 WCI 08013933 Contact Us For Availability
6
WCI 3131084 WCI 3131084 Contact Us For Availability
6
WCI 3017790 WCI 3017790 Contact Us For Availability
7
PANEL - BOTTOM WCI 3131740 Contact Us For Availability
7
WCI 08013866 WCI 08013866 Contact Us For Availability
7
TUBING-OVEN SUPPLY WCI 3131085 Contact Us For Availability
7
WCI 08008080 WCI 08008080 Contact Us For Availability
7A
WCI 3051078 WCI 3051078 Contact Us For Availability
8
CORD - POWER WCI 3015249 Contact Us For Availability
8
SHOULDER BOLT WCI 3051050 Contact Us For Availability
8
LOXIT NUT 3/8 WCI 3131086 Contact Us For Availability
8
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
8
SPACER-HANDLE WCI 3051041 Contact Us For Availability
9
WCI 3131007 WCI 3131007 Contact Us For Availability
9
WCI 3018345 WCI 3018345 Contact Us For Availability
9
TERMINAL BLOCK WCI 3131087 Contact Us For Availability
9
SPRING - OVEN DOOR WCI 08008028 Contact Us For Availability
9
HANDLE-BROILER DRWR WCI 08013881 Contact Us For Availability
10
BRACE (2) WCI 3051008 Contact Us For Availability
10
GLASS-INNER DOOR WCI 08008058 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
10
RACK-OVEN WCI 3015714 Contact Us For Availability
11
PLUG BUTTON WCI 08007939 Contact Us For Availability
11
WCI 3051101 WCI 3051101 Contact Us For Availability
11
OVEN BOTTOM WCI 3018282 Contact Us For Availability
11
SCREW PANEL MTG (8) WCI 3051009 Contact Us For Availability
12
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
12
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12A
HINGE - LH WCI 3131029 Contact Us For Availability
13
VALVE-SAFETY WCI 3131089 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 3131030 Contact Us For Availability
14
RAIL BASE LH/RH WCI 3051081 Contact Us For Availability
14
BROILER DRWR TRACK RH WCI 3051055 Contact Us For Availability
14A
BROILER-DRWR TRACK LH WCI 3051056 Contact Us For Availability
15
CAM-TOP BURNER (4) WCI 3131091 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
16
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
16
MAIN BOTTOM WCI 3011645 Contact Us For Availability
17
WCI 3131094 WCI 3131094 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
18
WCI 3131096 WCI 3131096 Contact Us For Availability
18
WCI 3017172 WCI 3017172 Contact Us For Availability
19
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
MAIN BACK WCI 3013340 Contact Us For Availability
20
IGNITER 36`` WCI 3015196 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
TOP BURNER REAR WCI 3131079 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
TOP BURNER FRONT WCI 3131080 Contact Us For Availability
22
BURNER-BOX WCI 3017174 Contact Us For Availability
23
WCI 3131099 WCI 3131099 Contact Us For Availability
23
SHIELD HEAT B/B RH WCI 3131053 Contact Us For Availability
23A
SHIELD HEAT B/B LH WCI 3131054 Contact Us For Availability
23B
CLIP-BACKSPLASH CRNR (NON-ILLUSTRATED) WCI 3009582 Contact Us For Availability
24
WCI 08008357 WCI 08008357 Contact Us For Availability
25
CHANNEL - WIRE WCI 3131046 Contact Us For Availability
× ![]()
