Model Electrolux GF670HXF0 RANGE – Common Parts & Diagrams

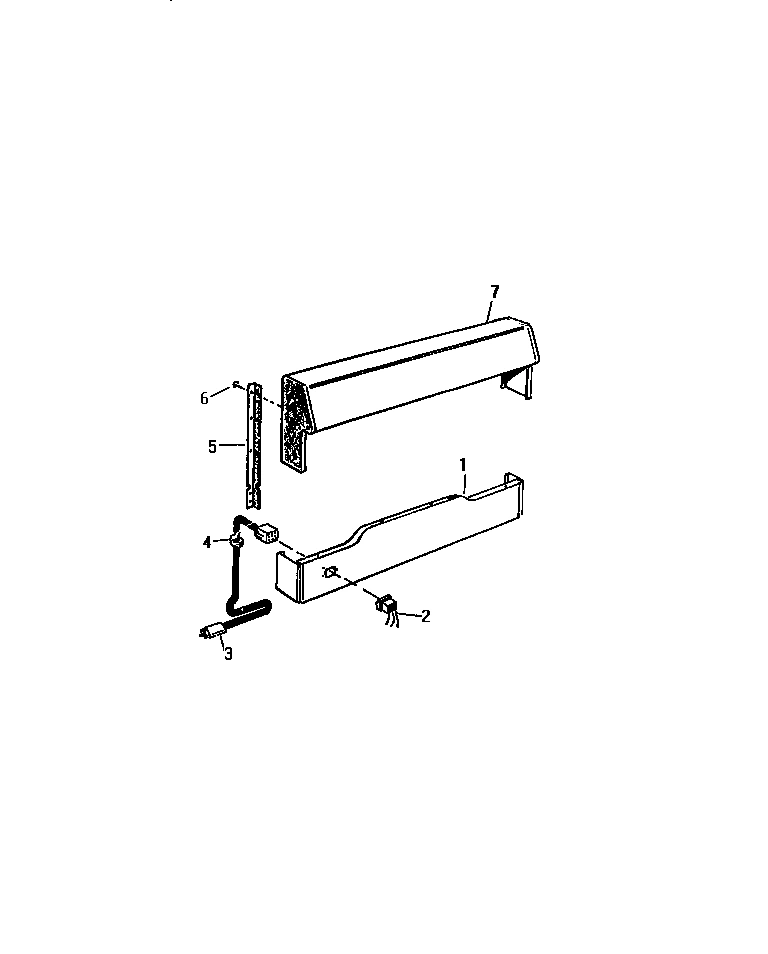

02 - BACKGUARD

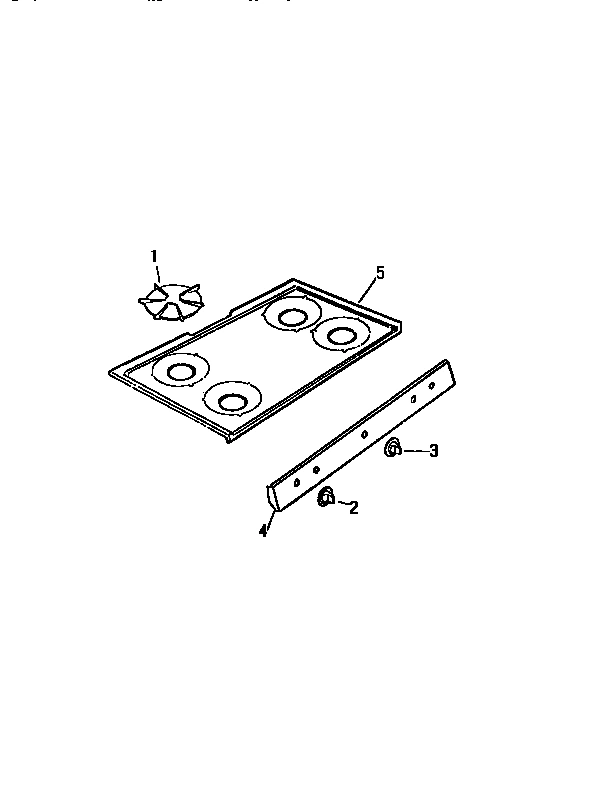

03 - TOP, CONTROL PANEL

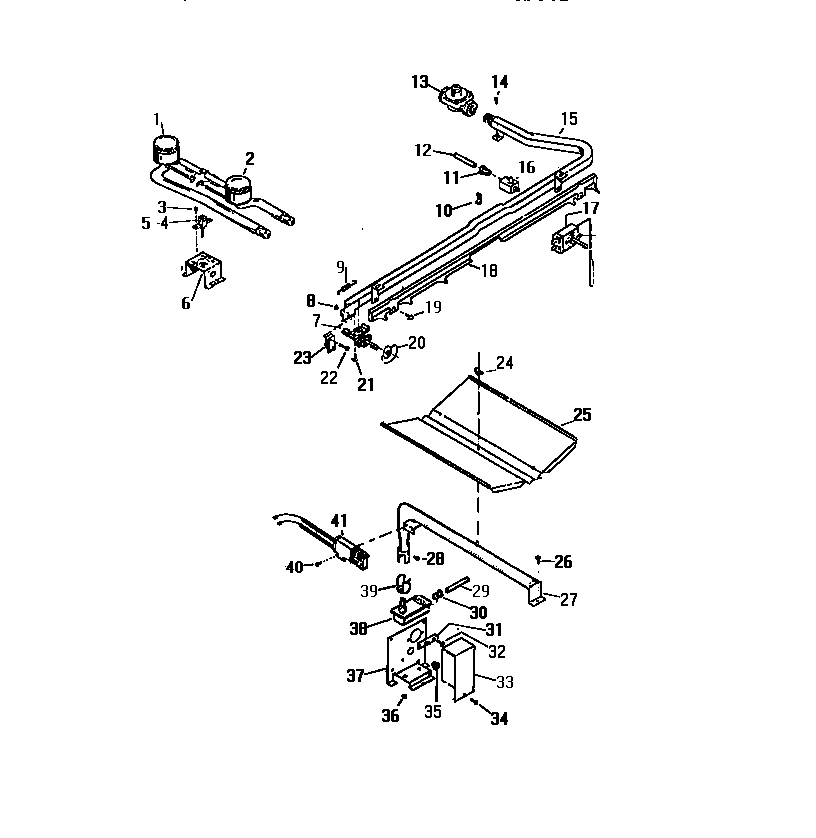

04 - BURNER ASSEMBLY

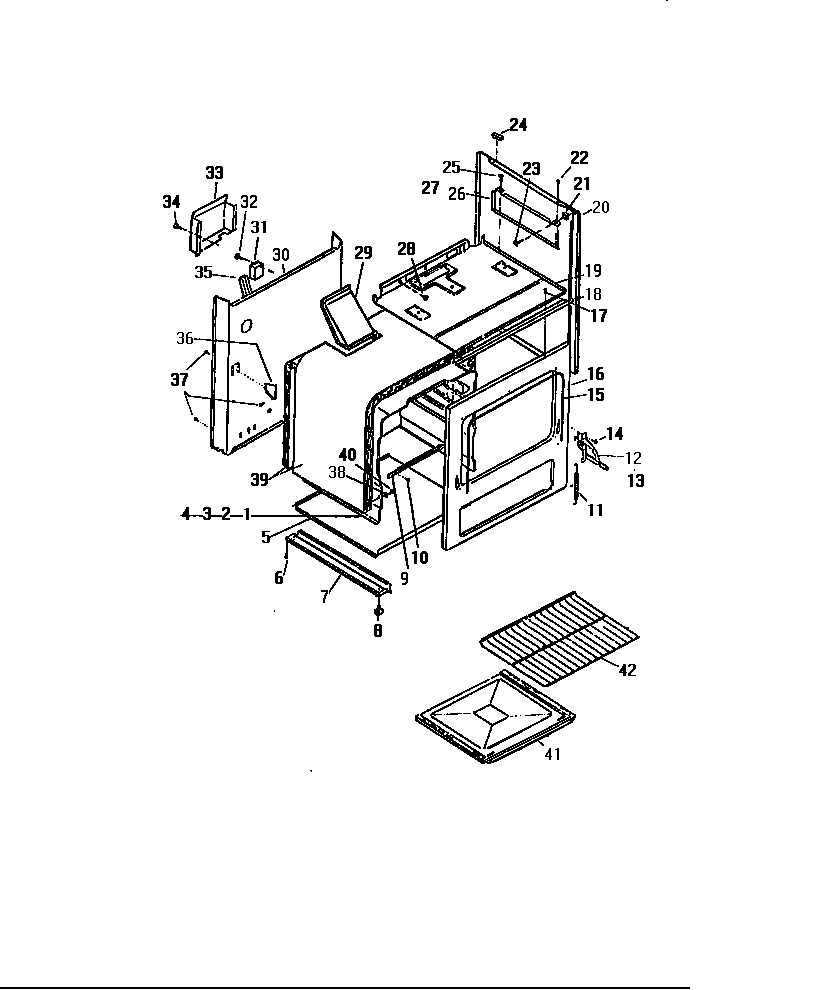

05 - BODY

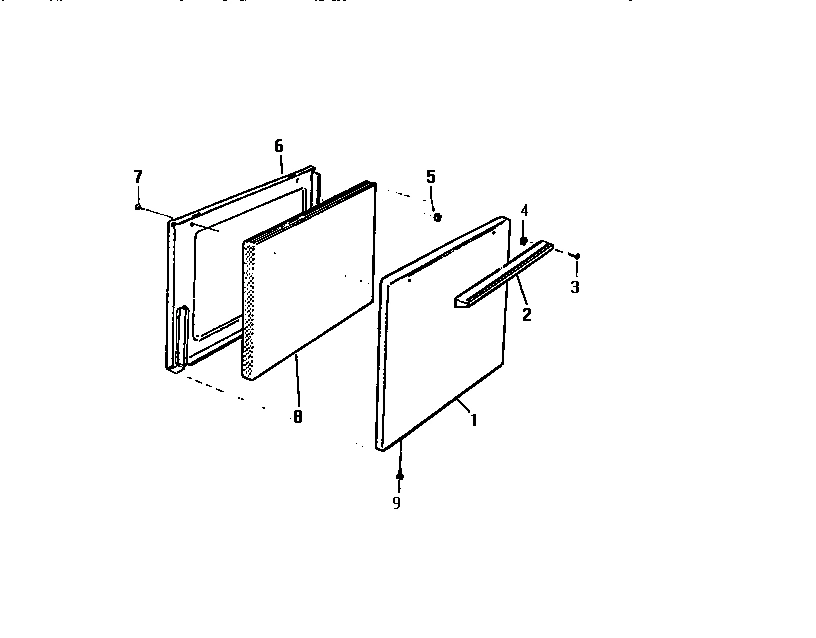

06 - DOOR, GF600H

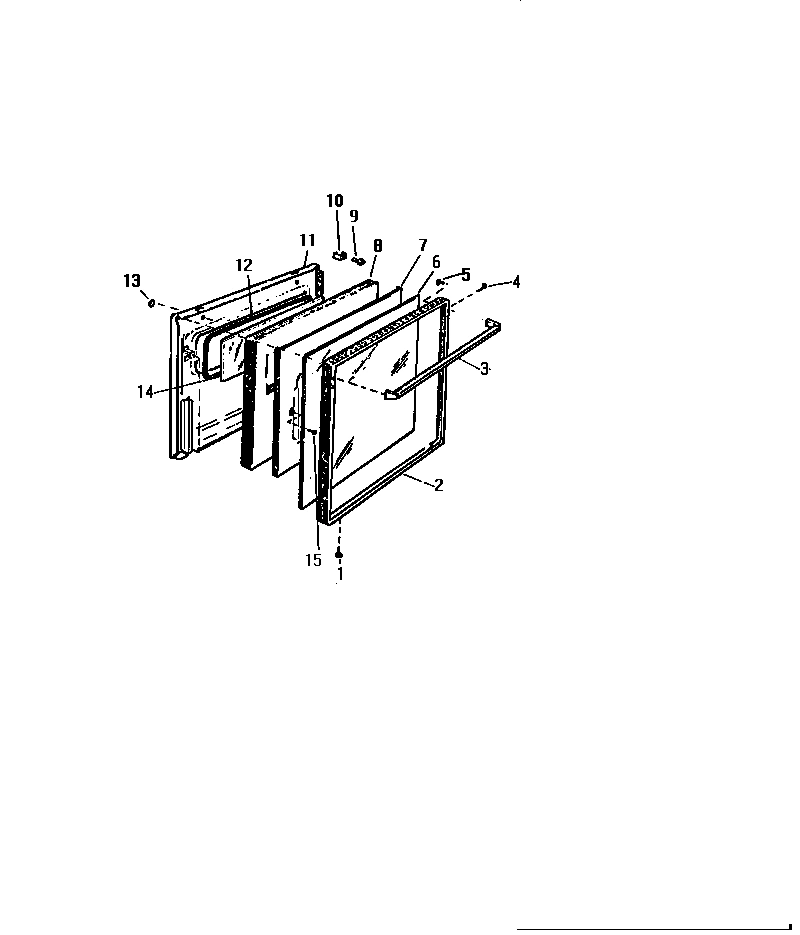

07 - DOOR, GF670H

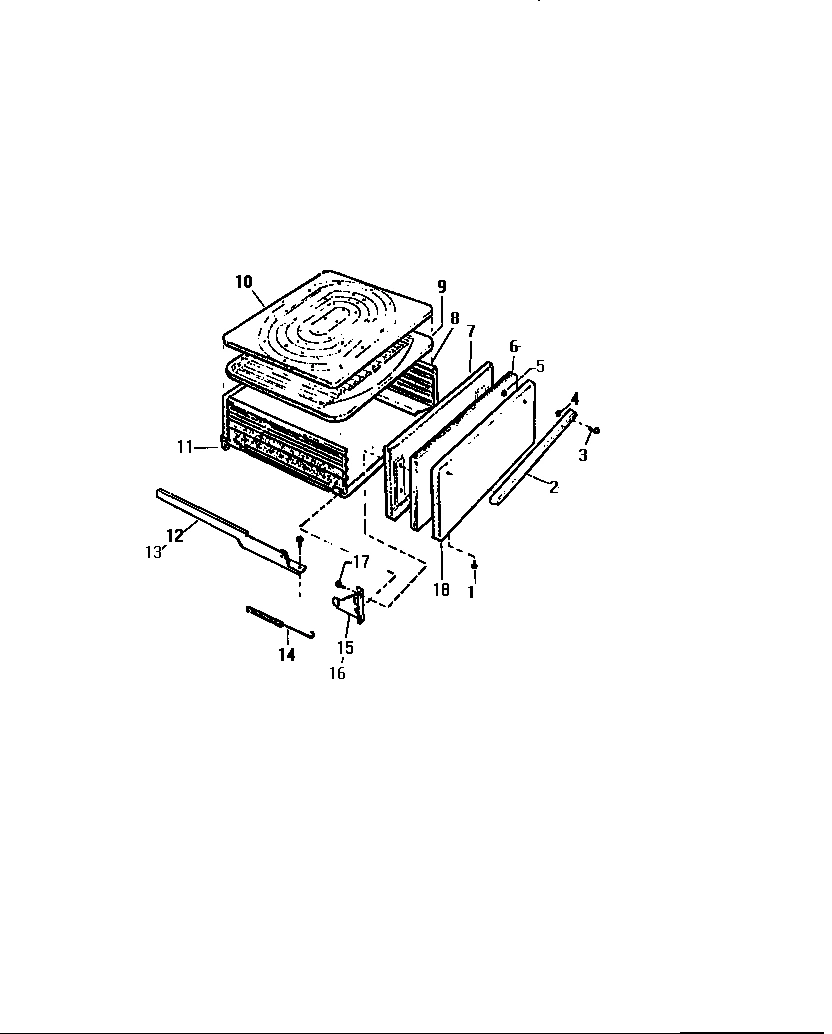

08 - BROILER DRAWER
Common parts from model Electrolux GF670HXF0 RANGE
1
PANEL, LOWER WCI A54127000 Contact Us For Availability
1
GRATE WCI AP165005 Contact Us For Availability
1
BURNER, REAR WCI Q301865 Contact Us For Availability
1
WCI Q301986 WCI Q301986 Contact Us For Availability
1
WCI Q301987 WCI Q301987 Contact Us For Availability
1
PANEL, OVEN DOOR, AVOCADO WCI Q301988 Contact Us For Availability
1
WCI Q301989 WCI Q301989 Contact Us For Availability
1
WCI Q301990 WCI Q301990 Contact Us For Availability
1
SCREW WCI AP053033 Contact Us For Availability
1A
OVEN WRAPPER PANEL, RH WCI Q301979 Contact Us For Availability
2
WCI Q301929 WCI Q301929 Contact Us For Availability
2
KNOB, BURNER WCI Q301964 Contact Us For Availability
2
BURNER, FRONT WCI Q301861 Contact Us For Availability
2
WCI Q301812 WCI Q301812 Contact Us For Availability
2
WCI Q301938 WCI Q301938 Contact Us For Availability
2A
OVEN WRAPPER PANEL, LH WCI Q301980 Contact Us For Availability
3
WIRE HARNESS WCI A99106000 Contact Us For Availability
3
WCI Q310001 WCI Q310001 Contact Us For Availability
3
WCI Q301935 WCI Q301935 Contact Us For Availability
3A
OVEN WRAPPER PANEL, TOP WCI Q301981 Contact Us For Availability
4
WCI AP312003 WCI AP312003 Contact Us For Availability
4
WCI Q280091 WCI Q280091 Contact Us For Availability
4
IGNITER, RH WCI Q301862 Contact Us For Availability
4
WCI Q61664 WCI Q61664 Contact Us For Availability
4A
WCI Q301983 WCI Q301983 Contact Us For Availability
5
WCI Q301891 WCI Q301891 Contact Us For Availability
5
WCI Q280084 WCI Q280084 Contact Us For Availability
5
WCI Q301864 WCI Q301864 Contact Us For Availability
5
NUT WCI AP265008 Contact Us For Availability
5
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
5
WCI AP265006 WCI AP265006 Contact Us For Availability
5
SCREW WCI AP057025 Contact Us For Availability
6
SUPPORT WCI Q301866 Contact Us For Availability
6
WCI Q301931 WCI Q301931 Contact Us For Availability
6
WCI Q301934 WCI Q301934 Contact Us For Availability
6
WCI Q138829 WCI Q138829 Contact Us For Availability
7
BACKGUARD PANEL, COFFEE WCI Q301916 Contact Us For Availability
7
WCI Q301873 WCI Q301873 Contact Us For Availability
7
BASE RAIL WCI A98373000 Contact Us For Availability
7
SHIELD WCI A61080000 Contact Us For Availability
7
WCI Q301882 WCI Q301882 Contact Us For Availability
8
NUT WCI AP265009 Contact Us For Availability
8
LEG WCI AP059009 Contact Us For Availability
8
INSULATION WCI AP207041 Contact Us For Availability
8
INSULATION WCI AP207038 Contact Us For Availability
8
WCI Q301881 WCI Q301881 Contact Us For Availability
9
WCI Q301869 WCI Q301869 Contact Us For Availability
9
SUPPORT, BOTTOM WCI A74055000 Contact Us For Availability
9
WCI AP051051 WCI AP051051 Contact Us For Availability
9
WCI Q301937 WCI Q301937 Contact Us For Availability
9
PAN, BROIL WCI A53002000 Contact Us For Availability
10
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
10
WCI Q301936 WCI Q301936 Contact Us For Availability
10
GRID, BROIL WCI A43001000 Contact Us For Availability
11
LOCK NUT WCI AP269017 Contact Us For Availability
11
SPRING WCI AP339038 Contact Us For Availability
11
WCI Q301930 WCI Q301930 Contact Us For Availability
11
ROLLER WCI AP031004 Contact Us For Availability
12
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
12
SEAL WCI AP326048 Contact Us For Availability
12
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
13
PLUG WCI AP075019 Contact Us For Availability
13
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
14
WCI AP161230 WCI AP161230 Contact Us For Availability
14
SPRING WCI AP339050 Contact Us For Availability
15
WCI Q301855 WCI Q301855 Contact Us For Availability
15
SEAL WCI AP326052 Contact Us For Availability
15
BOLT WCI AP051052 Contact Us For Availability
15
HINGE-LH WCI A46011000 Contact Us For Availability
16
WCI AP385174 WCI AP385174 Contact Us For Availability
16
WCI Q301967 WCI Q301967 Contact Us For Availability
16
HINGE-RH WCI A46010000 Contact Us For Availability
17
SCREW WCI AP051056 Contact Us For Availability
17
WCI Q301858 WCI Q301858 Contact Us For Availability
18
WCI Q301857 WCI Q301857 Contact Us For Availability
18
WCI A74076000 WCI A74076000 Contact Us For Availability
18
COUTER PANEL DRAWER WCI A98349001 Contact Us For Availability
19
WCI Q301839 WCI Q301839 Contact Us For Availability
19
WCI Q301968 WCI Q301968 Contact Us For Availability
20
WCI A22002000 WCI A22002000 Contact Us For Availability
20
BODY PANEL, COFFEE WCI Q301943 Contact Us For Availability
21
WCI Q310002 WCI Q310002 Contact Us For Availability
21
WCI Q310084 WCI Q310084 Contact Us For Availability
22
SCREW WCI AP055031 Contact Us For Availability
22
WCI AP172002 WCI AP172002 Contact Us For Availability
23
WCI Q301874 WCI Q301874 Contact Us For Availability
24
WING NUT WCI AP269004 Contact Us For Availability
24
WCI Q301831 WCI Q301831 Contact Us For Availability
25
BAFFLE WCI A9010000 Contact Us For Availability
26
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
27
BURNER WCI AP072025 Contact Us For Availability
27
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
28
SCREW WCI AP325005 Contact Us For Availability
28
WCI AP074001 WCI AP074001 Contact Us For Availability
29
WCI Q301867 WCI Q301867 Contact Us For Availability
29
WCI A92049000 WCI A92049000 Contact Us For Availability
30
NUT WCI AP269033 Contact Us For Availability
30
WCI A5087000 WCI A5087000 Contact Us For Availability
31
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
31
WCI Q301950 WCI Q301950 Contact Us For Availability
33
VALVE COVER WCI A32130000 Contact Us For Availability
33
COVER, MODULE WCI A32137000 Contact Us For Availability
35
WCI Q310003 WCI Q310003 Contact Us For Availability
36
SUPPORT, REAR OVEN WCI A74060000 Contact Us For Availability
37
SUPPORT WCI A74054000 Contact Us For Availability
38
WCI Q301871 WCI Q301871 Contact Us For Availability
38
WCI AP391021 WCI AP391021 Contact Us For Availability
39
SHUTTER WCI AP330001 Contact Us For Availability
39
INSULATION WCI Q134234 Contact Us For Availability
40
SCREW WCI AP051046 Contact Us For Availability
40
WCI AP051045 WCI AP051045 Contact Us For Availability
41
WCI Q301977 WCI Q301977 Contact Us For Availability
42
RACK WCI AP301046 Contact Us For Availability
× ![]()
