Model Electrolux GF620HXD4 RANGE – Common Parts & Diagrams

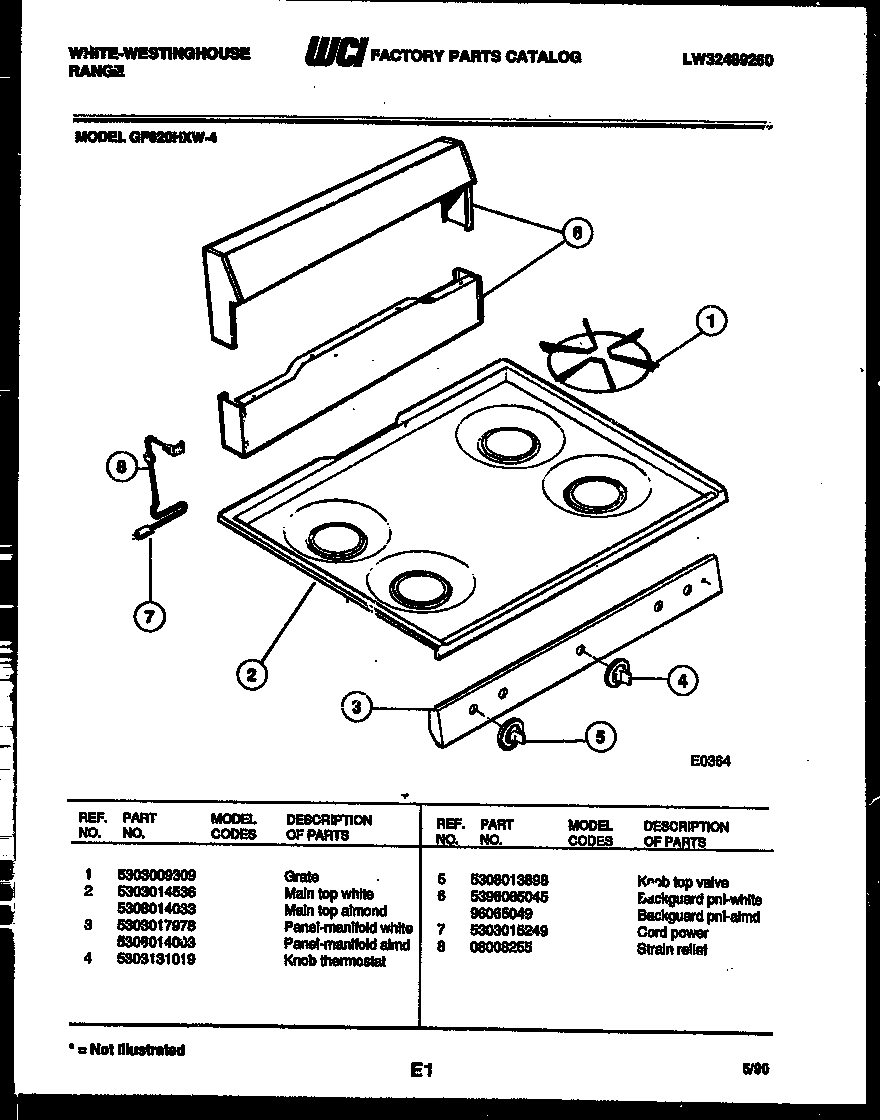

02 - COOKTOP PARTS AND BACKGUARD

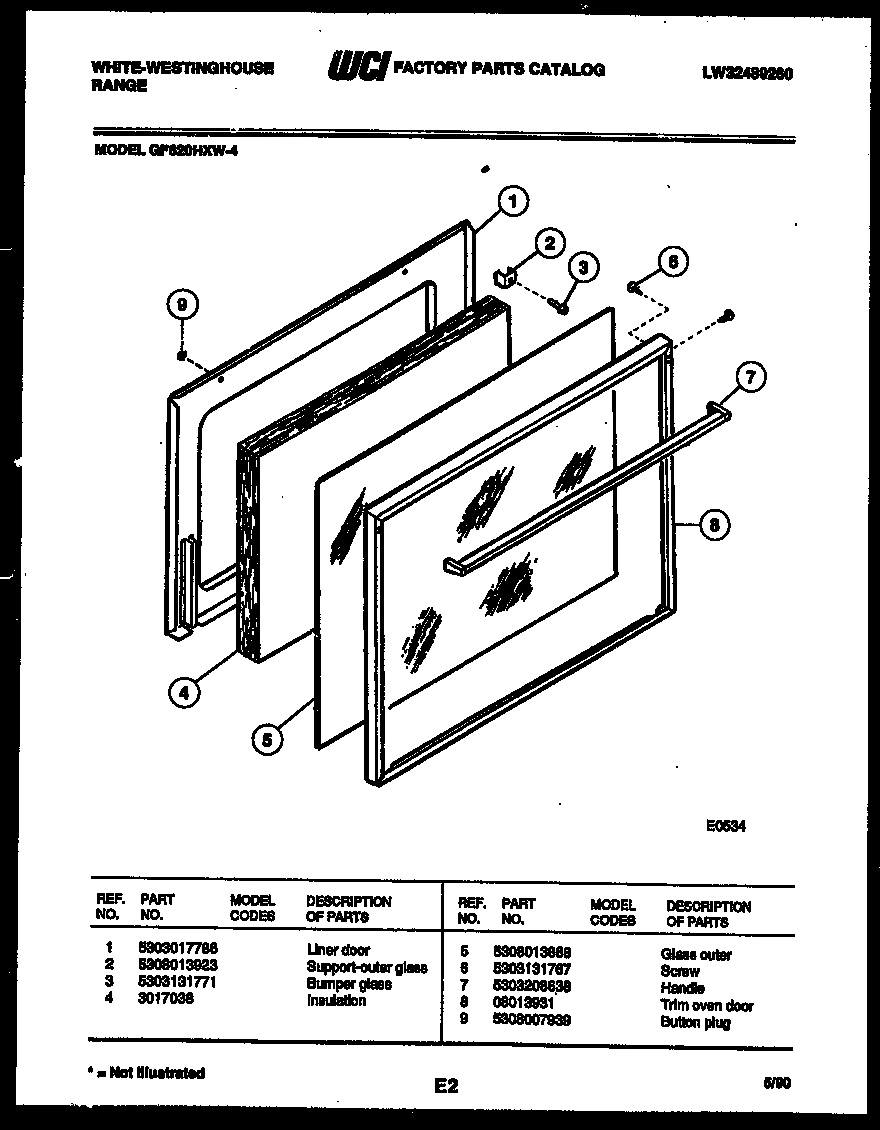

03 - DOOR PARTS

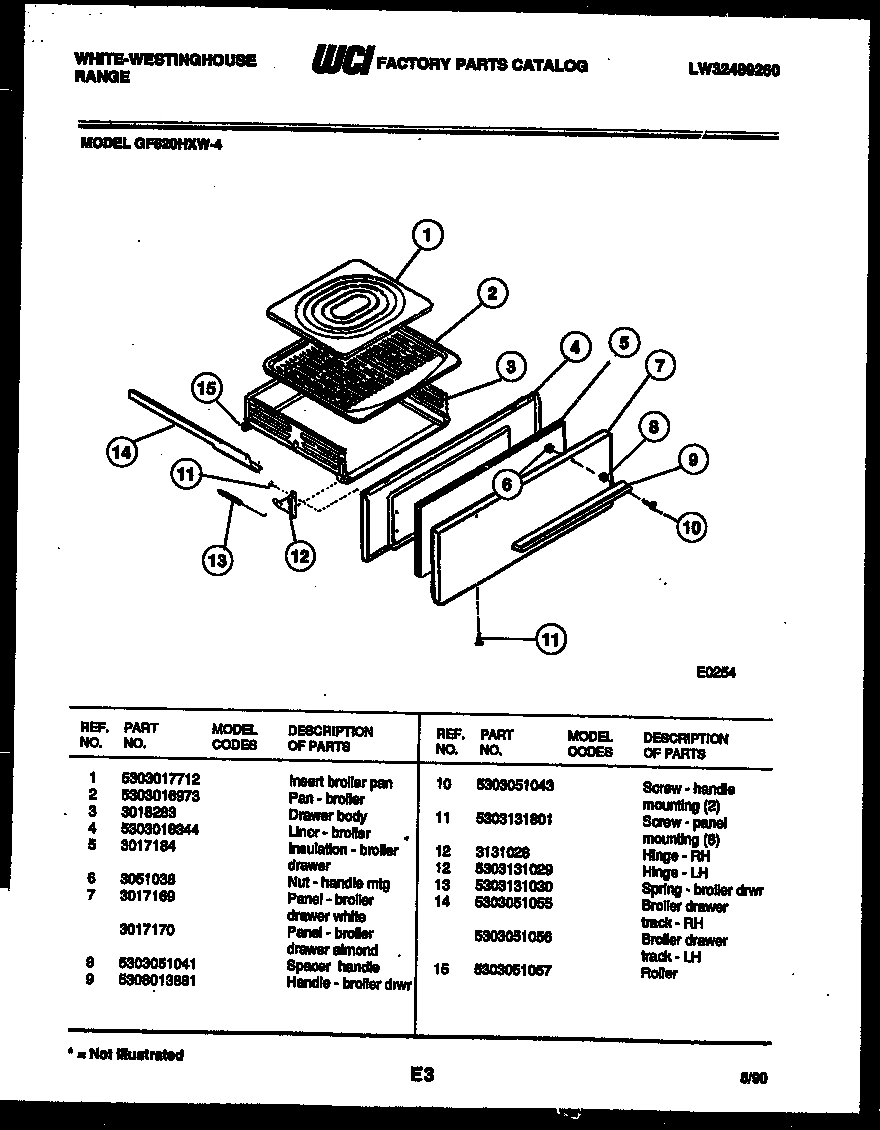

04 - BROILER DRAWER PARTS

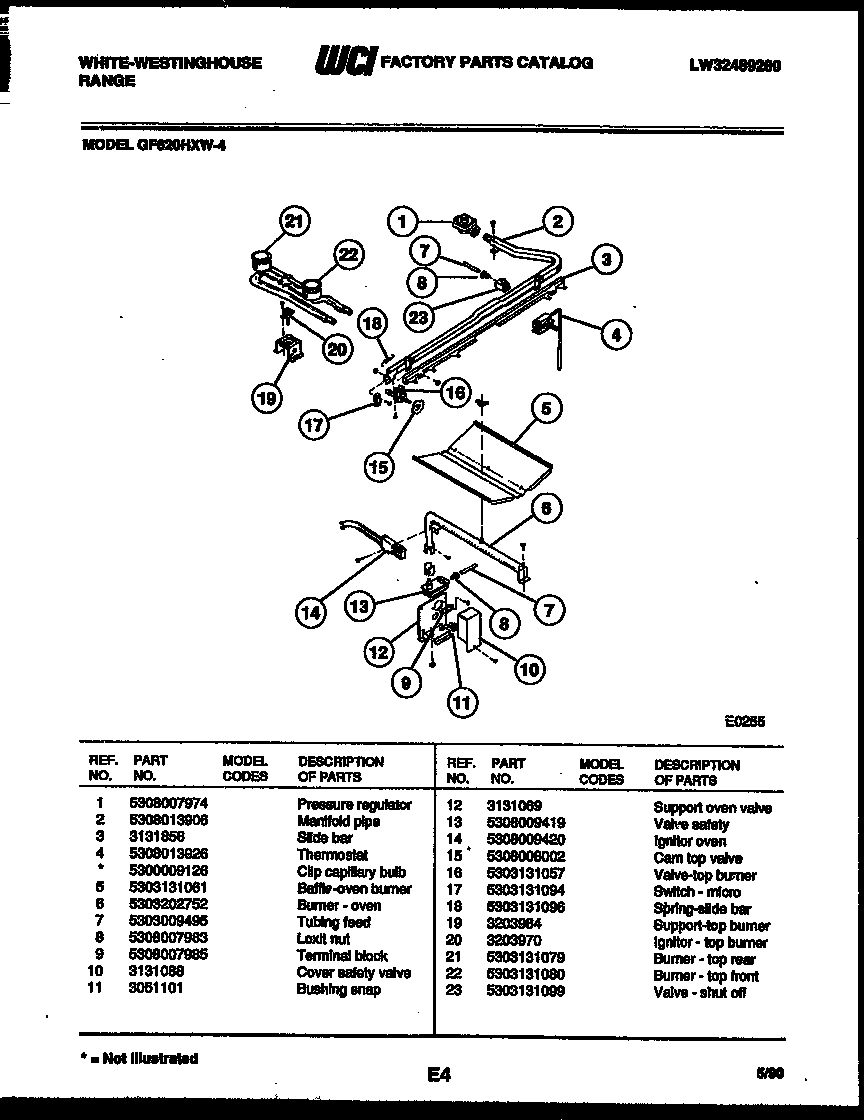

05 - BURNER, MANIFOLD AND GAS CONTROL

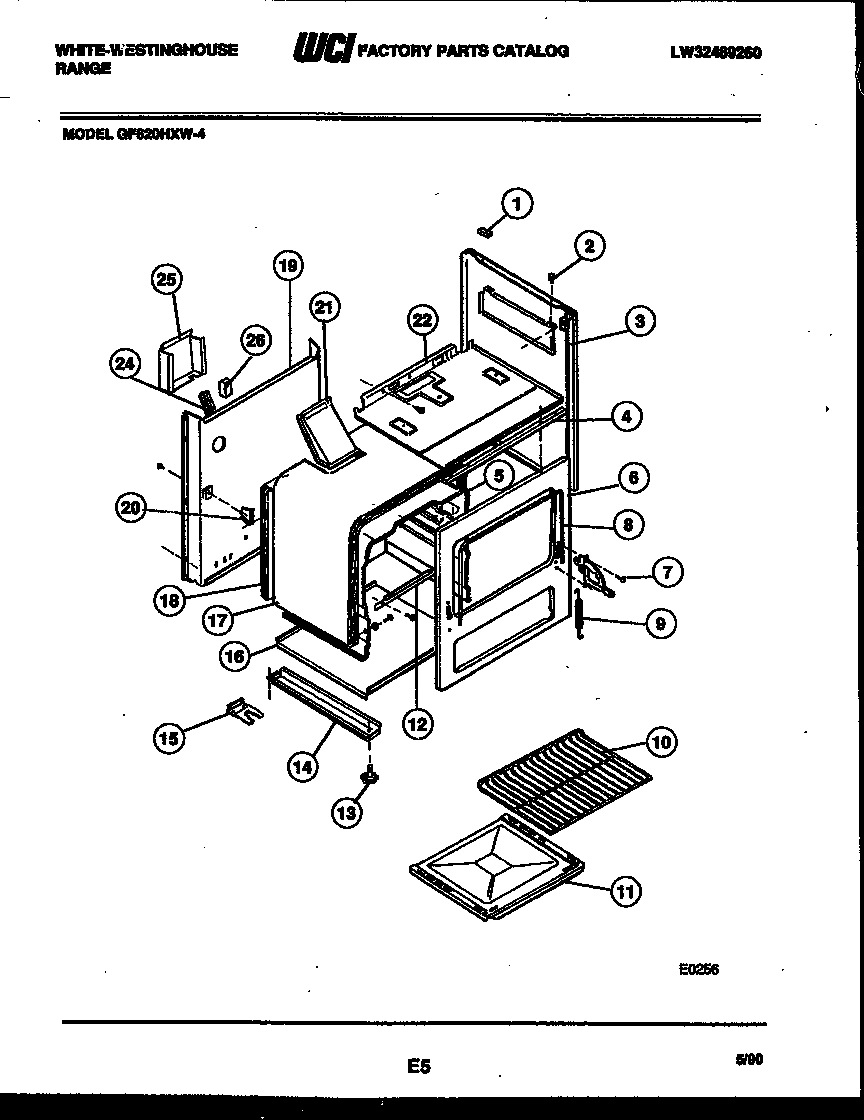

06 - BODY PARTS
Common parts from model Electrolux GF620HXD4 RANGE
1
WCI 5303017712 WCI 5303017712 Contact Us For Availability
1
WCI 5303016129 WCI 5303016129 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
WCI 5308013906 WCI 5308013906 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
SLIDE BAR WCI 3131856 Contact Us For Availability
3
BACKSPLASH - ALMOND LH/RH WCI 5308014019 Contact Us For Availability
4
WCI 5303131019 WCI 5303131019 Contact Us For Availability
4
INSULATION WCI 3017038 Contact Us For Availability
4
LINER - BROILER WCI 5303018344 Contact Us For Availability
4
WCI 5308013926 WCI 5308013926 Contact Us For Availability
4
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
4A
WCI 5300009126 WCI 5300009126 Contact Us For Availability
5
KNOB-TOP VALVE WCI 5308013898 Contact Us For Availability
5
WCI 5308013868 WCI 5308013868 Contact Us For Availability
5
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
OVEN LINER-SIDE RH WCI 3018284 Contact Us For Availability
5A
OVEN LINER-SIDE LH WCI 3018285 Contact Us For Availability
5B
OVEN LINER TOP WCI 3018347 Contact Us For Availability
5C
OVEN LINER BACK WCI 3018995 Contact Us For Availability
6
WCI 5303202752 WCI 5303202752 Contact Us For Availability
6
WCI 3205578 WCI 3205578 Contact Us For Availability
7
HANDLE WCI 5303208638 Contact Us For Availability
7
PANEL-BROILER DRAWER ALMOND WCI 3017170 Contact Us For Availability
7
TUBING FEED WCI 5303009495 Contact Us For Availability
7A
HINGE-DOOR RH WCI 5303204670 Contact Us For Availability
8
Seal,oven door WCI 5308008022 Contact Us For Availability
8
TRIM - OVEN DOOR WCI 08013931 Contact Us For Availability
8
SPACER HANDLE WCI 5303051041 Contact Us For Availability
8
LOXIT NUT WCI 5308007983 Contact Us For Availability
9
WCI 5308007939 WCI 5308007939 Contact Us For Availability
9
HANDLE - BROILER DRWR WCI 5308013881 Contact Us For Availability
9
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
9
SPRING - HINGE LH/RH (2) WCI 5303009435 Contact Us For Availability
10
RACK OVEN (2) WCI 5303015714 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
11
SCREW - PANEL MOUNTING (8) WCI 5303131801 Contact Us For Availability
11
WCI 3051101 WCI 3051101 Contact Us For Availability
11
OVEN BOTTOM WCI 3018282 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
HINGE - LH WCI 5303131029 Contact Us For Availability
12
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
13
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 5303131030 Contact Us For Availability
13
LEVELING LEG WCI 5303051080 Contact Us For Availability
14
BROILER DRAWER TRACK - RH WCI 5303051055 Contact Us For Availability
14
RAIL BASE-LH/RH WCI 5308068047 Contact Us For Availability
14A
BROILER DRAWER TRACK - LH WCI 5303051056 Contact Us For Availability
15
ROLLER WCI 5303051057 Contact Us For Availability
15
CAM TOP VALVE WCI 5308008002 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
16
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
16
MAIN BOTTOM WCI 3011645 Contact Us For Availability
17
WCI 5303131094 WCI 5303131094 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
18
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
18
INSULATION-BACK & TOP WCI 3017172 Contact Us For Availability
19
WCI 3203964 WCI 3203964 Contact Us For Availability
19
WCI 5303013340 WCI 5303013340 Contact Us For Availability
20
IGNITOR-TOP BURNER WCI 3203970 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
Burner,top ,rear WCI 5303131079 No Longer Available
21
VENT BOX WCI 3017173 Contact Us For Availability
22
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
22
BURNER-BOX WCI 3017174 Contact Us For Availability
23
WCI 5303131099 WCI 5303131099 Contact Us For Availability
23
SHIELD-HEAT B/B RH WCI 5303131053 Contact Us For Availability
23A
SHIELD-HEAT B/B LH WCI 5303131054 Contact Us For Availability
23B
CLIP - BACK SPLASH CORNER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
24
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
25
WCI 08013953 WCI 08013953 Contact Us For Availability
× ![]()
