Model Electrolux GF620HXD3 RANGE – Common Parts & Diagrams

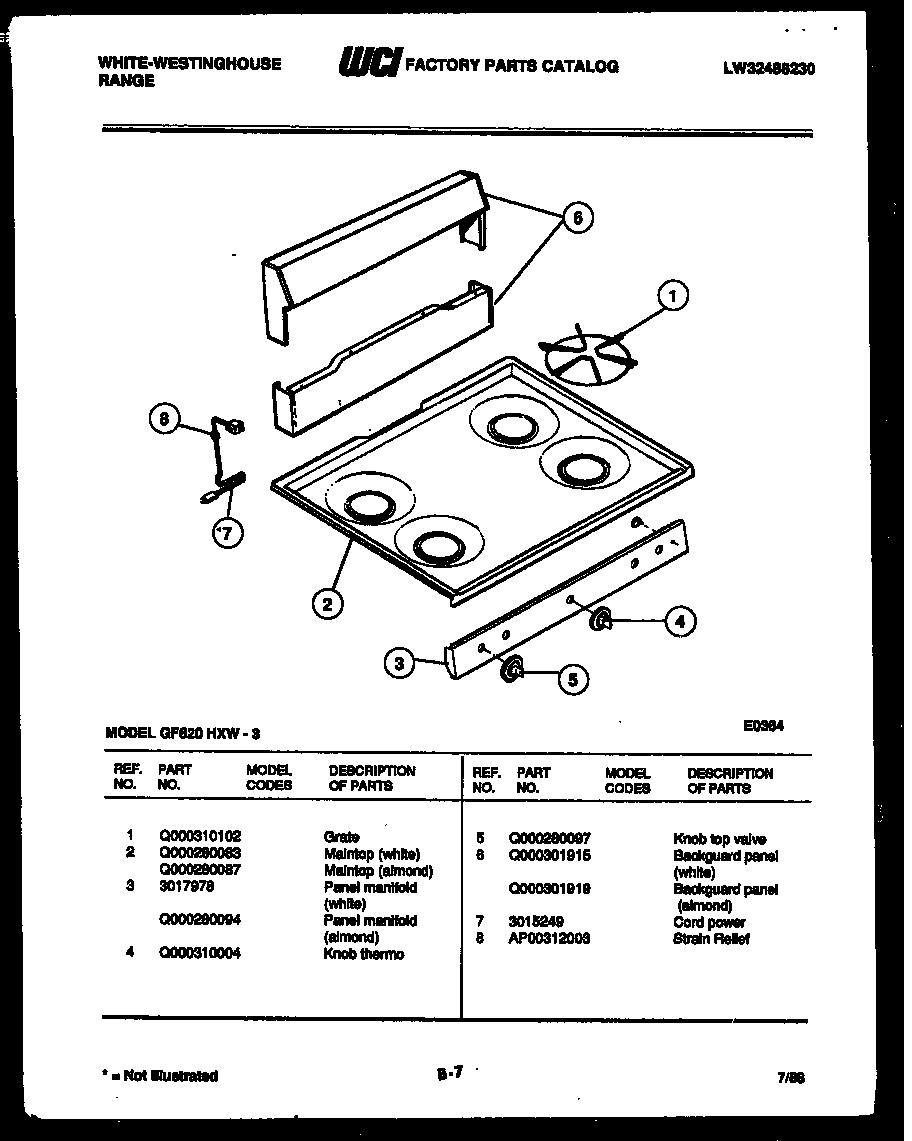

02 - COOKTOP PARTS AND BACKGUARD
03 - DOOR PARTS
04 - BURNER, MANIFOLD AND GAS CONTROL
05 - BODY PARTS

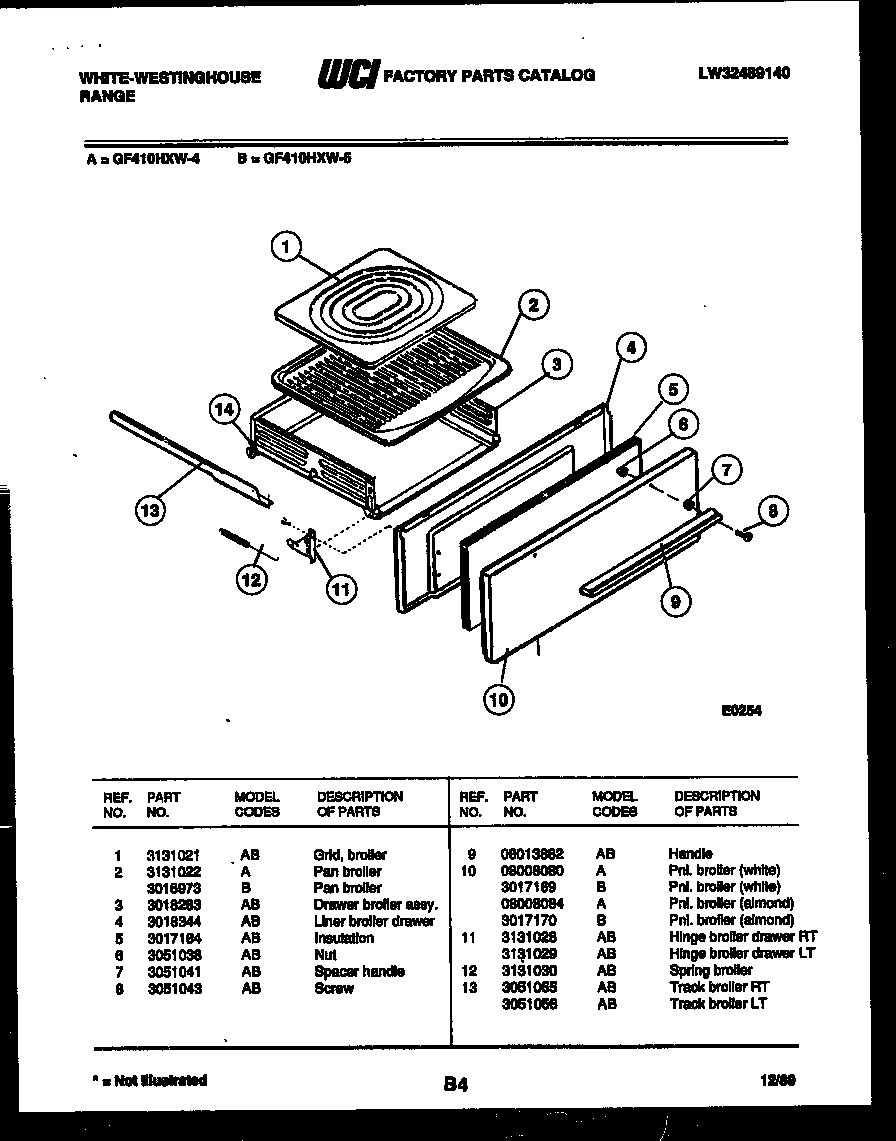

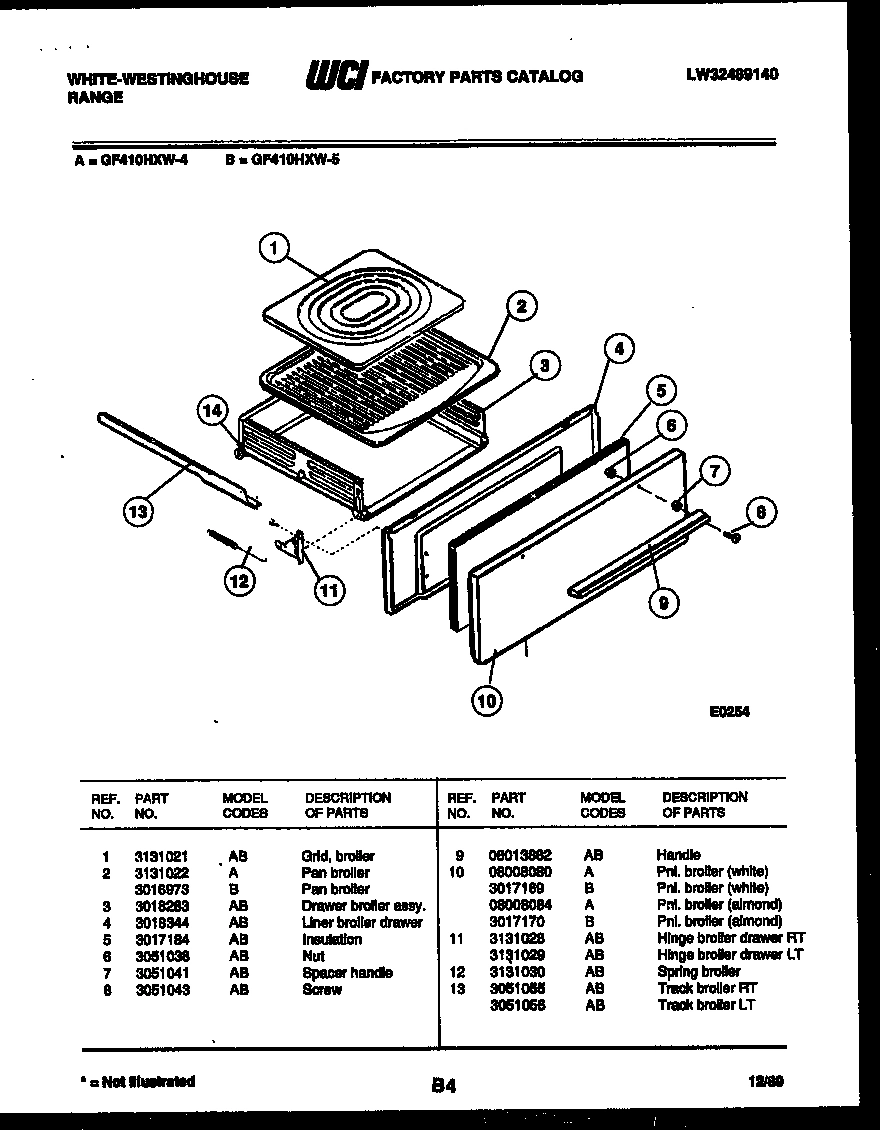

06 - BROILER DRAWER PARTS
Common parts from model Electrolux GF620HXD3 RANGE
1
GRATE WCI Q000310102 Contact Us For Availability
1
LINER-DOOR WCI 3017041 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
1
WCI 3131021 WCI 3131021 Contact Us For Availability
2
WCI Q000280087 WCI Q000280087 Contact Us For Availability
2
SUPPORT-OUTER GLASS WCI 08013923 Contact Us For Availability
2
WCI Q000301855 WCI Q000301855 Contact Us For Availability
2
GROMMET WCI AP00172002 Contact Us For Availability
3
WCI Q000280094 WCI Q000280094 Contact Us For Availability
3
WCI Q000301857 WCI Q000301857 Contact Us For Availability
3
BODYSIDE (ALMOND) LH & RH WCI Q000301946 Contact Us For Availability
3
WCI 3131023 WCI 3131023 Contact Us For Availability
4
KNOB-THERMO WCI Q000310004 Contact Us For Availability
4
WCI AP00207041 WCI AP00207041 Contact Us For Availability
4
WCI Q000301858 WCI Q000301858 Contact Us For Availability
4
WCI A074062000 WCI A074062000 Contact Us For Availability
4
LINER-BROILER, BLUE WCI 3017165 Contact Us For Availability
4A
CLIP - CAPILLARY BULB (NON-ILLUSTRATED) WCI AP00091011 Contact Us For Availability
5
KNOB-TOP VALVE WCI Q000280097 Contact Us For Availability
5
WCI Q000310087 WCI Q000310087 Contact Us For Availability
5
WCI A009010000 WCI A009010000 Contact Us For Availability
5
WCI 3131032 WCI 3131032 Contact Us For Availability
5
INSULATION-BROILER DRAWER WCI Q000211242 Contact Us For Availability
5A
WCI 3131033 WCI 3131033 Contact Us For Availability
5B
WCI 3017166 WCI 3017166 Contact Us For Availability
5C
WCI 3017167 WCI 3017167 Contact Us For Availability
6
BACKGUARD PANEL (ALMOND) WCI Q000301919 Contact Us For Availability
6
WCI AP00072025 WCI AP00072025 Contact Us For Availability
6
WCI 3017048 WCI 3017048 Contact Us For Availability
6
WCI AP00255008 WCI AP00255008 Contact Us For Availability
7
CORD - POWER WCI 3015249 Contact Us For Availability
7
WCI Q000301935 WCI Q000301935 Contact Us For Availability
7
TUBE FEED WCI 3131085 Contact Us For Availability
7
PANEL-BROILER DRAWER (ALMOND) WCI A098349004 Contact Us For Availability
7A
WCI A096068000 WCI A096068000 Contact Us For Availability
8
WCI AP00312003 WCI AP00312003 Contact Us For Availability
8
TRIM OVEN DOOR WCI Q000310086 Contact Us For Availability
8
LOXIT NUT WCI 3131086 Contact Us For Availability
8
WCI AP00326052 WCI AP00326052 Contact Us For Availability
8
SPACER-HANDLE WCI 3051041 Contact Us For Availability
9
WCI AP00075019 WCI AP00075019 Contact Us For Availability
9
WCI AP0042025 WCI AP0042025 Contact Us For Availability
9
SPRING HINGE LH/RH WCI AP00339038 Contact Us For Availability
9
HANDLE BROILER DRWR WCI Q000301812 Contact Us For Availability
10
WCI A032130000 WCI A032130000 Contact Us For Availability
10
RACK-OVEN WCI 3015714 Contact Us For Availability
11
BUSHING SNAP WCI AP00074001 Contact Us For Availability
11
WCI 3017168 WCI 3017168 Contact Us For Availability
11
SCREW PANEL MOUNTING (8) WCI AP00051056 Contact Us For Availability
12
SUPPORT OVEN VALVE WCI A074054000 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI A074055000 Contact Us For Availability
12
HINGE RH WCI A046010000 Contact Us For Availability
12A
HINGE LH WCI A046011000 Contact Us For Availability
13
WCI Q000301871 WCI Q000301871 Contact Us For Availability
13
LEVELING LEG WCI Q000310108 Contact Us For Availability
13
SPRING-BROILER DRWR WCI AP00339050 Contact Us For Availability
14
RAIL BASE LH/RH WCI 3051081 Contact Us For Availability
14
BROILER DRAWER TRACK RH WCI A096069000 Contact Us For Availability
14A
BROILER DRAWER TRACK LH WCI A096070000 Contact Us For Availability
15
CAM TOP VALVE WCI A022002000 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
15
WCI AP00031004 WCI AP00031004 Contact Us For Availability
16
WCI Q000301873 WCI Q000301873 Contact Us For Availability
16
MAIN BOTTOM WCI A011049000 Contact Us For Availability
17
WCI Q000301874 WCI Q000301874 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
18
WCI Q000301869 WCI Q000301869 Contact Us For Availability
18
INSULATION-BACK & TOP WCI 3017172 Contact Us For Availability
19
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
BACK MAIN WCI A005087000 Contact Us For Availability
20
IGNITER TOP BURNER WCI 3015196 Contact Us For Availability
20
WCI A074060000 WCI A074060000 Contact Us For Availability
21
WCI Q002500102 WCI Q002500102 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
WCI Q002500101 WCI Q002500101 Contact Us For Availability
22
BURNER-BOX WCI 3017174 Contact Us For Availability
23
WCI AP00385174 WCI AP00385174 Contact Us For Availability
23
SHIELD-HEAT B/B RH WCI A061044000 Contact Us For Availability
23A
SHIELD-HEAT B/B LH WCI A061074000 Contact Us For Availability
23B
CLIP - BACKSPLASH CORNER (NON-ILLUSTRATED) WCI 3009582 Contact Us For Availability
24
WCI Q000310003 WCI Q000310003 Contact Us For Availability
25
WCI A032137000 WCI A032137000 Contact Us For Availability
× ![]()
