Model Electrolux GF620HXD1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, CONTROL PANEL

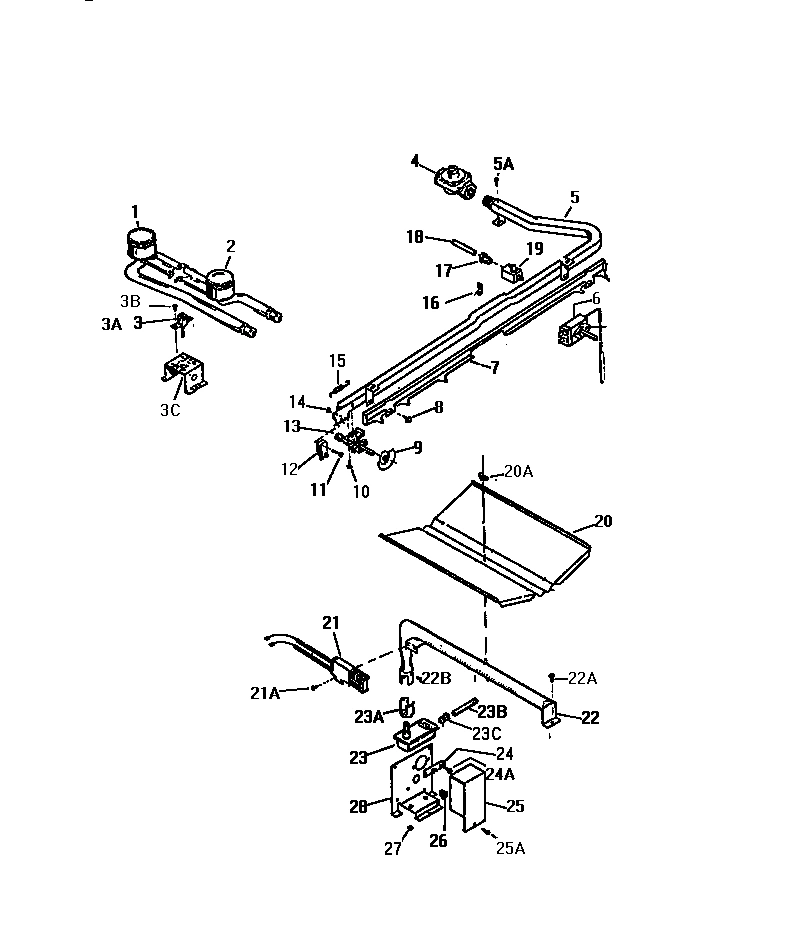

04 - BURNER ASSEMBLY

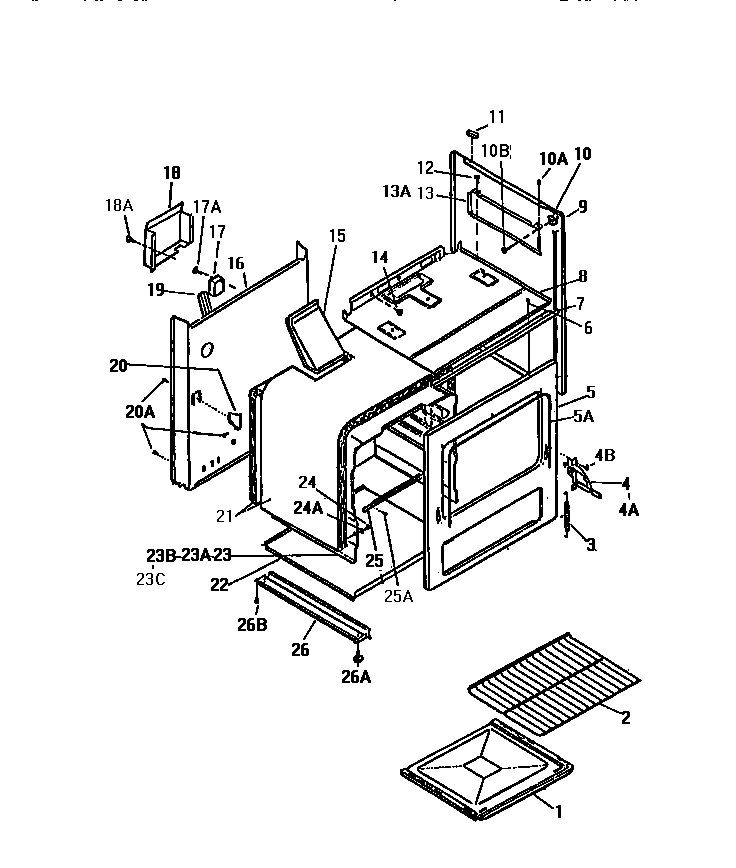

05 - BODY, SIDE PANELS

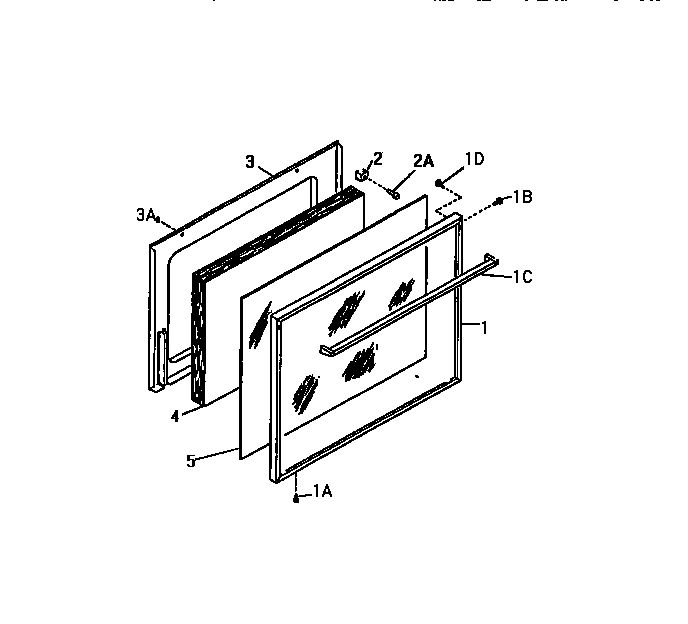

06 - DOOR

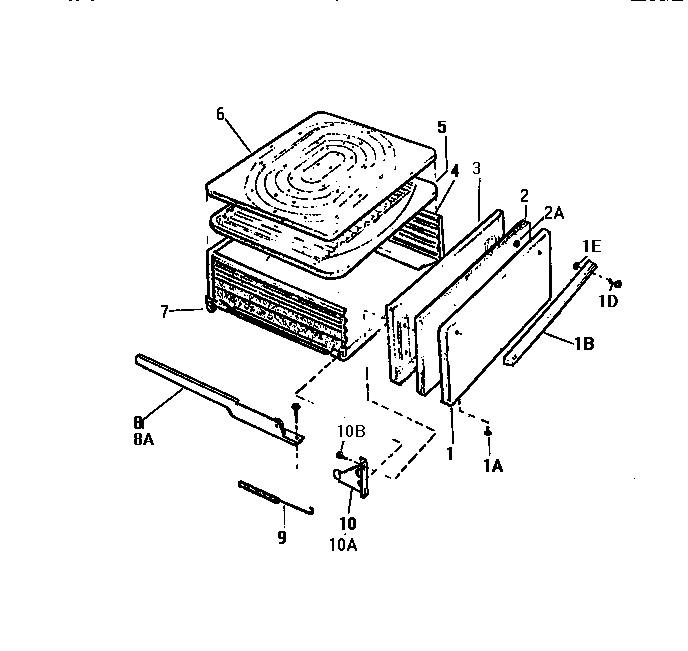

07 - BROILER DRAWER
Common parts from model Electrolux GF620HXD1 RANGE
1
WCI Q301929 WCI Q301929 Contact Us For Availability
1
WCI Q280094 WCI Q280094 Contact Us For Availability
1
BURNER, REAR WCI Q301865 Contact Us For Availability
1
WCI Q301977 WCI Q301977 Contact Us For Availability
1
WCI Q310086 WCI Q310086 Contact Us For Availability
1
OUTER PANEL DRAWER, ALMOND WCI A98349004 Contact Us For Availability
1A
SCREW WCI AP053033 Contact Us For Availability
1B
WCI Q301812 WCI Q301812 Contact Us For Availability
1C
WCI Q301935 WCI Q301935 Contact Us For Availability
1D
SCREW WCI AP057025 Contact Us For Availability
1E
WCI Q61664 WCI Q61664 Contact Us For Availability
2
WIRE HARNESS WCI A99106000 Contact Us For Availability
2
WCI Q280087 WCI Q280087 Contact Us For Availability
2
RACK WCI AP301046 Contact Us For Availability
2
WCI Q301936 WCI Q301936 Contact Us For Availability
2
WCI Q138829 WCI Q138829 Contact Us For Availability
2A
NUT WCI AP265008 Contact Us For Availability
2A
WCI Q301937 WCI Q301937 Contact Us For Availability
3
WCI AP312003 WCI AP312003 Contact Us For Availability
3
KNOB, BURNER WCI Q280097 Contact Us For Availability
3
IGNITOR, RH WCI Q301861 Contact Us For Availability
3
SPRING WCI AP339038 Contact Us For Availability
3
WCI Q301931 WCI Q301931 Contact Us For Availability
3
WCI Q301882 WCI Q301882 Contact Us For Availability
3A
WCI Q301864 WCI Q301864 Contact Us For Availability
3A
PLUG WCI AP075019 Contact Us For Availability
3C
SUPPORT WCI Q301866 Contact Us For Availability
4
WCI Q301891 WCI Q301891 Contact Us For Availability
4
WCI Q310004 WCI Q310004 Contact Us For Availability
4
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
4
INSULATION WCI AP207041 Contact Us For Availability
4
WCI Q301881 WCI Q301881 Contact Us For Availability
5
WCI Q310102 WCI Q310102 Contact Us For Availability
5
WCI Q301855 WCI Q301855 Contact Us For Availability
5
WCI Q301967 WCI Q301967 Contact Us For Availability
5
WCI Q310087 WCI Q310087 Contact Us For Availability
5
PAN, BROIL WCI A53002000 Contact Us For Availability
5A
SEAL WCI AP326052 Contact Us For Availability
6
WCI Q301919 WCI Q301919 Contact Us For Availability
6
WCI Q301858 WCI Q301858 Contact Us For Availability
6
GRID, BROIL WCI A43001000 Contact Us For Availability
7
PANEL, LOWER WCI A54127000 Contact Us For Availability
7
WCI Q301857 WCI Q301857 Contact Us For Availability
7
WCI A74076000 WCI A74076000 Contact Us For Availability
7
ROLLER WCI AP031004 Contact Us For Availability
8
WCI Q301839 WCI Q301839 Contact Us For Availability
8
WCI Q301968 WCI Q301968 Contact Us For Availability
8
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
8A
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
9
WCI A22002000 WCI A22002000 Contact Us For Availability
9
BODY PANEL, ALMOND WCI Q301946 Contact Us For Availability
9
SPRING WCI AP339050 Contact Us For Availability
10
WCI Q310002 WCI Q310002 Contact Us For Availability
10
WCI Q310084 WCI Q310084 Contact Us For Availability
10
HINGE-LH WCI A46011000 Contact Us For Availability
10A
WCI AP172002 WCI AP172002 Contact Us For Availability
10A
HINGE-RH WCI A46010000 Contact Us For Availability
10B
SCREW WCI AP051056 Contact Us For Availability
11
SCREW WCI AP055031 Contact Us For Availability
11
WCI Q301831 WCI Q301831 Contact Us For Availability
12
WCI Q301874 WCI Q301874 Contact Us For Availability
13
WCI Q301873 WCI Q301873 Contact Us For Availability
13
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
13A
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
14
NUT WCI AP265009 Contact Us For Availability
14
WCI AP074001 WCI AP074001 Contact Us For Availability
15
WCI Q301869 WCI Q301869 Contact Us For Availability
15
WCI A92049000 WCI A92049000 Contact Us For Availability
16
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
16
WCI A5087000 WCI A5087000 Contact Us For Availability
17
LOCK NUT WCI AP269017 Contact Us For Availability
17
WCI Q301950 WCI Q301950 Contact Us For Availability
18
COVER, MODULE WCI A32137000 Contact Us For Availability
19
WCI AP385174 WCI AP385174 Contact Us For Availability
19
WCI Q310003 WCI Q310003 Contact Us For Availability
20
BAFFLE WCI A9010000 Contact Us For Availability
20
SUPPORT, REAR OVEN WCI A74060000 Contact Us For Availability
20A
WING NUT WCI AP269004 Contact Us For Availability
21
INSULATION WCI Q134234 Contact Us For Availability
21A
SCREW WCI AP051046 Contact Us For Availability
22
BURNER WCI AP072025 Contact Us For Availability
22
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
22B
SCREW WCI AP325005 Contact Us For Availability
23
WCI Q301871 WCI Q301871 Contact Us For Availability
23
OVEN WRAPPER PANELS, RH SIDE WCI Q301971 Contact Us For Availability
23A
SHUTTER WCI AP330001 Contact Us For Availability
23A
OVEN WRAPPER PANELS, LH SIDE WCI Q301972 Contact Us For Availability
23B
WCI Q301867 WCI Q301867 Contact Us For Availability
23B
OVEN WRAPPER PANELS, TOP WCI Q301973 Contact Us For Availability
23C
NUT WCI AP269033 Contact Us For Availability
23C
OVEN WRAPPER PANELS, BACK WCI Q301974 Contact Us For Availability
24
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
24
WCI AP051045 WCI AP051045 Contact Us For Availability
24A
WCI AP391021 WCI AP391021 Contact Us For Availability
25
VAVLE COVER WCI A32130000 Contact Us For Availability
25
SUPPORT, BOTTOM WCI A74055000 Contact Us For Availability
26
BASE RAIL WCI A98373000 Contact Us For Availability
26A
LEG WCI AP059009 Contact Us For Availability
28
SUPPORT WCI A74054000 Contact Us For Availability
× ![]()
