Model Electrolux GF600HXW2 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS AND BACKGUARD
03 - BURNER, MANIFOLD AND GAS CONTROL

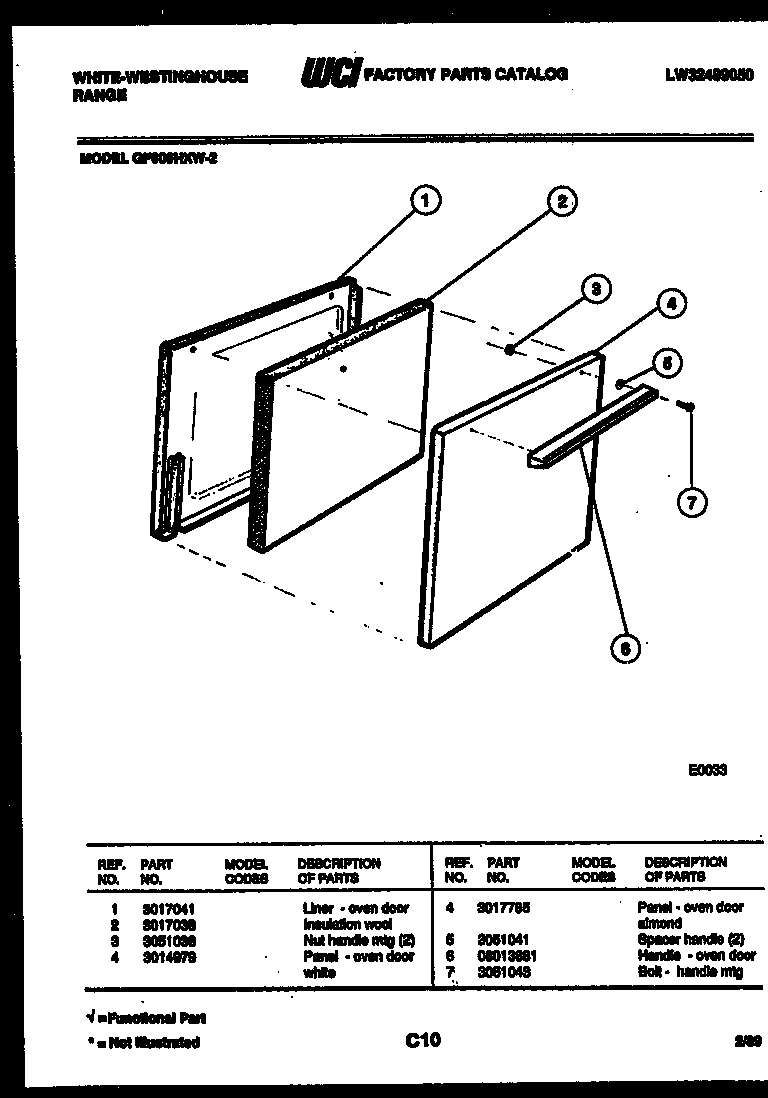

04 - DOOR PARTS

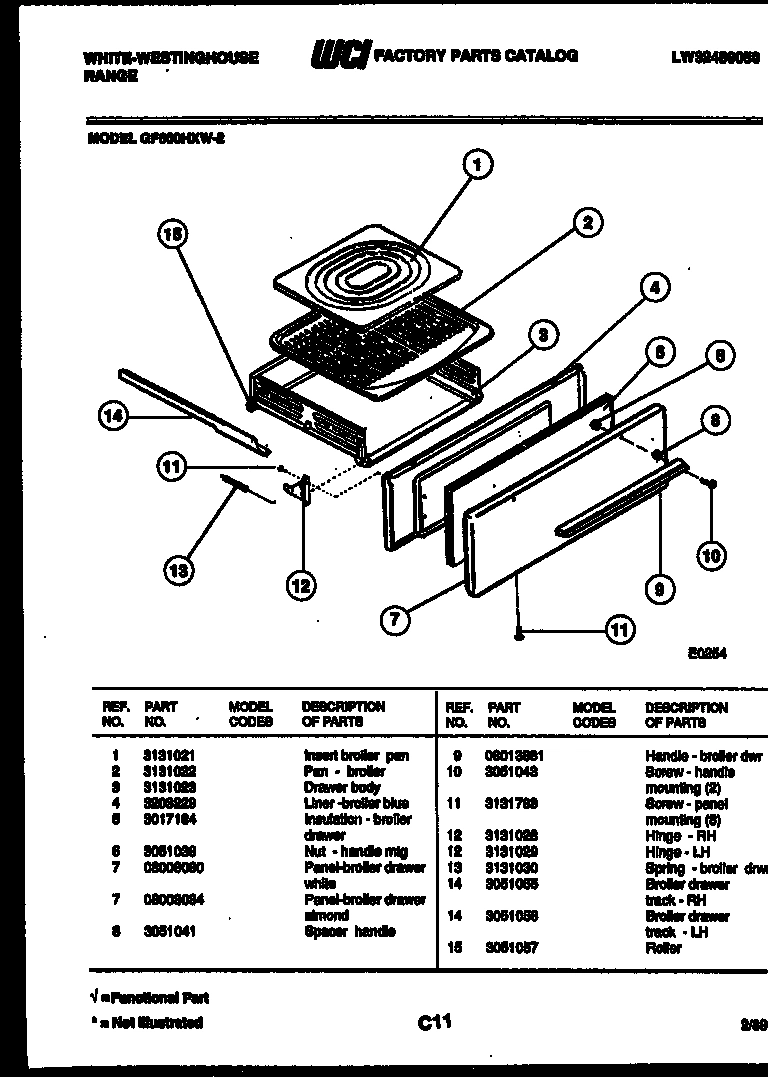

05 - BROILER DRAWER PARTS

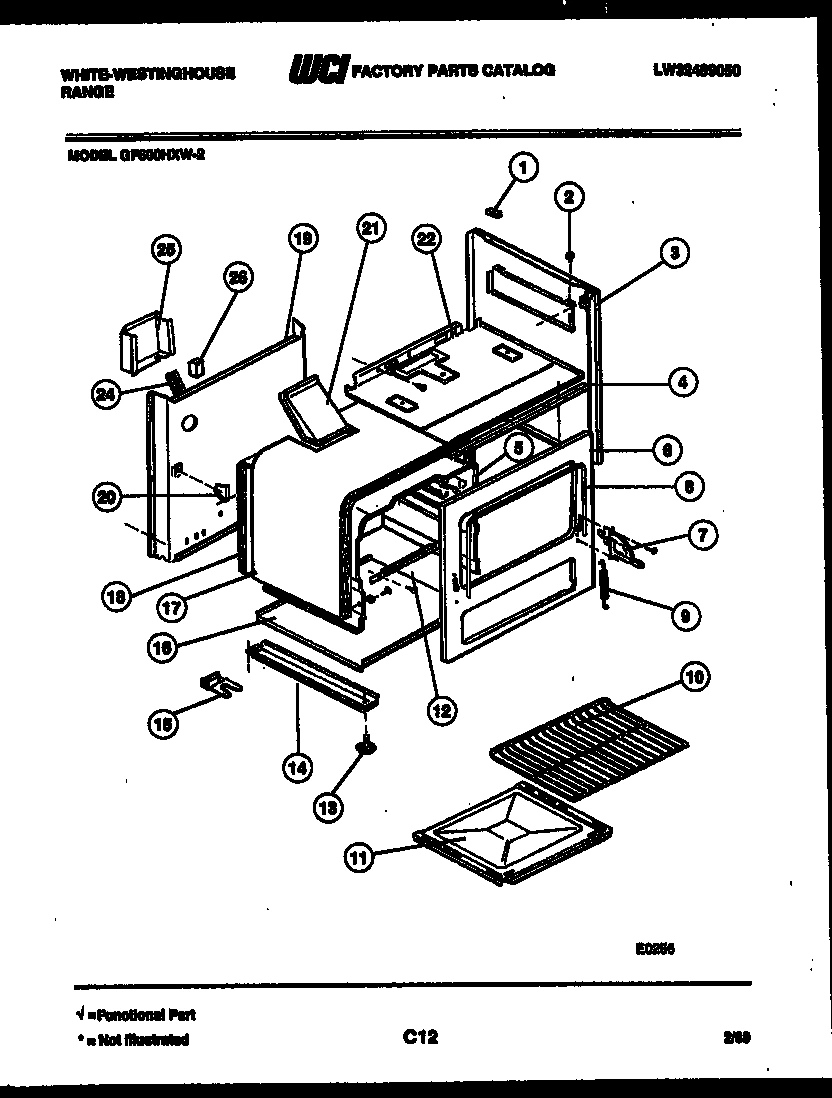

06 - BODY PARTS
Common parts from model Electrolux GF600HXW2 RANGE
*18393
CLIP CAPILLARY BULB WCI 3131060 Contact Us For Availability
1
GRATE (4) WCI 3009309 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3017041 Contact Us For Availability
1
WCI 3131021 WCI 3131021 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
WCI 3014536 WCI 3014536 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
INSULATION-WOOL WCI 3017038 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
WCI 3017978 WCI 3017978 Contact Us For Availability
3
SLIDE BAR WCI 3131856 Contact Us For Availability
3
WCI 3131023 WCI 3131023 Contact Us For Availability
3
BODYSIDE WHITE LH & RH WCI 3051061 Contact Us For Availability
4
WCI 3131019 WCI 3131019 Contact Us For Availability
4
WCI 5308013926 WCI 5308013926 Contact Us For Availability
4
PANEL OVEN DOOR WHITE WCI 3014979 Contact Us For Availability
4
WCI 3203229 WCI 3203229 Contact Us For Availability
4
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
5
KNOB - TOP BURNER WCI 08013898 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
5
WCI 3017166 WCI 3017166 Contact Us For Availability
5
WCI 3017167 WCI 3017167 Contact Us For Availability
5
WCI 3131032 WCI 3131032 Contact Us For Availability
5
WCI 3131033 WCI 3131033 Contact Us For Availability
6
WCI Q000301915 WCI Q000301915 Contact Us For Availability
6
WCI Q000301919 WCI Q000301919 Contact Us For Availability
6
WCI 3202752 WCI 3202752 Contact Us For Availability
6
WCI 3017048 WCI 3017048 Contact Us For Availability
7
CORD - POWER WCI 3015249 Contact Us For Availability
7
TUBING - OVEN SUPPLY WCI 3009495 Contact Us For Availability
7
WCI 08008080 WCI 08008080 Contact Us For Availability
7
WCI 3051078 WCI 3051078 Contact Us For Availability
8
WCI AP003112003 WCI AP003112003 Contact Us For Availability
8
LOXIT NUT WCI 3131086 Contact Us For Availability
8
SPACER-HANDLE WCI 3051041 Contact Us For Availability
8
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
9
TERMINAL BLOCK WCI 3131087 Contact Us For Availability
9
HANDLE - BROILER DWR WCI 08013881 Contact Us For Availability
9
SPRING - HINGE LH/RH (2) WCI 3009435 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
10
WCI 3015714 WCI 3015714 Contact Us For Availability
11
WCI 3051101 WCI 3051101 Contact Us For Availability
11
SCREW - PANEL MOUNTING (8) WCI 3131798 Contact Us For Availability
11
WCI 3017168 WCI 3017168 Contact Us For Availability
12
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
HINGE - LH WCI 3131029 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
13
VALVE-SAFETY WCI 3131089 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 3131030 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
14
BROILER-DRAWER TRACK RH WCI 3051055 Contact Us For Availability
14
BROILER-DRAWER TRACK LH WCI 3051056 Contact Us For Availability
14
RAIL BASE LH/RH (2) WCI 08068047 Contact Us For Availability
15
CAM TOP BURNER VALVE WCI 3131091 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
16
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
16
MAIN BOTTOM WCI 3011645 Contact Us For Availability
17
WCI 3131094 WCI 3131094 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
18
WCI 3131096 WCI 3131096 Contact Us For Availability
18
WCI 3017172 WCI 3017172 Contact Us For Availability
19
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
WCI 3013340 WCI 3013340 Contact Us For Availability
20
IGNITER TOP BURNER WCI 3015196 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
21
VENT BOT WCI 3017173 Contact Us For Availability
22
BURNER - TOP FRONT WCI 3131080 Contact Us For Availability
22
BURNER-BOX WCI 3017174 Contact Us For Availability
23
WCI 3131099 WCI 3131099 Contact Us For Availability
23
SHIELD HEAT BLB RH WCI 3131053 Contact Us For Availability
23
SHIELD HEAT BLB LH WCI 3131054 Contact Us For Availability
23A
CLIP - BACKSPLASH CORNER (NON-ILLUSTRATED) WCI 3009582 Contact Us For Availability
24
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
25
WCI 08008357 WCI 08008357 Contact Us For Availability
× ![]()
