Model Electrolux GF521HXW2 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS AND BACKGUARD

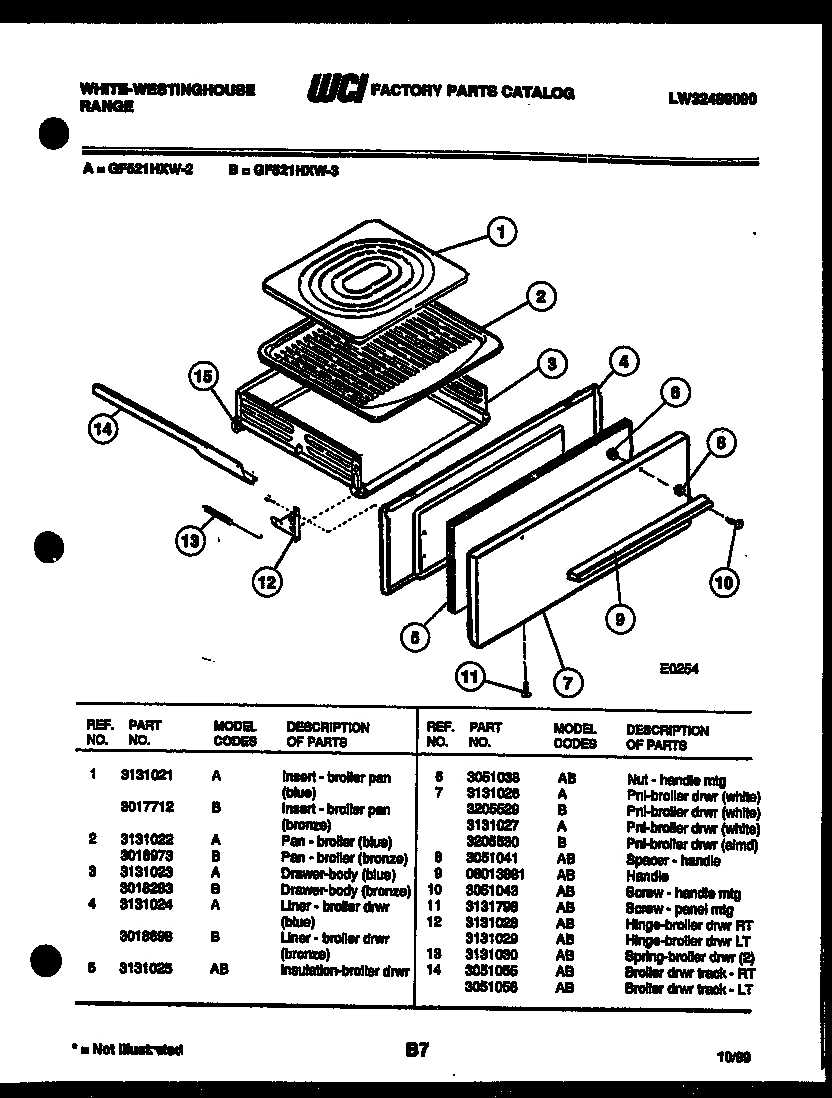

03 - BROILER DRAWER PARTS

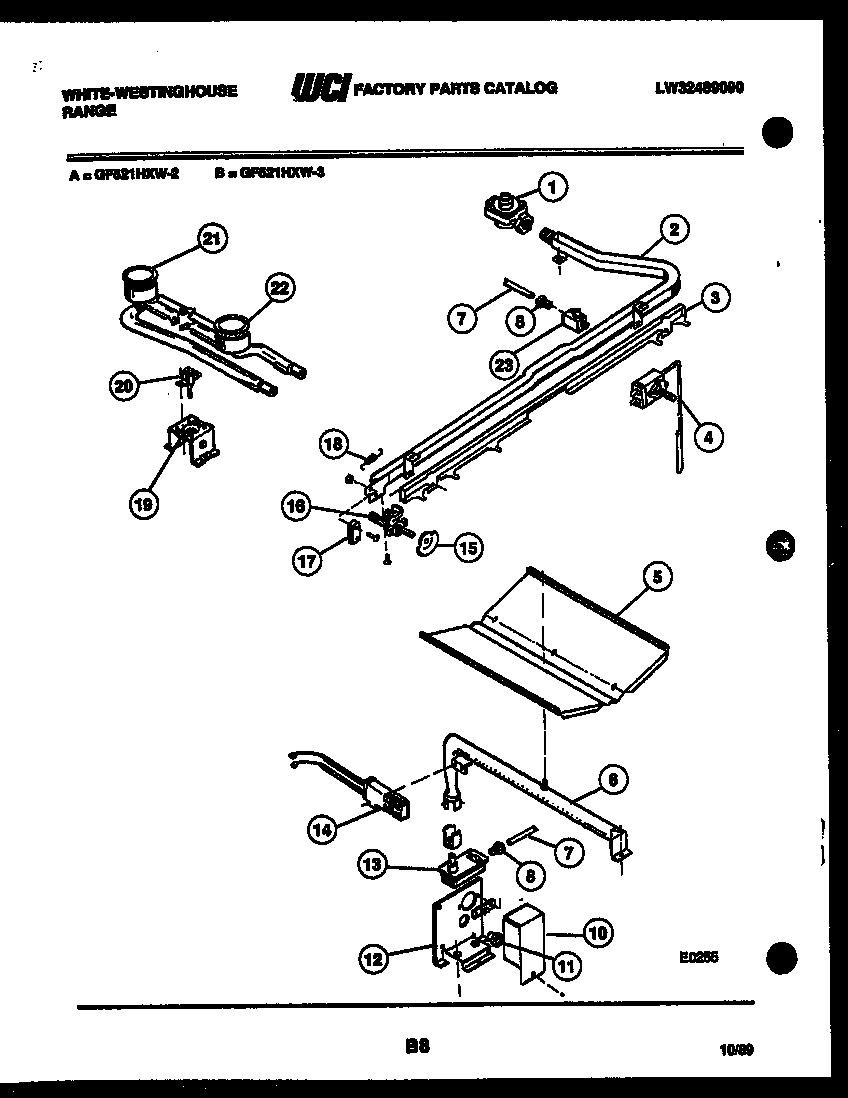

04 - BURNER, MANIFOLD AND GAS CONTROL

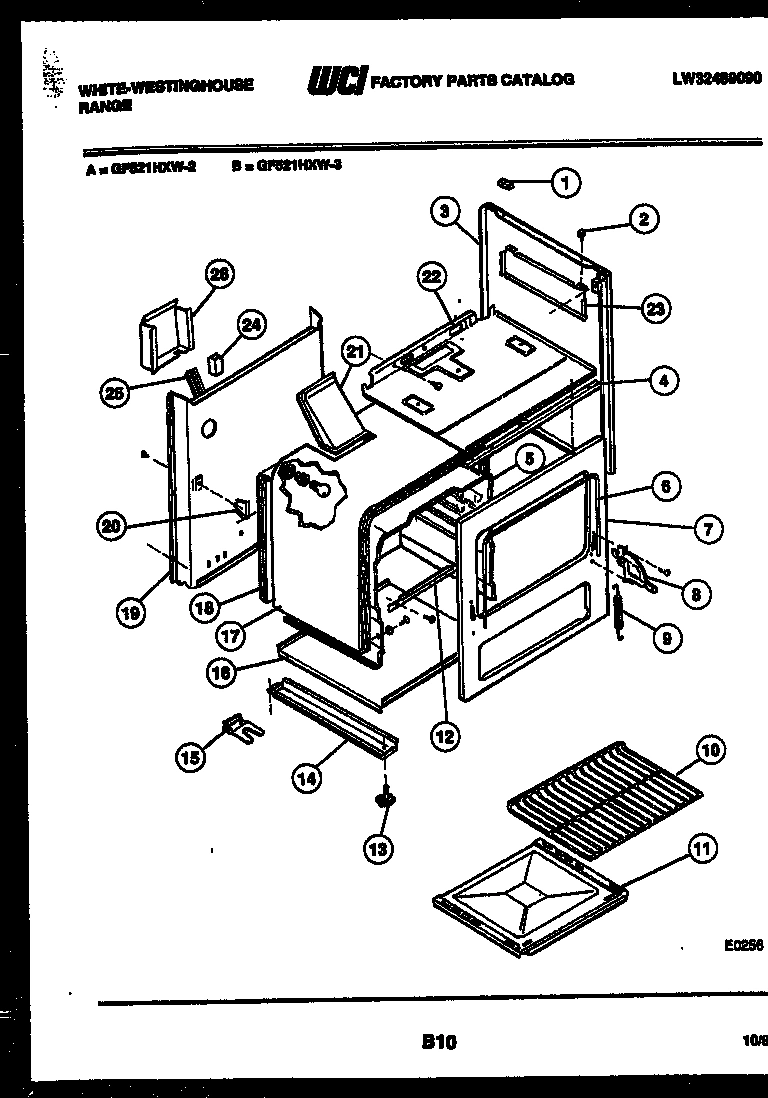

05 - BODY PARTS
Common parts from model Electrolux GF521HXW2 RANGE
1
GRATE (4) WCI 3009309 Contact Us For Availability
1
INSERT - BROILER PAN (BLUE) WCI 3131021 Contact Us For Availability
2
MAIN TOP (WHITE) WCI 3131012 Contact Us For Availability
2
WCI 3131081 WCI 3131081 Contact Us For Availability
3
WCI 3013016 WCI 3013016 Contact Us For Availability
3
DRAWER-BODY (BLUE) WCI 3131023 Contact Us For Availability
3
WCI 3131082 WCI 3131082 Contact Us For Availability
3
B/S L & R (WHITE) WCI 3051061 Contact Us For Availability
3A
KNOB THERMO WCI 3131019 Contact Us For Availability
4
LINER - BROILER DRWR (BLUE) WCI 3131024 Contact Us For Availability
4
THERMOSTAT WCI 08013926 Contact Us For Availability
4
SUPT - CONTROL PANEL WCI 3051067 Contact Us For Availability
5
KNOB - TOP BURNER WCI 08013898 Contact Us For Availability
5
INSULATION-BROILER DRWR WCI 3131025 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
LINER - OVEN (RH) WCI 3131032 Contact Us For Availability
5A
LINER - OVEN (LH) WCI 3131033 Contact Us For Availability
5B
LINER - OVEN (TOP) WCI 3131034 Contact Us For Availability
5C
LINER - OVEN (BACK) WCI 3131035 Contact Us For Availability
6
BACKGUARD ASSY WCI Q000301922 Contact Us For Availability
6
WCI 3131084 WCI 3131084 Contact Us For Availability
6
WCI 3051068 WCI 3051068 Contact Us For Availability
7
WCI AP00312003 WCI AP00312003 Contact Us For Availability
7
PNL-BROILER DRWR (WHITE) WCI 3131026 Contact Us For Availability
7
PNL-BROILER DRWR (WHITE) WCI 3131027 Contact Us For Availability
7
TUBING - OVEN SUPPLY WCI 3009495 Contact Us For Availability
7A
WCI 3051078 WCI 3051078 Contact Us For Availability
8
MAIN CORD WCI 3015249 Contact Us For Availability
8
SPACER-HANDLE WCI 3051041 Contact Us For Availability
8
LOXIT - NUT (2) WCI AP00269033 Contact Us For Availability
8
SEAL - OVEN DOOR WCI 3051069 Contact Us For Availability
9
PANEL - B/G WCI 3051007 Contact Us For Availability
9
WCI 08013881 WCI 08013881 Contact Us For Availability
9
TERMINAL BLOCK WCI 3131087 Contact Us For Availability
9
SPRING-HINGE (L & R) WCI 3051079 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
10
WCI 3016158 WCI 3016158 Contact Us For Availability
11
SCREW - PANEL MTG WCI 3131798 Contact Us For Availability
11
WCI 3051101 WCI 3051101 Contact Us For Availability
11
WCI 3131037 WCI 3131037 Contact Us For Availability
12
HINGE-BROILER DRWR RT WCI 3131028 Contact Us For Availability
12
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
12
WCI 3131038 WCI 3131038 Contact Us For Availability
12A
HINGE-BROILER DRWR LT WCI 3131029 Contact Us For Availability
13
SPRING-BROILER DRWR (2) WCI 3131030 Contact Us For Availability
13
VALVE-SAFETY WCI 3131089 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
14
BROILER DRWR TRACK - RT WCI 3051055 Contact Us For Availability
14
RAIL - BASE L&R WCI A98373000 Contact Us For Availability
14A
BROILER DRWR TRACK - LT WCI 3051056 Contact Us For Availability
15
WCI 08008002 WCI 08008002 Contact Us For Availability
15
WCI 3934059 WCI 3934059 Contact Us For Availability
16
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
16
MAIN BOTTOM WCI 3131042 Contact Us For Availability
17
WCI 3131094 WCI 3131094 Contact Us For Availability
17
WCI 3131043 WCI 3131043 Contact Us For Availability
18
WCI 3131096 WCI 3131096 Contact Us For Availability
18
INSULATION - TOP & BACK WCI 3131044 Contact Us For Availability
19
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
WCI 3131045 WCI 3131045 Contact Us For Availability
20
IGNITER 36`` WCI 3015196 Contact Us For Availability
20
SUPT - OVEN (REAR) WCI 3051096 Contact Us For Availability
21
TOP BURNER REAR WCI 3131079 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
TOP BURNER FRONT WCI 3131080 Contact Us For Availability
22
BURNER BOX WCI 3017573 Contact Us For Availability
23
WCI 3131099 WCI 3131099 Contact Us For Availability
23
SHIELD-HEAT (B/S RH) WCI 3131053 Contact Us For Availability
23A
SHIELD-HEAT (B/S LH) WCI 3131054 Contact Us For Availability
23B
CLIP B/S CORNER (NON-ILLUSTRATED) WCI 3009582 Contact Us For Availability
23C
GROMMET - MAIN TOP (NON-ILLUSTRATED) WCI 3016129 Contact Us For Availability
23D
GROMMET - PLASTIC (NON-ILLUSTRATED) WCI 3051063 Contact Us For Availability
25
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
26
WCI 3131047 WCI 3131047 Contact Us For Availability
× ![]()
