Model Electrolux GF521HXD1 RANGE – Common Parts & Diagrams
02 - BACKGUARD

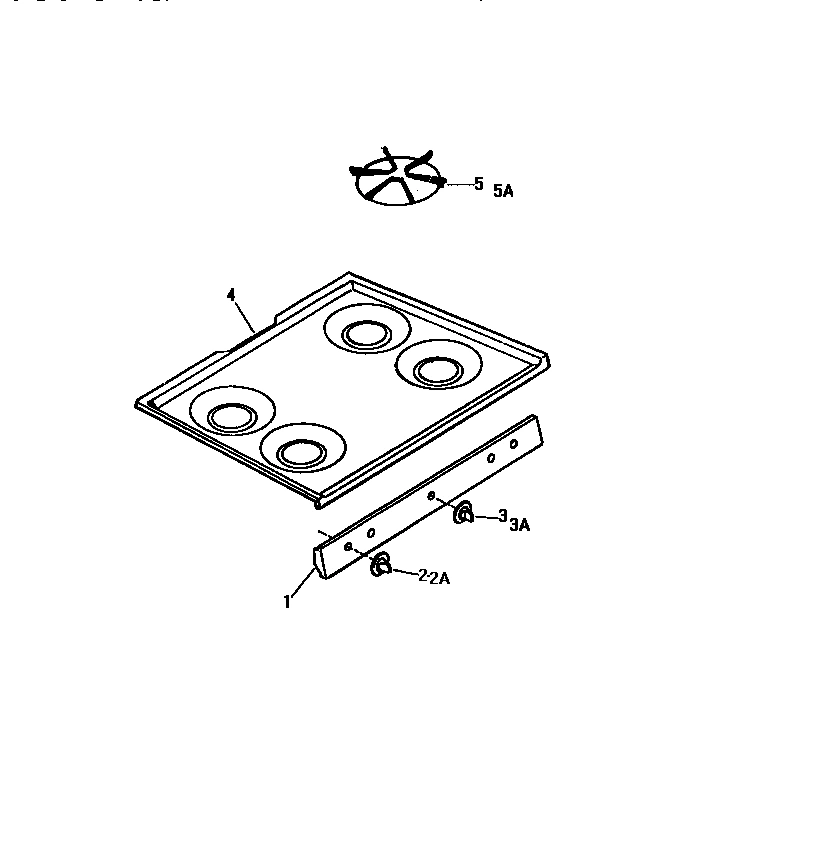

03 - TOP, CONTROL PANEL
04 - BURNER ASSEMBLY
05 - OVEN AND BODY
06 - DOOR
07 - BROILER DRAWER
Common parts from model Electrolux GF521HXD1 RANGE
1
BACKGUARD WCI Q301926 Contact Us For Availability
1
WCI Q310053 WCI Q310053 Contact Us For Availability
1
BURNER, REAR WCI Q301865 Contact Us For Availability
1
WCI Q301970 WCI Q301970 Contact Us For Availability
1
FRAME WCI AP375477 Contact Us For Availability
1
WCI A98350004 WCI A98350004 Contact Us For Availability
1A
WCI Q301891 WCI Q301891 Contact Us For Availability
1A
BURNER, FRONT WCI Q301861 Contact Us For Availability
1A
SCREW WCI AP053033 Contact Us For Availability
1A
WCI AP05056 WCI AP05056 Contact Us For Availability
1B
WCI AP181098 WCI AP181098 Contact Us For Availability
1B
WCI Q301812 WCI Q301812 Contact Us For Availability
1D
WCI Q61664 WCI Q61664 Contact Us For Availability
2
WCI AP312003 WCI AP312003 Contact Us For Availability
2
KNOB, BURNER WCI Q280097 Contact Us For Availability
2
WCI Q301862 WCI Q301862 Contact Us For Availability
2
RACK WCI AP301042 Contact Us For Availability
2
SCREW WCI AP057025 Contact Us For Availability
2
WCI Q138829 WCI Q138829 Contact Us For Availability
2A
WCI Q310074 WCI Q310074 Contact Us For Availability
2A
NUT WCI AP265008 Contact Us For Availability
3
WIRE HARNESS WCI A99106000 Contact Us For Availability
3
WCI Q310004 WCI Q310004 Contact Us For Availability
3
SUPPORT WCI Q301866 Contact Us For Availability
3
SPRING WCI AP339053 Contact Us For Availability
3
WCI Q301936 WCI Q301936 Contact Us For Availability
3
WCI Q301883 WCI Q301883 Contact Us For Availability
3A
WCI Q301937 WCI Q301937 Contact Us For Availability
4
WCI Q301929 WCI Q301929 Contact Us For Availability
4
WCI Q310046 WCI Q310046 Contact Us For Availability
4
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
4
WCI Q301811 WCI Q301811 Contact Us For Availability
4
WCI Q301881 WCI Q301881 Contact Us For Availability
4A
PLUG WCI AP075019 Contact Us For Availability
5
PANEL, LOWER WCI A54099000 Contact Us For Availability
5
WCI Q310102 WCI Q310102 Contact Us For Availability
5
INSULATION WCI AP207039 Contact Us For Availability
5
PAN, BROIL WCI A53002000 Contact Us For Availability
6
WCI Q310075 WCI Q310075 Contact Us For Availability
6
SEAL WCI AP326050 Contact Us For Availability
6
GLASS WCI AP161339 Contact Us For Availability
6
GRID, BROIL WCI A43001000 Contact Us For Availability
7
WCI Q301834 WCI Q301834 Contact Us For Availability
7
ROLLER WCI AP031004 Contact Us For Availability
8
LOCK NUT WCI AP269017 Contact Us For Availability
8
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
8A
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
9
WCI AP386174 WCI AP386174 Contact Us For Availability
9
WCI A74062000 WCI A74062000 Contact Us For Availability
9
SPRING WCI AP339050 Contact Us For Availability
10
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
10
WCI Q310067 WCI Q310067 Contact Us For Availability
10
HINGE-LH WCI A46011000 Contact Us For Availability
10A
HINGE-RH WCI A46010000 Contact Us For Availability
10B
SCREW WCI AP051056 Contact Us For Availability
11
WCI 301858 WCI 301858 Contact Us For Availability
11
BODY PANEL, ALMOND WCI Q301946 Contact Us For Availability
12
WCI Q310076 WCI Q310076 Contact Us For Availability
12
PAD, CORNER (2) WCI Q310084 Contact Us For Availability
13
WCI Q301839 WCI Q301839 Contact Us For Availability
13
WCI AP172002 WCI AP172002 Contact Us For Availability
14
WCI A22002000 WCI A22002000 Contact Us For Availability
14
WCI Q301831 WCI Q301831 Contact Us For Availability
15
WCI Q310002 WCI Q310002 Contact Us For Availability
16
SCREW WCI AP055031 Contact Us For Availability
17
WCI Q301874 WCI Q301874 Contact Us For Availability
17
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
17A
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
18
WCI Q301873 WCI Q301873 Contact Us For Availability
18
WCI AP074001 WCI AP074001 Contact Us For Availability
19
NUT WCI AP265009 Contact Us For Availability
19
WCI A92049000 WCI A92049000 Contact Us For Availability
20
WCI Q301869 WCI Q301869 Contact Us For Availability
20
WCI A5085000 WCI A5085000 Contact Us For Availability
21
BAFFLE WCI A9010000 Contact Us For Availability
21
WCI Q301969 WCI Q301969 Contact Us For Availability
21A
WING NUT WCI AP269004 Contact Us For Availability
22A
SCREW WCI AP051046 Contact Us For Availability
23
BURNER WCI AP072025 Contact Us For Availability
23
WCI Q310077 WCI Q310077 Contact Us For Availability
23B
WCI AP325006 WCI AP325006 Contact Us For Availability
24
WCI AP30001 WCI AP30001 Contact Us For Availability
25
SUPPORT WCI A74054000 Contact Us For Availability
25
WCI Q310003 WCI Q310003 Contact Us For Availability
26
WCI Q301867 WCI Q301867 Contact Us For Availability
26
SUPPORT, REAR OVEN WCI A74060000 Contact Us For Availability
27
WCI Q301871 WCI Q301871 Contact Us For Availability
28
NUT WCI AP269033 Contact Us For Availability
28
WCI AP051045 WCI AP051045 Contact Us For Availability
29
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
30
VALVE COVER WCI A32130000 Contact Us For Availability
30
WCI AP391021 WCI AP391021 Contact Us For Availability
31
INSULATION WCI Q134234 Contact Us For Availability
31
PANEL, BOTTOM WCI A11049000 Contact Us For Availability
32
OVEN WRAPPER PANELS, LH WCI Q301972 Contact Us For Availability
32A
OVEN WRAPPER PANELS, RH WCI Q301971 Contact Us For Availability
32B
OVEN WRAPPER PANELS, TOP WCI Q301984 Contact Us For Availability
32C
OVEN WRAPPER PANELS, BACK WCI Q301985 Contact Us For Availability
34
BASE RAIL WCI A98373000 Contact Us For Availability
35
LEG WCI AP059009 Contact Us For Availability
36
WCI AP74055000 WCI AP74055000 Contact Us For Availability
× ![]()
