Model Electrolux GF504KXW0 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS AND BACKGUARD
03 - BROILER DRAWER PARTS

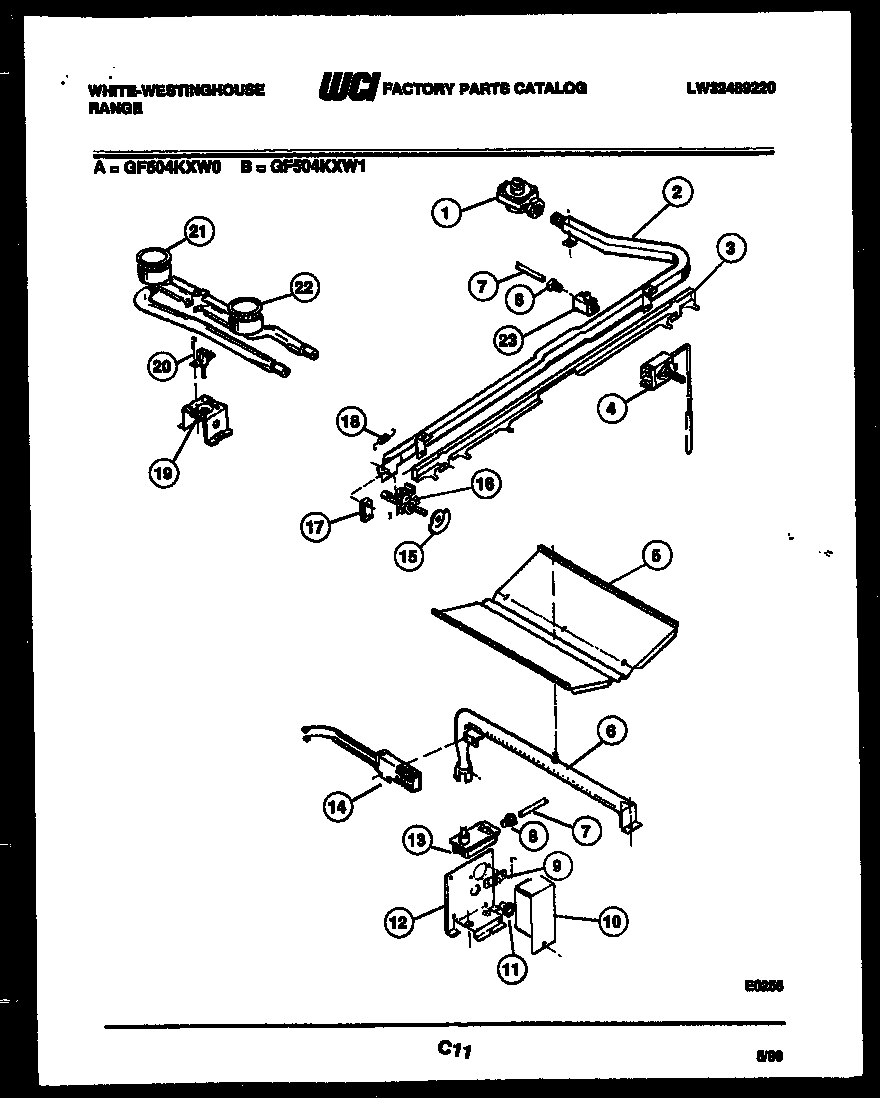

04 - BURNER, MANIFOLD AND GAS CONTROL

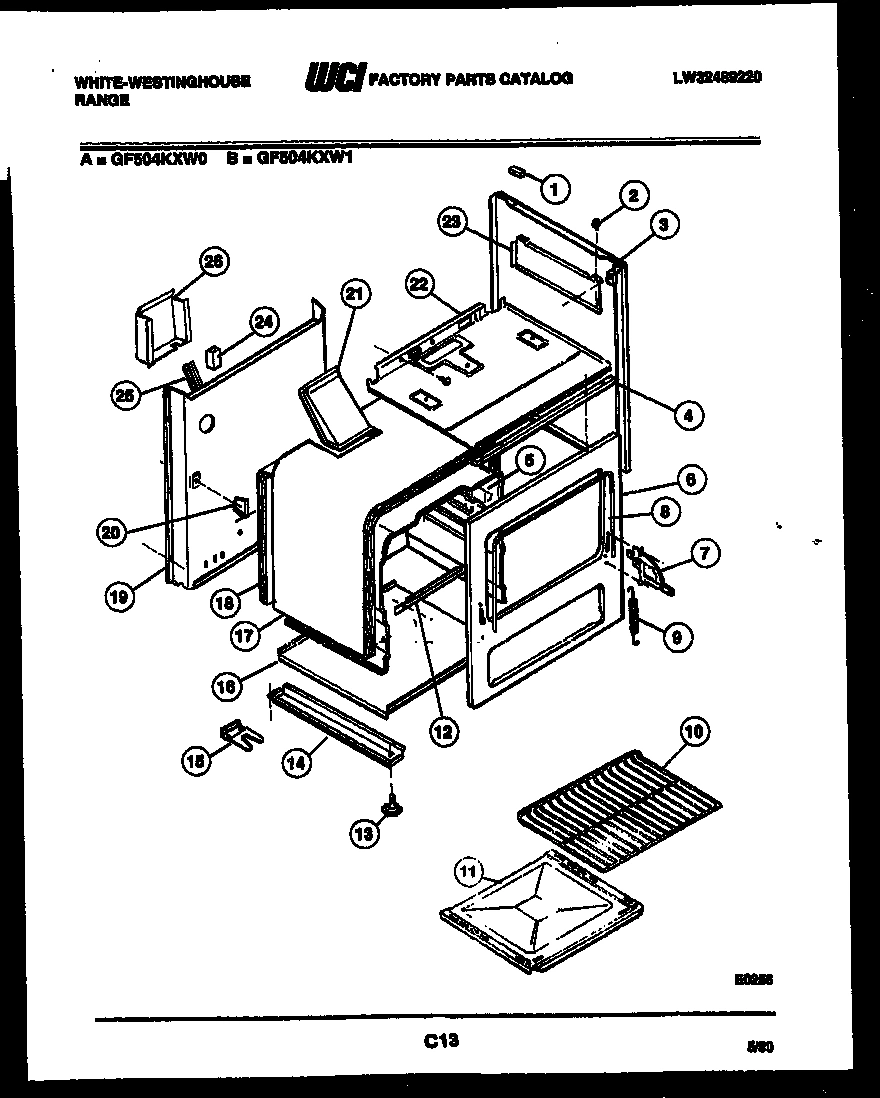

05 - BODY PARTS

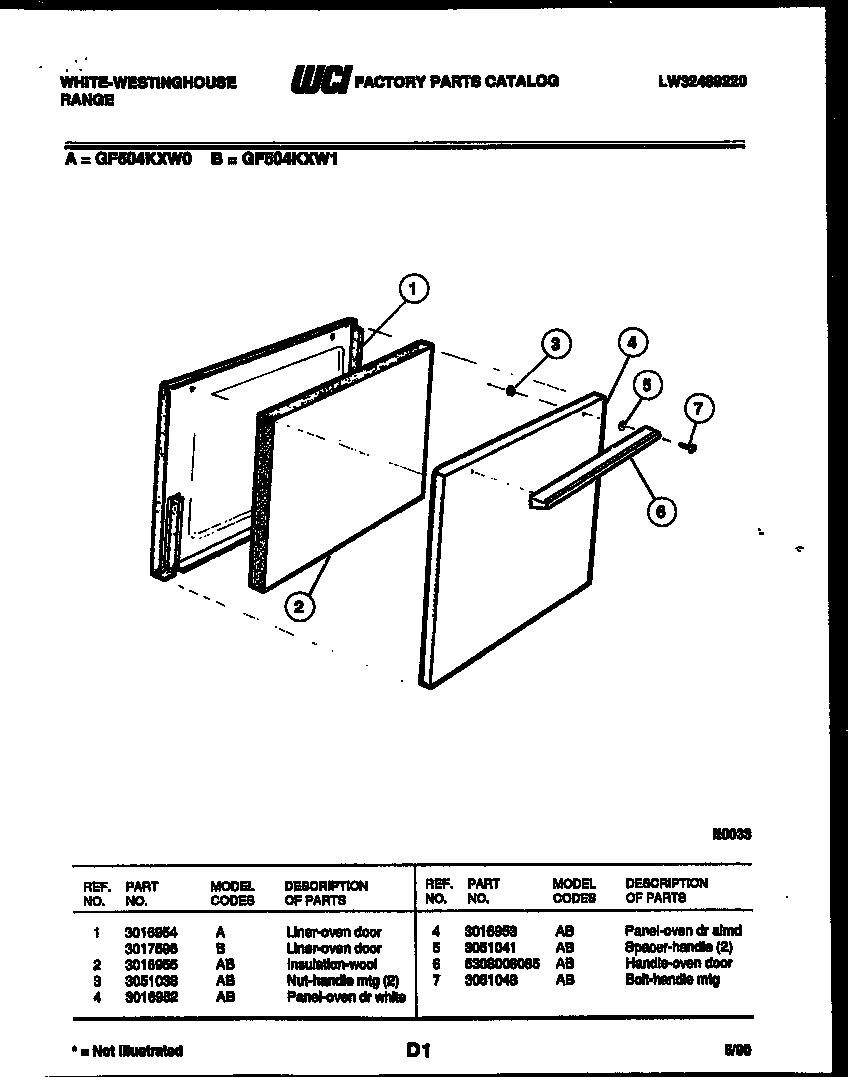

06 - DOOR PARTS
Common parts from model Electrolux GF504KXW0 RANGE
1
WCI 5303016129 WCI 5303016129 Contact Us For Availability
1
WCI 3016954 WCI 3016954 Contact Us For Availability
2
WCI 5303017725 WCI 5303017725 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
2
INSULATION WOOL WCI 3016955 Contact Us For Availability
3
WCI 3131023 WCI 3131023 Contact Us For Availability
3
WCI 3017726 WCI 3017726 Contact Us For Availability
3
BODYSIDE L & R WHITE WCI 5303051061 Contact Us For Availability
3
BODYSIDE L & R ALMOND WCI 5308014019 Contact Us For Availability
4
KNOB-THERMO WCI 5303131019 Contact Us For Availability
4
WCI 3017444 WCI 3017444 Contact Us For Availability
4
WCI 5308013926 WCI 5308013926 Contact Us For Availability
4
SUPPORT-CONTROL PNL WCI 3016950 Contact Us For Availability
4
PANEL-OVEN DR WHITE WCI 3016952 Contact Us For Availability
4
PANEL-OVEN DR ALMD WCI 3016953 Contact Us For Availability
5
KNOB-TOP BURNER WCI 5308013898 Contact Us For Availability
5
INSUL-BROILER DRWR WCI 3017184 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
OVEN LINER RH WCI 3131032 Contact Us For Availability
5
SPACER HANDLE (2) WCI 3051041 Contact Us For Availability
5A
OVEN LINER LH WCI 3131033 Contact Us For Availability
5B
WCI 3017445 WCI 3017445 Contact Us For Availability
5C
WCI 3017446 WCI 3017446 Contact Us For Availability
6
WCI 5303202752 WCI 5303202752 Contact Us For Availability
6
HANDLE-OVEN DOOR WCI 5308008085 Contact Us For Availability
6
WCI 3016942 WCI 3016942 Contact Us For Availability
7
WCI 08014052 WCI 08014052 Contact Us For Availability
7
TUBING-OVEN SPLY 3/8 WCI 3131085 Contact Us For Availability
7A
HINGE-DOOR RH WCI 5303204670 Contact Us For Availability
8
SPACER HANDLE WCI 5303051041 Contact Us For Availability
8
LOXIT NUT 3/8 WCI 5308007983 Contact Us For Availability
8
SEAL-OVEN DOOR WCI 5308013916 Contact Us For Availability
9
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
9
SPRING-HINGE L&R (2) WCI 5303051079 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
10
WCI 5303016128 WCI 5303016128 Contact Us For Availability
11
SCREW PANEL MTG (8) WCI 3051009 Contact Us For Availability
11
WCI 3051101 WCI 3051101 Contact Us For Availability
11
WCI 3017447 WCI 3017447 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12A
HINGE - LH WCI 5303131029 Contact Us For Availability
13
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 5303131030 Contact Us For Availability
13
LEVELING LEG WCI 5303051080 Contact Us For Availability
14
BROILER DRWR TRACK RT WCI 5303051055 Contact Us For Availability
14
RAIL-BASE L & R (2) WCI 5308068047 Contact Us For Availability
14A
BROILER DRWR TRACK LT WCI 5303051056 Contact Us For Availability
15
ROLLER WCI 5303051057 Contact Us For Availability
15
CAM - TOP BURNER (4) WCI 5308008002 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
16
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
16
MAIN BOTTOM WCI 3017448 Contact Us For Availability
17
WCI 5303131094 WCI 5303131094 Contact Us For Availability
17
INSUL (WRAP) WCI 3017171 Contact Us For Availability
18
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
18
INSUL BACK & TOP WCI 3017172 Contact Us For Availability
19
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
BACK-MAIN WCI A005085000 Contact Us For Availability
20
IGNITOR 36`` WCI 3015196 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
TOP BURNER-REAR WCI 5303131079 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
TOP BURNER-FRONT WCI 5303131080 Contact Us For Availability
22
WCI 3017450 WCI 3017450 Contact Us For Availability
23
WCI 5303131099 WCI 5303131099 Contact Us For Availability
23
SHIELD-HEAT B/B RH WCI 5303131053 Contact Us For Availability
23A
SHIELD-HEAT B/B LH WCI 5303131054 Contact Us For Availability
23B
CLIP B/S CORNER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
25
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
25A
MAIN-CORD (NON-ILLUSTRATED) WCI 5303015249 Contact Us For Availability
26
WCI 3131047 WCI 3131047 Contact Us For Availability
× ![]()
