Model Electrolux GF504KXD3 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - BROILER DRAWER PARTS

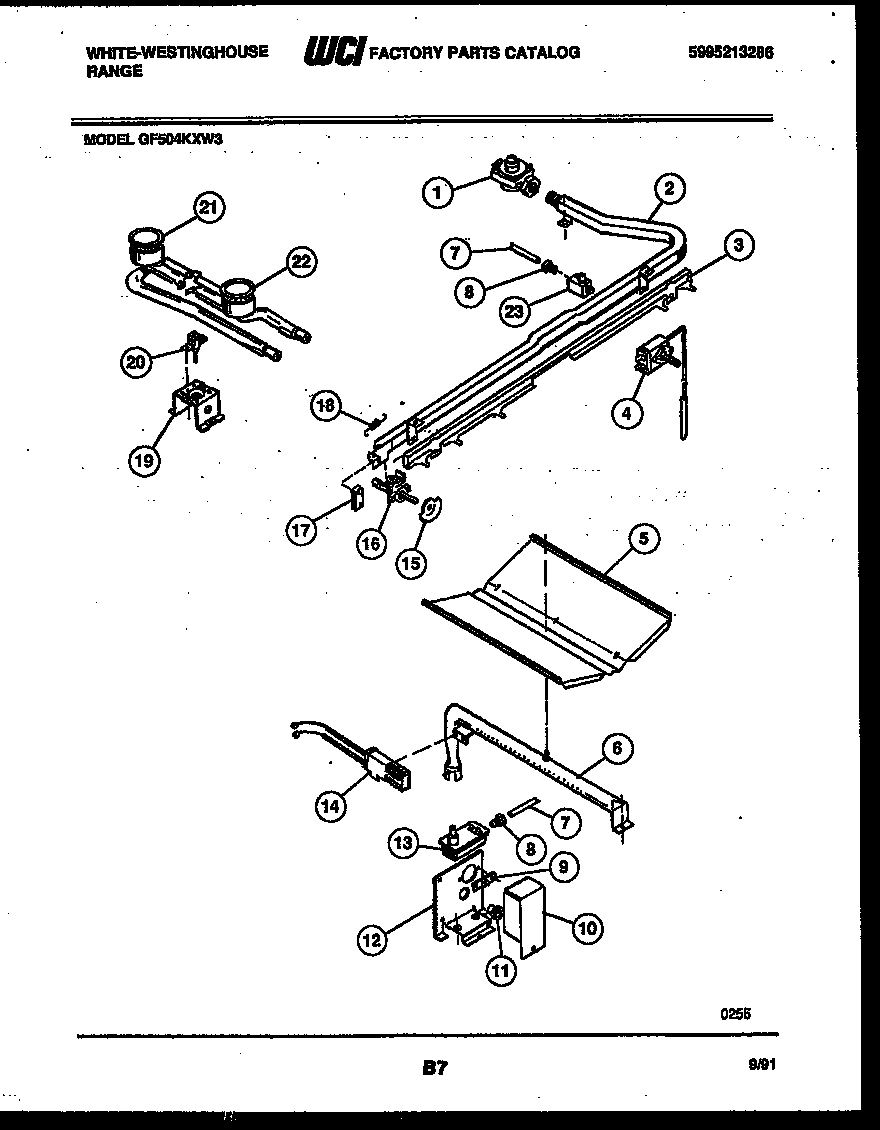

04 - BURNER, MANIFOLD AND GAS CONTROL

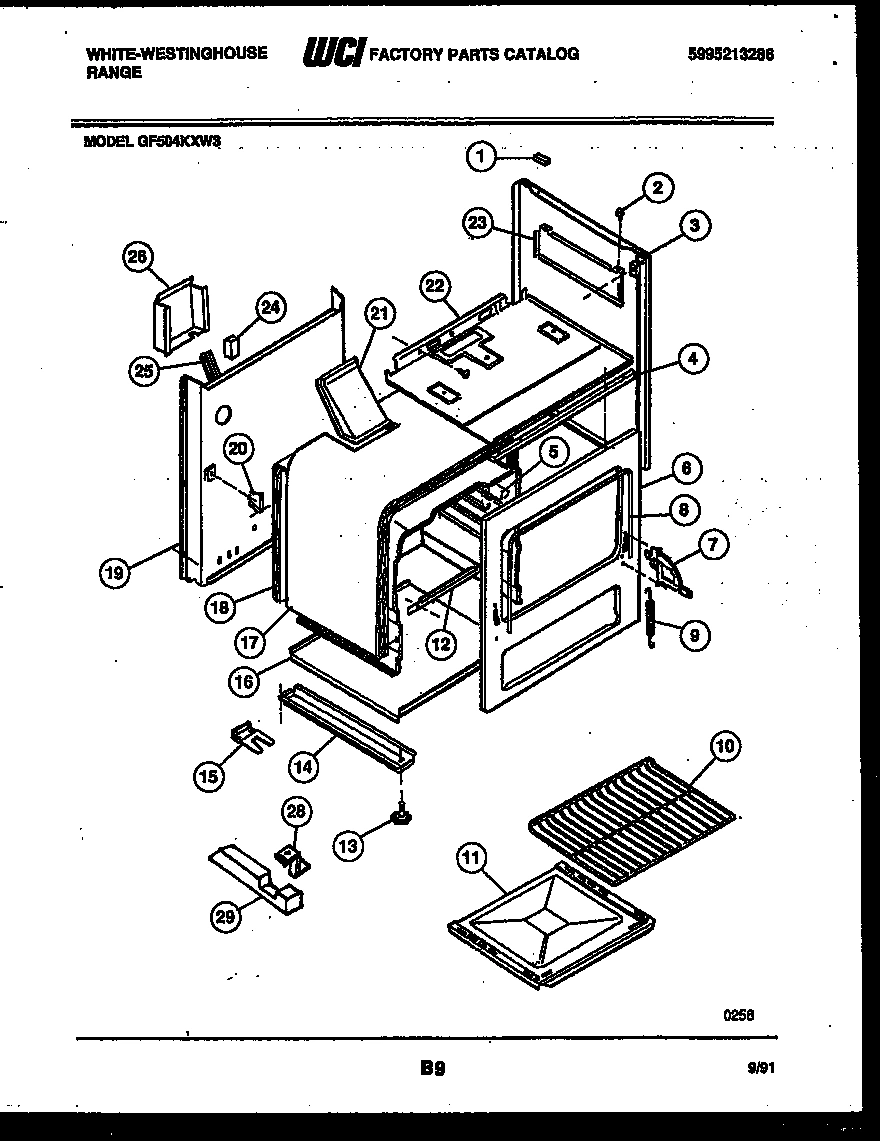

05 - BODY PARTS

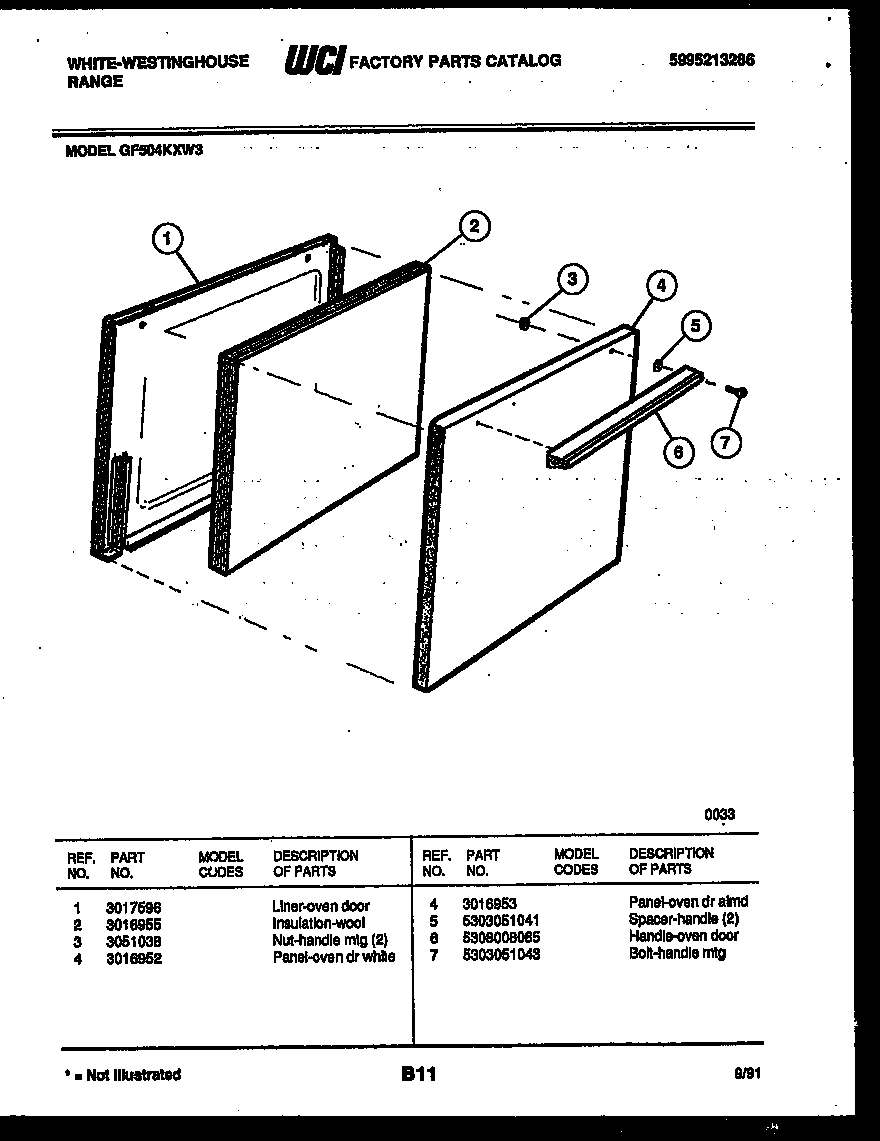

06 - DOOR PARTS
Common parts from model Electrolux GF504KXD3 RANGE
*54053
WCI 5300009126 WCI 5300009126 Contact Us For Availability
*54059
DIAGRAM - WIRING (NOT FOR PURCHASE) WCI 19100180271 Contact Us For Availability
1
WCI 5303017712 WCI 5303017712 Contact Us For Availability
1
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
1
WCI 3017596 WCI 3017596 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
WCI 5303017725 WCI 5303017725 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
2
INSULATION WOOL WCI 3016955 Contact Us For Availability
3
WCI 3017726 WCI 3017726 Contact Us For Availability
3
BODYSIDE L & R ALMOND WCI 5308014019 Contact Us For Availability
4
KNOB-THERMO WCI 5303131019 Contact Us For Availability
4
LINER - BROILER WCI 3018816 Contact Us For Availability
4
WCI 5303210474 WCI 5303210474 Contact Us For Availability
4
SUPPORT-CONTROL PNL WCI 3016950 Contact Us For Availability
4
PANEL-OVEN DR ALMD WCI 3016953 Contact Us For Availability
5
KNOB-TOP BURNER WCI 5308013898 Contact Us For Availability
5
INSUL-BROILER DRWR WCI 3017184 Contact Us For Availability
5
WCI 5303051041 WCI 5303051041 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
OVEN LINER-RH WCI 3018284 Contact Us For Availability
5A
OVEN LINER-LH WCI 3018285 Contact Us For Availability
5B
OVEN LINER TOP WCI 3018818 Contact Us For Availability
5C
OVEN LINER BACK WCI 3018817 Contact Us For Availability
6
WCI 5303202752 WCI 5303202752 Contact Us For Availability
6
HANDLE-OVEN DOOR WCI 5308008085 Contact Us For Availability
6
FRONT FRAME WCI 3203612 Contact Us For Availability
6B
HINGE-DOOR RH WCI 5303204670 Contact Us For Availability
7
WCI 08014053 WCI 08014053 Contact Us For Availability
7
TUBING-OVEN SPLY 3/8 WCI 5303009495 Contact Us For Availability
8
LOXIT NUT 3/8 WCI 5308007983 Contact Us For Availability
8
SEAL-OVEN DOOR WCI 5308013916 Contact Us For Availability
9
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
9
SPRING-HINGE L&R (2) WCI 5303051079 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
10
WCI 5303016128 WCI 5303016128 Contact Us For Availability
11
SCREW PANEL MTG (8) WCI 5303131801 Contact Us For Availability
11
WCI 3051101 WCI 3051101 Contact Us For Availability
11
OVEN BOTTOM WCI 3018815 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12A
HINGE - LH WCI 5303131029 Contact Us For Availability
13
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 5303131030 Contact Us For Availability
14
BROILER DRWR TRACK RT WCI 5303051055 Contact Us For Availability
14
RAIL-BASE RIGHT WCI 5303210255 Contact Us For Availability
14A
BROILER DRWR TRACK LT WCI 5303051056 Contact Us For Availability
14A
RAIL-BASE LEFT WCI 5303210256 Contact Us For Availability
15
ROLLER WCI 5303051057 Contact Us For Availability
15
CAM - TOP BURNER (4) WCI 5308008002 Contact Us For Availability
15
BRACKET INSTALLATION WCI 3934059 Contact Us For Availability
16
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
16
MAIN BOTTOM WCI 3017448 Contact Us For Availability
17
WCI 5303131094 WCI 5303131094 Contact Us For Availability
17
WCI 3203740 WCI 3203740 Contact Us For Availability
18
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
18
INSUL BACK & TOP WCI 3203741 Contact Us For Availability
19
WCI 5303210471 WCI 5303210471 Contact Us For Availability
19
WCI 5303271410 WCI 5303271410 Contact Us For Availability
20
IGNITOR 36`` WCI 3203970 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
TOP BURNER-REAR WCI 5303131079 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
TOP BURNER-FRONT WCI 5303131080 Contact Us For Availability
22
BURNER BOX WCI 3202742 Contact Us For Availability
23
WCI 5303131099 WCI 5303131099 Contact Us For Availability
23
SHIELD-HEAT B/B RH WCI 5303131053 Contact Us For Availability
23A
SHIELD-HEAT B/B LH WCI 5303131054 Contact Us For Availability
23B
CLIP B/S CORNER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
25
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
26
WCI 3131047 WCI 3131047 Contact Us For Availability
28
RETAINER - WEIGHT WCI 5303210892 Contact Us For Availability
29
WEIGHT WCI 5303210891 Contact Us For Availability
× ![]()
