Model Electrolux GF501KXD3 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

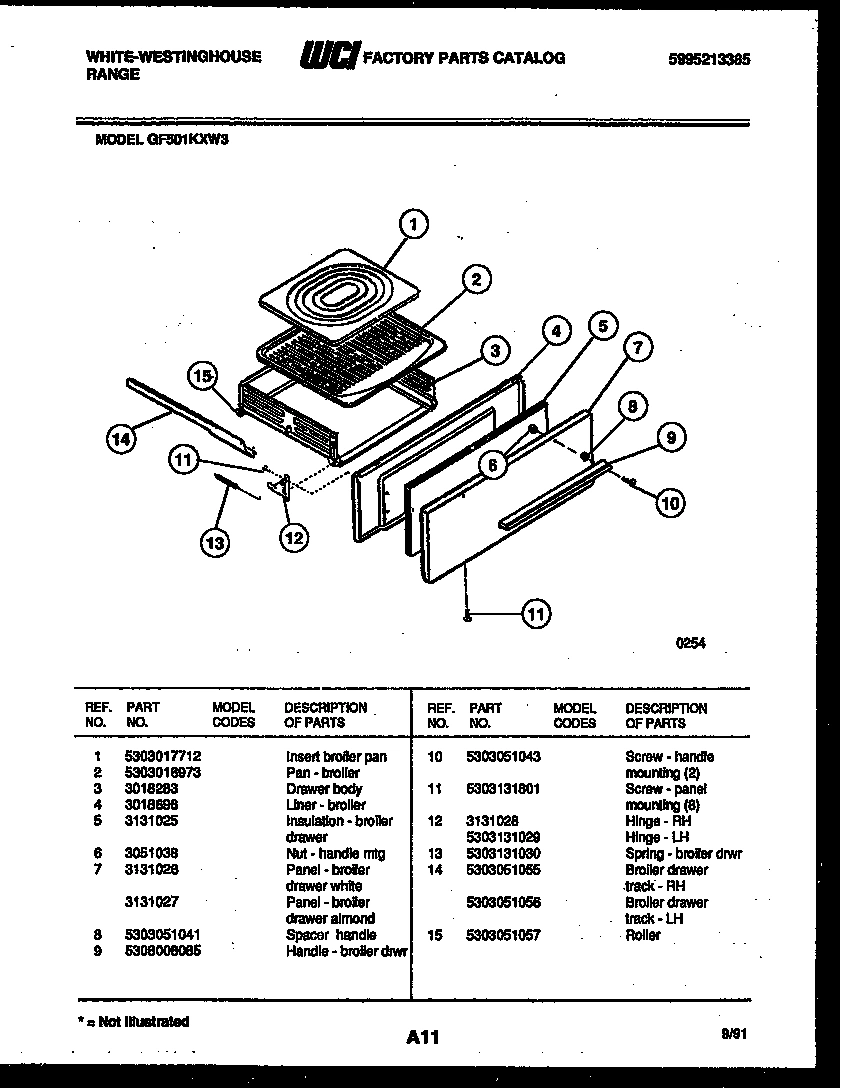

04 - BROILER DRAWER PARTS

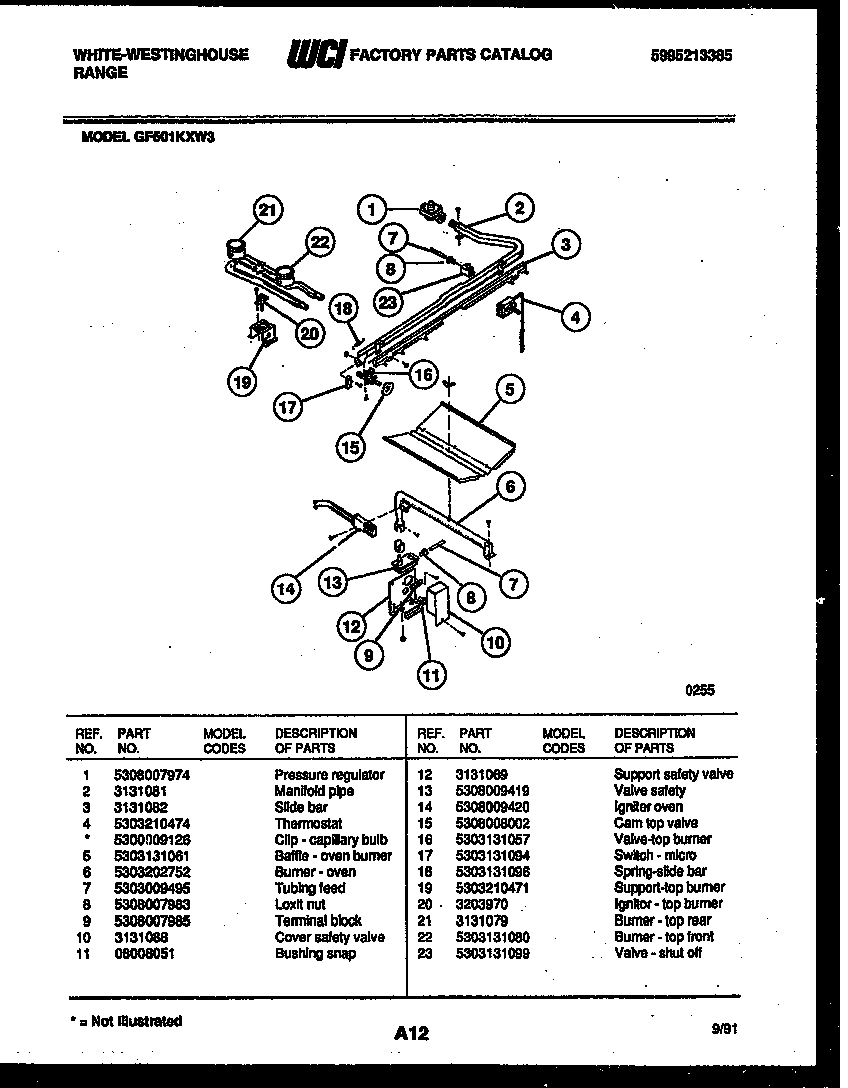

05 - BURNER, MANIFOLD AND GAS CONTROL

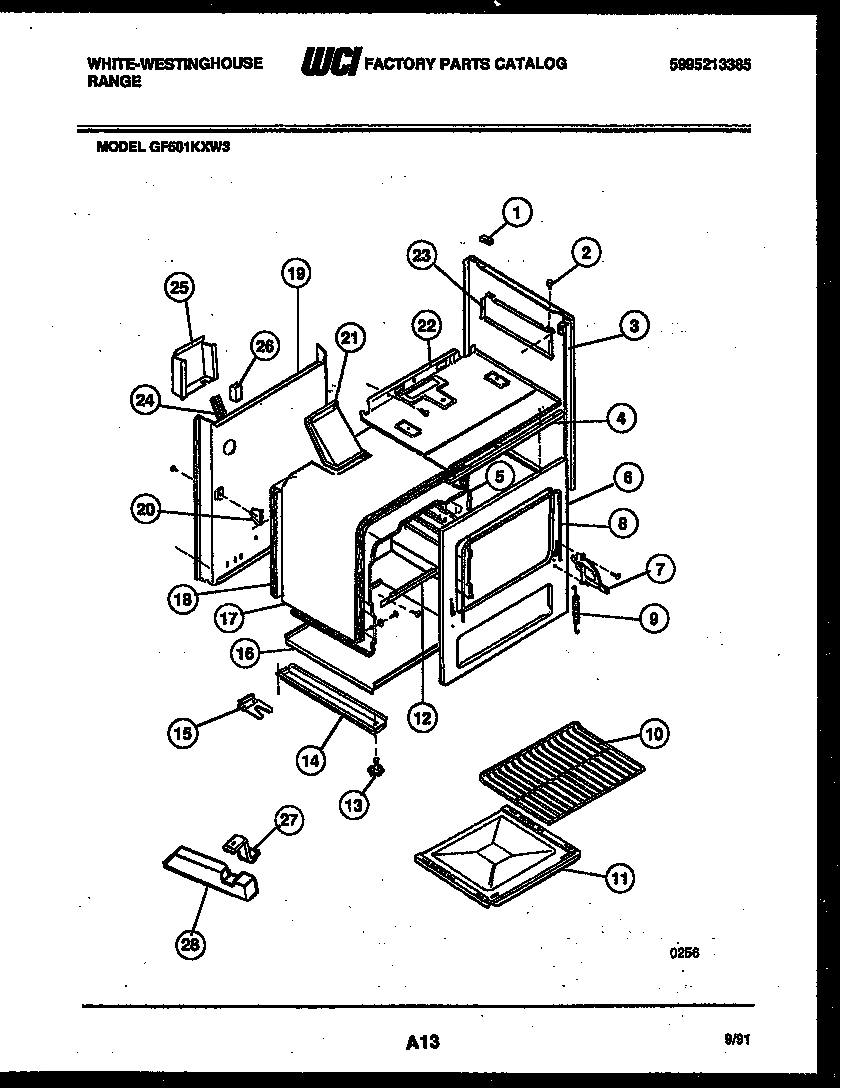

06 - BODY PARTS
Common parts from model Electrolux GF501KXD3 RANGE
*52489
DIAGRAM - WIRING (NOT FOR PURCHASE) WCI 19100180271 Contact Us For Availability
1
LINER WCI 3017711 Contact Us For Availability
1
WCI 5303017712 WCI 5303017712 Contact Us For Availability
1
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
2
INSULATION-WOOL WCI 3009334 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
WCI 3131081 WCI 3131081 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
SLIDE BAR WCI 3131082 Contact Us For Availability
3
BODYSIDE - ALMOND LH/RH WCI 5308014019 Contact Us For Availability
4
WCI 5303131019 WCI 5303131019 Contact Us For Availability
4
WCI 5303051040 WCI 5303051040 Contact Us For Availability
4
LINER - BROILER WCI 3018698 Contact Us For Availability
4
WCI 5303210474 WCI 5303210474 Contact Us For Availability
4
WCI 3051067 WCI 3051067 Contact Us For Availability
4A
WCI 5300009126 WCI 5300009126 Contact Us For Availability
5
KNOB-TOP VALVE WCI 5308013898 Contact Us For Availability
5
INSULATION BROILER DRAWER WCI 3131025 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
OVEN LINER-SIDE RH WCI 3018284 Contact Us For Availability
5
OVEN LINER-SIDE LH WCI 3018285 Contact Us For Availability
5
OVEN LINER-BACK WCI 3018699 Contact Us For Availability
5
OVEN LINER-TOP WCI 3018700 Contact Us For Availability
6
WCI 5303202752 WCI 5303202752 Contact Us For Availability
6
WCI 3203621 WCI 3203621 Contact Us For Availability
7
PANEL-BROILER DRAWER (ALMOND) WCI 3131027 Contact Us For Availability
7
TUBING FEED WCI 5303009495 Contact Us For Availability
7A
HINGE-DOOR RH WCI 5303204670 Contact Us For Availability
8
SPACER HANDLE WCI 5303051041 Contact Us For Availability
8
LOXIT NUT WCI 5308007983 Contact Us For Availability
8
SEAL OVEN DOOR WCI 5303051069 Contact Us For Availability
9
HANDLE - BROILER DRWR WCI 5308008085 Contact Us For Availability
9
TERMINAL BLOCK WCI 5308007985 Contact Us For Availability
9
SPRING HINGE LH/RH WCI 5303051079 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
10
RACK-OVEN WCI 3016158 Contact Us For Availability
11
SCREW - PANEL MOUNTING (8) WCI 5303131801 Contact Us For Availability
11
WCI 08008051 WCI 08008051 Contact Us For Availability
11
OVEN-BOTTOM WCI 3018697 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12A
HINGE - LH WCI 5303131029 Contact Us For Availability
13
LEVELING LEG WCI 318175510 No Longer Available
13
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 5303131030 Contact Us For Availability
14
BROILER DRAWER TRACK - RH WCI 5303051055 Contact Us For Availability
14
RAIL BASE LH/RH WCI 08068047 Contact Us For Availability
14A
BROILER DRAWER TRACK - LH WCI 5303051056 Contact Us For Availability
14A
BASE RAIL-RT WCI 5303210255 Contact Us For Availability
14B
BASE RAIL-LT WCI 5303210256 Contact Us For Availability
15
ROLLER WCI 5303051057 Contact Us For Availability
15
CAM TOP VALVE WCI 5308008002 Contact Us For Availability
15
BRACKET INSTALLATION WCI 3934059 Contact Us For Availability
16
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
16
MAIN BOTTOM WCI 3131042 Contact Us For Availability
17
WCI 5303131094 WCI 5303131094 Contact Us For Availability
17
WCI 3131043 WCI 3131043 Contact Us For Availability
18
SPRING - SLIDE BAR WCI 5303131096 Contact Us For Availability
18
INSULATION - BACK & TOP WCI 3131044 Contact Us For Availability
19
WCI 5303210471 WCI 5303210471 Contact Us For Availability
19
WCI 5303212609 WCI 5303212609 Contact Us For Availability
20
IGNITOR-TOP BURNER WCI 3203970 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
22
BURNER BOX WCI 3017573 Contact Us For Availability
23
WCI 5303131099 WCI 5303131099 Contact Us For Availability
23
SHIELD-HEAT B/B RH WCI 5303131053 Contact Us For Availability
23A
SHIELD-HEAT B/B LH WCI 5303131054 Contact Us For Availability
23B
CLIP - BACK SPLASH CORNER (NON-ILLUSTRATED) WCI 3131791 Contact Us For Availability
24
CHANNEL MAIN BACK WCI 3131046 Contact Us For Availability
25
WCI 3131047 WCI 3131047 Contact Us For Availability
27
RETAINER - WEIGHT WCI 5303210892 Contact Us For Availability
28
CEMENT - WEIGHT WCI 5303210891 Contact Us For Availability
× ![]()
