Model Electrolux GF501KXD0 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

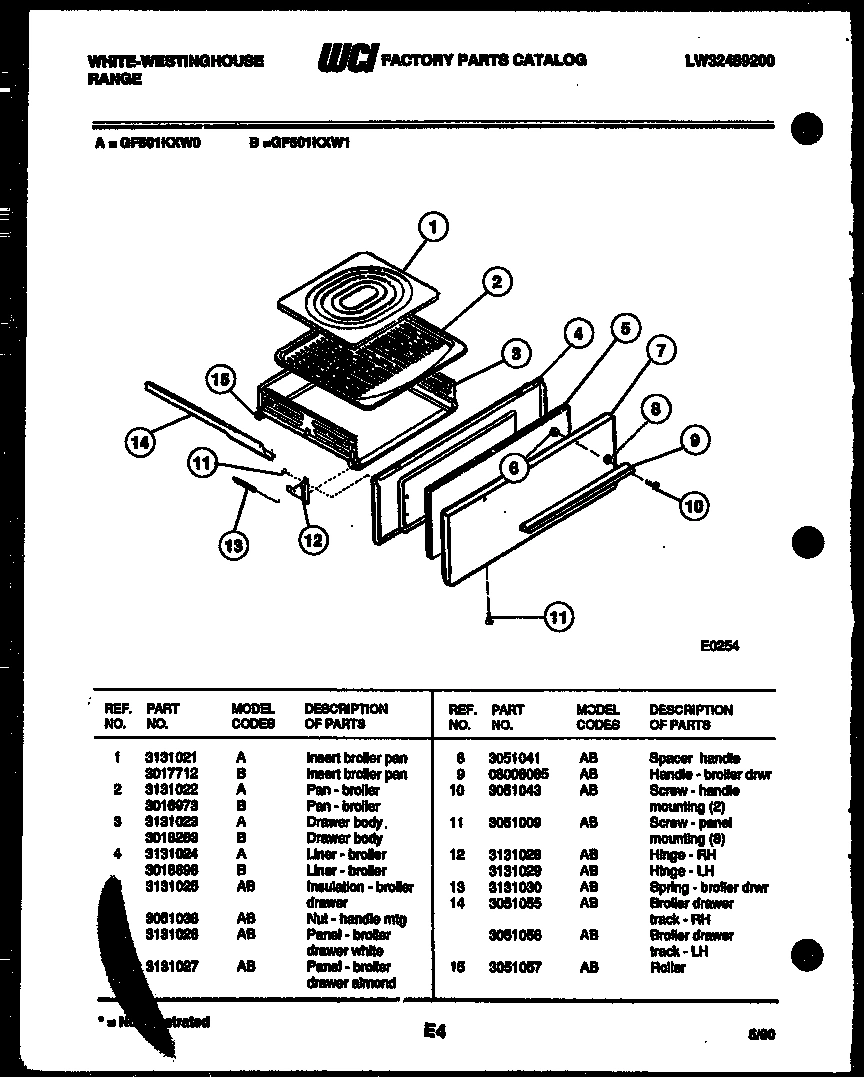

04 - BROILER DRAWER PARTS

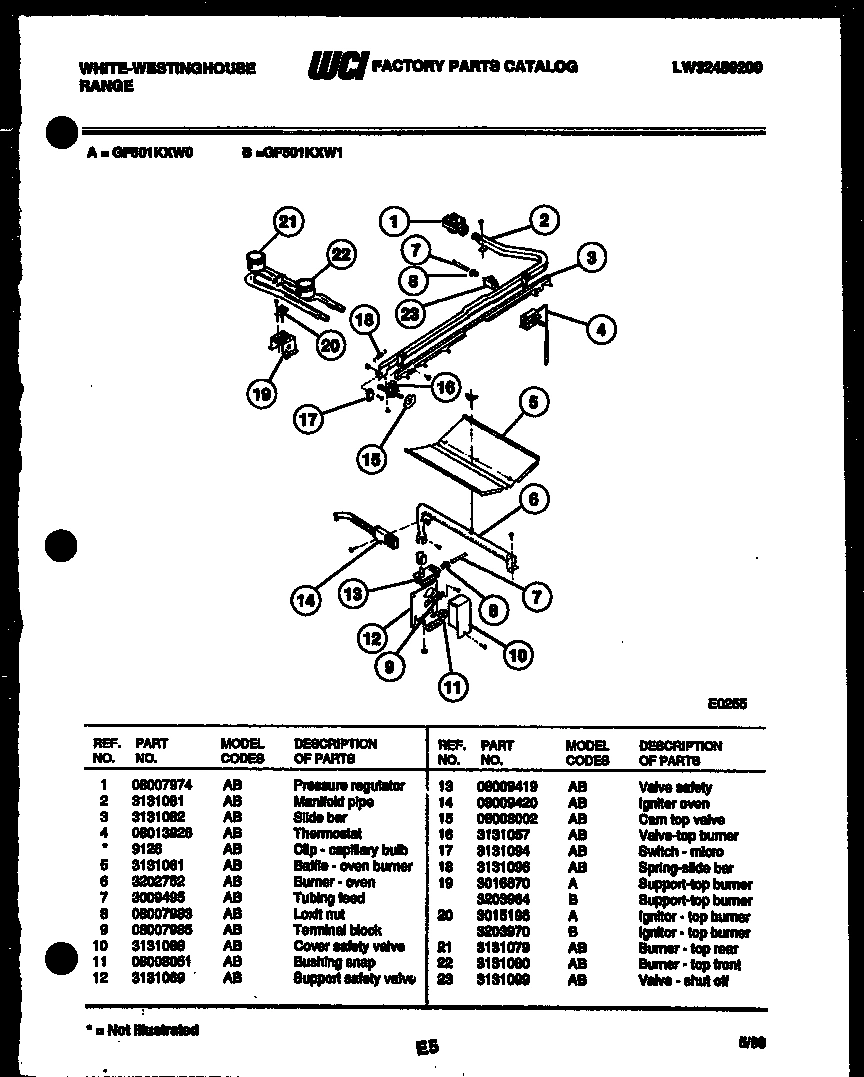

05 - BURNER, MANIFOLD AND GAS CONTROL

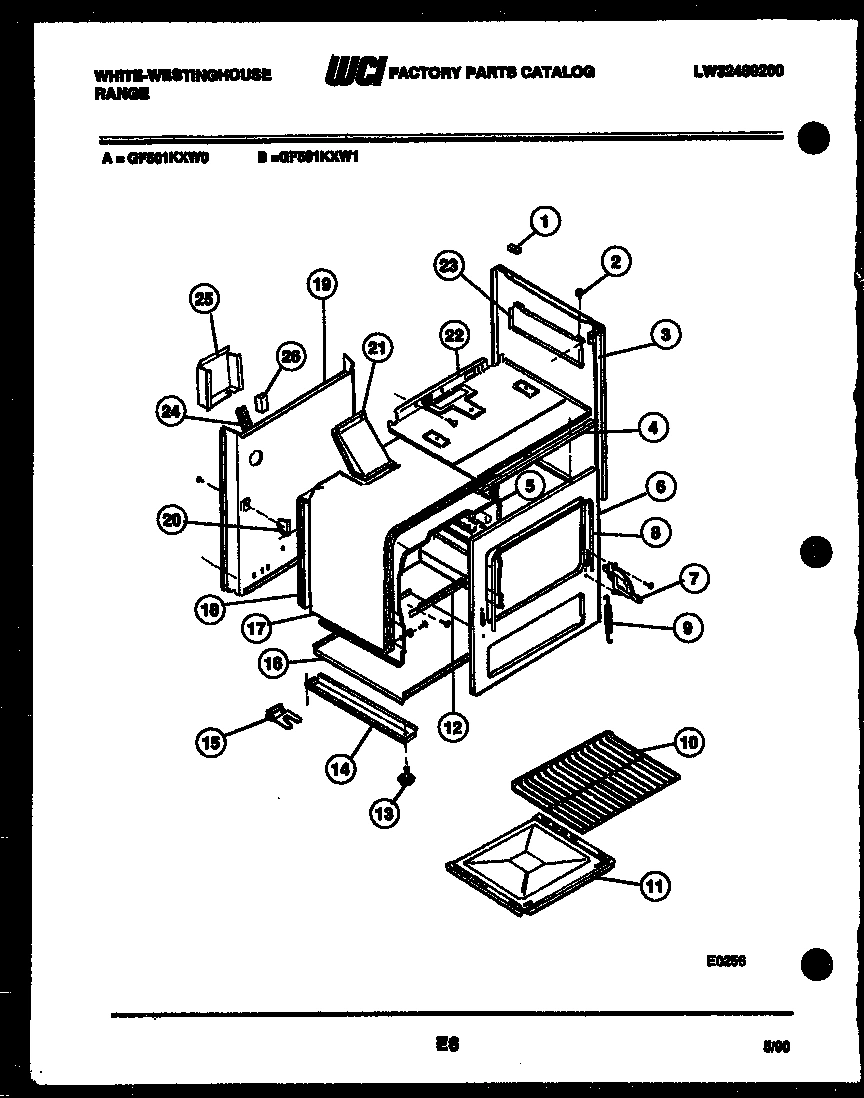

06 - BODY PARTS
Common parts from model Electrolux GF501KXD0 RANGE
1
GRATE WCI 3009309 Contact Us For Availability
1
LINER WCI 3051036 Contact Us For Availability
1
WCI 3131021 WCI 3131021 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
MAIN TOP ALMOND WCI 3131013 Contact Us For Availability
2
INSULATION-WOOL WCI 3009334 Contact Us For Availability
2
WCI 3131081 WCI 3131081 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
WCI 3017629 WCI 3017629 Contact Us For Availability
3
WCI 3131023 WCI 3131023 Contact Us For Availability
3
SLIDE BAR WCI 3131082 Contact Us For Availability
3
WCI 08014019 WCI 08014019 Contact Us For Availability
4
WCI 3131019 WCI 3131019 Contact Us For Availability
4
WCI 3051040 WCI 3051040 Contact Us For Availability
4
LINER - BROILER WCI 3131024 Contact Us For Availability
4
THERMOSTAT WCI 08013926 Contact Us For Availability
4
WCI 3051067 WCI 3051067 Contact Us For Availability
4A
CLIP - CAPILLARY BULB (NON-ILLUSTRATED) WCI 9126 Contact Us For Availability
5
KNOB - TOP VALVE WCI 08013898 Contact Us For Availability
5
INSULATION BROILER DRAWER WCI 3131025 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
WCI 3131032 WCI 3131032 Contact Us For Availability
5A
WCI 3131033 WCI 3131033 Contact Us For Availability
5B
WCI 3131034 WCI 3131034 Contact Us For Availability
5C
WCI 3131035 WCI 3131035 Contact Us For Availability
6
BACKGUARD PNL ALMD WCI 3017020 Contact Us For Availability
6
WCI 3202752 WCI 3202752 Contact Us For Availability
6
WCI 3051068 WCI 3051068 Contact Us For Availability
7
CORD - POWER WCI 3015249 Contact Us For Availability
7
PANEL-BROILER DRAWER (ALMOND) WCI 3131027 Contact Us For Availability
7
TUBING - FEED WCI 3009495 Contact Us For Availability
7A
WCI A096068000 WCI A096068000 Contact Us For Availability
8
WCI 08008255 WCI 08008255 Contact Us For Availability
8
SPACER-HANDLE WCI 3051041 Contact Us For Availability
8
LOXIT NUT WCI 08007983 Contact Us For Availability
8
SEAL - OVEN DOOR WCI 3051069 Contact Us For Availability
9
HANDLE BROILER DRWR WCI 08008085 Contact Us For Availability
9
WCI 08007985 WCI 08007985 Contact Us For Availability
9
SPRING HINGE LH/RH WCI 3051079 Contact Us For Availability
10
Cover,safety valve WCI 3131088 Contact Us For Availability
10
RACK-OVEN WCI 3016158 Contact Us For Availability
11
SCREW - PANEL MOUNTING (8) WCI 3051009 Contact Us For Availability
11
WCI 08008051 WCI 08008051 Contact Us For Availability
11
WCI 3131037 WCI 3131037 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
SUPPORT SAFETY VALVE WCI 3131069 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12A
HINGE - LH WCI 3131029 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 3131030 Contact Us For Availability
13
WCI 08009419 WCI 08009419 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
14
BROILER-DRAWER TRACK RH WCI 3051055 Contact Us For Availability
14
RAIL BASE LH/RH WCI 08068047 Contact Us For Availability
14A
BROILER-DRAWER TRACK LH WCI 3051056 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
15
WCI 08008002 WCI 08008002 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
16
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
16
MAIN BOTTOM WCI 3131042 Contact Us For Availability
17
WCI 3131094 WCI 3131094 Contact Us For Availability
17
WCI 3131043 WCI 3131043 Contact Us For Availability
18
WCI 3131096 WCI 3131096 Contact Us For Availability
18
INSULATION - BACK & TOP WCI 3131044 Contact Us For Availability
19
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
19
WCI 3131045 WCI 3131045 Contact Us For Availability
20
IGNITOR - TOP BURNER WCI 3015196 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
BURNER - TOP REAR WCI 3131079 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
BURNER - TOP FRONT WCI 3131080 Contact Us For Availability
22
BURNER BOX WCI 3017573 Contact Us For Availability
23
WCI 3131099 WCI 3131099 Contact Us For Availability
23
SHIELD HEAT B/B RH WCI 3131053 Contact Us For Availability
23A
SHIELD HEAT B/B LH WCI 3131054 Contact Us For Availability
23B
CLIP - BACKSPLASH CORNER (NON-ILLUSTRATED) WCI 3009582 Contact Us For Availability
25
WCI 3131047 WCI 3131047 Contact Us For Availability
× ![]()
