Model Electrolux GF501HXH0 RANGE – Common Parts & Diagrams

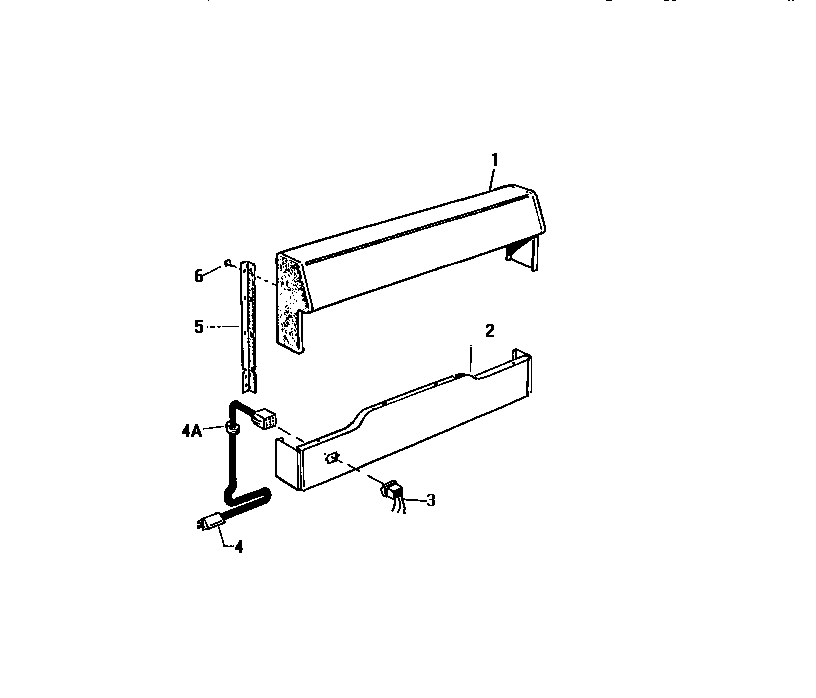

02 - BACKGUARD

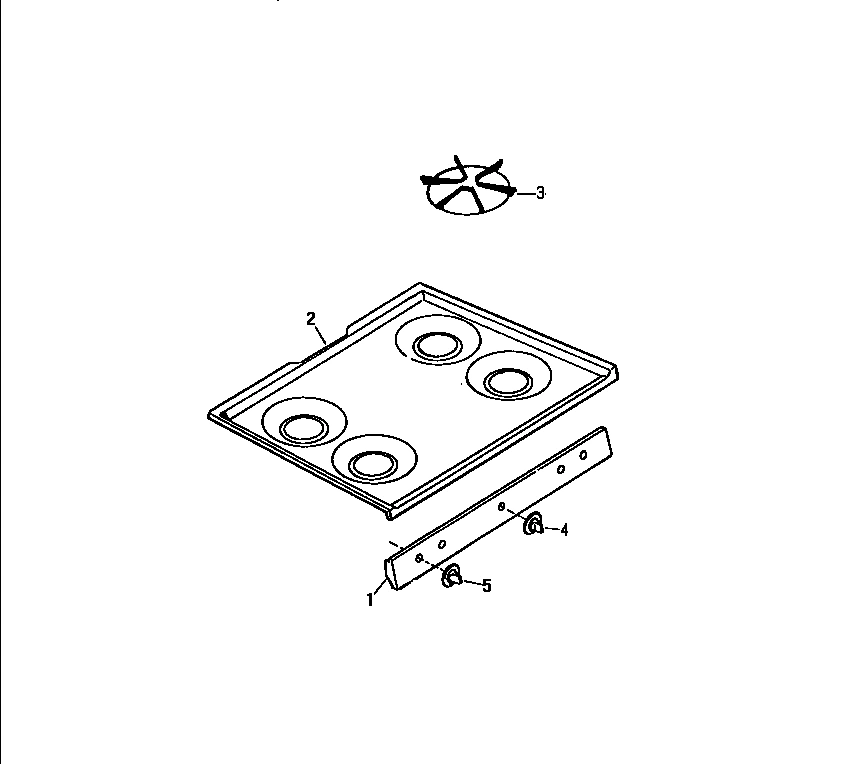

03 - TOP, CONTROL PANEL

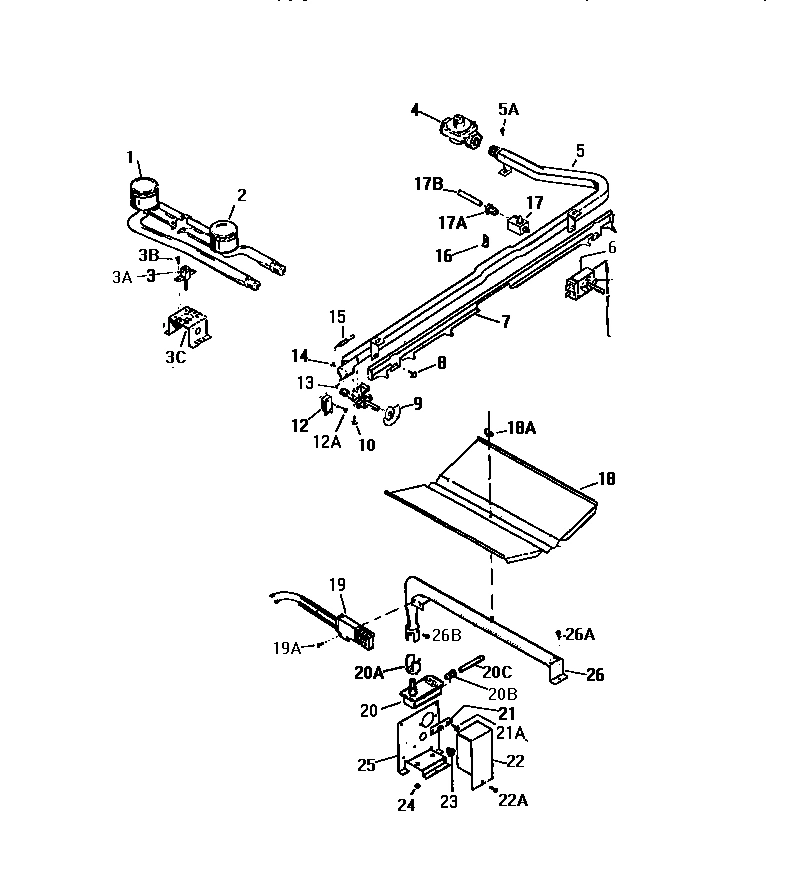

04 - BURNER ASSEMBLY

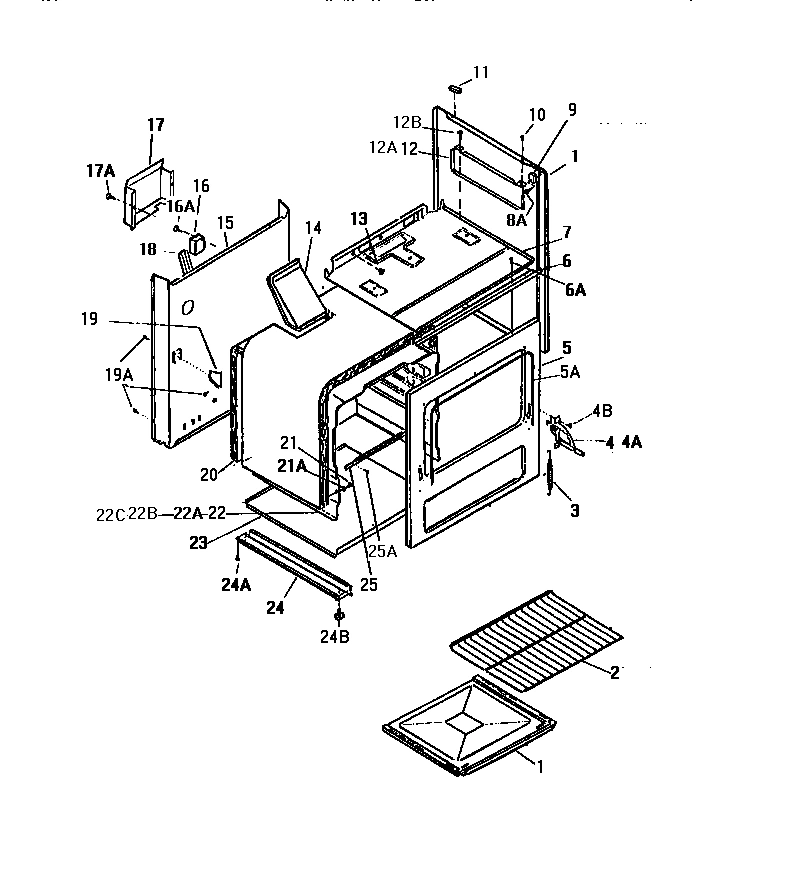

05 - BODY, SIDE PANELS

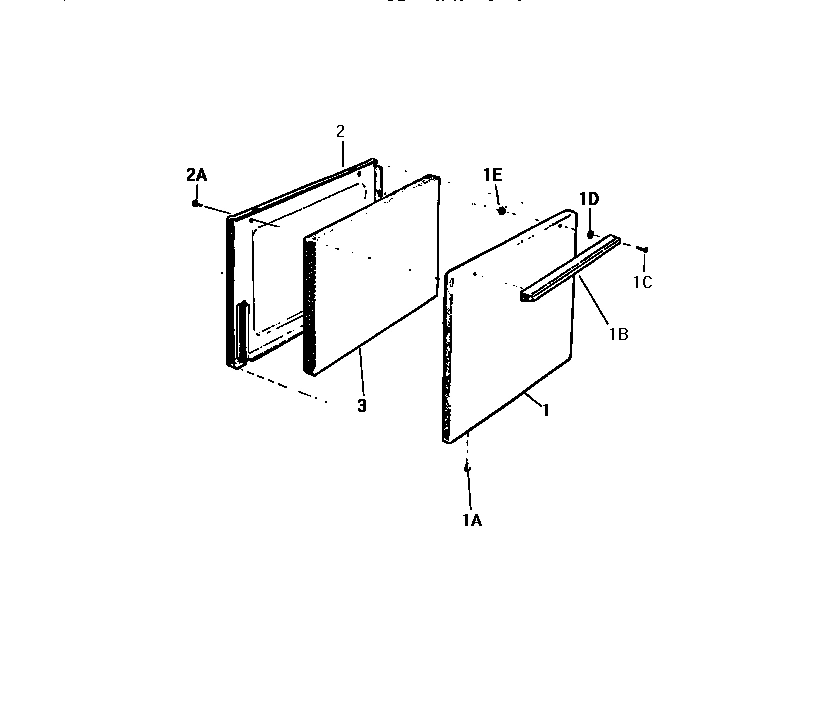

06 - DOOR

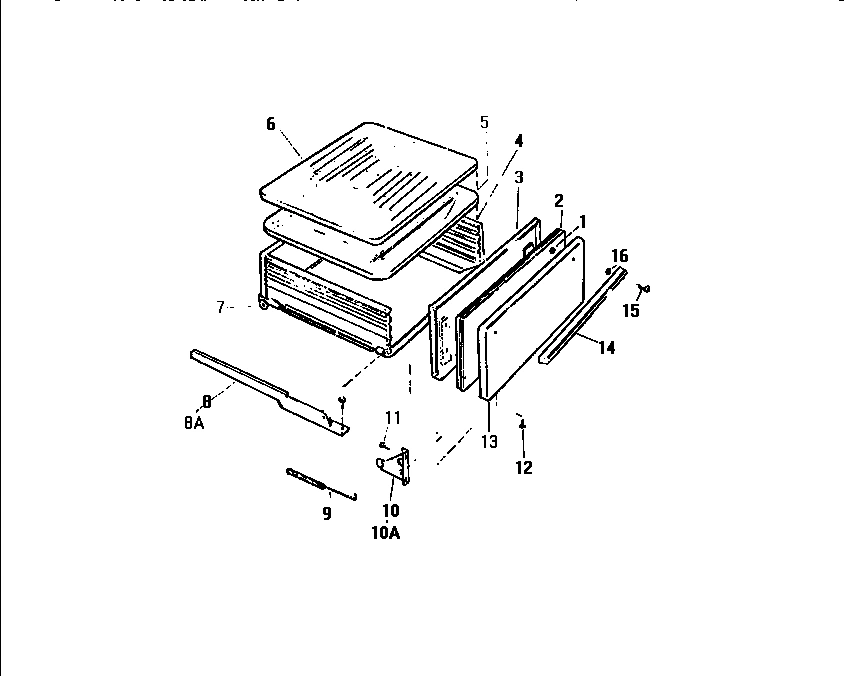

07 - BROILER DRAWER
Common parts from model Electrolux GF501HXH0 RANGE
1
WCI Q301925 WCI Q301925 Contact Us For Availability
1
WCI Q310052 WCI Q310052 Contact Us For Availability
1
BURNER, REAR WCI Q301865 Contact Us For Availability
1
NUT WCI AP265008 Contact Us For Availability
1
WCI Q301970 WCI Q301970 Contact Us For Availability
1
WCI Q301999 WCI Q301999 Contact Us For Availability
1A
WCI AP051051 WCI AP051051 Contact Us For Availability
2
PANEL, LOWER WCI A54099000 Contact Us For Availability
2
WCI Q310045 WCI Q310045 Contact Us For Availability
2
BURNER, FRONT WCI Q301861 Contact Us For Availability
2
RACK WCI AP301042 Contact Us For Availability
2
WCI Q301811 WCI Q301811 Contact Us For Availability
2
WCI Q138829 WCI Q138829 Contact Us For Availability
3
WCI Q301929 WCI Q301929 Contact Us For Availability
3
GRATE WCI AP165005 Contact Us For Availability
3
WCI Q301862 WCI Q301862 Contact Us For Availability
3
SPRING WCI AP339053 Contact Us For Availability
3
INSULATION WCI AP207039 Contact Us For Availability
3
WCI Q301883 WCI Q301883 Contact Us For Availability
3A
WCI Q310074 WCI Q310074 Contact Us For Availability
3C
SUPPORT WCI Q301866 Contact Us For Availability
4
WIRE HARNESS WCI A99106000 Contact Us For Availability
4
WCI Q310001 WCI Q310001 Contact Us For Availability
4
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
4
WCI Q301881 WCI Q301881 Contact Us For Availability
4A
WCI AP312003 WCI AP312003 Contact Us For Availability
5
WCI Q301891 WCI Q301891 Contact Us For Availability
5
KNOB, BURNER WCI Q301964 Contact Us For Availability
5
WCI Q310075 WCI Q310075 Contact Us For Availability
5
WCI Q301834 WCI Q301834 Contact Us For Availability
5
PAN, BROIL WCI A53002000 Contact Us For Availability
5A
SEAL WCI AP326050 Contact Us For Availability
6
WCI Q301858 WCI Q301858 Contact Us For Availability
6
WCI A74062000 WCI A74062000 Contact Us For Availability
6
GRID, BROIL WCI A43001000 Contact Us For Availability
7
WCI Q310076 WCI Q310076 Contact Us For Availability
7
WCI Q310057 WCI Q310057 Contact Us For Availability
7
ROLLER WCI AP031004 Contact Us For Availability
8
WCI Q301839 WCI Q301839 Contact Us For Availability
8
BODY PANEL, WHEAT WCI Q301945 Contact Us For Availability
8
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
8A
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
9
WCI A22002000 WCI A22002000 Contact Us For Availability
9
WCI Q310084 WCI Q310084 Contact Us For Availability
9
SPRING WCI AP339050 Contact Us For Availability
10
WCI Q310002 WCI Q310002 Contact Us For Availability
10
WCI AP172002 WCI AP172002 Contact Us For Availability
10
HINGE-LH WCI A46011000 Contact Us For Availability
10A
HINGE-RH WCI A46010000 Contact Us For Availability
11
WCI Q301831 WCI Q301831 Contact Us For Availability
12
SCREW WCI AP051056 Contact Us For Availability
12
WCI Q301874 WCI Q301874 Contact Us For Availability
12
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
12A
SCREW WCI AP055031 Contact Us For Availability
12A
HEAT SHIELD-LH WCI A61074000 Contact Us For Availability
13
WCI Q301873 WCI Q301873 Contact Us For Availability
13
WCI AP074001 WCI AP074001 Contact Us For Availability
13
WCI A98350003 WCI A98350003 Contact Us For Availability
14
NUT WCI AP265009 Contact Us For Availability
14
WCI A92049000 WCI A92049000 Contact Us For Availability
14
WCI Q301812 WCI Q301812 Contact Us For Availability
15
WCI Q301869 WCI Q301869 Contact Us For Availability
15
WCI A5085000 WCI A5085000 Contact Us For Availability
16
CLIP, CAP. TUBE WCI AP091011 Contact Us For Availability
16
WCI Q301950 WCI Q301950 Contact Us For Availability
16
WCI Q61664 WCI Q61664 Contact Us For Availability
17
VALVE WCI AP385174 Contact Us For Availability
17
WCI Q310077 WCI Q310077 Contact Us For Availability
17A
LOCK NUT WCI AP269017 Contact Us For Availability
18
BAFFLE WCI A9010000 Contact Us For Availability
18
WCI Q310003 WCI Q310003 Contact Us For Availability
18A
WING NUT WCI AP269004 Contact Us For Availability
19
SUPPORT, REAR OVEN WCI A74060000 Contact Us For Availability
19A
SCREW WCI AP051046 Contact Us For Availability
20
WCI Q301871 WCI Q301871 Contact Us For Availability
20
INSULATION WCI Q134234 Contact Us For Availability
20A
SHUTTER WCI AP330001 Contact Us For Availability
20B
NUT WCI AP269033 Contact Us For Availability
20C
WCI Q301867 WCI Q301867 Contact Us For Availability
21
TERMINAL BLOCK WCI AP042025 Contact Us For Availability
21
WCI AP051045 WCI AP051045 Contact Us For Availability
21A
WCI AP391021 WCI AP391021 Contact Us For Availability
22
VALVE COVER WCI A32130000 Contact Us For Availability
22
OVEN WRAPPER PANELS, LH WCI Q301972 Contact Us For Availability
22A
OVEN WRAPPER PANELS, RH WCI Q301971 Contact Us For Availability
22B
OVEN WRAPPER PANELS, TOP WCI Q301984 Contact Us For Availability
22C
OVEN WRAPPER PANELS, BACK WCI Q301985 Contact Us For Availability
23
PANEL, BOTTOM WCI A11049000 Contact Us For Availability
24
BASE RAIL WCI A98373000 Contact Us For Availability
24B
LEG WCI AP059009 Contact Us For Availability
25
SUPPORT WCI A74054000 Contact Us For Availability
25
SUPPORT, BOTTOM WCI A74055000 Contact Us For Availability
26
BURNER WCI AP072025 Contact Us For Availability
26B
SCREW WCI AP325005 Contact Us For Availability
× ![]()
