Model Electrolux GF410HXH0 RANGE – Common Parts & Diagrams
02 - BACKGUARD

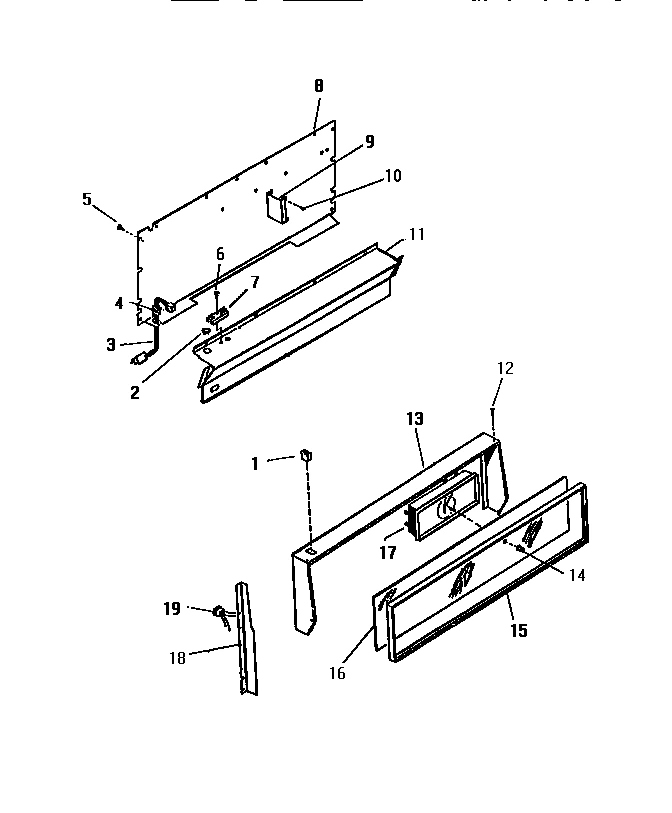

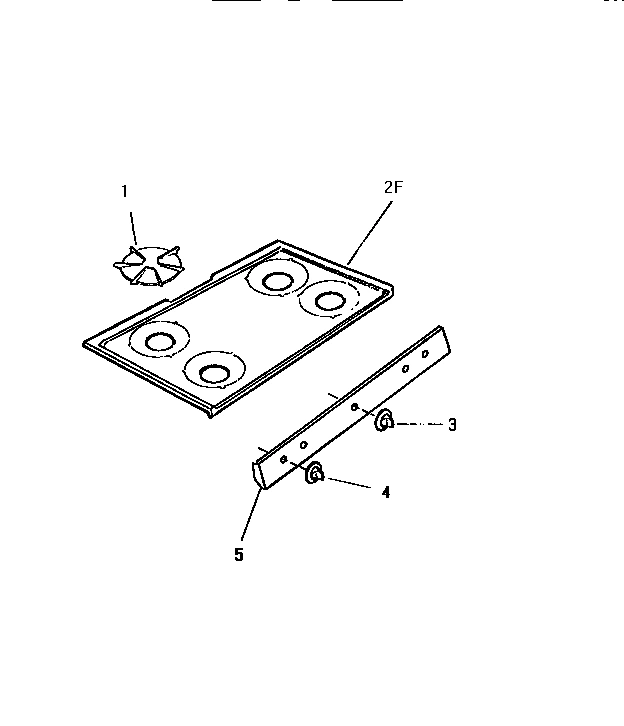

03 - TOP, CONTROL PANEL

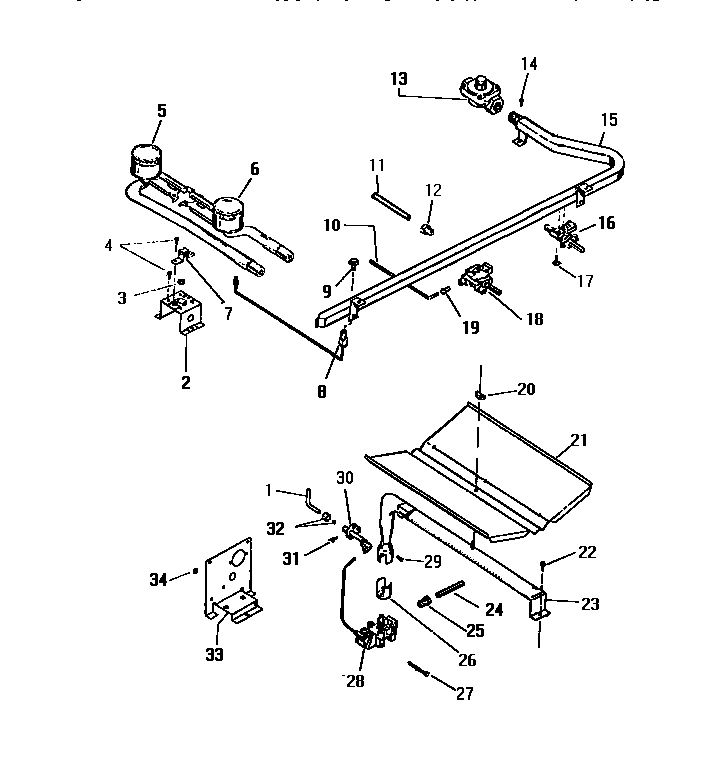

04 - BURNER ASSEMBLY

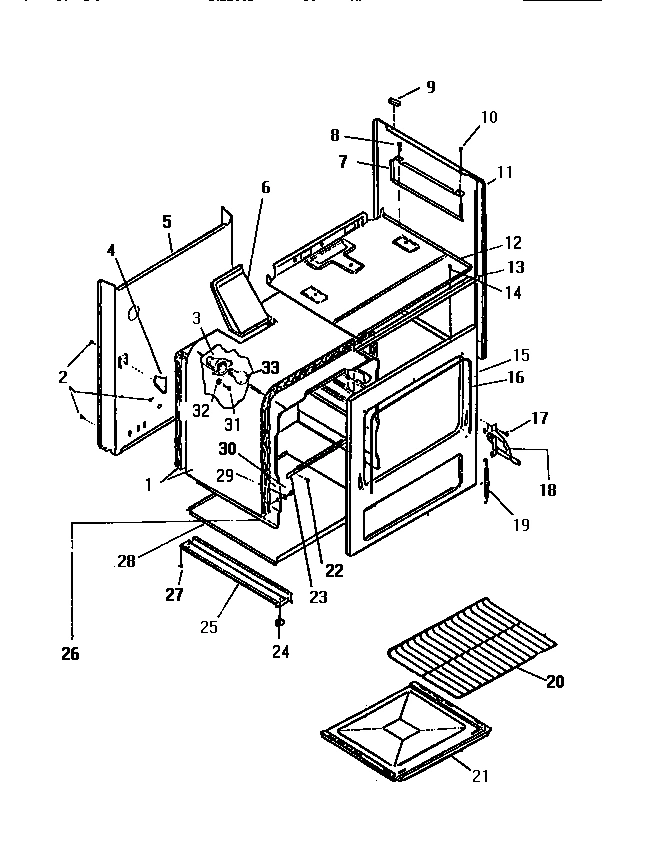

05 - BODY, SIDE PANELS

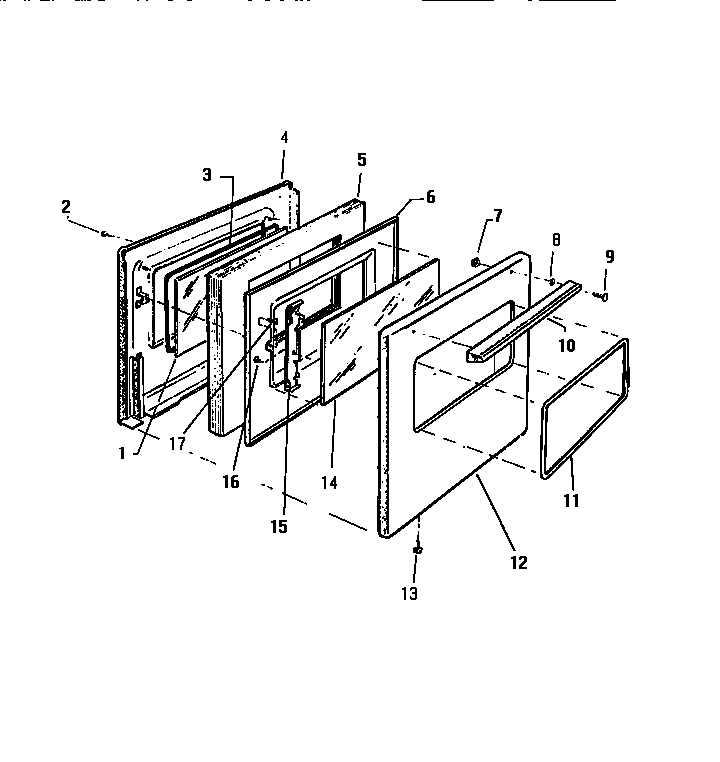

06 - DOOR
07 - DOOR

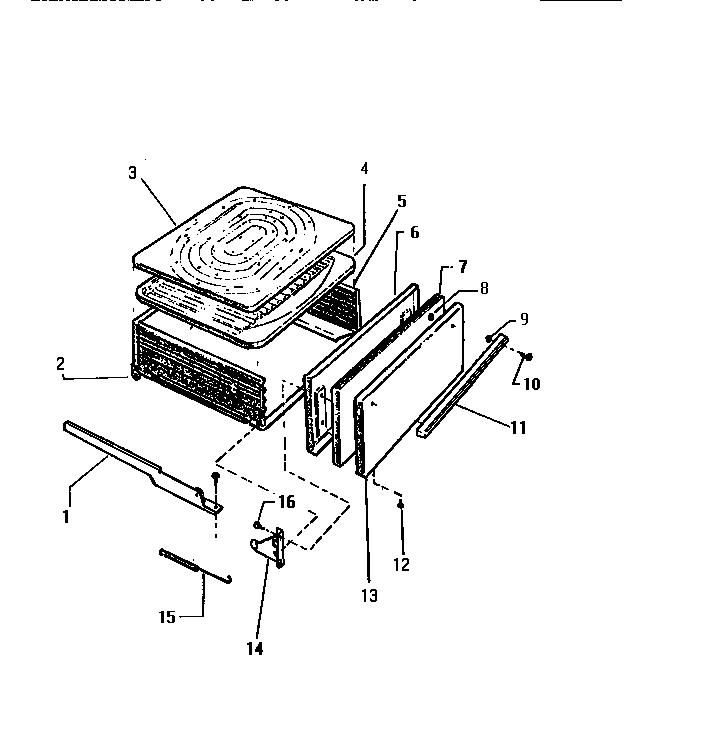

08 - DRAWER
Common parts from model Electrolux GF410HXH0 RANGE
1
WCI Q301911 WCI Q301911 Contact Us For Availability
1
GRATE WCI AP165005 Contact Us For Availability
1
INSULATION WCI Q134234 Contact Us For Availability
1
WCI AP161230 WCI AP161230 Contact Us For Availability
1
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
1A
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
2
BUSHING WCI AP074003 Contact Us For Availability
2
WCI Q280086 WCI Q280086 Contact Us For Availability
2
WCI Q301866 WCI Q301866 Contact Us For Availability
2
PLUG WCI AP075019 Contact Us For Availability
2
ROLLER WCI AP031004 Contact Us For Availability
3
WCI Q301898 WCI Q301898 Contact Us For Availability
3
WCI 0280098 WCI 0280098 Contact Us For Availability
3
PAL NUT WCI AP269019 Contact Us For Availability
3
WCI K1312472 WCI K1312472 Contact Us For Availability
3
SEAL WCI AP326048 Contact Us For Availability
3
GRID, BROIL WCI A43001000 Contact Us For Availability
4
WCI AP321003 WCI AP321003 Contact Us For Availability
4
KNOB, BURNER WCI Q280097 Contact Us For Availability
4
SUPPORT, REAR OV. WCI A74060000 Contact Us For Availability
4
WCI Q301930 WCI Q301930 Contact Us For Availability
4
PAN, BROIL WCI A53002000 Contact Us For Availability
5
WCI Q280099 WCI Q280099 Contact Us For Availability
5
WCI Q301865 WCI Q301865 Contact Us For Availability
5
WCI A5087000 WCI A5087000 Contact Us For Availability
5
WCI Q301936 WCI Q301936 Contact Us For Availability
5
WCI Q301881 WCI Q301881 Contact Us For Availability
6
SCREW WCI AP051022 Contact Us For Availability
6
WCI Q301861 WCI Q301861 Contact Us For Availability
6
WCI A92049000 WCI A92049000 Contact Us For Availability
6
WCI Q301937 WCI Q301937 Contact Us For Availability
6
WCI Q301882 WCI Q301882 Contact Us For Availability
7
BLOCK, TERM. WCI AP042003 Contact Us For Availability
7
WCI Q301966 WCI Q301966 Contact Us For Availability
7
HEAT SHIELD, RH WCI A61074000 Contact Us For Availability
7
INSULATION WCI AP207038 Contact Us For Availability
7
NUT WCI AP265008 Contact Us For Availability
7
WCI Q138829 WCI Q138829 Contact Us For Availability
7A
WCI A61044000 RH WCI A61044000 RH Contact Us For Availability
8
WCI Q301897 WCI Q301897 Contact Us For Availability
8
WCI Q301877 WCI Q301877 Contact Us For Availability
8
SHIELD WCI A61080000 Contact Us For Availability
8
WCI AP265006 WCI AP265006 Contact Us For Availability
9
WCI Q301963 WCI Q301963 Contact Us For Availability
9
BOLT WCI AP325010 Contact Us For Availability
9
WCI Q301831 WCI Q301831 Contact Us For Availability
9
WCI Q61664 WCI Q61664 Contact Us For Availability
9
WCI Q301934 WCI Q301934 Contact Us For Availability
10
CLIP WCI AP267022 Contact Us For Availability
10
TUBING WCI AP377082 Contact Us For Availability
10
WCI AP172002 WCI AP172002 Contact Us For Availability
10
SCREW WCI AP057025 Contact Us For Availability
11
WCI Q301909 WCI Q301909 Contact Us For Availability
11
BODY PANEL, WHEAT WCI Q301945 Contact Us For Availability
11
WCI Q301884 WCI Q301884 Contact Us For Availability
11
WCI Q301939 WCI Q301939 Contact Us For Availability
12
SCREW WCI AP056004 Contact Us For Availability
12
WCI Q301968 WCI Q301968 Contact Us For Availability
12
WCI Q301994 WCI Q301994 Contact Us For Availability
12
WCI Q301935 WCI Q301935 Contact Us For Availability
13
WCI Q301902 WCI Q301902 Contact Us For Availability
13
SUPPORT, CTNL PNL WCI A74076000 Contact Us For Availability
13
WCI AP05151 WCI AP05151 Contact Us For Availability
13
WCI Q301938 WCI Q301938 Contact Us For Availability
14
KNOB, TIMER WCI AP227361 Contact Us For Availability
14
WCI APO51056 WCI APO51056 Contact Us For Availability
14
WCI AP161227 WCI AP161227 Contact Us For Availability
14
SCREW WCI AP053033 Contact Us For Availability
14
HINGE-LH WCI A46011000 Contact Us For Availability
14A
HINGE-RH WCI A46010000 Contact Us For Availability
15
TRIM WCI AP375273 Contact Us For Availability
15
WCI Q301863 WCI Q301863 Contact Us For Availability
15
WCI Q301967 WCI Q301967 Contact Us For Availability
15
CLAMP WCI A30010000 Contact Us For Availability
15
BOLT WCI AP051052 Contact Us For Availability
15
SPRING WCI AP339050 Contact Us For Availability
16
WCI Q301906 WCI Q301906 Contact Us For Availability
16
WCI Q301873 WCI Q301873 Contact Us For Availability
16
SCREW WCI AP051056 Contact Us For Availability
16
SEAL WCI AP326052 Contact Us For Availability
16
WCI AP051051 WCI AP051051 Contact Us For Availability
17
TIMER WCI AP095185 Contact Us For Availability
17
BOLT WCI AP051027 Contact Us For Availability
17
WCI APO51042 WCI APO51042 Contact Us For Availability
18
BRACE RH & LH WCI Q301891 Contact Us For Availability
18
WCI Q301859 WCI Q301859 Contact Us For Availability
18
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
19
HARNESS WCI A99169000 Contact Us For Availability
19
NUT WCI AP269018 Contact Us For Availability
19
SPRING WCI AP339042 Contact Us For Availability
20
WING NUT WCI AP269004 Contact Us For Availability
20
RACK WCI AP301046 Contact Us For Availability
21
WCI A9010000 WCI A9010000 Contact Us For Availability
21
WCI Q301977 WCI Q301977 Contact Us For Availability
23
WCI Q301880 WCI Q301880 Contact Us For Availability
23
SUPPORT, BTM WCI A74055000 Contact Us For Availability
24
TUBING WCI AP377125 Contact Us For Availability
24
LEG WCI AP059009 Contact Us For Availability
25
NUT WCI AP269017 Contact Us For Availability
25
WCI A9837300 WCI A9837300 Contact Us For Availability
26
WCI AIR SHUTTER WCI AIR SHUTTER Contact Us For Availability
26
OVEN WRAPPER PANELS, RH SIDE WCI Q301971 Contact Us For Availability
26
OVEN WRAPPER PANELS, LH SIDE WCI Q301972 Contact Us For Availability
26
OVEN WRAPPER PANELS, TOP WCI Q301973 Contact Us For Availability
26
WCI Q301978 WCI Q301978 Contact Us For Availability
27
BOLT WCI AP051011 Contact Us For Availability
28
WCI Q301872 WCI Q301872 Contact Us For Availability
28
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
29
SCREW WCI AP325005 Contact Us For Availability
30
WCI Q301876 WCI Q301876 Contact Us For Availability
30
WCI AP051045 WCI AP051045 Contact Us For Availability
31
SCREW WCI AP051046 Contact Us For Availability
31
SCREW WCI AP325009 Contact Us For Availability
32
WCI Q301878 WCI Q301878 Contact Us For Availability
32
WCI AP391021 WCI AP391021 Contact Us For Availability
33
SUPPORT WCI A74054000 Contact Us For Availability
33
WCI Q63749 WCI Q63749 Contact Us For Availability
34
WCI Q402302 WCI Q402302 Contact Us For Availability
× ![]()
