Model Electrolux GF306KXD0 RANGE – Common Parts & Diagrams

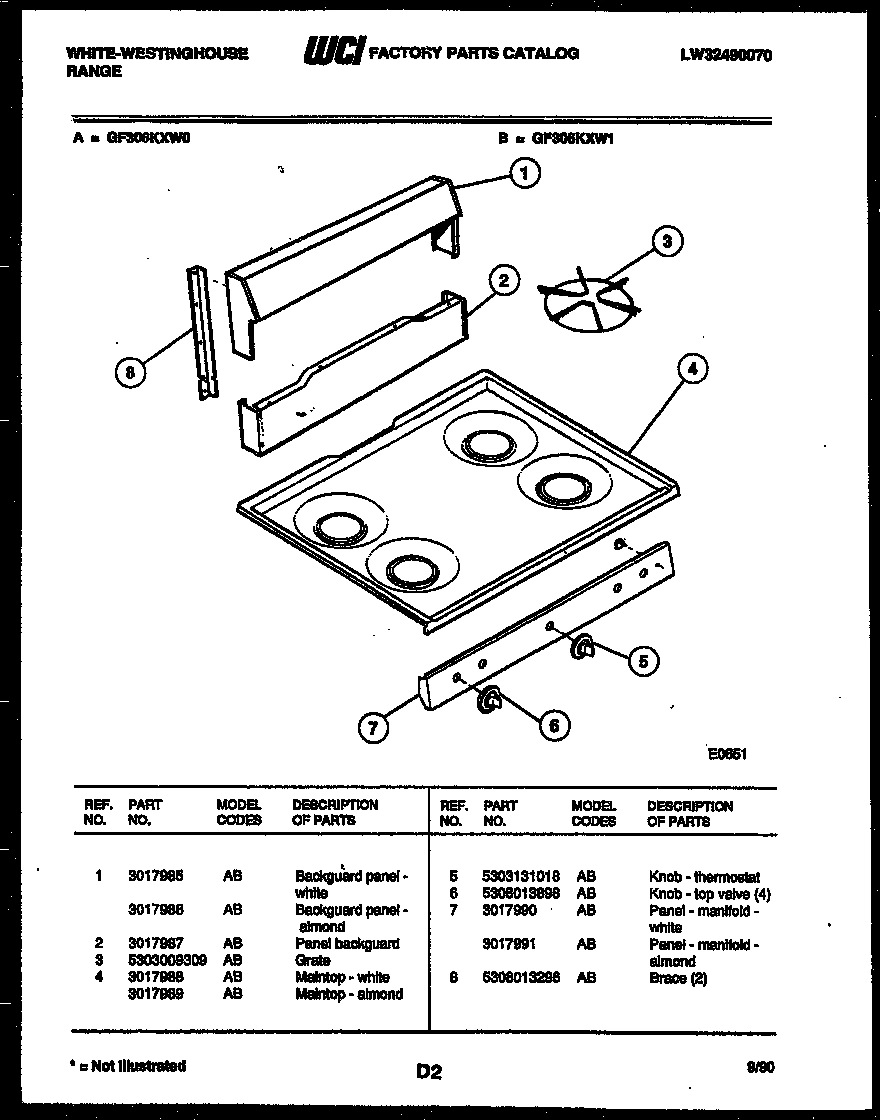

02 - BACKGUARD AND COOKTOP PARTS

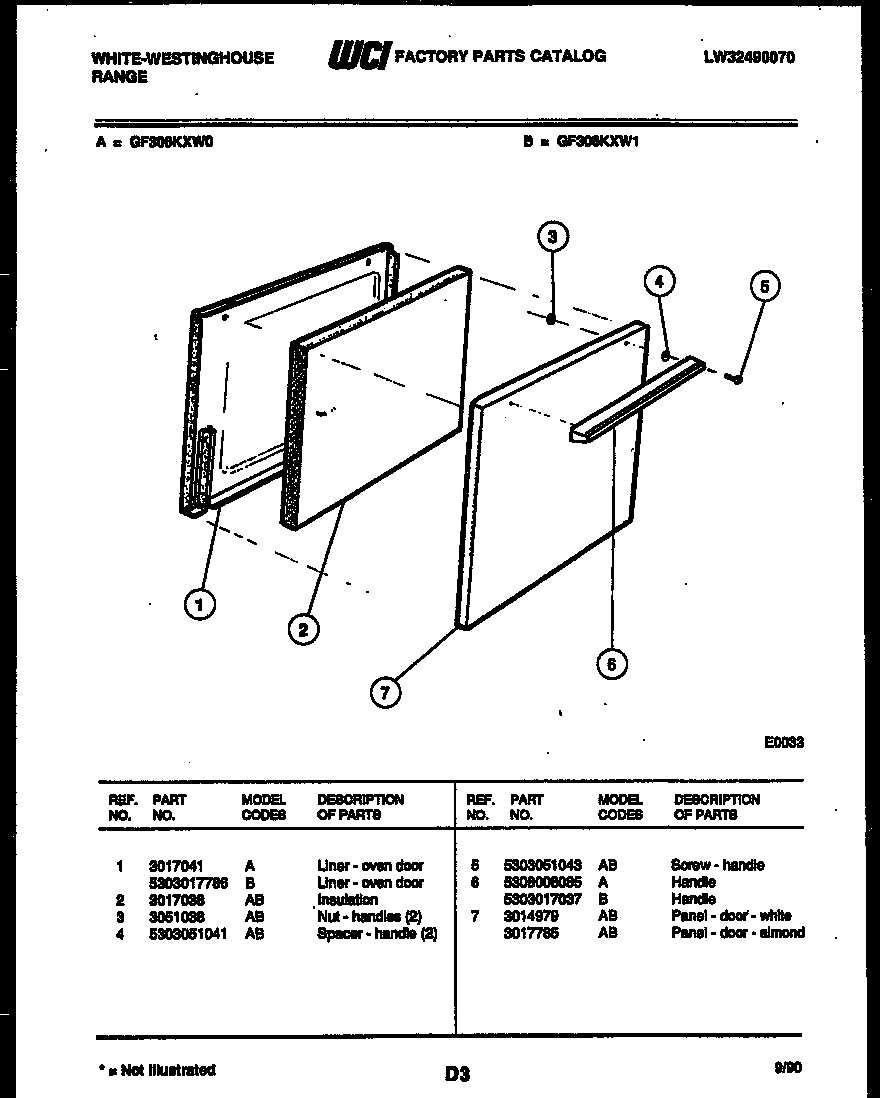

03 - DOOR PARTS

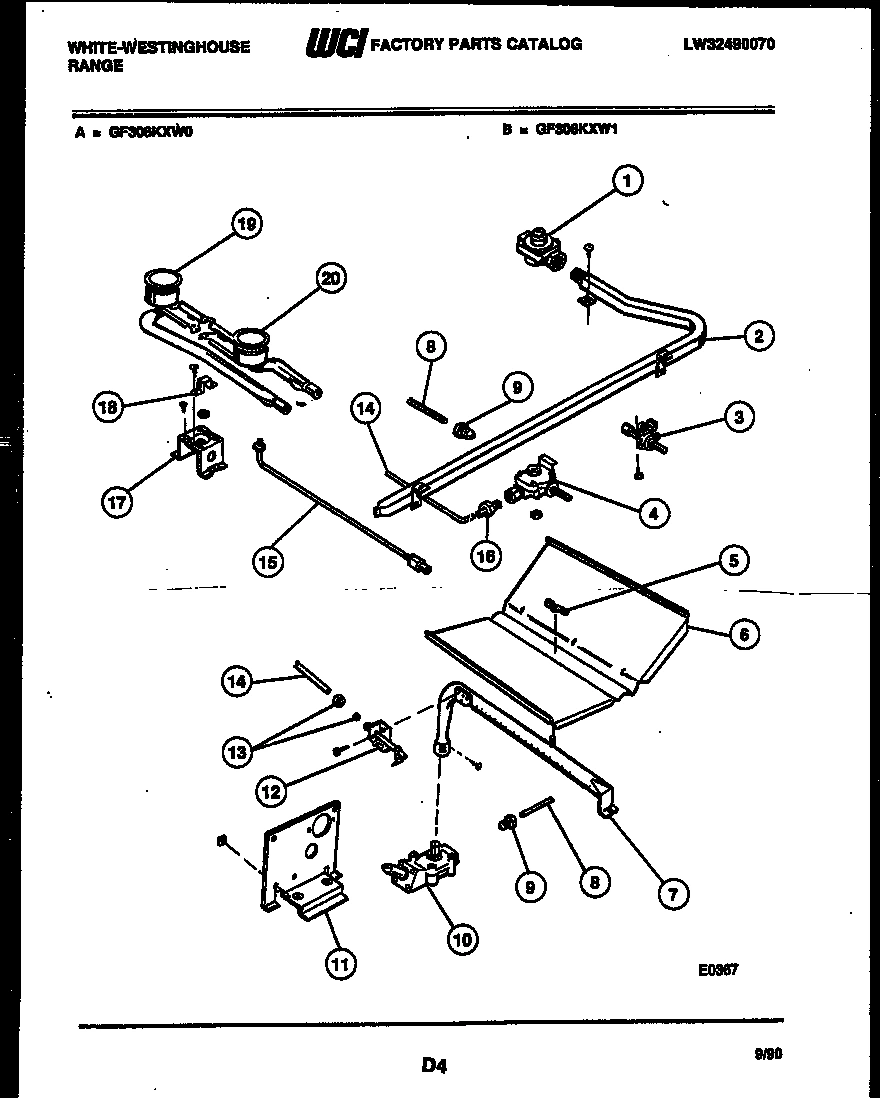

04 - BURNER, MANIFOLD AND GAS CONTROL

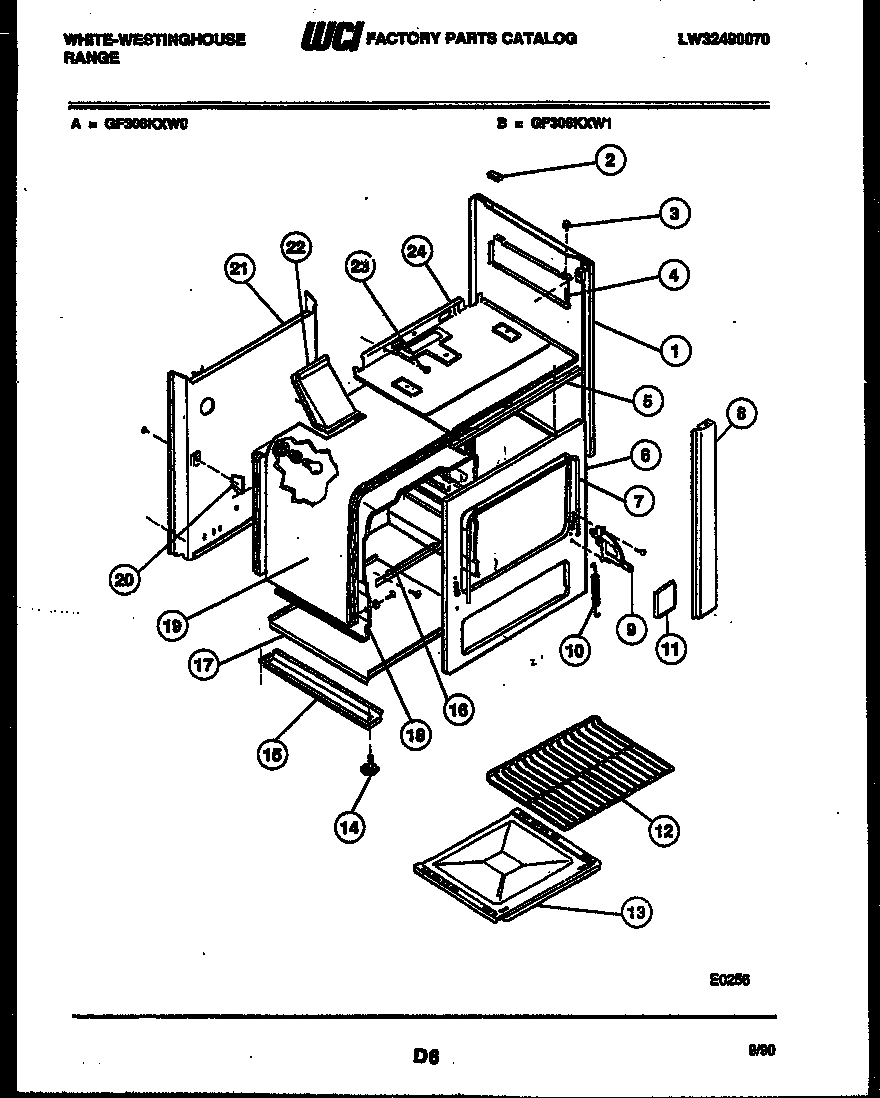

05 - BODY PARTS

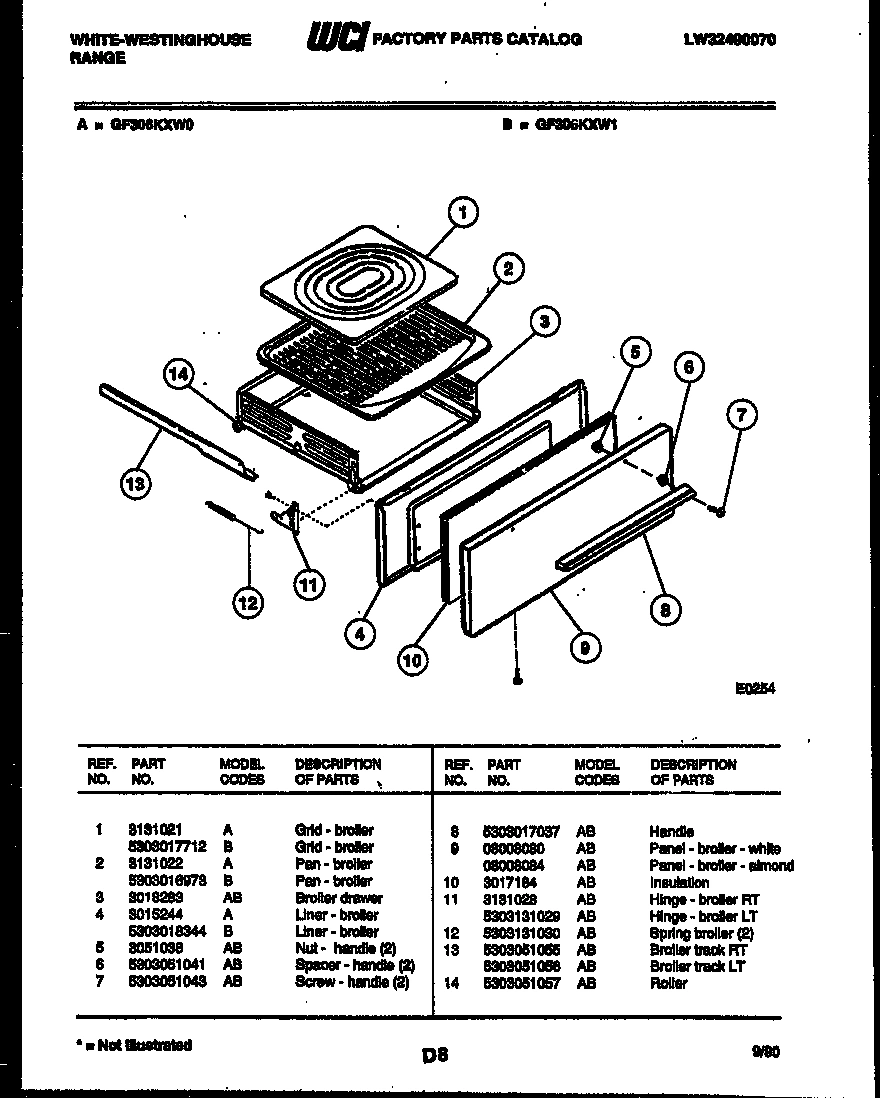

06 - BROILER DRAWER PARTS
Common parts from model Electrolux GF306KXD0 RANGE
*10370
WCI 5300009126 WCI 5300009126 Contact Us For Availability
*10376
ANTI-TIP KIT WCI 3934059 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3017041 Contact Us For Availability
1
PANEL - B/S - ALMOND WCI 5308014019 Contact Us For Availability
1
GRID BROILER WCI 3131021 Contact Us For Availability
2
INSULATION WCI 3017038 Contact Us For Availability
2
WCI 3017992 WCI 3017992 Contact Us For Availability
2
GROMMET - REAR WCI 5303016129 Contact Us For Availability
3
VALVE TOP (4) WCI 5303131057 Contact Us For Availability
3
GROMMET - FRONT WCI 08068054 Contact Us For Availability
4
WCI 5308013927 WCI 5308013927 Contact Us For Availability
4
SHIELD - HEAT RT WCI 5303131053 Contact Us For Availability
4
LINER - BROILER WCI 3015244 Contact Us For Availability
4A
SHIELD - HEAT LT WCI 5303131054 Contact Us For Availability
5
WCI 5303131018 WCI 5303131018 Contact Us For Availability
5
WCI 08014025 WCI 08014025 Contact Us For Availability
6
WCI 5308013898 WCI 5308013898 Contact Us For Availability
6
WCI 5303051041 WCI 5303051041 Contact Us For Availability
6
WCI 5308008085 WCI 5308008085 Contact Us For Availability
6
WCI 5303131061 WCI 5303131061 Contact Us For Availability
6
FRAME - FRONT WCI 3017048 Contact Us For Availability
7
Seal,oven door WCI 5308008022 Contact Us For Availability
7
PANEL - DOOR - ALMOND WCI 3017785 Contact Us For Availability
7
WCI 5308013855 WCI 5308013855 Contact Us For Availability
8
TUBE - OVEN FEED WCI 5303131063 Contact Us For Availability
8
PANEL FILLER - ALMOND WCI 08013994 Contact Us For Availability
8
HANDLE WCI 5303017037 Contact Us For Availability
9
WCI 5303131064 WCI 5303131064 Contact Us For Availability
9
HINGE - OVEN DOOR RT WCI 5303204670 Contact Us For Availability
9
WCI 08008084 WCI 08008084 Contact Us For Availability
10
WCI 5308013942 WCI 5308013942 Contact Us For Availability
10
SPRING OVEN DOOR (2) WCI 5303009435 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
11
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
11
BASE - RAIL SUPPORT WCI 08014023 Contact Us For Availability
11
WCI 3131028 WCI 3131028 Contact Us For Availability
11A
WCI 5303131029 WCI 5303131029 Contact Us For Availability
12
RACK OVEN (2) WCI 5303015714 Contact Us For Availability
12
WCI 5303131071 WCI 5303131071 Contact Us For Availability
12
WCI 5303131030 WCI 5303131030 Contact Us For Availability
13
NUT & SLEEVE WCI 3131072 Contact Us For Availability
13
LINER-BOTTOM WCI 3017168 Contact Us For Availability
13
BROILER TRACK RT WCI 5303051055 Contact Us For Availability
13A
BROILER TRACK LT WCI 5303051056 Contact Us For Availability
14
TUBE-OVEN PILOT WCI 5303009490 Contact Us For Availability
14
LEG - LEVELING WCI 5303051080 Contact Us For Availability
14
ROLLER WCI 5303051057 Contact Us For Availability
15
PILOT - TOP BURNER WCI 5303131075 Contact Us For Availability
15
BASE RAIL WCI 5308068047 Contact Us For Availability
16
WCI 3131074 WCI 3131074 Contact Us For Availability
16
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
17
WCI 5303016870 WCI 5303016870 Contact Us For Availability
17
WCI 3011645 WCI 3011645 Contact Us For Availability
18
STRAP - PILOT SHIELD WCI 3131078 Contact Us For Availability
18
LINER - SIDE RT WCI 3131032 Contact Us For Availability
18A
LINER - SIDE LT WCI 3131033 Contact Us For Availability
18B
LINER (BACK) WCI 3017167 Contact Us For Availability
18C
LINER (TOP) WCI 3017166 Contact Us For Availability
19
BURNER-TOP REAR (2) WCI 5303131079 Contact Us For Availability
19
WCI 3017171 WCI 3017171 Contact Us For Availability
19A
WCI 3017172 WCI 3017172 Contact Us For Availability
20
BURNER-TOP FRONT (2) WCI 5303131080 Contact Us For Availability
20
SUPPORT-REAR (2) WCI 3051096 Contact Us For Availability
21
WCI 08013945 WCI 08013945 Contact Us For Availability
22
FLUE BOX WCI 3017173 Contact Us For Availability
23
BUSHING-SNAP WCI 5301316432 Contact Us For Availability
24
WCI 3017993 WCI 3017993 Contact Us For Availability
× ![]()
