Model Electrolux GF300NW4 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

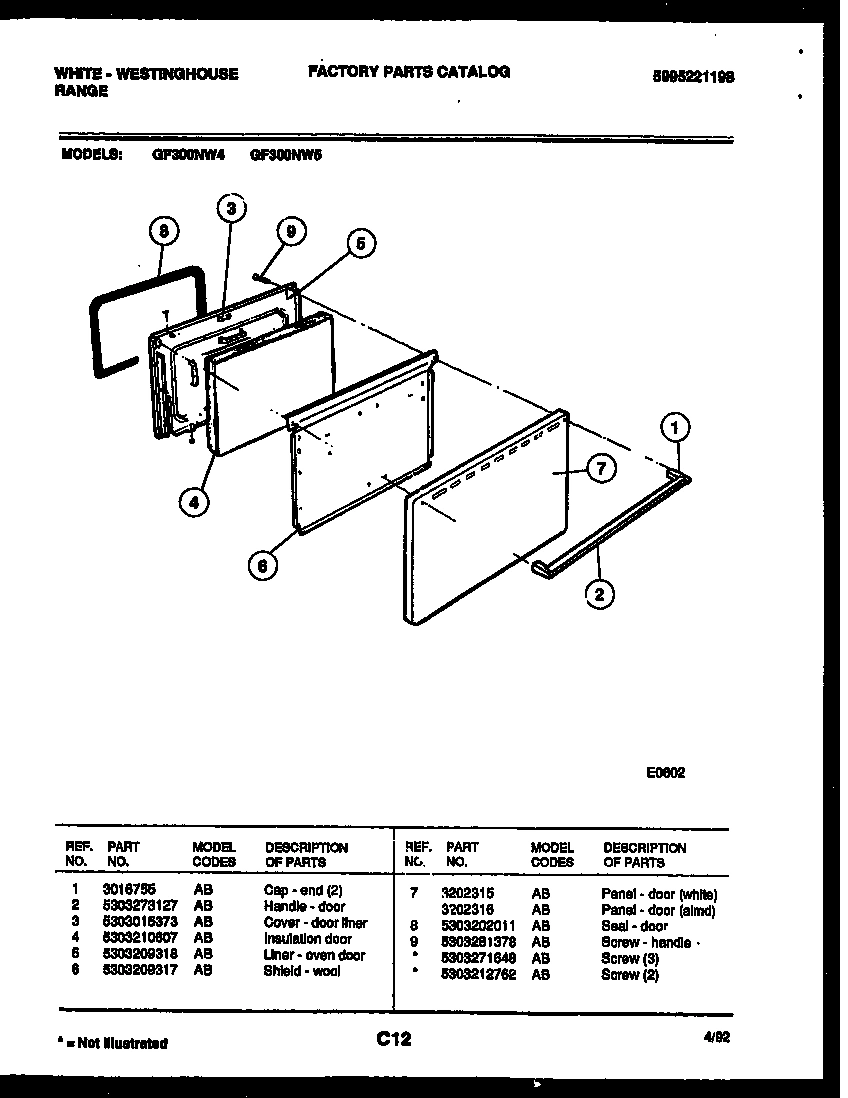

04 - DOOR PARTS

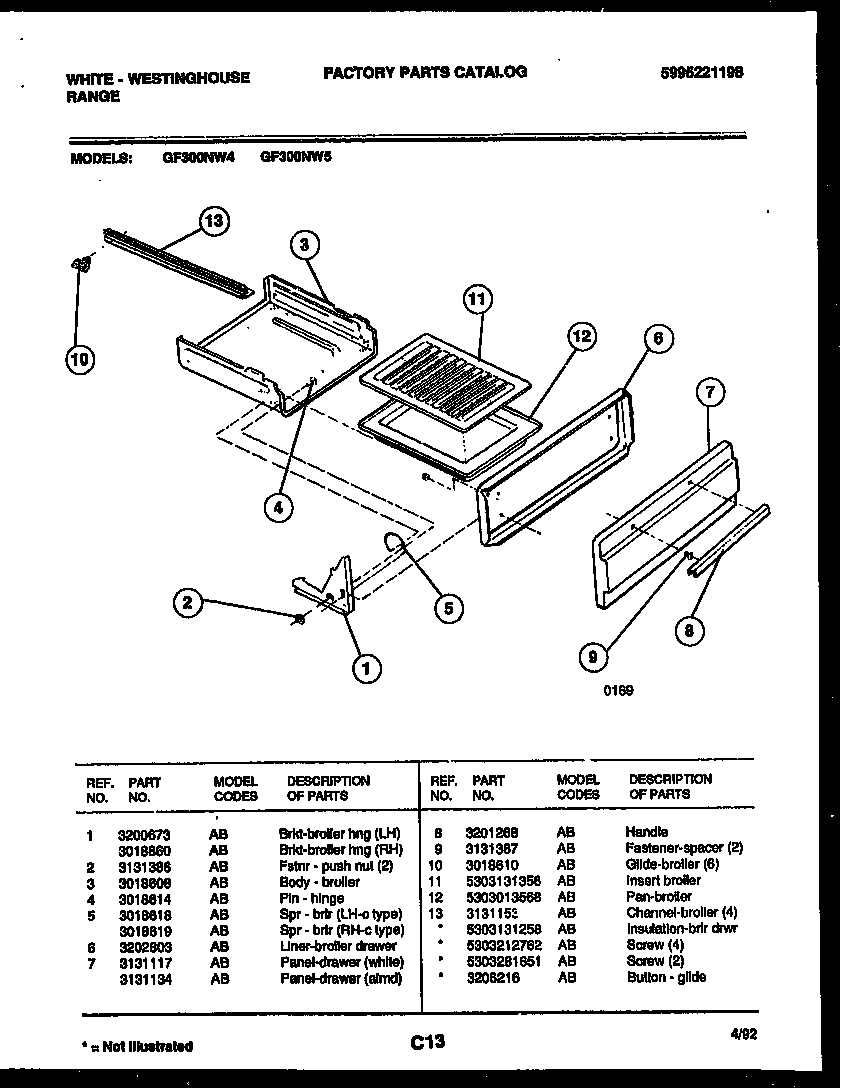

05 - BROILER DRAWER PARTS

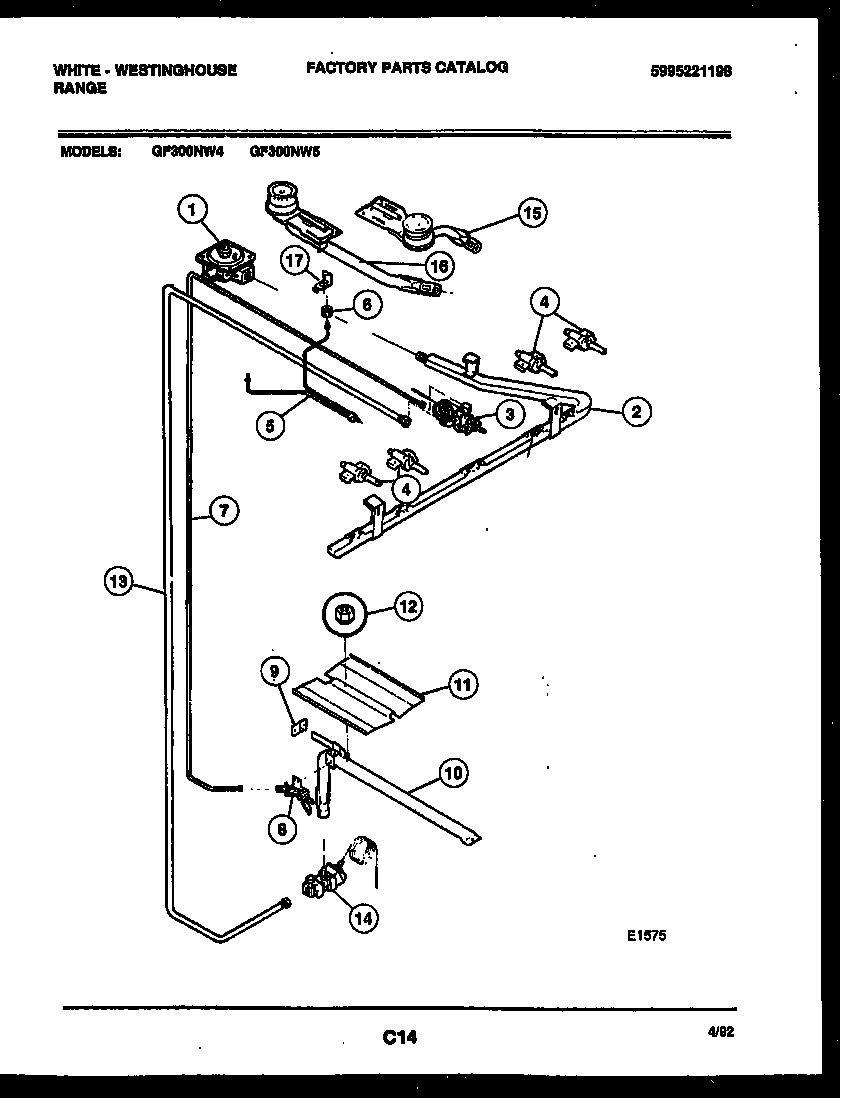

06 - BURNER, MANIFOLD AND GAS CONTROL

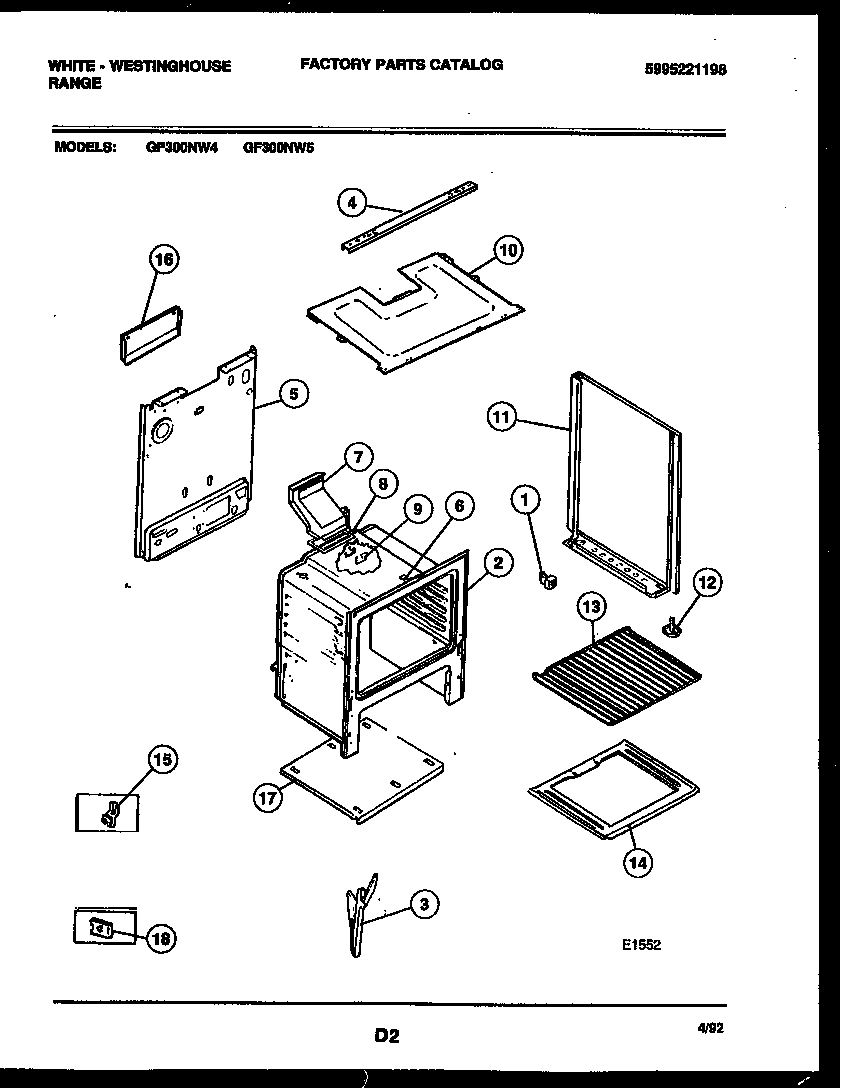

07 - BODY PARTS
Common parts from model Electrolux GF300NW4 RANGE
*61380
WCI 3206216 WCI 3206216 Contact Us For Availability
*61380
WCI 5303281651 WCI 5303281651 Contact Us For Availability
*61380
INSULATION-BRLR DRWR WCI 5303131258 Contact Us For Availability
*61384
SCREW-THERMO MTG BOLT WCI 5303280590 Contact Us For Availability
*61389
WCI 3202799 WCI 3202799 Contact Us For Availability
*61389
WCI 3934056 WCI 3934056 Contact Us For Availability
*61390
WCI 08010570 WCI 08010570 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303016997 WCI 5303016997 Contact Us For Availability
1
BRKT-BROILER HNG (LH) WCI 3200673 Contact Us For Availability
1A
BRKT-BROILER HNG (RH) WCI 3018860 Contact Us For Availability
2
CP-B/G END LH WCI 3202801 Contact Us For Availability
2
BRKT HINGE-LH WCI 08067746 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
WCI 5303280588 WCI 5303280588 Contact Us For Availability
3
CHANNEL-DOOR HINGE WCI 316007001 Contact Us For Availability
3
CP-B/G END RH WCI 3202802 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
THERMOSTAT WCI 5303280591 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
WCI 5303280578 WCI 5303280578 Contact Us For Availability
4
CHANNEL - BURN. SUPT. WCI 3203394 Contact Us For Availability
5
TUBE-TOP PILOT-DUAL WCI 5303211133 Contact Us For Availability
5
SPR - BRLR-LH-C TYPE WCI 3018618 Contact Us For Availability
5
WCI 3203082 WCI 3203082 Contact Us For Availability
5A
SPR - BRLR-RH-C TYPE WCI 3018619 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
6
CAP-TOP PILOT WCI 5303201275 Contact Us For Availability
6
WCI 5303015372 WCI 5303015372 Contact Us For Availability
7
WCI 3203398 WCI 3203398 Contact Us For Availability
7
WCI 3131117 WCI 3131117 Contact Us For Availability
8
WCI 5303280589 WCI 5303280589 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
9
WCI 3018607 WCI 3018607 Contact Us For Availability
9
WCI 5303281378 WCI 5303281378 Contact Us For Availability
9
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 3018603 WCI 3018603 Contact Us For Availability
10
WCI 5303280585 WCI 5303280585 Contact Us For Availability
10
WCI 3018610 WCI 3018610 Contact Us For Availability
10
WCI 3204962 WCI 3204962 Contact Us For Availability
11
INSERT-BROILER WCI 5303131356 Contact Us For Availability
11
WCI 3203265 WCI 3203265 Contact Us For Availability
11
PNL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
11A
PNL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
12
SCREW, LEVELER (4) WCI 5303203397 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
TUBE - ALUM THERMO/SAFETY W/ FIT WCI 5303280592 Contact Us For Availability
14
WCI 5303280593 WCI 5303280593 Contact Us For Availability
14
WCI 5303212540 WCI 5303212540 Contact Us For Availability
14A
WCI 3203541 WCI 3203541 Contact Us For Availability
14B
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
15
WCI 5303280586 WCI 5303280586 Contact Us For Availability
16
WCI 3131191 WCI 3131191 Contact Us For Availability
17
SHIELD-PILOT (2) WCI 3202798 Contact Us For Availability
17
WCI 5303270160 WCI 5303270160 Contact Us For Availability
× ![]()
