Model Electrolux GF300KXW2 RANGE – Common Parts & Diagrams

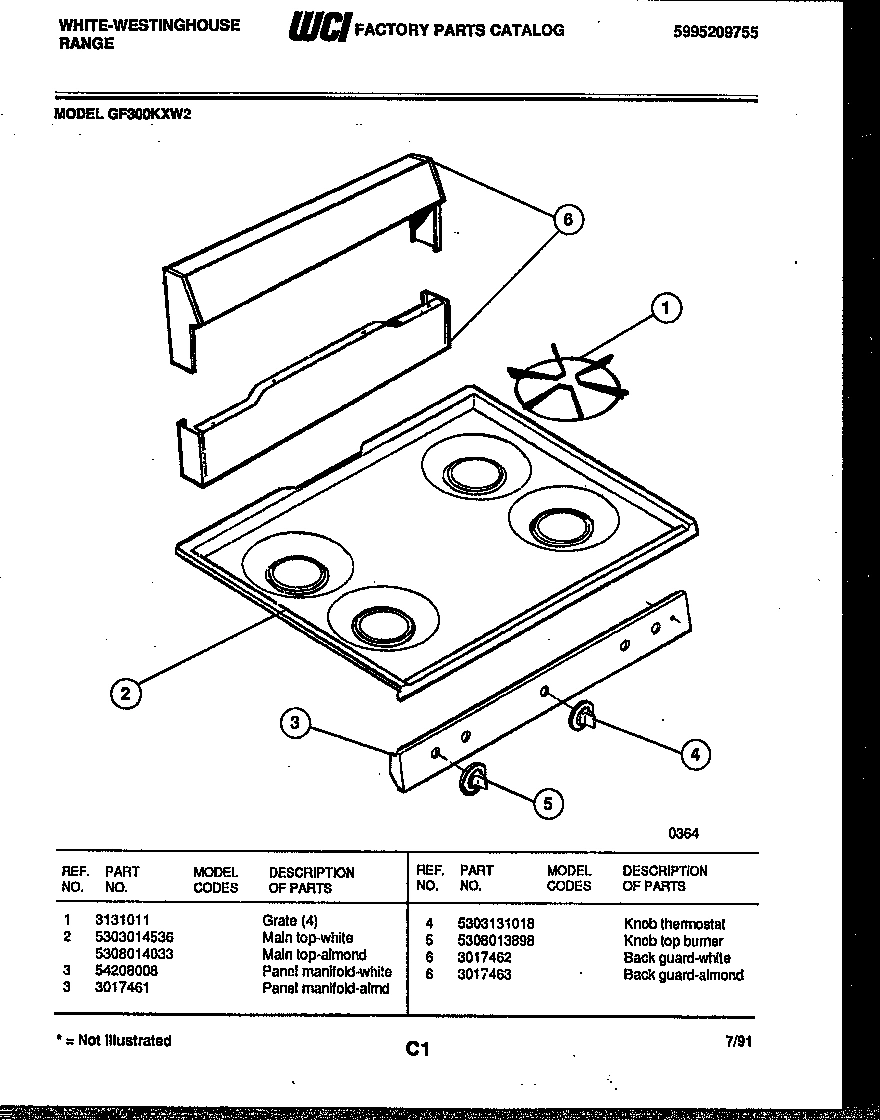

02 - BACKGUARD AND COOKTOP PARTS

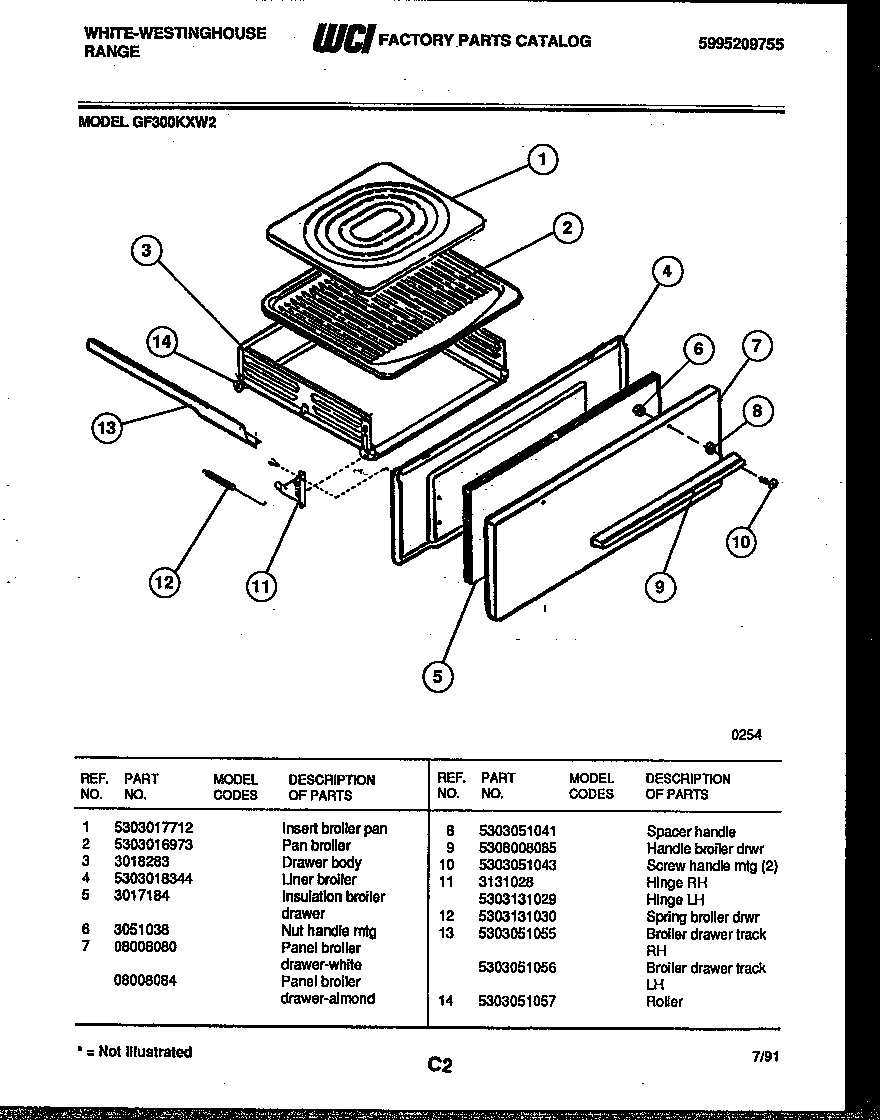

03 - BROILER DRAWER PARTS

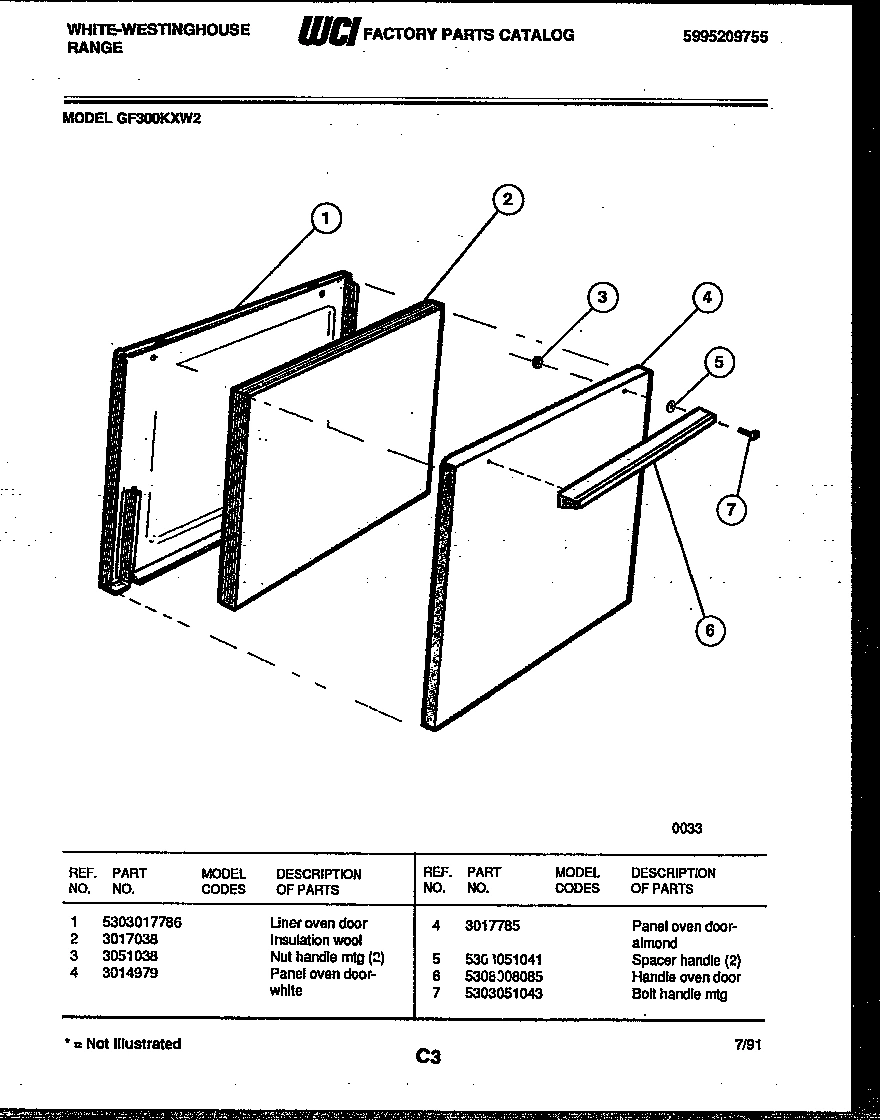

04 - DOOR PARTS

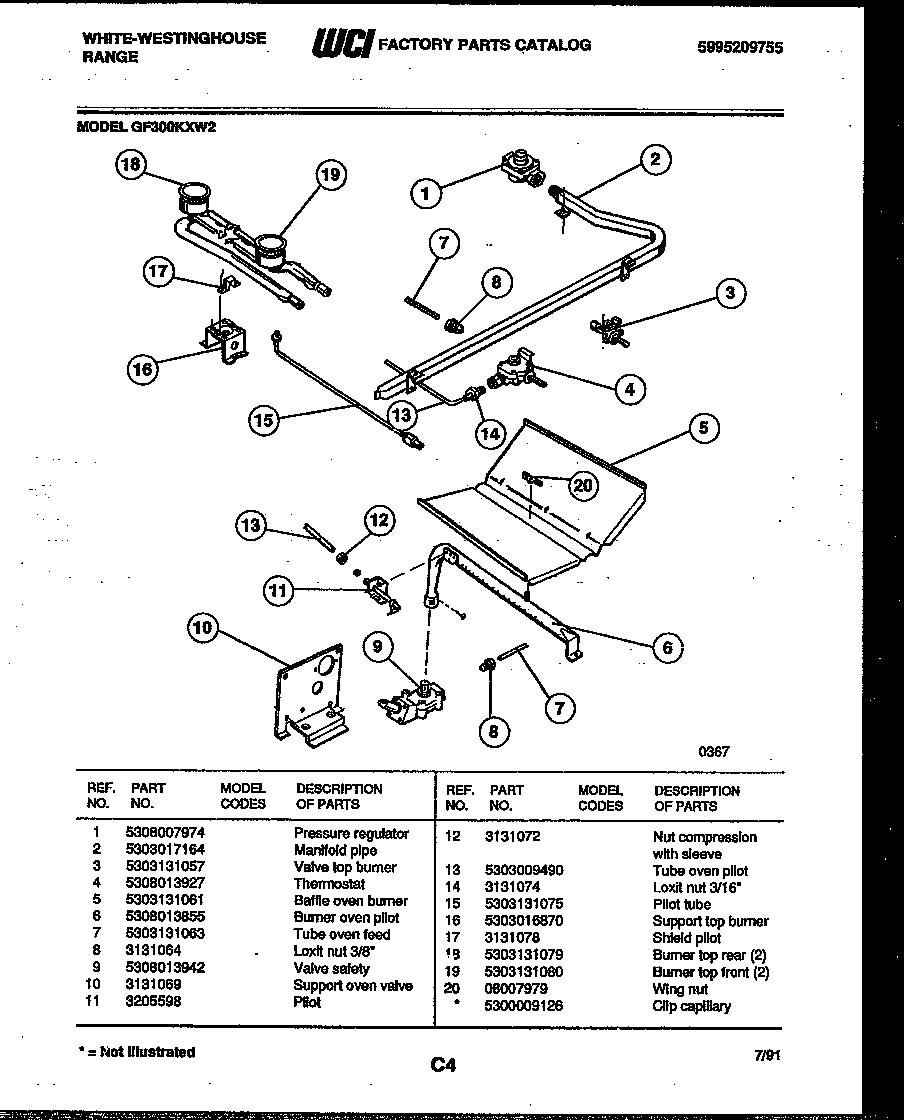

05 - BURNER, MANIFOLD AND GAS CONTROL

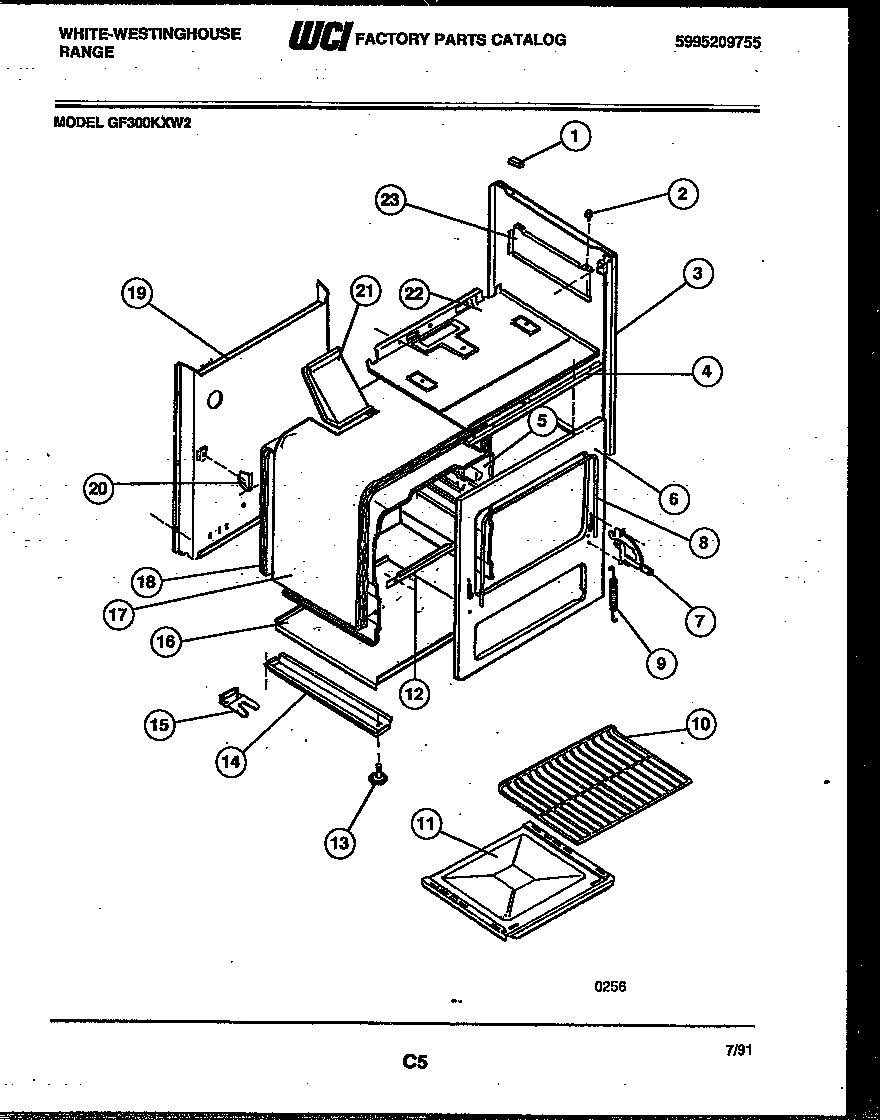

06 - BODY PARTS
Common parts from model Electrolux GF300KXW2 RANGE
*48611
WCI 5300009126 WCI 5300009126 Contact Us For Availability
*48614
CLIP-BODYSIDE CORNER WCI 3131791 Contact Us For Availability
1
WCI 5303017786 WCI 5303017786 Contact Us For Availability
1
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
2
INSULATION-WOOL WCI 3017038 Contact Us For Availability
2
WCI 5303017164 WCI 5303017164 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
3
BODYSIDE-WHITE RH & LH WCI 5303051061 Contact Us For Availability
4
WCI 5303131018 WCI 5303131018 Contact Us For Availability
4
LINER - BROILER WCI 5303018344 Contact Us For Availability
4
PANEL OVEN DOOR WHITE WCI 3014979 Contact Us For Availability
4
WCI 5308013927 WCI 5308013927 Contact Us For Availability
4
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
5
KNOB-TOP BURNER WCI 5308013898 Contact Us For Availability
5
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
5
WCI 5303051041 WCI 5303051041 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
OVEN LINER-RH WCI 3018284 Contact Us For Availability
5A
OVEN LINER-LH WCI 3018285 Contact Us For Availability
5B
OVEN LINER TOP WCI 3018347 Contact Us For Availability
5C
OVEN LINER BACK WCI 3018995 Contact Us For Availability
6
HANDLE-OVEN DOOR WCI 5308008085 Contact Us For Availability
6
BURNER OVEN PILOT WCI 5308013855 Contact Us For Availability
6
WCI 3205578 WCI 3205578 Contact Us For Availability
7
WCI 08008080 WCI 08008080 Contact Us For Availability
7
TUBE - OVEN FEED WCI 5303131063 Contact Us For Availability
7A
HINGE-DOOR RH WCI 5303204670 Contact Us For Availability
8
Seal,oven door WCI 5308008022 Contact Us For Availability
8
LOXIT NUT-3/8 WCI 3131064 Contact Us For Availability
9
WCI 5308013942 WCI 5308013942 Contact Us For Availability
9
SPRING HINGE-LH/RH WCI 5303009435 Contact Us For Availability
10
RACK-OVEN WCI 5303015714 Contact Us For Availability
10
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
11
HINGE - RH WCI 3131028 Contact Us For Availability
11
PILOT WCI 3205598 Contact Us For Availability
11
OVEN BOTTOM WCI 3018282 Contact Us For Availability
11A
HINGE - LH WCI 5303131029 Contact Us For Availability
12
SPRING - BROILER DRWR WCI 5303131030 Contact Us For Availability
12
NUT-COMPRESSION WITH SLEEVE WCI 3131072 Contact Us For Availability
12
WCI 3131038 WCI 3131038 Contact Us For Availability
13
LEVELING LEG WCI 318175510 No Longer Available
13
BROILER DRAWER TRACK - RH WCI 5303051055 Contact Us For Availability
13
TUBE-OVEN PILOT WCI 5303009490 Contact Us For Availability
13A
BROILER DRAWER TRACK - LH WCI 5303051056 Contact Us For Availability
14
ROLLER WCI 5303051057 Contact Us For Availability
14
LOXIT NUT-3/16 WCI 3131074 Contact Us For Availability
14
RAIL-BASE RIGHT WCI 5303210255 Contact Us For Availability
14A
RAIL-BASE LEFT WCI 5303210256 Contact Us For Availability
15
PILOT TUBE WCI 5303131075 Contact Us For Availability
15
ANTI-TIP BRKT WCI 3934059 Contact Us For Availability
16
SUPPORT-TOP BURNER WCI 5303016870 Contact Us For Availability
16
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
18
BURNER-TOP REAR (2) WCI 5303131079 No Longer Available
18
WCI 3017172 WCI 3017172 Contact Us For Availability
19
BURNER-TOP FRONT (2) WCI 5303131080 Contact Us For Availability
19
WCI 3013340 WCI 3013340 Contact Us For Availability
20
WCI 08007979 WCI 08007979 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
BURNER-BOX WCI 3017174 Contact Us For Availability
23
SHIELD-HEAT-B/S-RH WCI 5303131053 Contact Us For Availability
23A
SHIELD-HEAT-B/S-LH WCI 5303131054 Contact Us For Availability
× ![]()
