Model Electrolux GF300KXD0 RANGE – Common Parts & Diagrams

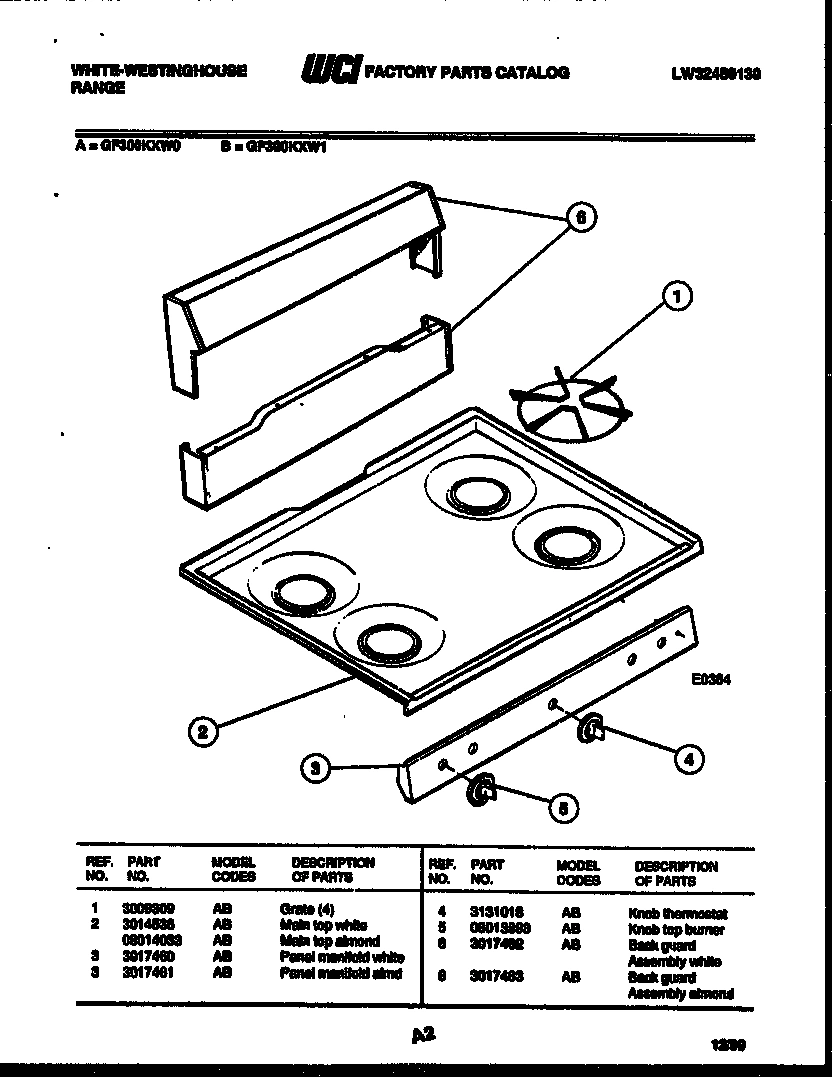

02 - BACKGUARD AND COOKTOP PARTS
03 - BROILER DRAWER PARTS

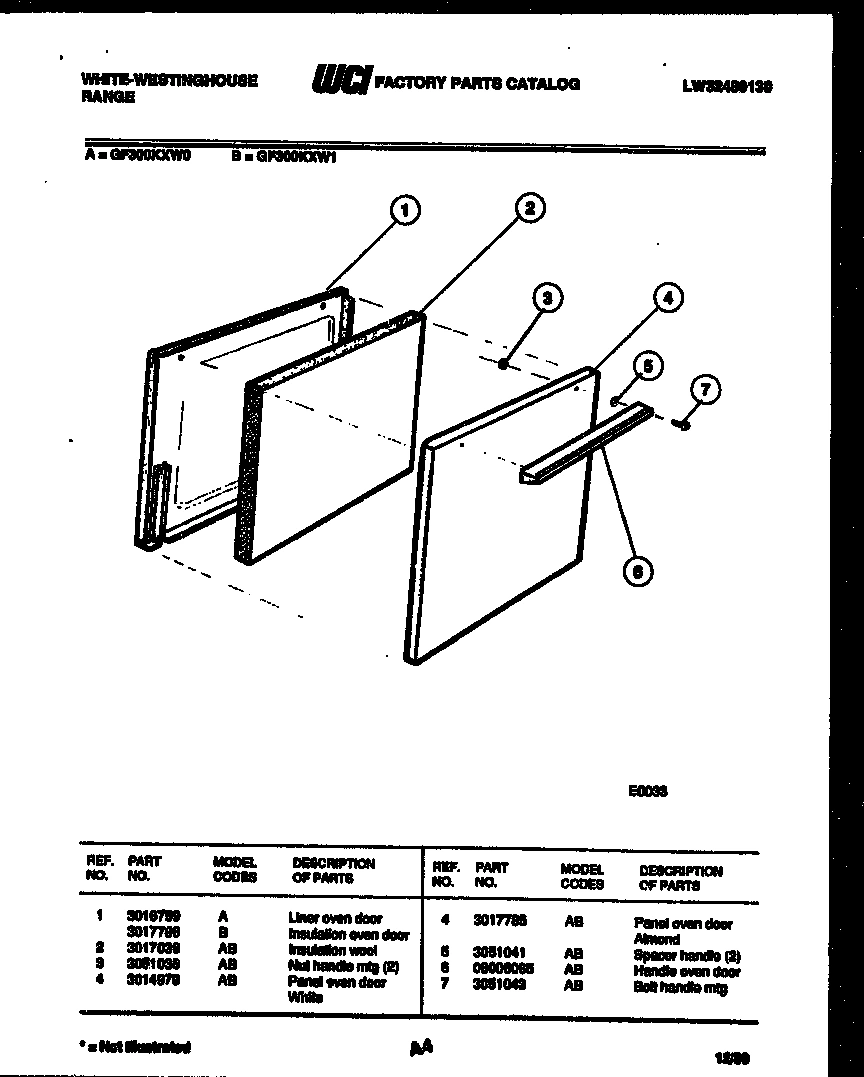

04 - DOOR PARTS

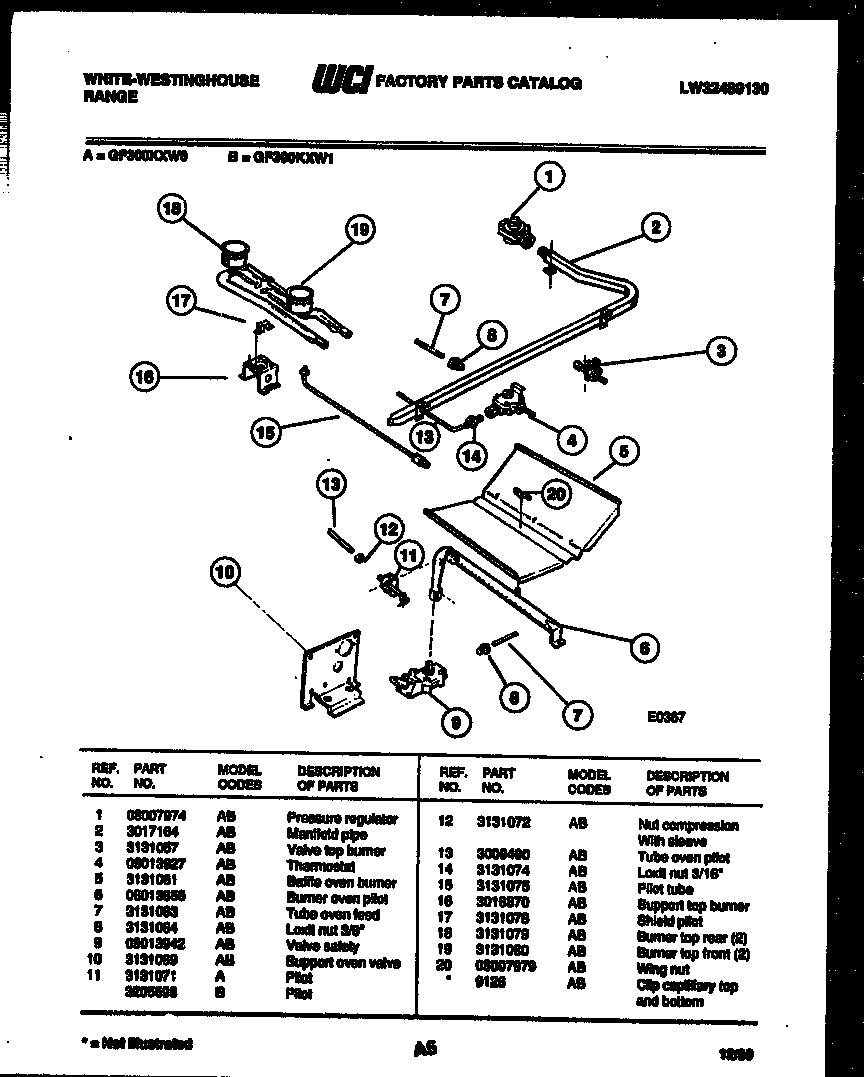

05 - BURNER, MANIFOLD AND GAS CONTROL

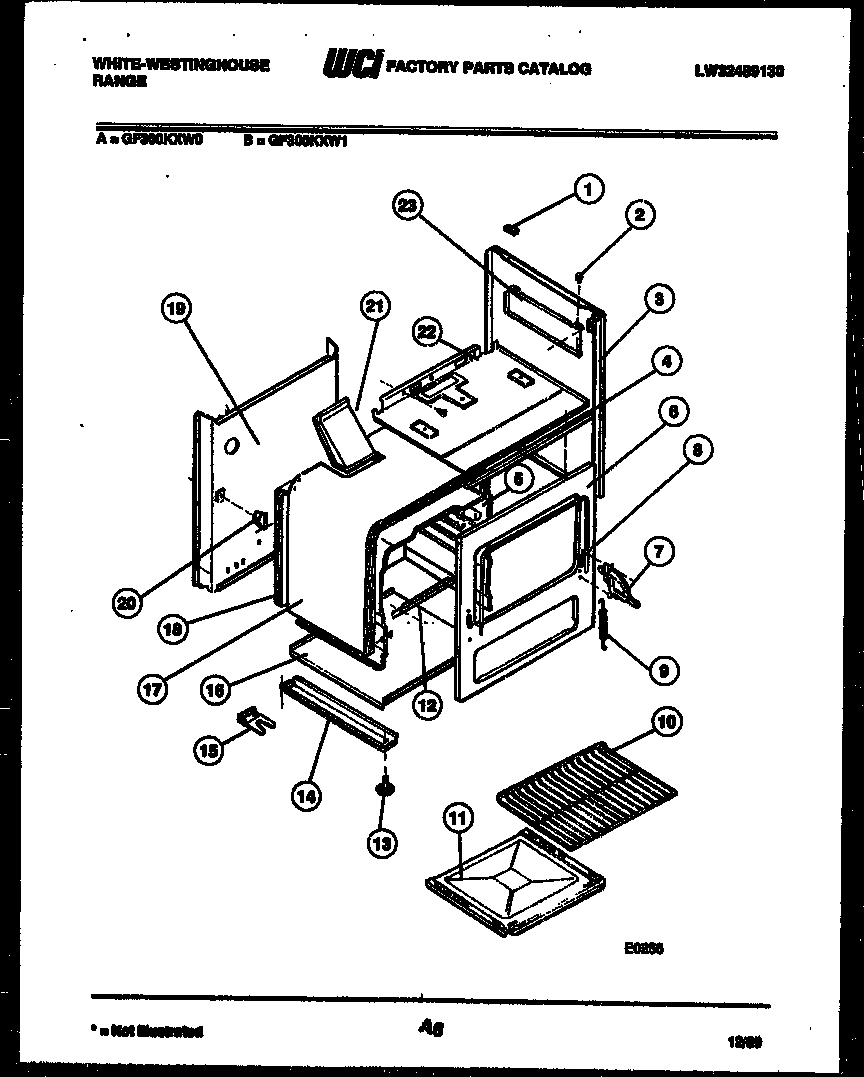

06 - BODY PARTS
Common parts from model Electrolux GF300KXD0 RANGE
*78283
CLIP CAPILLIARY TOP AND BOTTOM WCI 9126 Contact Us For Availability
*78319
CLIP BACHSPLASH CORNER WCI 3009582 Contact Us For Availability
1
GRATE (4) WCI 3009309 Contact Us For Availability
1
WCI 3131021 WCI 3131021 Contact Us For Availability
1
INSULATION OVEN DOOR WCI 3017786 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
WCI 08014033 WCI 08014033 Contact Us For Availability
2
INSULATION-WOOL WCI 3017038 Contact Us For Availability
2
WCI 3017164 WCI 3017164 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
WCI 3017461 WCI 3017461 Contact Us For Availability
3
WCI 3131023 WCI 3131023 Contact Us For Availability
3
VALVE - TOP BURNER WCI 3131057 Contact Us For Availability
3
WCI 08014019 WCI 08014019 Contact Us For Availability
3
BACKSPASH WHITE LH & RH WCI 3051061 Contact Us For Availability
4
WCI 3131018 WCI 3131018 Contact Us For Availability
4
WCI 3017165 WCI 3017165 Contact Us For Availability
4
PANEL OVEN DOOR WHITE WCI 3014979 Contact Us For Availability
4
PANEL OVEN DOOR ALMOND WCI 3017785 Contact Us For Availability
4
WCI 08013927 WCI 08013927 Contact Us For Availability
4
SUPPORT CONTROL PNL WCI 3131811 Contact Us For Availability
5
KNOB - TOP BURNER WCI 08013898 Contact Us For Availability
5
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
5
SPACER HANDLE (2) WCI 3051041 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
WCI 3131032 WCI 3131032 Contact Us For Availability
5A
WCI 3131033 WCI 3131033 Contact Us For Availability
5B
WCI 3137166 WCI 3137166 Contact Us For Availability
5C
WCI 3137167 WCI 3137167 Contact Us For Availability
6
WCI 3017463 WCI 3017463 Contact Us For Availability
6
HANDLE OVEN DOOR WCI 08008085 Contact Us For Availability
6
BURNER OVEN PILOT WCI 08013855 Contact Us For Availability
6
WCI 3017048 WCI 3017048 Contact Us For Availability
7
WCI 08008084 WCI 08008084 Contact Us For Availability
7
TUBE-OVEN FEED WCI 3131063 Contact Us For Availability
7A
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
8
LOXIT NUT-3/8 WCI 3131064 Contact Us For Availability
8
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
9
WCI 08013942 WCI 08013942 Contact Us For Availability
9
SPRING HINGE LH/RH WCI 3009435 Contact Us For Availability
10
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
10
RACK-OVEN WCI 3015714 Contact Us For Availability
11
SCREW PANEL MTG (8) WCI 3051009 Contact Us For Availability
11
WCI 3131071 WCI 3131071 Contact Us For Availability
11
WCI 3017168 WCI 3017168 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
NUT-COMPRESSION WITH SLEEVE WCI 3131072 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12A
HINGE - LH WCI 3131029 Contact Us For Availability
13
SPRING - BROILER DRWR WCI 3131030 Contact Us For Availability
13
TUBE OVEN PILOT WCI 3009490 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
14
BROILER-DRAWER TRACK RH WCI 3051055 Contact Us For Availability
14
LOXIT NUT-3/16 WCI 3131074 Contact Us For Availability
14
RAIL BASE LH/RH WCI 08068047 Contact Us For Availability
14A
BROILER-DRAWER TRACK LH WCI 3051056 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
15
PILOT TUBE WCI 3131075 Contact Us For Availability
15
ANTI-TIP KIT WCI 3934059 Contact Us For Availability
16
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
16
MAIN BOTTOM WCI 3011645 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
18
BURNER-TOP REAR (2) WCI 3131079 Contact Us For Availability
18
WCI 3017172 WCI 3017172 Contact Us For Availability
19
BURNER - TOP (FRONT) (2) WCI 3131080 Contact Us For Availability
19
WCI 3013340 WCI 3013340 Contact Us For Availability
20
WCI 08007979 WCI 08007979 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
BURNER-BOX WCI 3017174 Contact Us For Availability
23
SHIELD HEAT BIB RH WCI 3131053 Contact Us For Availability
23A
SHIELD HEAT BIB LH WCI 3131054 Contact Us For Availability
× ![]()
