Model Electrolux GF300HXW5 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - DOOR PARTS

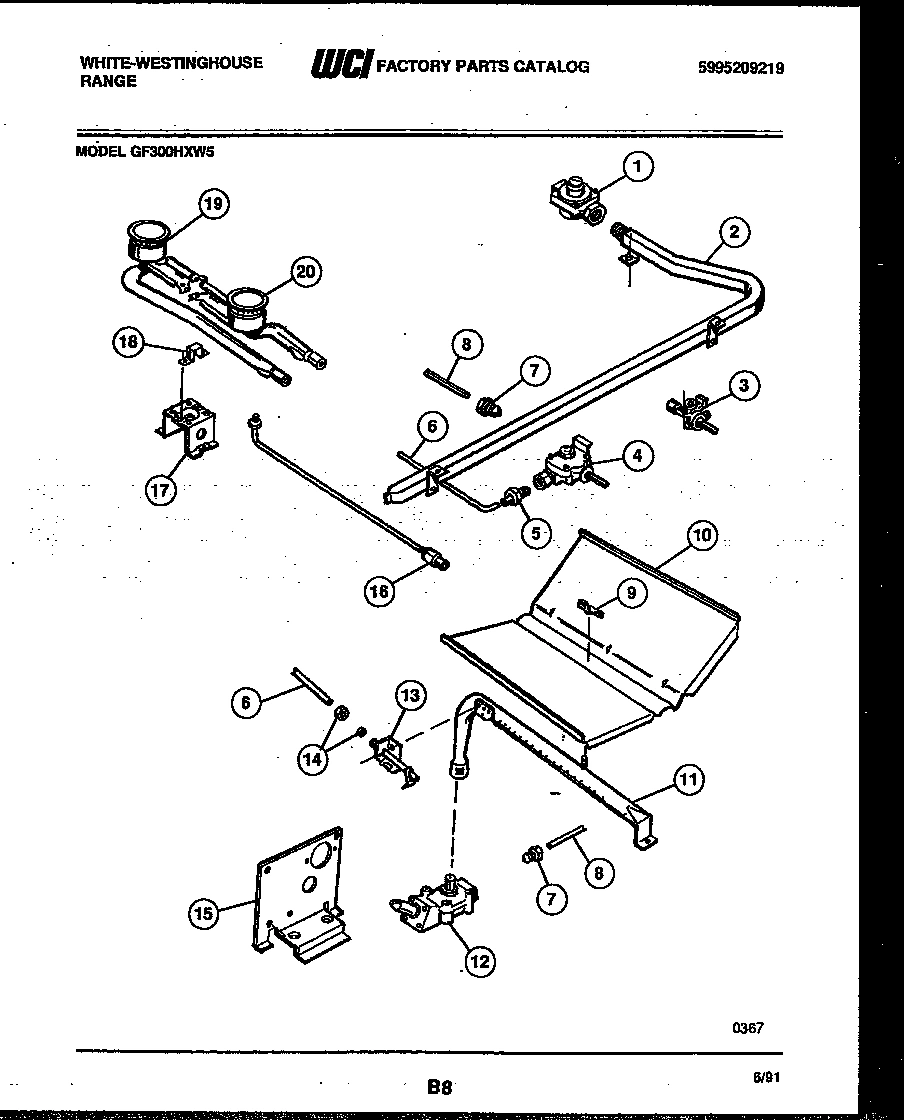

04 - BURNER, MANIFOLD AND GAS CONTROL

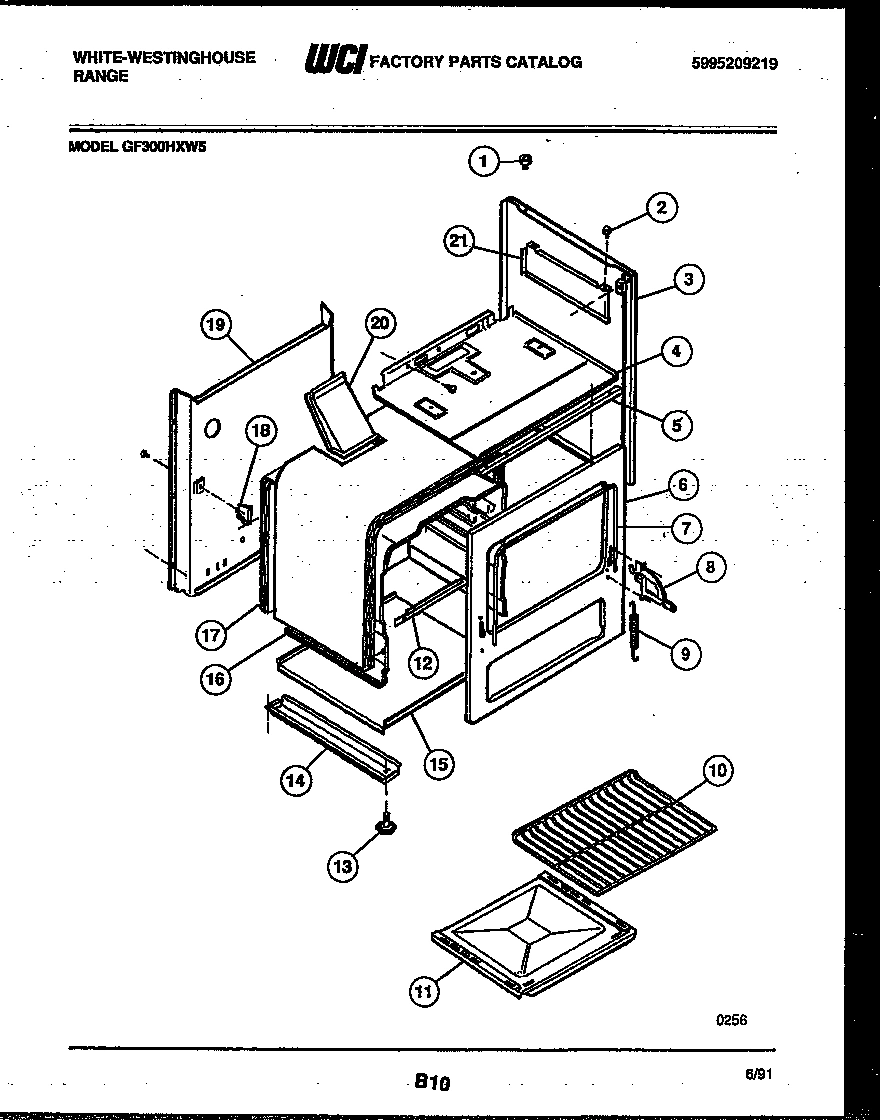

05 - BODY PARTS

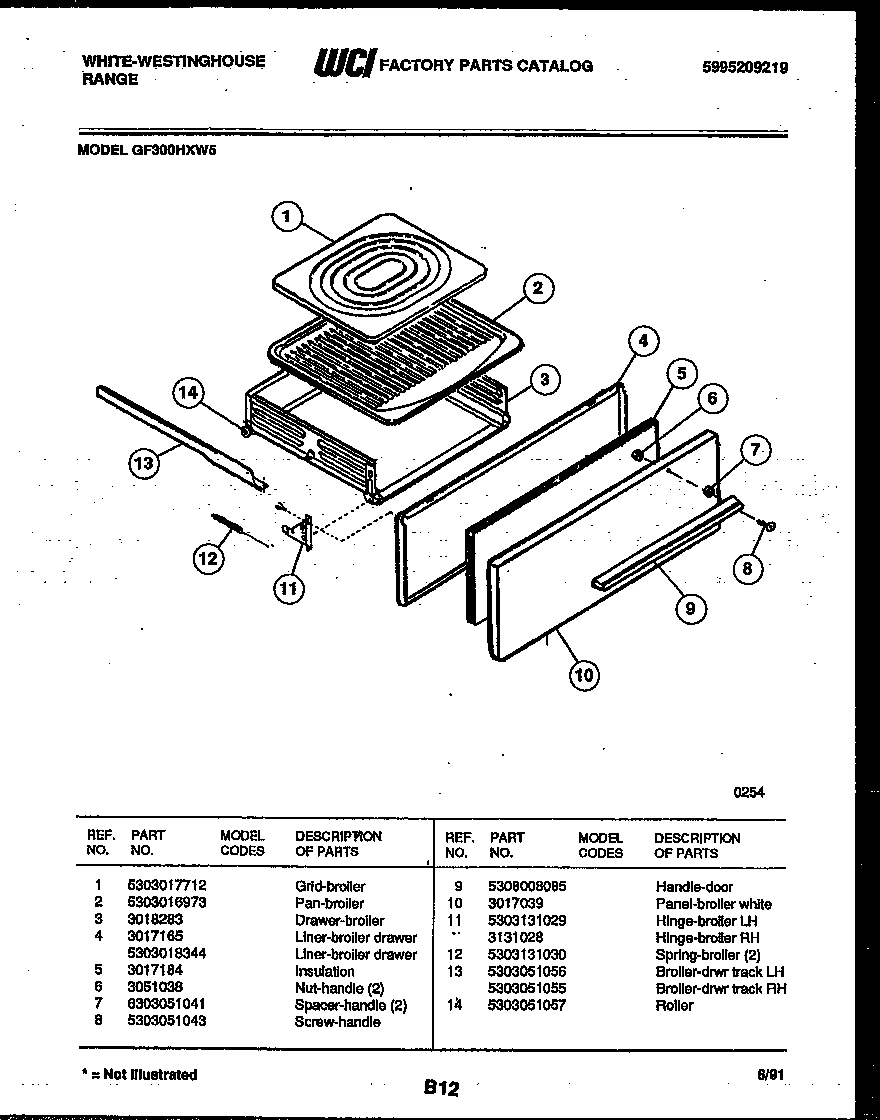

06 - BROILER DRAWER PARTS
Common parts from model Electrolux GF300HXW5 RANGE
*48535
WCI 5300009126 WCI 5300009126 Contact Us For Availability
*48538
WCI 08008009 WCI 08008009 Contact Us For Availability
*48538
CLIP B/S CONER WCI 3131791 Contact Us For Availability
*48538
ANTI-TIP KIT WCI 3934059 Contact Us For Availability
1
GROMMET WCI 3205587 Contact Us For Availability
1
GRID-BROILER WCI 5303017712 Contact Us For Availability
2
INSULATION WCI 3017038 Contact Us For Availability
2
WCI 5303017164 WCI 5303017164 Contact Us For Availability
2
GROMMET-MAIN TOP WCI 3051063 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
3
VALVE-TOP VALVE WCI 5303131057 Contact Us For Availability
3
PANEL-BODY SIDE (WHITE) WCI 5303051061 Contact Us For Availability
4
WCI 5303051041 WCI 5303051041 Contact Us For Availability
4
WCI 5308013927 WCI 5308013927 Contact Us For Availability
4
BURNER BOX BOTTOM WCI 3017174 Contact Us For Availability
4
LINER-BROILER DRAWER WCI 3017165 Contact Us For Availability
4
WCI 5303018344 WCI 5303018344 Contact Us For Availability
5
FITTING WCI 5300269018 Contact Us For Availability
5
SUPPORT CONTROL PNL WCI 3131811 Contact Us For Availability
5
WCI 3017184 WCI 3017184 Contact Us For Availability
6
WCI 5303131018 WCI 5303131018 Contact Us For Availability
6
TUBE-OVEN PILOT WCI 5303009490 Contact Us For Availability
6
WCI 3205578 WCI 3205578 Contact Us For Availability
7
KNOB-TOP BURNERS WCI 5308013898 Contact Us For Availability
7
Seal,oven door WCI 5308008022 Contact Us For Availability
7
FITTING WCI 5303131064 Contact Us For Availability
7
WCI 6303051041 WCI 6303051041 Contact Us For Availability
8
TUBE - OVEN FEED WCI 5303131063 Contact Us For Availability
8
HINGE-OVEN DR-RH WCI 5303204670 Contact Us For Availability
9
HANDLE-DOOR WCI 5308008085 Contact Us For Availability
9
NUT - WING WCI 08007979 Contact Us For Availability
9
SPRING OVEN DOOR (2) WCI 5303009435 Contact Us For Availability
10
RACK-OVEN WCI 5303015714 Contact Us For Availability
10
PANEL-BROILER WHITE WCI 3017039 Contact Us For Availability
10
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
11
WCI 5308013855 WCI 5308013855 Contact Us For Availability
11
LINER-BOTTOM WCI 3018282 Contact Us For Availability
11
HINGE-BROILER (LH) WCI 5303131029 Contact Us For Availability
11A
HINGE-BROILER (RH) WCI 3131028 Contact Us For Availability
12
WCI 5308013942 WCI 5308013942 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12
WCI 5303131030 WCI 5303131030 Contact Us For Availability
13
WCI 3205598 WCI 3205598 Contact Us For Availability
13
BROILER DRWR-TRACK LH WCI 5303051056 Contact Us For Availability
13A
BROILER DRWR-TRACK RH WCI 5303051055 Contact Us For Availability
14
NUT & SLEEVE WCI 3131072 Contact Us For Availability
14
BASE RAIL (LEFT) WCI 5303210256 Contact Us For Availability
14
ROLLER WCI 5303051057 Contact Us For Availability
14A
BASE RAIL (RIGHT) WCI 5303210255 Contact Us For Availability
15
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
15
MAIN BOTTOM WCI 3011645 Contact Us For Availability
16
PILOT-TUBE BURNER WCI 5303131075 Contact Us For Availability
16
LINER-RIGHT SIDE WCI 3018284 Contact Us For Availability
16A
LINER-LEFT SIDE WCI 3018285 Contact Us For Availability
16B
WCI 3018347 WCI 3018347 Contact Us For Availability
16C
WCI 3018995 WCI 3018995 Contact Us For Availability
17
SUPPORT-TOP BURNER WCI 5303016870 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
STRAP - PILOT SHIELD WCI 3131078 Contact Us For Availability
18
Support,oven rear WCI 3051096 Contact Us For Availability
19
BURNER-TOP REAR (2) WCI 5303131079 Contact Us For Availability
19
MAIN BACK WCI 5303013340 Contact Us For Availability
20
BURNER-TOP FRONT (2) WCI 5303131080 Contact Us For Availability
20
FLUE BOX WCI 3017173 Contact Us For Availability
21
SHIELD-BRNR BOX-RH WCI 5303131053 Contact Us For Availability
21A
SHIELD-BRNR BOX-LH WCI 5303131054 Contact Us For Availability
× ![]()
