Model Electrolux GF300HXW1 RANGE – Common Parts & Diagrams

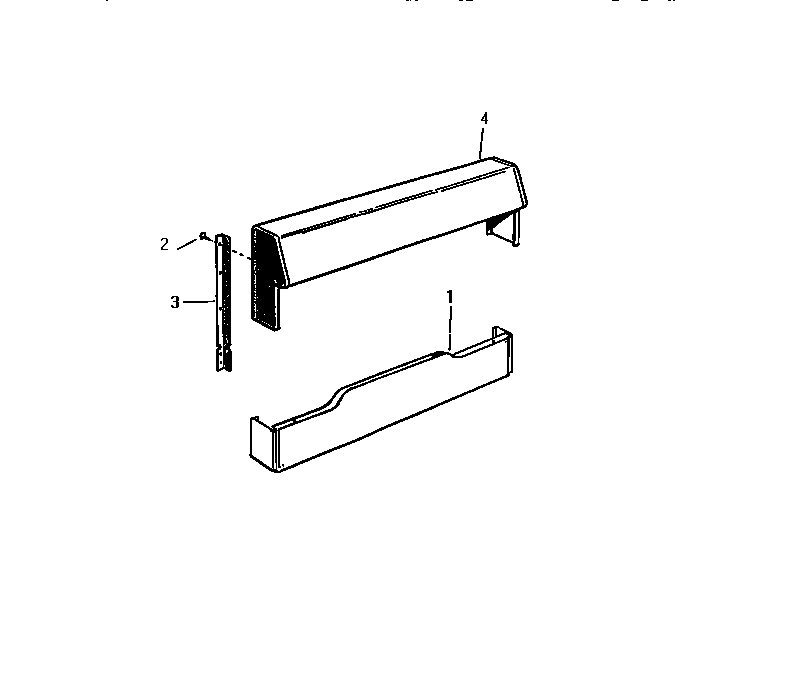

02 - BACKGUARD

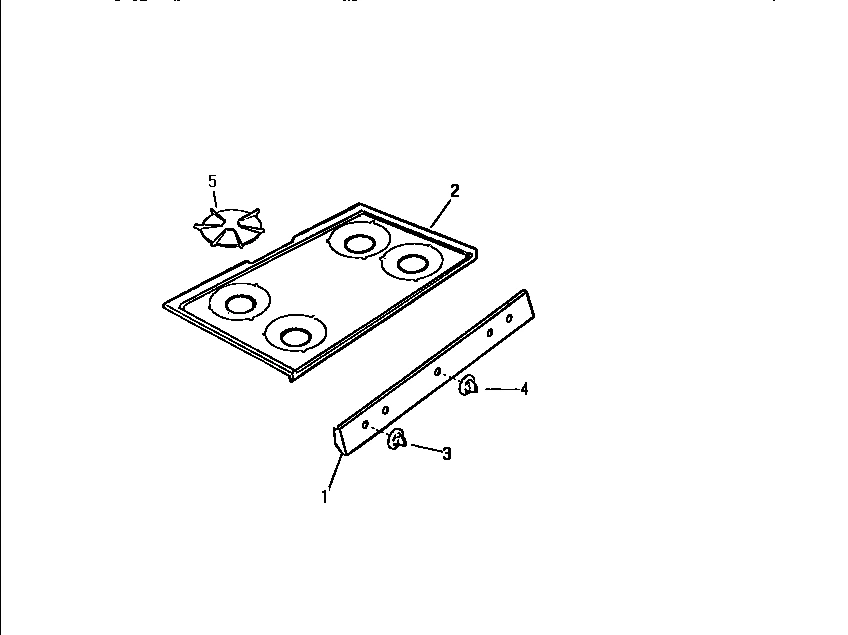

03 - TOP & CONTROL PANEL

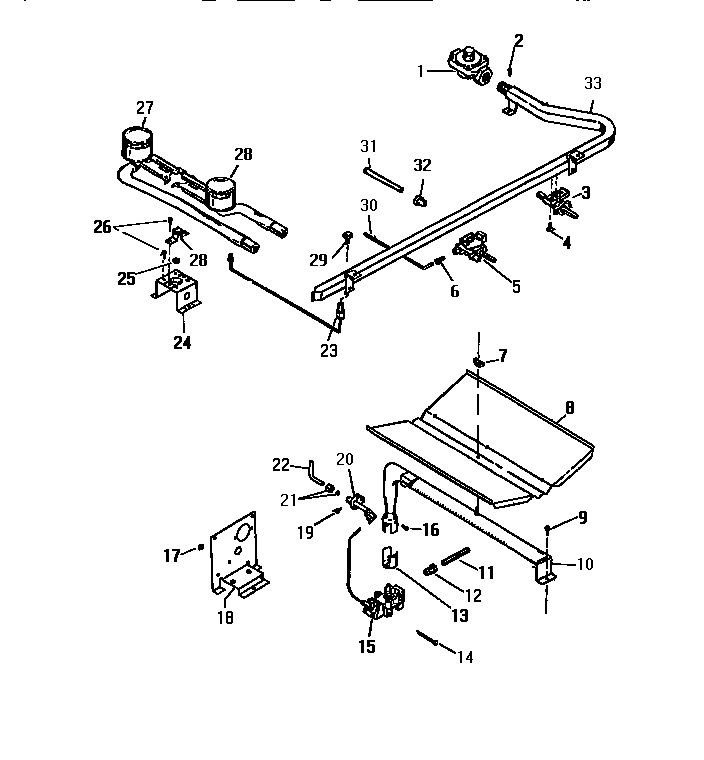

04 - BURNER ASSEMBLY

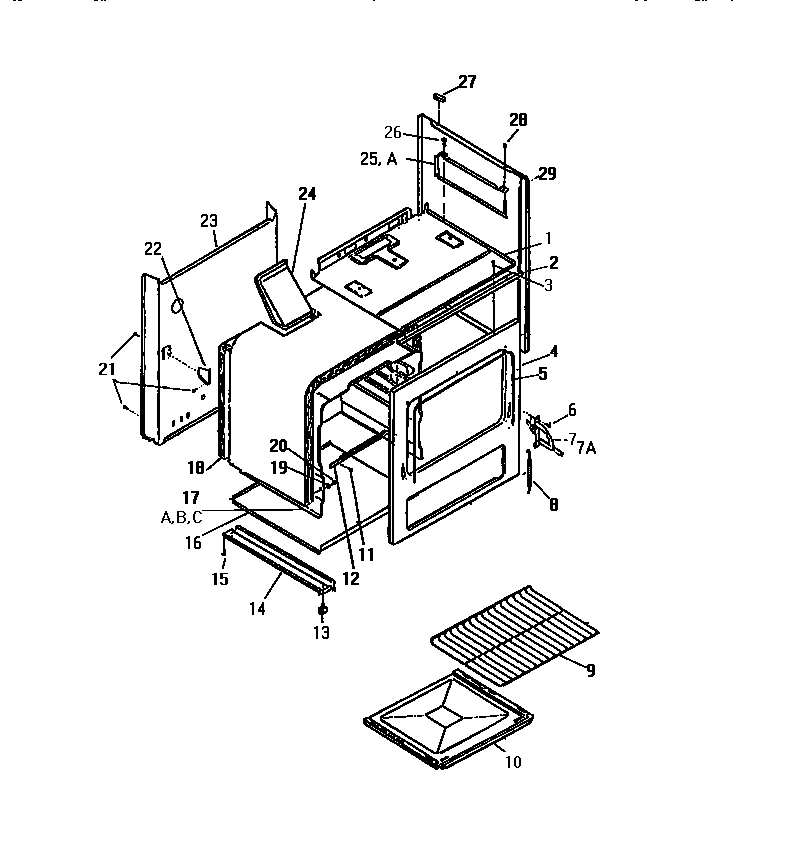

05 - BODY, SIDE PANELS

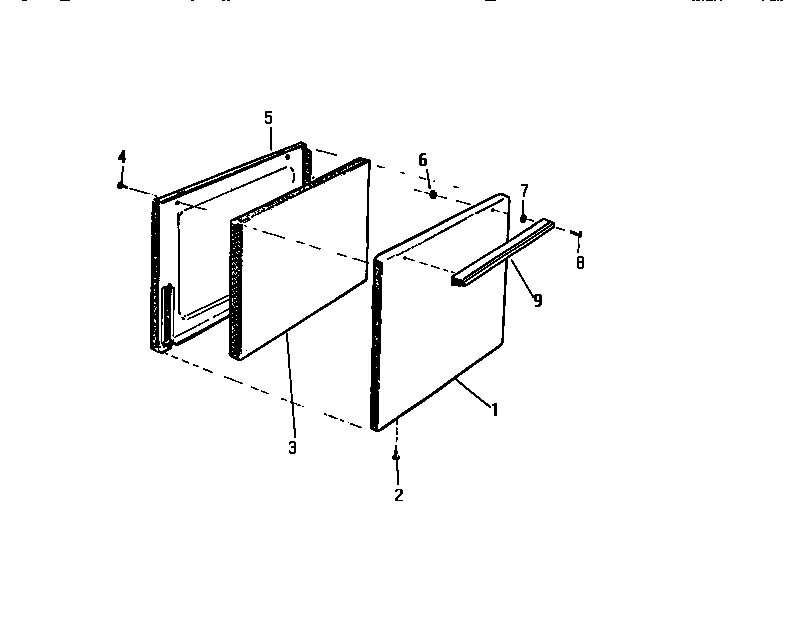

06 - DOOR

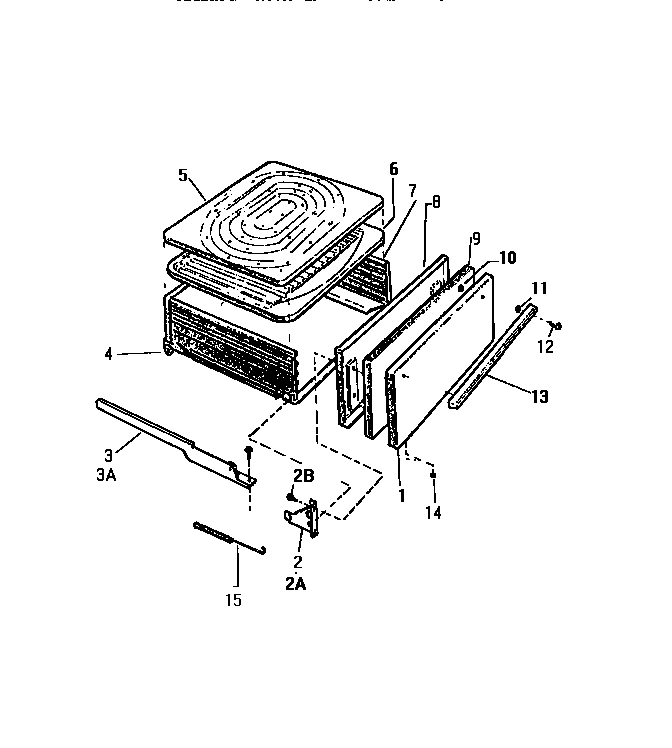

07 - DRAWER
Common parts from model Electrolux GF300HXW1 RANGE
1
PANEL, LOWER WCI A54127000 Contact Us For Availability
1
WCI Q280090 WCI Q280090 Contact Us For Availability
1
WCI Q301968 WCI Q301968 Contact Us For Availability
1
WCI Q301986 WCI Q301986 Contact Us For Availability
1
OUTER PANEL DRAWER, WHITE WCI A98349000 Contact Us For Availability
2
WCI Q280083 WCI Q280083 Contact Us For Availability
2
WCI A74076000 WCI A74076000 Contact Us For Availability
2
WCI AP061061 WCI AP061061 Contact Us For Availability
2
HINGE-LH WCI A46011000 Contact Us For Availability
2A
HINGE-RH WCI A46010000 Contact Us For Availability
3
WCI Q301891 WCI Q301891 Contact Us For Availability
3
WCI Q301964 WCI Q301964 Contact Us For Availability
3
WCI Q301873 WCI Q301873 Contact Us For Availability
3
INSULATION WCI AP207041 Contact Us For Availability
3
TRACK ASSY.-LH WCI A96070000 Contact Us For Availability
3A
TRACK ASSY.-RH WCI A96069000 Contact Us For Availability
4
WCI Q301915 WCI Q301915 Contact Us For Availability
4
WCI Q301965 WCI Q301965 Contact Us For Availability
4
BOLT WCI AP051027 Contact Us For Availability
4
WCI Q301967 WCI Q301967 Contact Us For Availability
4
WCI AP051051 WCI AP051051 Contact Us For Availability
4
ROLLER WCI AP031004 Contact Us For Availability
5
GRATE WCI AP165005 Contact Us For Availability
5
WCI Q301859 WCI Q301859 Contact Us For Availability
5
SEAL WCI AP326052 Contact Us For Availability
5
WCI Q301931 WCI Q301931 Contact Us For Availability
5
GRID, BROIL WCI A43001000 Contact Us For Availability
6
NUT WCI AP269018 Contact Us For Availability
6
PAN, BROIL WCI A53002000 Contact Us For Availability
7
WING NUT WCI AP269004 Contact Us For Availability
7
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
7
WCI Q301881 WCI Q301881 Contact Us For Availability
8
WCI A9010000 WCI A9010000 Contact Us For Availability
8
SPRING WCI AP339038 Contact Us For Availability
8
WCI Q301882 WCI Q301882 Contact Us For Availability
9
RACK WCI AP301046 Contact Us For Availability
9
WCI Q138829 WCI Q138829 Contact Us For Availability
10
WCI Q301880 WCI Q301880 Contact Us For Availability
10
WCI Q301977 WCI Q301977 Contact Us For Availability
10
NUT WCI AP265008 Contact Us For Availability
11
WCI Q61664 WCI Q61664 Contact Us For Availability
12
SUPPORT, BTM WCI A74055000 Contact Us For Availability
13
WCI Q301879 WCI Q301879 Contact Us For Availability
13
LEG WCI AP059009 Contact Us For Availability
13
WCI Q301812 WCI Q301812 Contact Us For Availability
14
SCREW WCI AP051056 Contact Us For Availability
14
BOLT WCI AP051011 Contact Us For Availability
14
BASE RAIL WCI A98373000 Contact Us For Availability
15
WCI Q301872 WCI Q301872 Contact Us For Availability
15
SPRING WCI AP339050 Contact Us For Availability
16
SCREW WCI AP325005 Contact Us For Availability
16
PANEL, BOTTOM WCI A11069000 Contact Us For Availability
17
WCI Q402302 WCI Q402302 Contact Us For Availability
17
WCI Q301971 WCI Q301971 Contact Us For Availability
17A
WCI Q301972 WCI Q301972 Contact Us For Availability
17B
WCI Q301973 WCI Q301973 Contact Us For Availability
17C
WCI Q301974 WCI Q301974 Contact Us For Availability
18
SUPPORT WCI A74054000 Contact Us For Availability
18
INSULATION WCI Q134234 Contact Us For Availability
19
SCREW WCI AP051046 Contact Us For Availability
19
WCI AP391021 WCI AP391021 Contact Us For Availability
20
WCI Q301876 WCI Q301876 Contact Us For Availability
20
WCI AP051045 WCI AP051045 Contact Us For Availability
21
WCI Q301878 WCI Q301878 Contact Us For Availability
22
SUPPORT, REAR OV. WCI A74060000 Contact Us For Availability
23
WCI Q310058 WCI Q310058 Contact Us For Availability
23
WCI A5087000 WCI A5087000 Contact Us For Availability
24
WCI Q301866 WCI Q301866 Contact Us For Availability
24
WCI A92049000 WCI A92049000 Contact Us For Availability
25
PAL NUT WCI AP269019 Contact Us For Availability
25
HEAT SHIELD-RH WCI A61044000 Contact Us For Availability
25A
HEAT SHIELD, LH (NON-ILLUSTRATED) WCI A61074000 Contact Us For Availability
27
WCI Q301865 WCI Q301865 Contact Us For Availability
27
WCI Q301831 WCI Q301831 Contact Us For Availability
28
WCI Q301861 WCI Q301861 Contact Us For Availability
28
WCI AP172002 WCI AP172002 Contact Us For Availability
29
BOTTOM PANEL, RH & LH (WHITE) WCI Q301942 Contact Us For Availability
30
TUBING WCI AP377082 Contact Us For Availability
31
TUBING WCI AP377125 Contact Us For Availability
32
NUT WCI AP269017 Contact Us For Availability
33
WCI 310059 WCI 310059 Contact Us For Availability
× ![]()
