Model Electrolux GF204KXD3 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - BROILER DRAWER PARTS

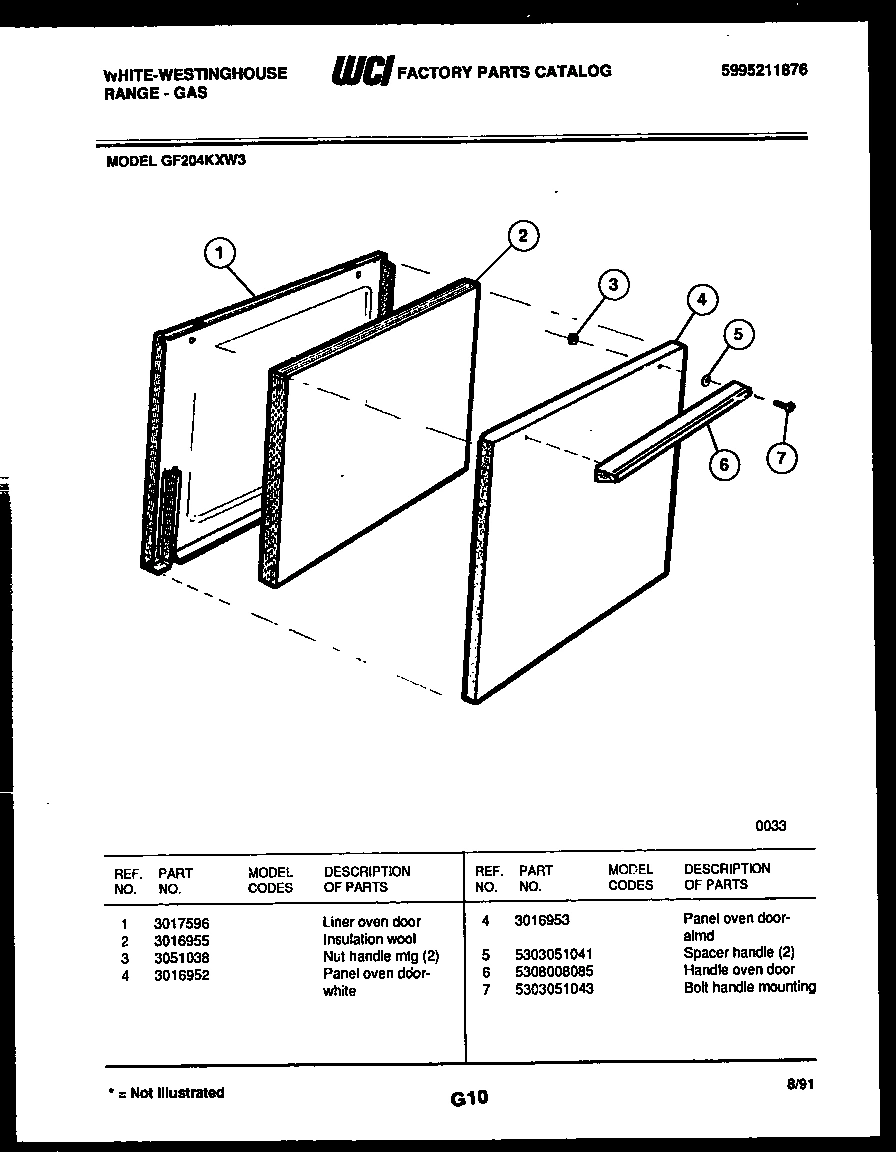

04 - DOOR PARTS

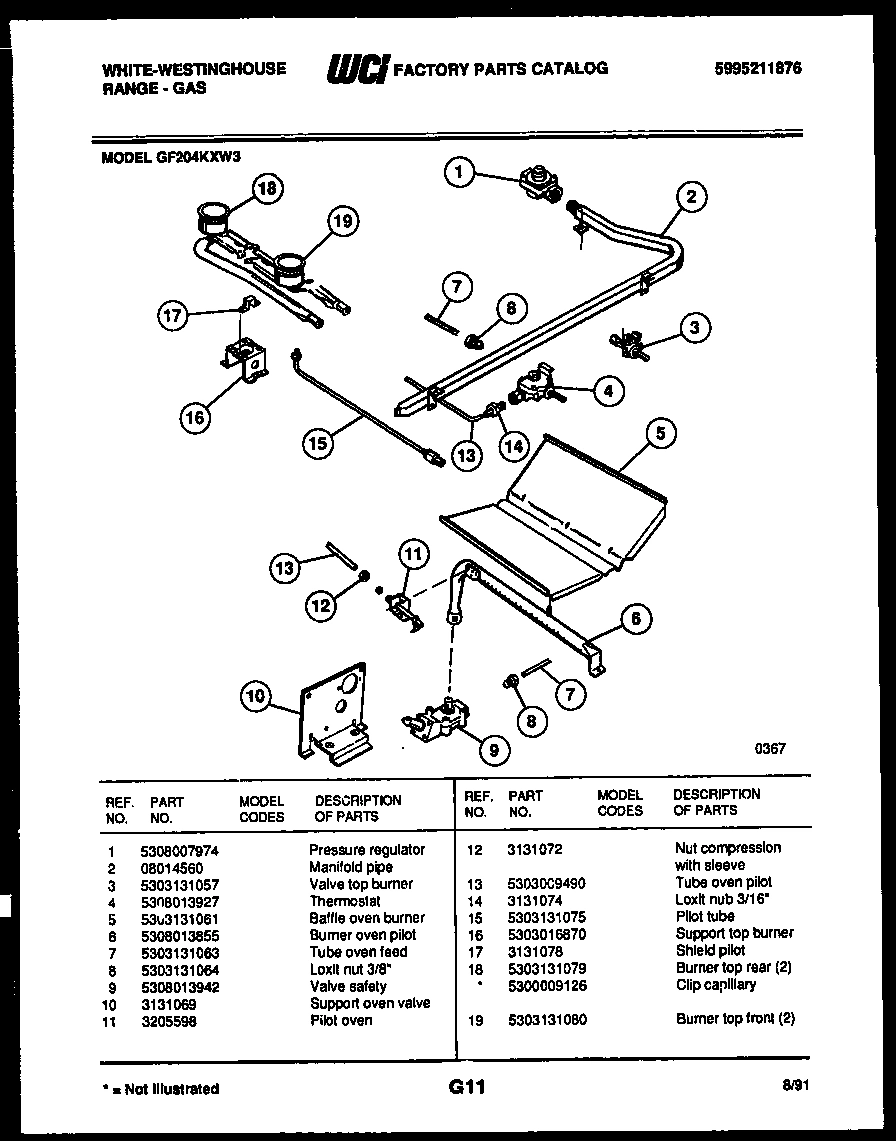

05 - BURNER, MANIFOLD AND GAS CONTROL

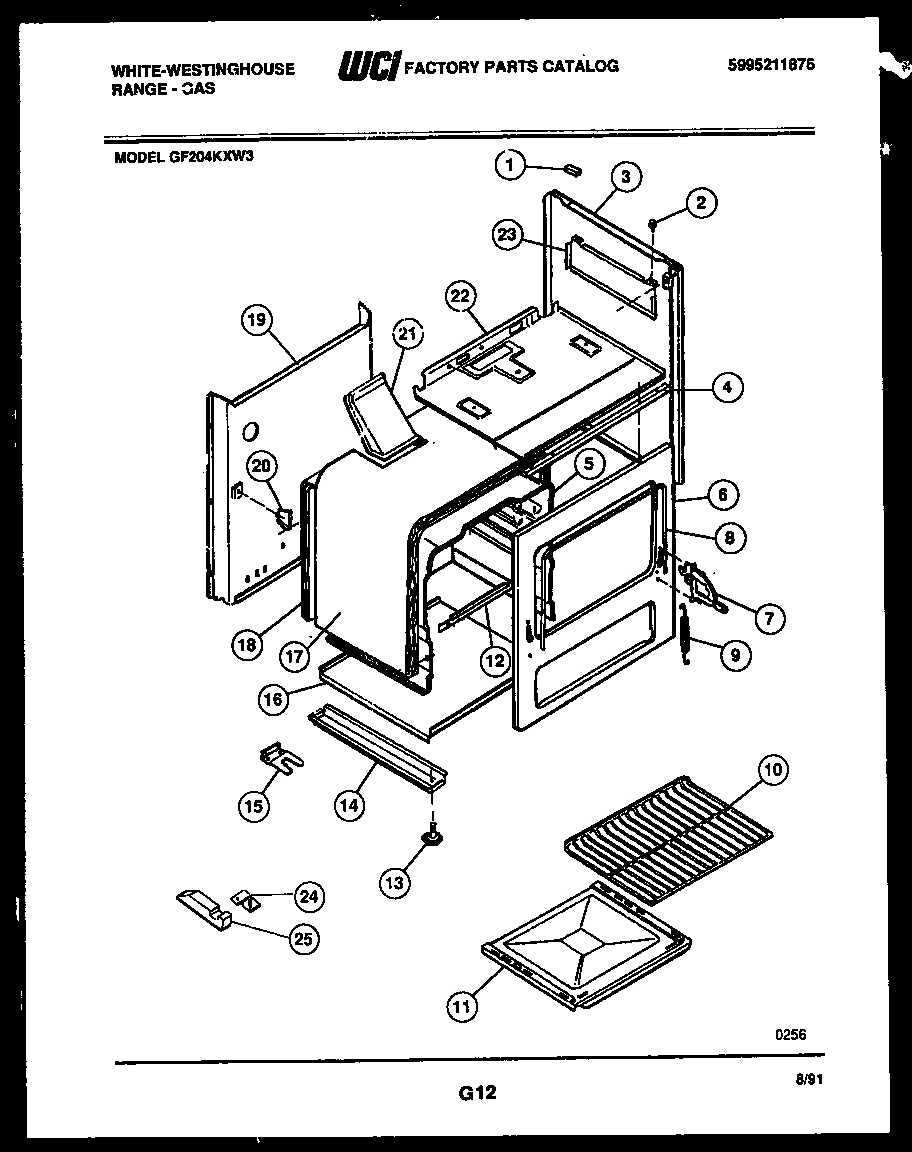

06 - BODY PARTS
Common parts from model Electrolux GF204KXD3 RANGE
1
WCI 3205587 WCI 3205587 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
INSULATION WOOL WCI 3016955 Contact Us For Availability
2
WCI 08014560 WCI 08014560 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
VALVE-TOP BURNER WCI 5303131057 Contact Us For Availability
3
PANEL BODYSIDE-LH/RH (ALMOND) WCI 5308014019 Contact Us For Availability
4
WCI 5303131018 WCI 5303131018 Contact Us For Availability
4
LINER - BROILER WCI 3018816 Contact Us For Availability
4
PANEL OVEN DOOR ALMD WCI 3016953 Contact Us For Availability
4
WCI 3017596 WCI 3017596 Contact Us For Availability
4
WCI 5308013927 WCI 5308013927 Contact Us For Availability
4
SUPPORT-CONTROL PNL WCI 3016950 Contact Us For Availability
5
KNOB-TOP BURNER WCI 5308013898 Contact Us For Availability
5
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
5
WCI 5303051041 WCI 5303051041 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
5
OVEN LINER-SIDE RH WCI 3018284 Contact Us For Availability
5A
OVEN LINER-SIDE LH WCI 3018285 Contact Us For Availability
5B
OVEN LINER TOP WCI 3018818 Contact Us For Availability
5C
OVEN LINER BACK WCI 3018817 Contact Us For Availability
6
HANDLE-OVEN DOOR WCI 5308008085 Contact Us For Availability
6
BURNER OVEN PILOT WCI 5308013855 Contact Us For Availability
6
FRONT FRAME WCI 3203612 Contact Us For Availability
7
WCI 08014053 WCI 08014053 Contact Us For Availability
7
TUBE - OVEN FEED WCI 5303131063 Contact Us For Availability
7A
HINGE-DOOR RH WCI 5303204670 Contact Us For Availability
8
LOXIT NUT 3/8`` WCI 5303131064 Contact Us For Availability
8
SEAL-OVEN DOOR WCI 5308013916 Contact Us For Availability
9
WCI 5308013942 WCI 5308013942 Contact Us For Availability
9
SPRING HINGE LH/RH WCI 5303051079 Contact Us For Availability
10
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
10
RACK OVEN WCI 5303016128 Contact Us For Availability
11
SCREW PANEL MTG (8) WCI 5303131801 Contact Us For Availability
11
WCI 3205598 WCI 3205598 Contact Us For Availability
11
OVEN BOTTOM WCI 3018815 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
NUT-COMPRESSION WITH SLEEVE WCI 3131072 Contact Us For Availability
12
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
12A
HINGE - LH WCI 5303131029 Contact Us For Availability
13
SPRING-BROILER DRAWER WCI 5303131030 Contact Us For Availability
13
TUBE-OVEN PILOT WCI 5303009490 Contact Us For Availability
14
BROILER DRAWER TRACK - RH WCI 5303051055 Contact Us For Availability
14
LOXIT NUB 3/16`` WCI 3131074 Contact Us For Availability
14
BASE RAIL RH WCI 5303210255 Contact Us For Availability
14A
BROILER DRAWER TRACK - LH WCI 5303051056 Contact Us For Availability
14A
BASE RAIL LH WCI 5303210256 Contact Us For Availability
15
ROLLER WCI 5303051057 Contact Us For Availability
15
PILOT TUBE WCI 5303131075 Contact Us For Availability
15
BRACKET INSTALLATION WCI 3934059 Contact Us For Availability
16
SUPPORT-TOP BURNER WCI 5303016870 Contact Us For Availability
16
MAIN BOTTOM WCI 3017448 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
17
WCI 3202740 WCI 3202740 Contact Us For Availability
18
BURNER-TOP REAR (2) WCI 5303131079 Contact Us For Availability
18
WCI 3203741 WCI 3203741 Contact Us For Availability
18A
WCI 5300009126 WCI 5300009126 Contact Us For Availability
19
BURNER-TOP FRONT (2) WCI 5303131080 Contact Us For Availability
19
WCI 5303271410 WCI 5303271410 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
21A
BURNER BOX WCI 3202742 Contact Us For Availability
23
WCI 5303131053 WCI 5303131053 Contact Us For Availability
23A
WCI 5303131054 WCI 5303131054 Contact Us For Availability
23B
CLIP - BACKSPLASH CORNER (NON-ILLUSTRATED) WCI 3009582 Contact Us For Availability
24
WCI 5303210891 WCI 5303210891 Contact Us For Availability
25
WCI 5303210892 WCI 5303210892 Contact Us For Availability
× ![]()
