Model Electrolux GF204KXD1 RANGE – Common Parts & Diagrams
02 - BACKGUARD AND COOKTOP PARTS
03 - BROILER DRAWER PARTS

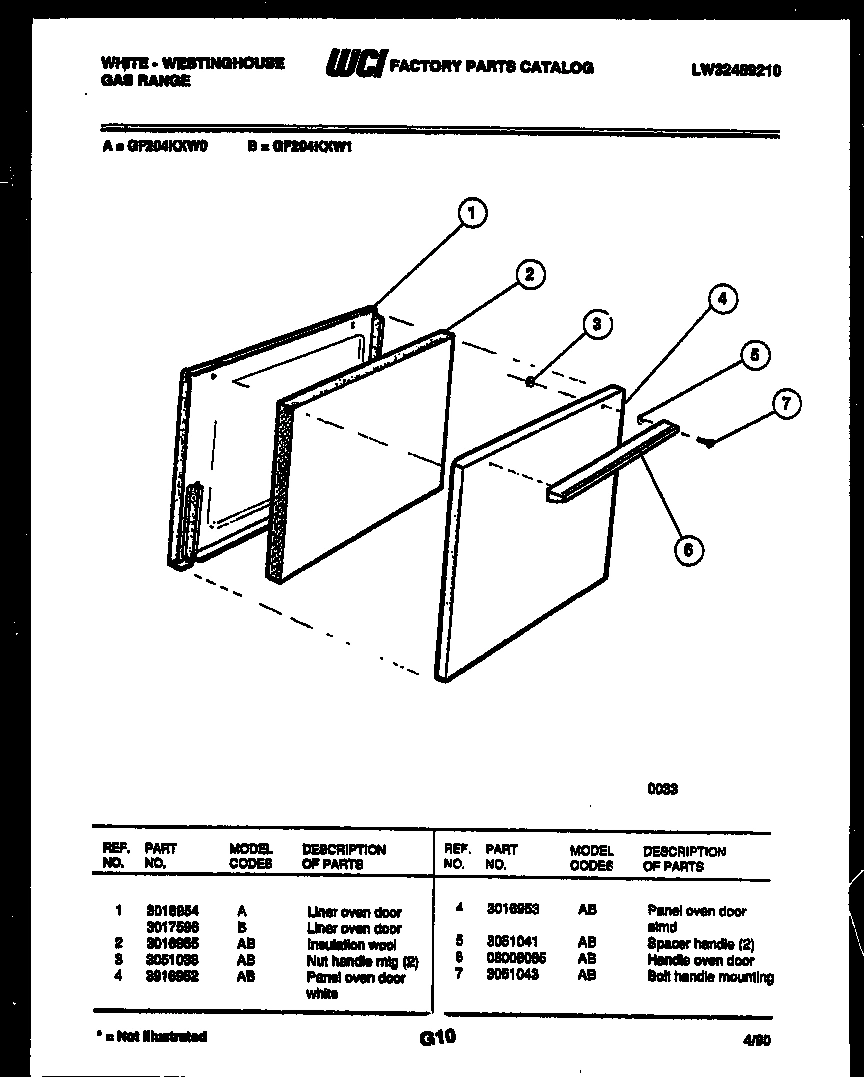

04 - DOOR PARTS

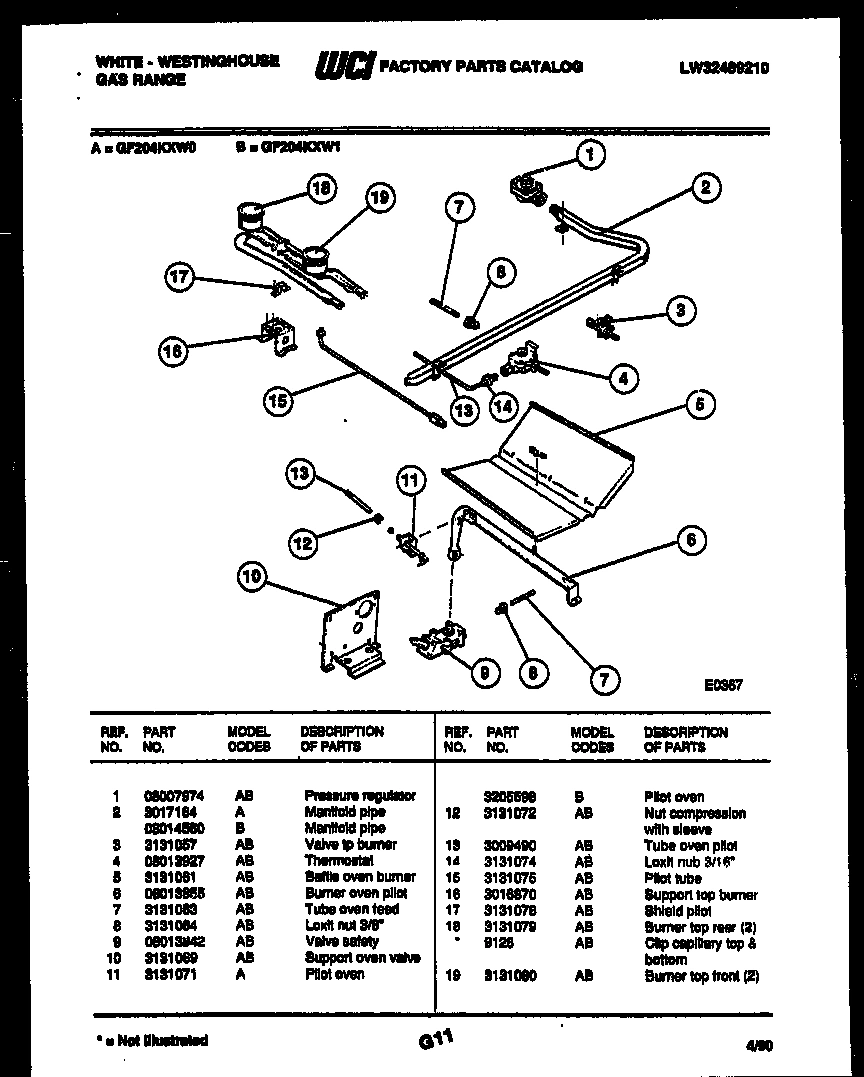

05 - BURNER, MANIFOLD AND GAS CONTROL

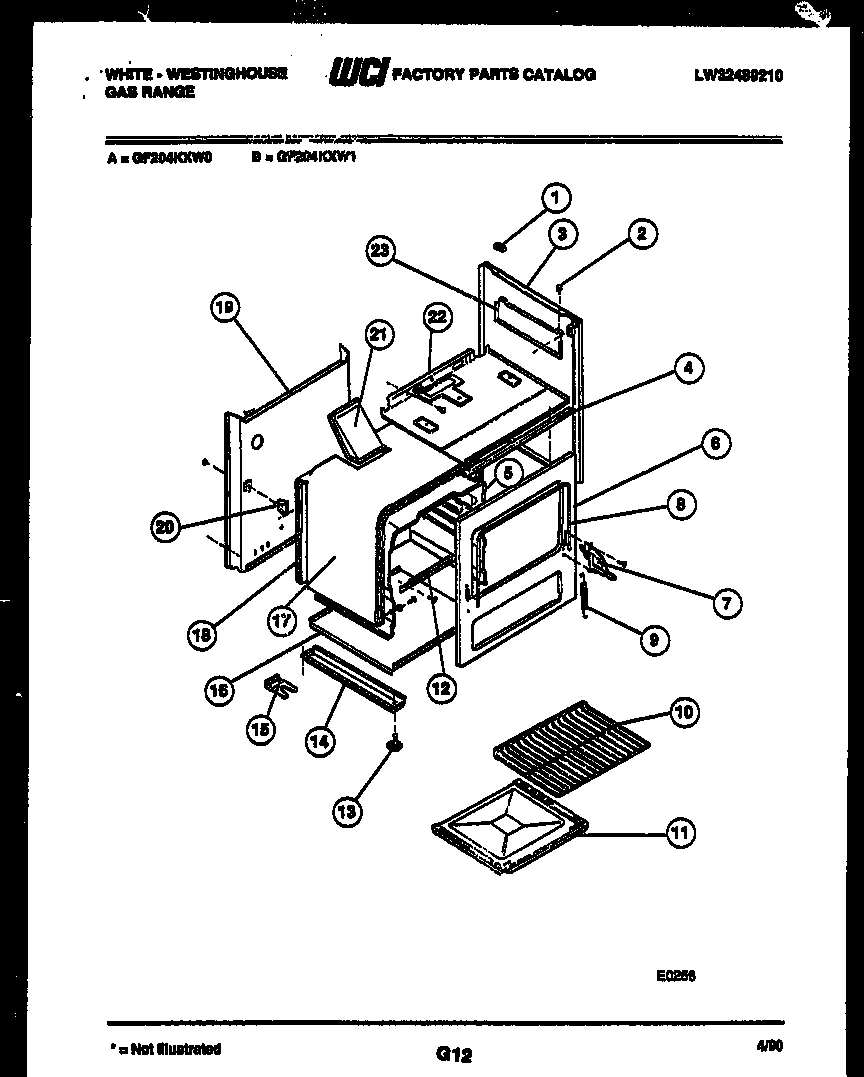

06 - BODY PARTS
Common parts from model Electrolux GF204KXD1 RANGE
*77598
CLIP BACKSPLASH CORNER WCI 3009582 Contact Us For Availability
1
GRATE (4) WCI 3009309 Contact Us For Availability
1
INSERT-BROILER PAN WCI 3017712 Contact Us For Availability
1
WCI 3017596 WCI 3017596 Contact Us For Availability
1
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
2
WCI 3014535 WCI 3014535 Contact Us For Availability
2
INSULATION WOOL WCI 3016955 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
WCI 08014560 WCI 08014560 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
PANEL MANIFOLD ALMD WCI 3017443 Contact Us For Availability
3
VALVE TP BURNER WCI 3131057 Contact Us For Availability
3
WCI 08014019 WCI 08014019 Contact Us For Availability
4
WCI 3131018 WCI 3131018 Contact Us For Availability
4
LINER - BROILER WCI 3018816 Contact Us For Availability
4
PANEL OVEN DOOR ALMD WCI 3016953 Contact Us For Availability
4
WCI 08013927 WCI 08013927 Contact Us For Availability
4
SUPPORT-CONTROL PNL WCI 3016950 Contact Us For Availability
5
KNOB - TOP BURNER WCI 08013898 Contact Us For Availability
5
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
5
SPACER HANDLE (2) WCI 3051041 Contact Us For Availability
5
BAFFLE-OVEN BURNER WCI 3131061 Contact Us For Availability
5
OVEN LINER-SIDE RH WCI 3018284 Contact Us For Availability
5A
OVEN LINER-SIDE LH WCI 3018285 Contact Us For Availability
5B
OVEN LINER TOP WCI 3018818 Contact Us For Availability
5C
OVEN LINER BACK WCI 3018817 Contact Us For Availability
6
WCI 3016959 WCI 3016959 Contact Us For Availability
6
HANDLE OVEN DOOR WCI 08008085 Contact Us For Availability
6
BURNER OVEN PILOT WCI 08013855 Contact Us For Availability
6
FRONT FRAME WCI 3203612 Contact Us For Availability
7
WCI 08014053 WCI 08014053 Contact Us For Availability
7
TUBE-OVEN FEED WCI 3131063 Contact Us For Availability
7A
HINGE - DOOR RH WCI 3204670 Contact Us For Availability
8
LOXIT NUT-3/8 WCI 3131064 Contact Us For Availability
8
SEAL OVEN DOOR WCI 3009426 Contact Us For Availability
9
WCI 08013942 WCI 08013942 Contact Us For Availability
9
SPRING HINGE LH/RH WCI 3051079 Contact Us For Availability
10
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
10
RACK OVEN WCI 3016128 Contact Us For Availability
11
SCREW PANL MTG (8) WCI 3131801 Contact Us For Availability
11
WCI 3205598 WCI 3205598 Contact Us For Availability
11
OVEN BOTTOM WCI 3018815 Contact Us For Availability
12
HINGE - RH WCI 3131028 Contact Us For Availability
12
NUT-COMPRESSION WITH SLEEVE WCI 3131072 Contact Us For Availability
12
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
12A
HINGE - LH WCI 3131029 Contact Us For Availability
13
SPRING BROILER-DRAWER WCI 3131030 Contact Us For Availability
13
TUBE OVEN PILOT WCI 3009490 Contact Us For Availability
13
LEVELING LEG WCI 3051080 Contact Us For Availability
14
BROILER-DRAWER TRACK RH WCI 3051055 Contact Us For Availability
14
LOXIT NUB 3/16`` WCI 3131074 Contact Us For Availability
14
RAIL BASE LH/RH WCI 08068047 Contact Us For Availability
14A
BROILER-DRAWER TRACK LH WCI 3051056 Contact Us For Availability
15
ROLLER WCI 3051057 Contact Us For Availability
15
PILOT TUBE WCI 3131075 Contact Us For Availability
15
WCI 3131041 WCI 3131041 Contact Us For Availability
16
SUPPORT - TOP BURNER WCI 3016870 Contact Us For Availability
16
MAIN BOTTOM WCI 3017448 Contact Us For Availability
17
SHIELD-PILOT WCI 3131078 Contact Us For Availability
17
WCI 3202740 WCI 3202740 Contact Us For Availability
18
BURNER-TOP REAR (2) WCI 3131079 Contact Us For Availability
18
WCI 3203741 WCI 3203741 Contact Us For Availability
18A
CLIP CAPILLARY TOP & BOTTOM WCI 9126 Contact Us For Availability
19
BURNER - TOP (FRONT) (2) WCI 3131080 Contact Us For Availability
19
BACK-MAIN WCI 3017449 Contact Us For Availability
20
Support,oven rear WCI 3051096 Contact Us For Availability
21
VENT BOX WCI 3017173 Contact Us For Availability
22
BURNER BOX WCI 3202742 Contact Us For Availability
23
SHIELD HEAT BIB RH WCI 3131053 Contact Us For Availability
23A
SHIELD HEAT BIB LH WCI 3131054 Contact Us For Availability
× ![]()
