Model Gibson GEF316WHSA RANGE – Common Parts & Diagrams

*
Screw,cup pt ,8-18 x 0.375 ,ind lght brkt,man
Screw,cup pt ,8-18 x 0.375 ,ind lght brkt,man WCI 316021108 Contact Us For Availability
View on Model
*
Screw, waf hd sdr , 10-32 x 5/16 , (2)
Screw, waf hd sdr , 10-32 x 5/16 , (2) WCI 5303280311 Contact Us For Availability
View on Model
*

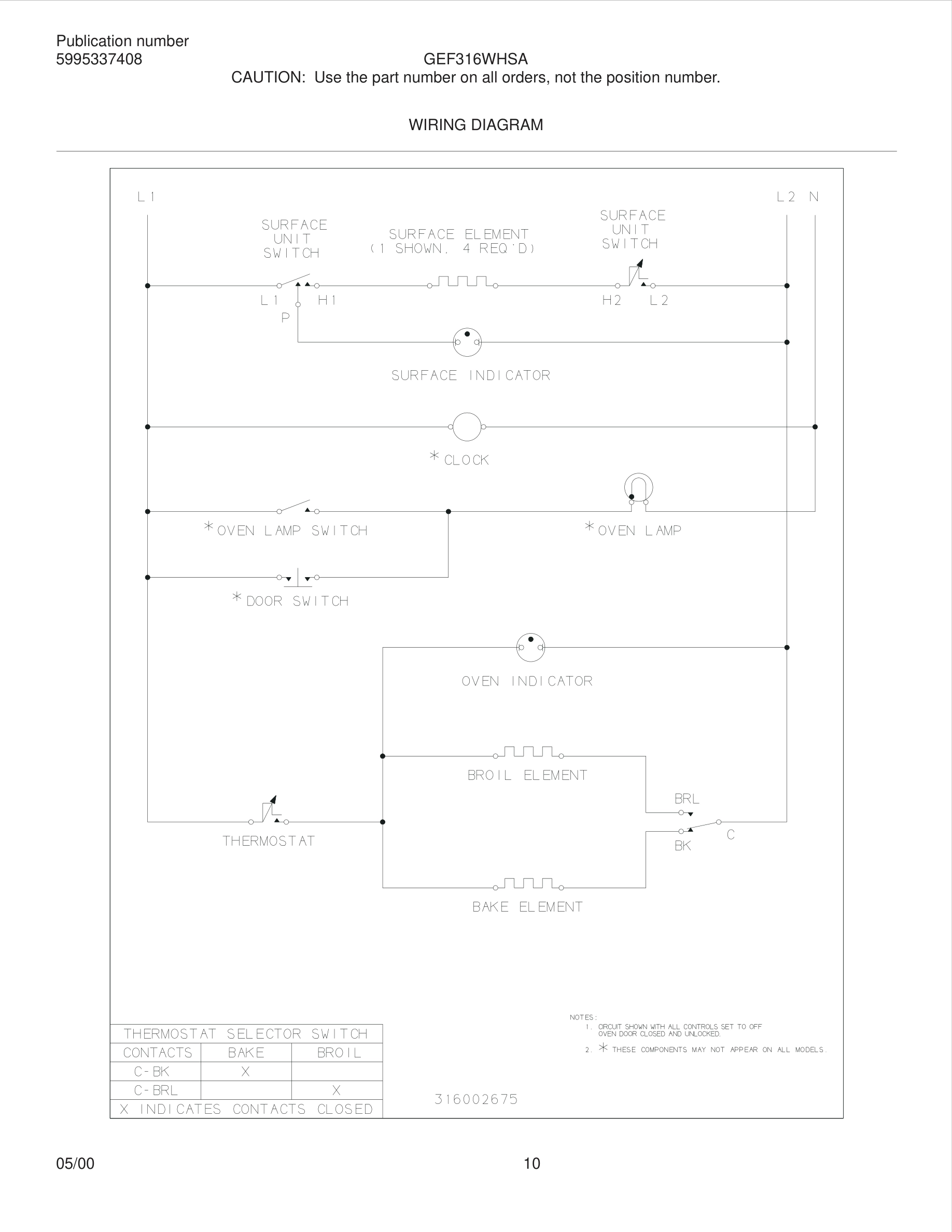

Harness
Harness WCI 316001558 Contact Us For Availability
View on Model
4
Panel-drawer,white
Panel-drawer,white WCI 316084405 Contact Us For Availability
View on Model
5

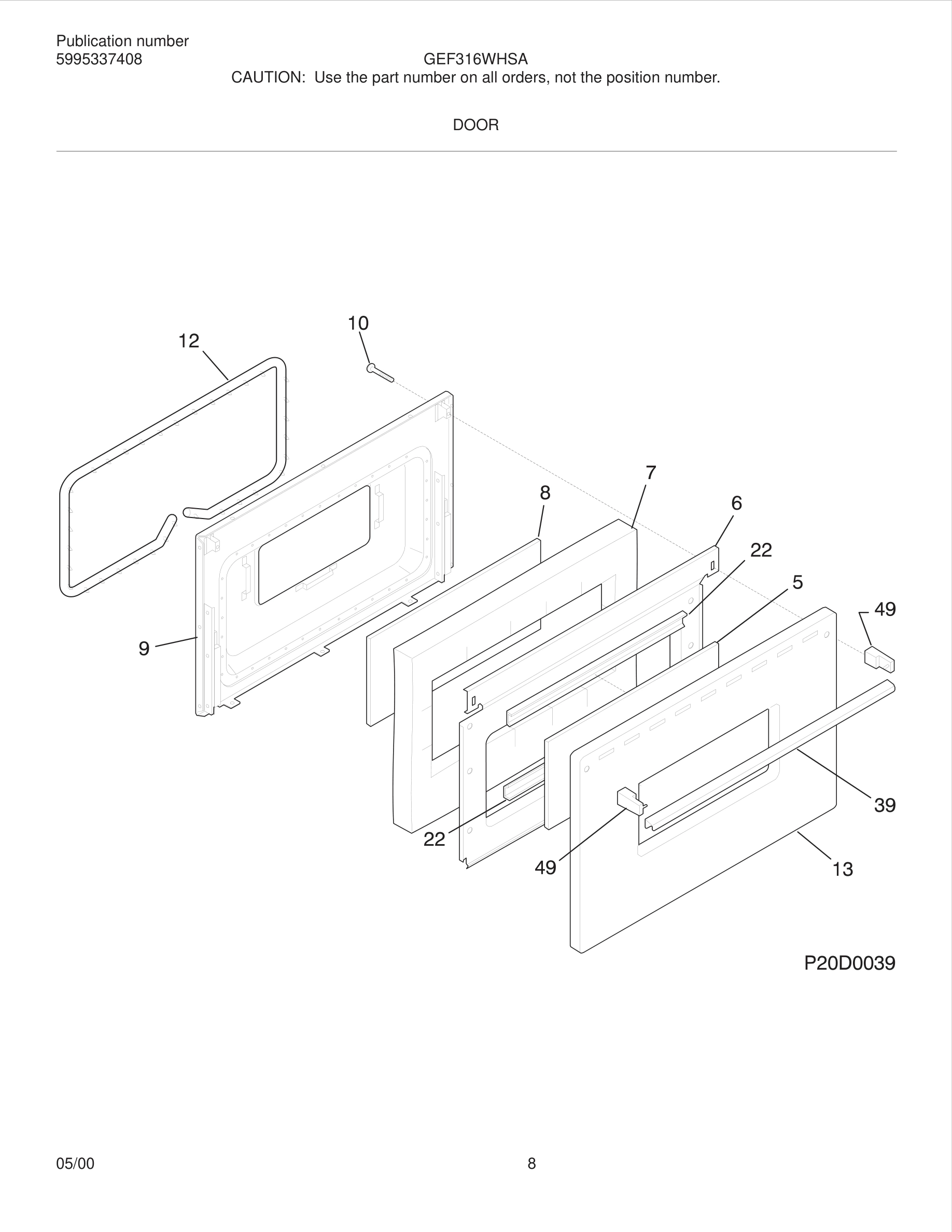

Glass-oven door, white , outer
Glass-oven door, white , outer WCI 316050300 Contact Us For Availability
View on Model
6
Shield-wool
Shield-wool WCI 316088403 Contact Us For Availability
View on Model
7
Insulation,oven door
Insulation,oven door WCI 316076401 Contact Us For Availability
View on Model
8
Glass-oven door,inner
Glass-oven door,inner WCI 316088600 Contact Us For Availability
View on Model
9
Pan-broiler
Pan-broiler WCI 316081900 Contact Us For Availability
View on Model
9
Liner-oven door
Liner-oven door WCI 316066610 Contact Us For Availability
View on Model
10
Insert-broiler pan
Insert-broiler pan WCI 316082000 Contact Us For Availability
View on Model
10
Screw-handle mtg,wafer head ,10-24F x 3
Screw-handle mtg,wafer head ,10-24F x 3 WCI 5303281378 Contact Us For Availability
View on Model
12#
Thermostat-oven
Thermostat-oven WCI 5303212745 Contact Us For Availability
View on Model
13
Panel-oven door,white
Panel-oven door,white WCI 3017081 Contact Us For Availability
View on Model
16

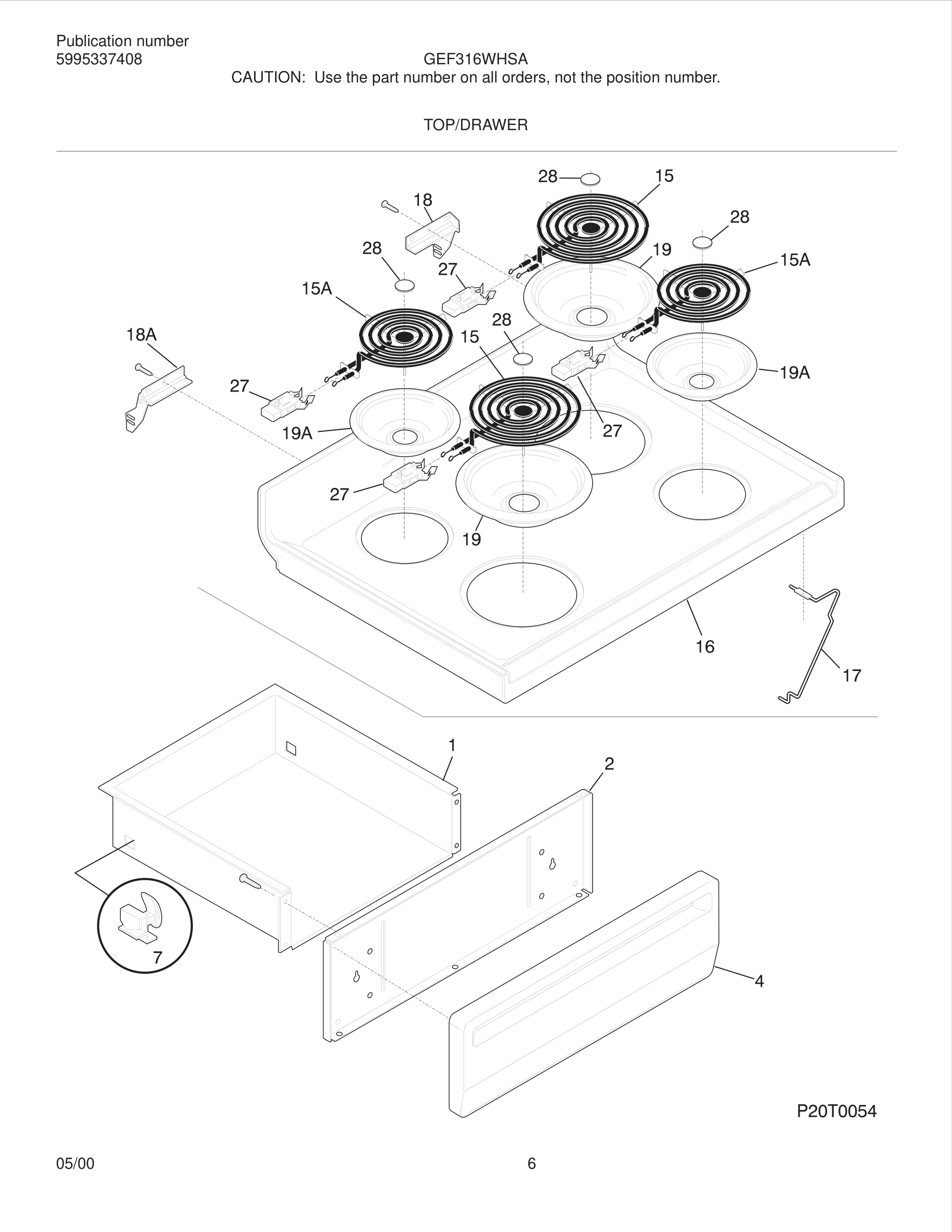

Main Top,white
Main Top,white WCI 5303013511 Contact Us For Availability
View on Model
17
Rod-maintop support
Rod-maintop support WCI 316066900 Contact Us For Availability
View on Model
18
Bracket-hinge,main top RH
Bracket-hinge,main top RH WCI 08067747 Contact Us For Availability
View on Model
18A
Bracket-hinge,main top LH
Bracket-hinge,main top LH WCI 08067746 Contact Us For Availability
View on Model
21
Spacer-bodyside, (8)
Spacer-bodyside, (8) WCI 3014099 Contact Us For Availability
View on Model
22
Retainer-glass,(2) ,angle
Retainer-glass,(2) ,angle WCI 5303272476 Contact Us For Availability
View on Model
36

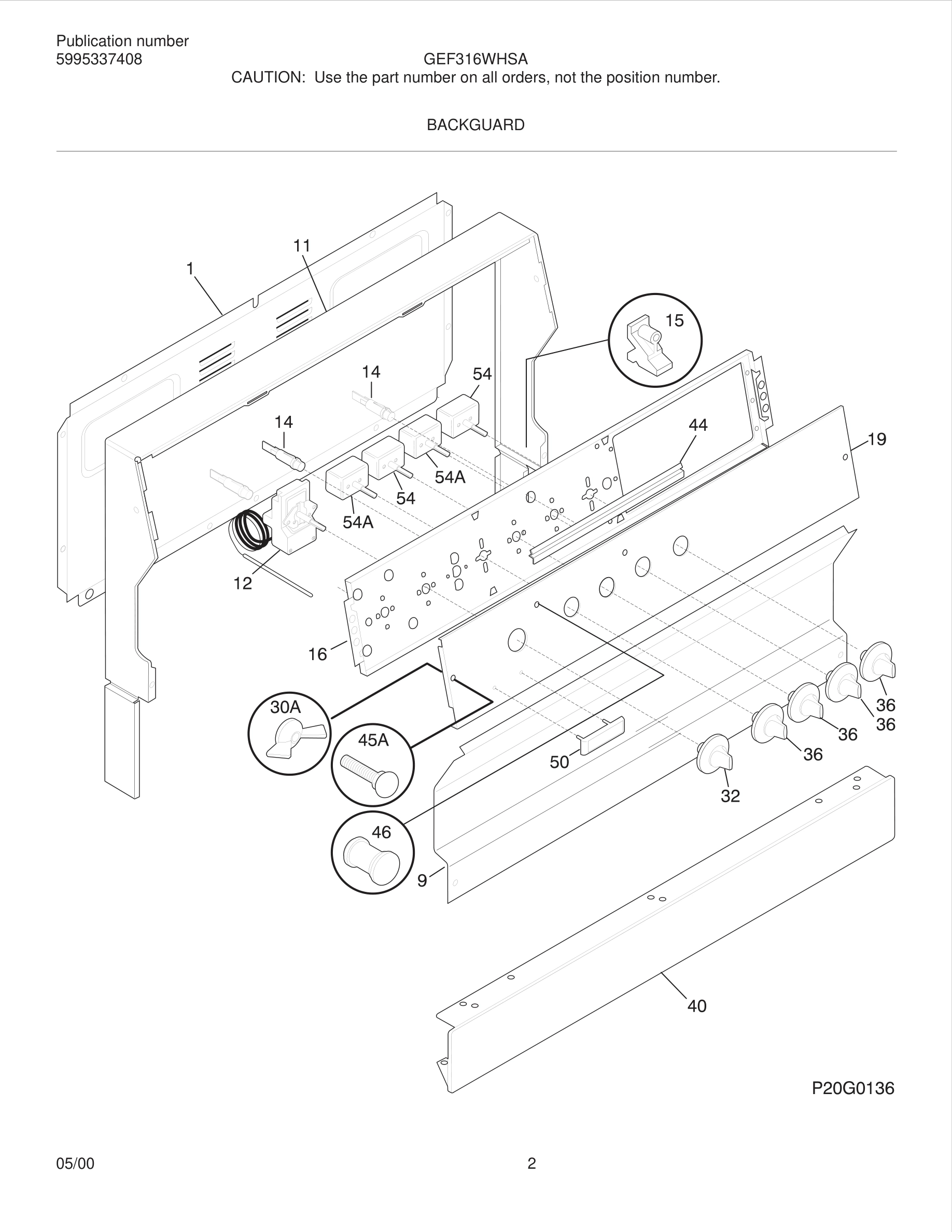

Knob-infinite switch, white
Knob-infinite switch, white WCI 316123304 Contact Us For Availability
View on Model
41
Cover-hinge cutout
Cover-hinge cutout WCI 3131570 Contact Us For Availability
View on Model
49
End Cap-handle, white , (2)
End Cap-handle, white , (2) WCI 316020101 Contact Us For Availability
View on Model
