Model Gibson GEF305PHDA RANGE – Common Parts & Diagrams

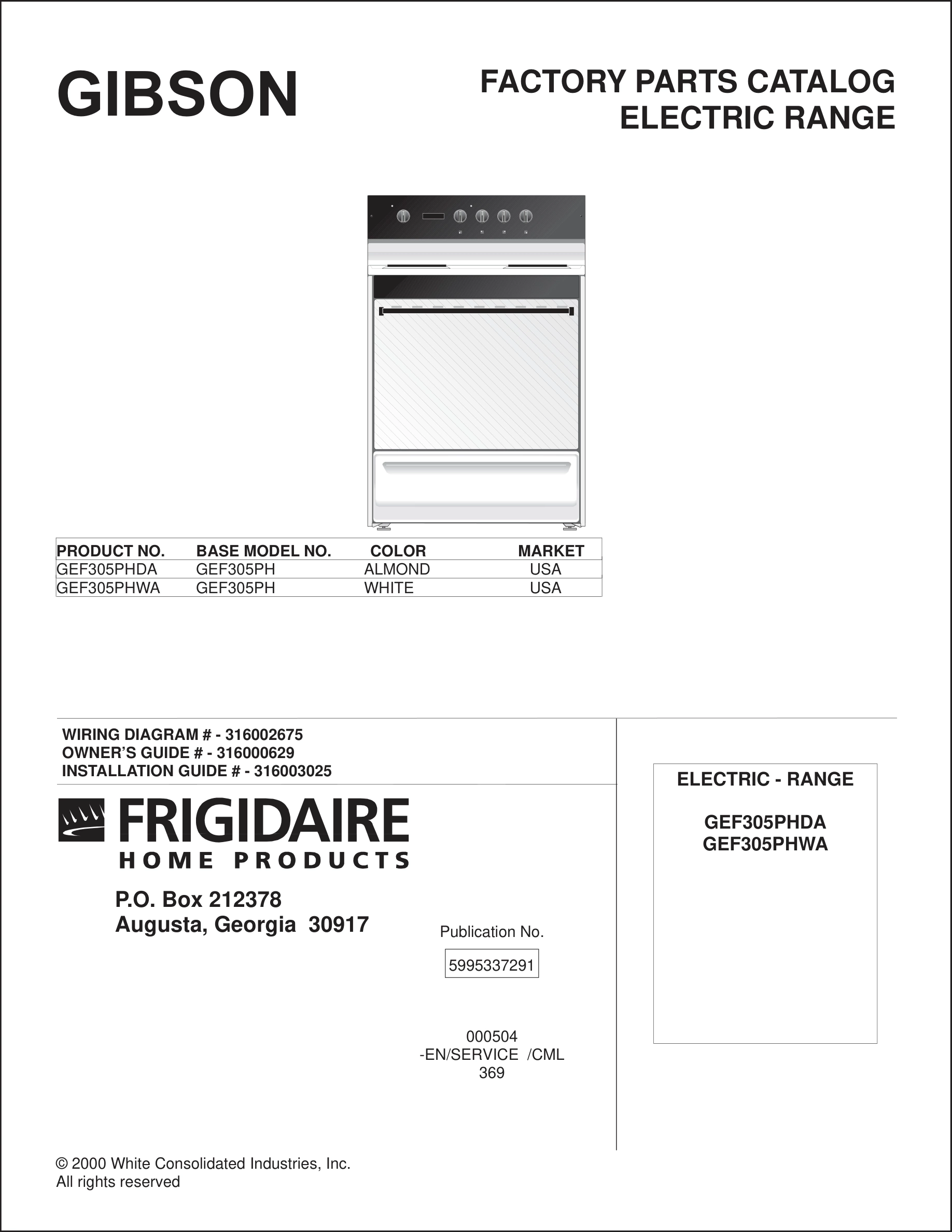

01 - COVER

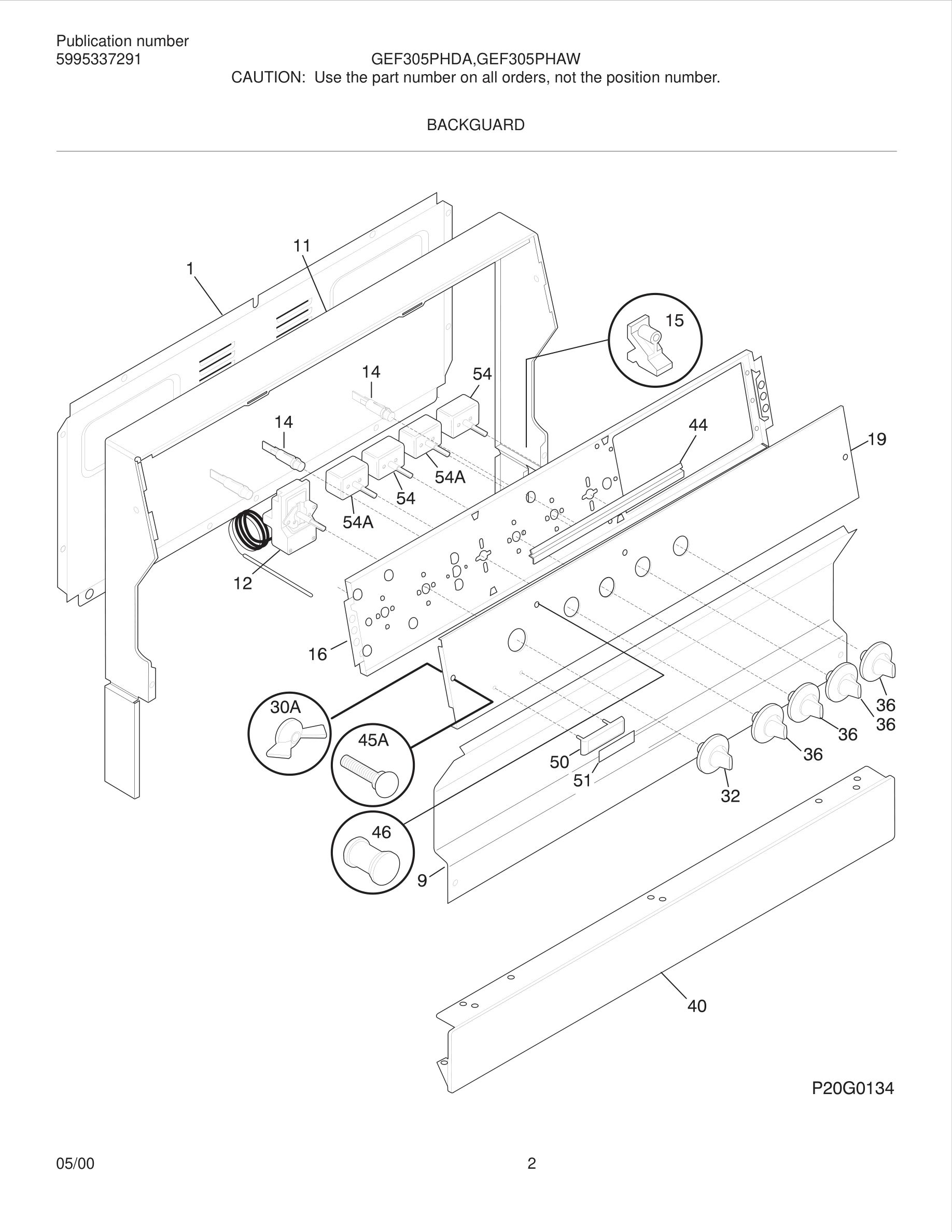

03 - BACKGUARD

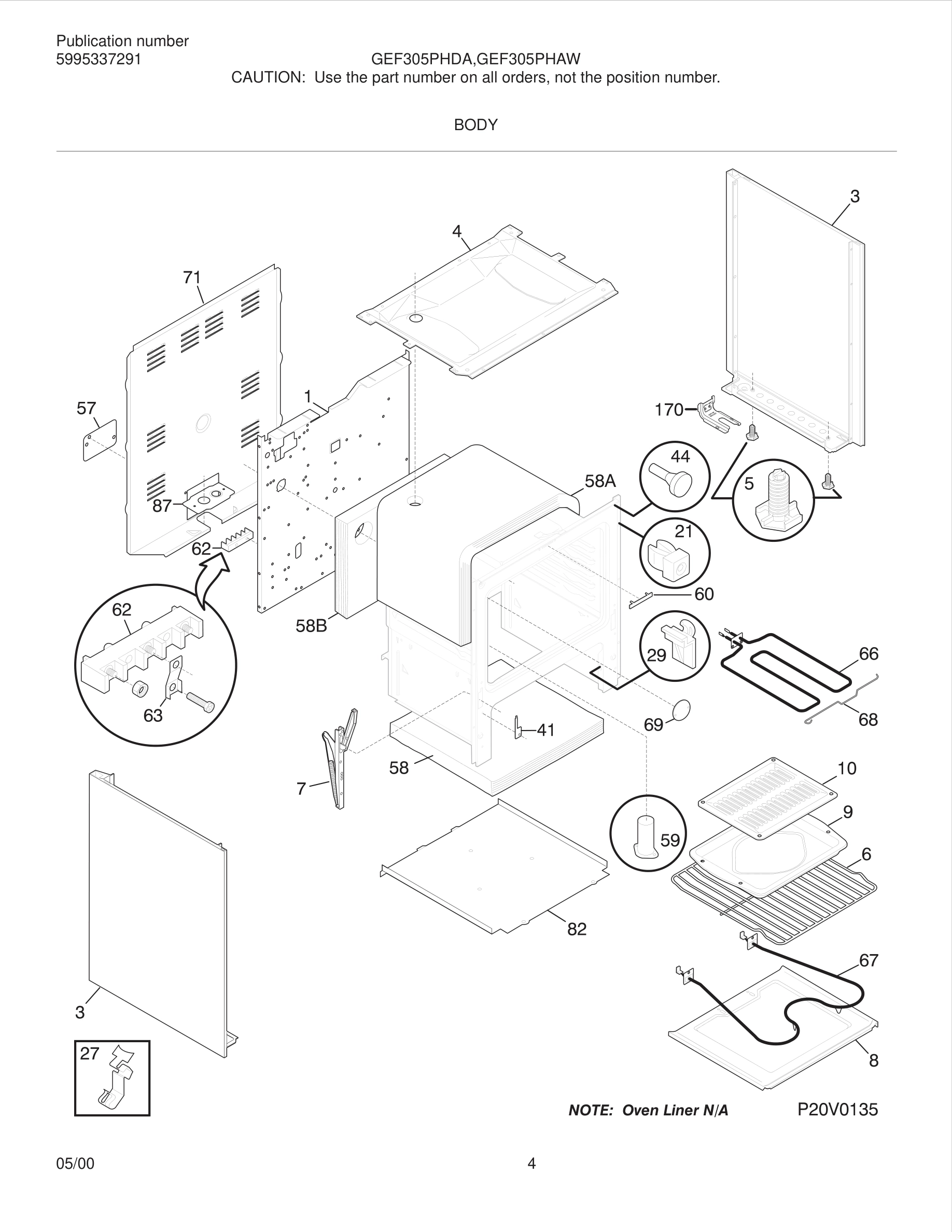

05 - BODY

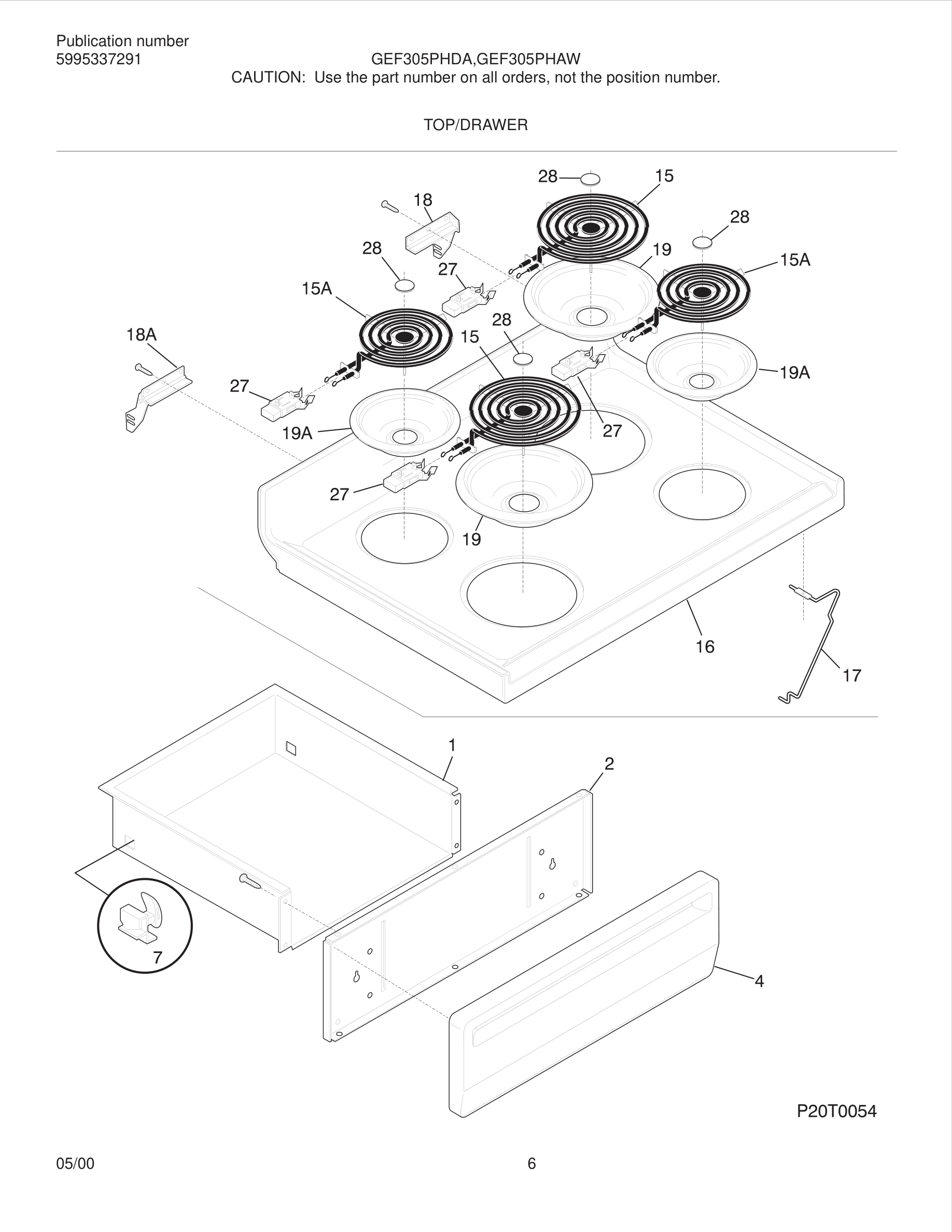

07 - TOP/DRAWER

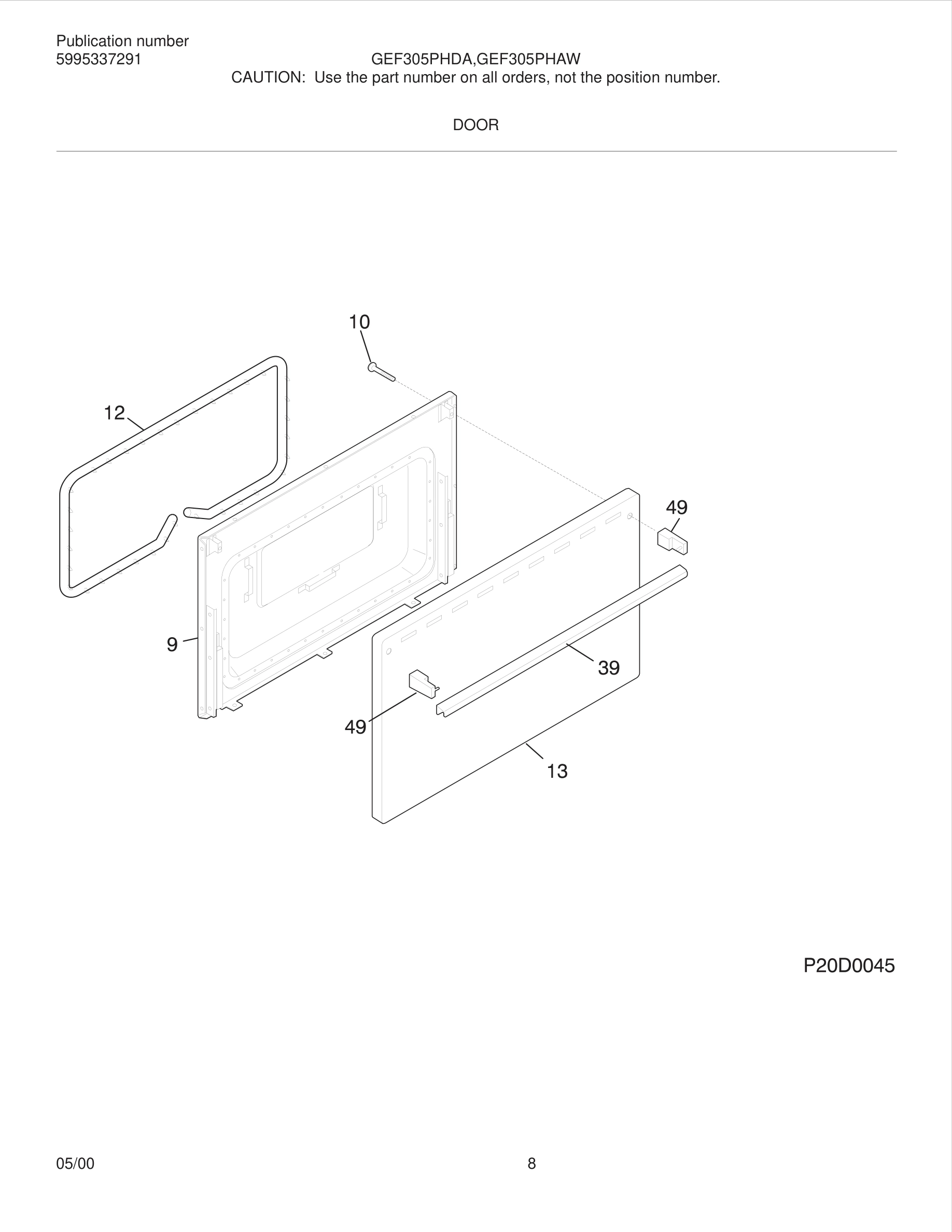

09 - DOOR

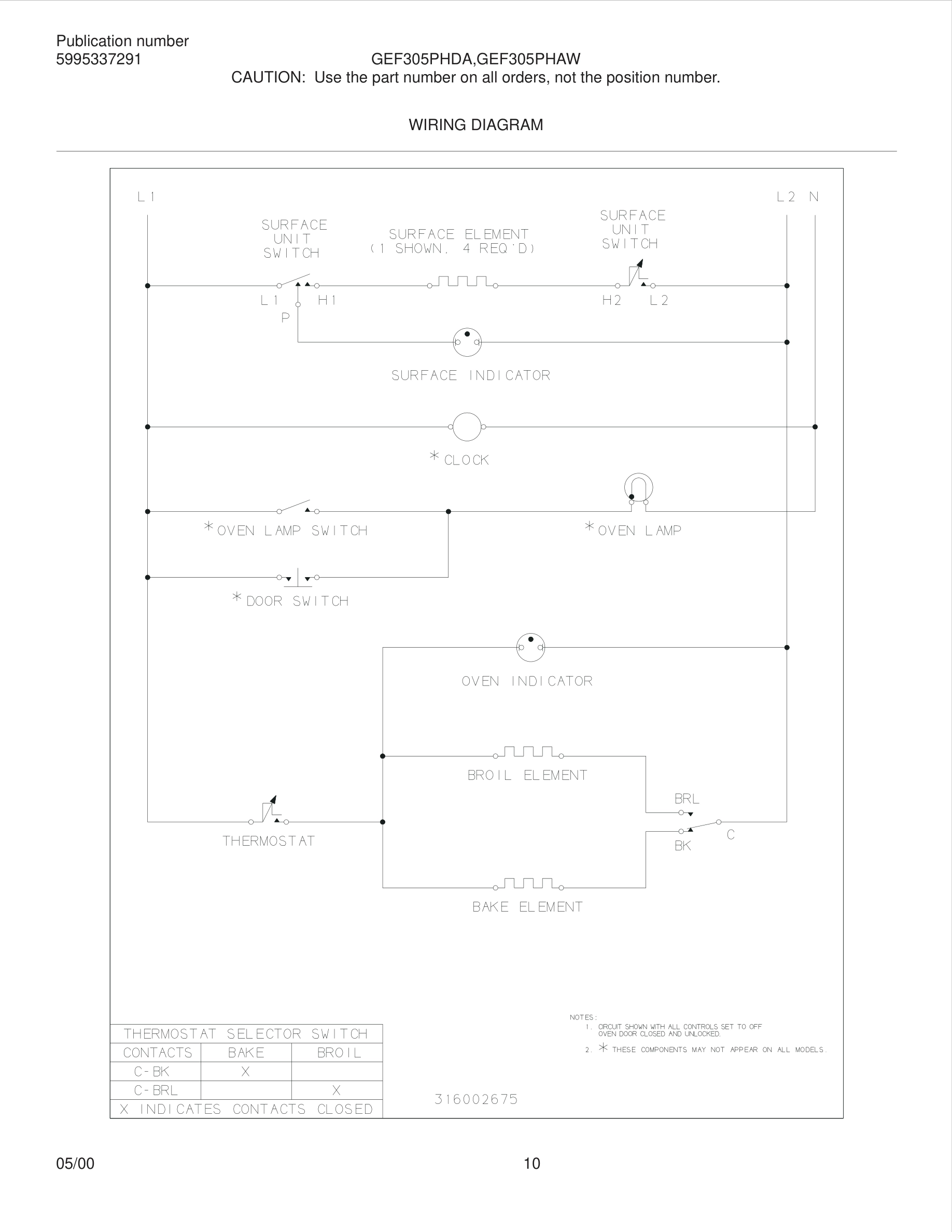

10 - WIRING DIAGRAM
Common parts from model Gibson GEF305PHDA RANGE
*
Screw,cup pt ,8-18 x 0.375 ,hinge WCI 316021108 Contact Us For Availability
*
Screw, waf hd sdr , 10-32 x 5/16 , (2) WCI 5303280311 Contact Us For Availability
*
Foil-aluminum WCI 316102200 Contact Us For Availability
1
Drawer-utility WCI 316011501 Contact Us For Availability
2
Shield-panel WCI 3131975 Contact Us For Availability
4
Panel-drawer,almond WCI 316084406 Contact Us For Availability
7
Hinge-oven door,(2) WCI 316007007 Contact Us For Availability
9
Pan-broiler WCI 316081900 Contact Us For Availability
9
Liner-oven door WCI 316066611 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw-handle mtg,wafer head ,10-24F x 3 WCI 5303281378 Contact Us For Availability
12#
Thermostat-oven WCI 5303212745 Contact Us For Availability
13
Panel-oven door,almond WCI 3202316 Contact Us For Availability
16
Main Top,almond WCI 3013512 Contact Us For Availability
17
Rod-maintop support WCI 316066900 Contact Us For Availability
18
Bracket-hinge,main top RH WCI 08067747 Contact Us For Availability
18A
Bracket-hinge,main top LH WCI 08067746 Contact Us For Availability
21
Spacer-bodyside, (8) WCI 3014099 Contact Us For Availability
36
Knob-infinite switch, black WCI 316123303 Contact Us For Availability
39
Handle-door,black ,oven WCI 316020204 Contact Us For Availability
41
Cover-hinge cutout WCI 3131570 Contact Us For Availability
× ![]()
