Model Electrolux GEA1310A19 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOORS

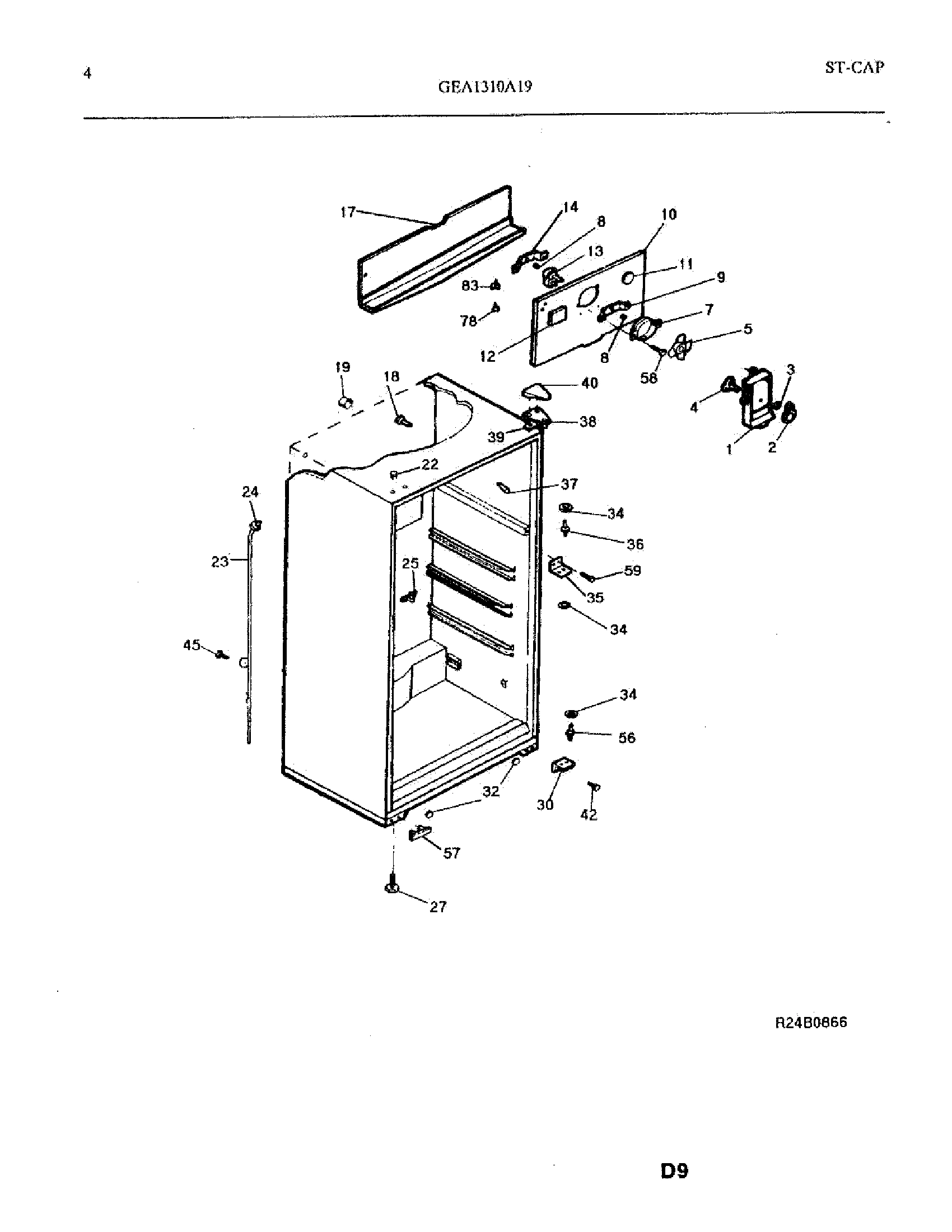

05 - CABINET

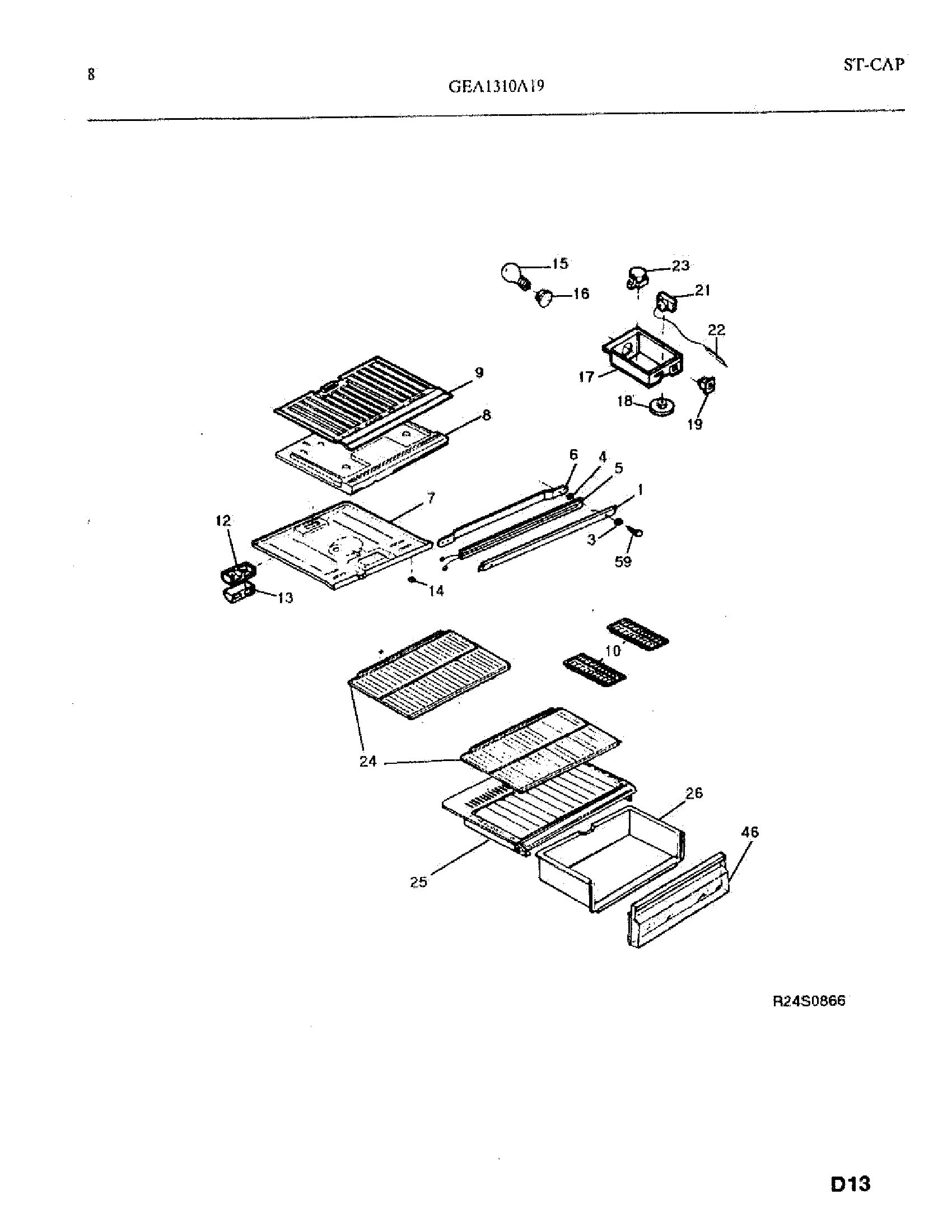

07 - SHELVES

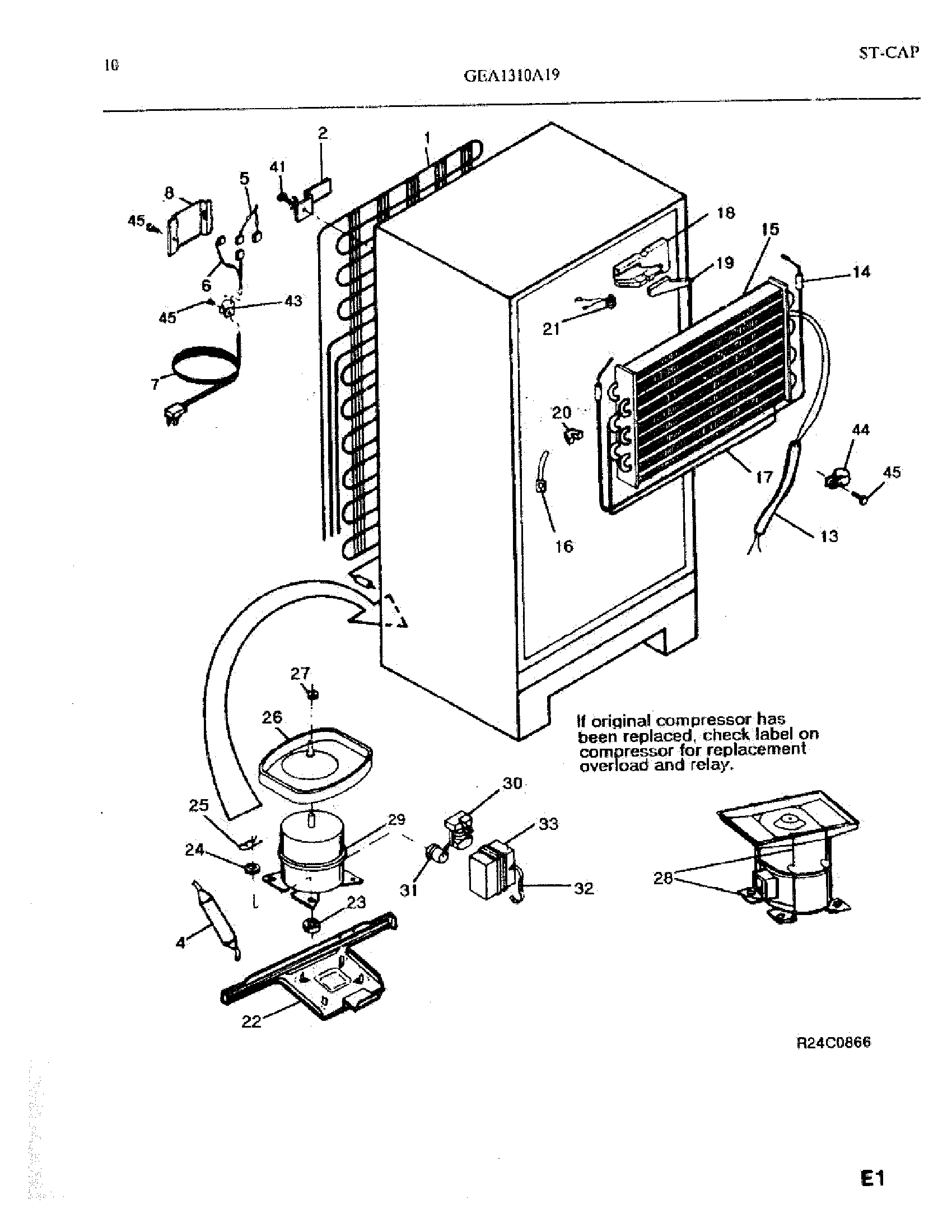

09 - SYSTEM
Common parts from model Electrolux GEA1310A19 REFRIGERATOR
1
GASKET-FRZR DOOR, MAGNETIC WCI 5308007123 Contact Us For Availability
1
WCI 3206121 WCI 3206121 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
3
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD WCI 5308003607 Contact Us For Availability
4
SPACER-MULLION MTG WCI 5303200464 Contact Us For Availability
5
WCI 3206150 WCI 3206150 Contact Us For Availability
5
WCI 3206120 WCI 3206120 Contact Us For Availability
5
WIRING HARNESS, CONTROL/DIVIDER WCI 3206127 Contact Us For Availability
6
WCI 5303207247 WCI 5303207247 Contact Us For Availability
6
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206128 WCI 3206128 Contact Us For Availability
7
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
8
WCI 3206131 WCI 3206131 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 3206132 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
12
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
WCI 5308009754 No Longer Available
15
WCI 5308009756 WCI 5308009756 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303207248 WCI 5303207248 Contact Us For Availability
18
WCI 5308000097 WCI 5308000097 Contact Us For Availability
18
WCI 5303209251 WCI 5303209251 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303207249 WCI 5303207249 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001260 WCI 5303001260 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
22
BUTTON PLUG, WHITE, UPR HINGE HOLES WCI 5303001388 Contact Us For Availability
22
HOUSING, CONTRL CAP TUBE WCI 3018891 Contact Us For Availability
22
PLATE-COMPRESSOR MTG, WITH RAIL WCI 3206126 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303269702 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 5303209507 WCI 5303209507 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
PIN-PUSH, DRAIN SPOUT WCI 5303001361 Contact Us For Availability
25
COVER-CRISPER PAN WCI 5303276242 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
WCI 3206141 WCI 3206141 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 5303916411 WCI 5303916411 Contact Us For Availability
30
WCI 3206136 WCI 3206136 Contact Us For Availability
31
WCI 5303270406 WCI 5303270406 Contact Us For Availability
32
BUTTON PLUG-CAB BASE WCI 3206142 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
38
TAPPING PLATE, UPPER HINGE WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
45
WCI 3916557 WCI 3916557 Contact Us For Availability
46
WCI 5303209521 WCI 5303209521 Contact Us For Availability
57
WCI 3206135 WCI 3206135 Contact Us For Availability
59
SCREW-HNG/MULL MTG,ACORN HX WSH HD,10-24(23)X WCI 3206134 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
83
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
× ![]()
