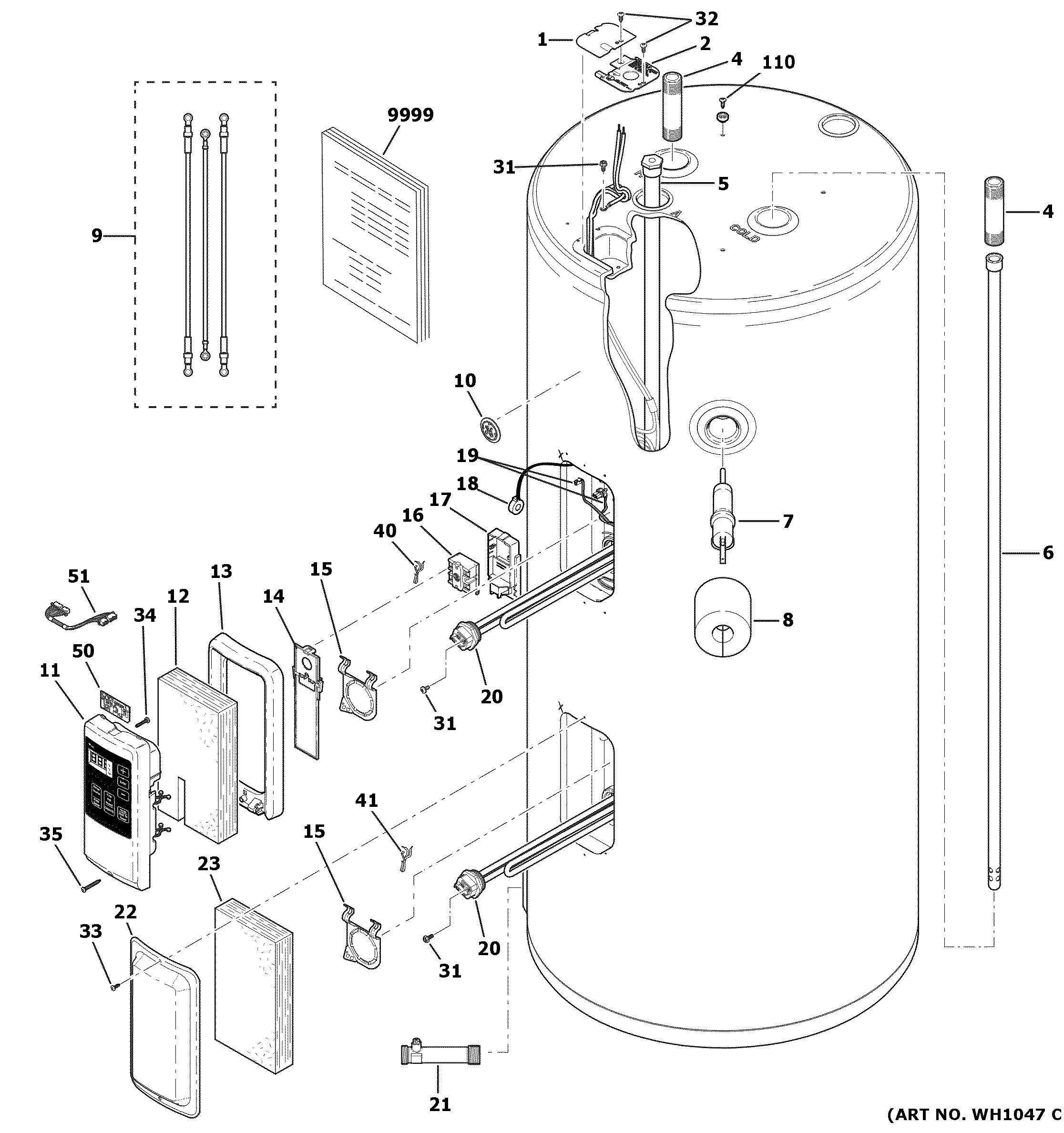

Model GE GE50S10CMR01 Water Heater (Standard Gas Or Electric) – Common Parts & Diagrams

Common parts from model GE GE50S10CMR01 Water Heater (Standard Gas Or Electric)

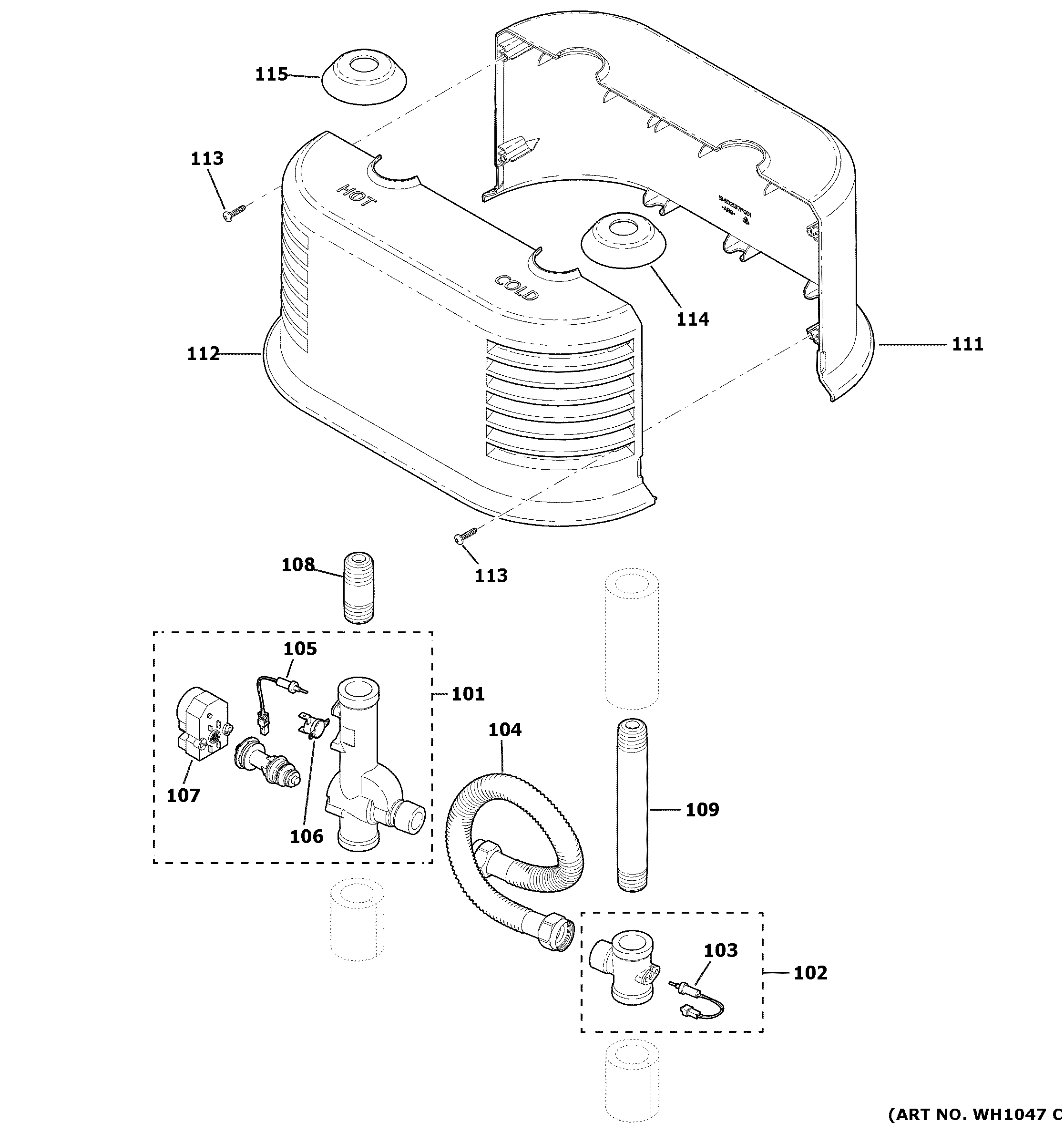

MIXING VALVE ASSEMBLY

Print

• This Diagram
• All Diagrams

1

J-BOX ACCESS COVER GEN WS51X21906 Contact Us For Availability

View on Model

2

FIXED J-BOX COVER GEN WS51X21907 Contact Us For Availability

View on Model

4

WATER I/O EXTENSION PIPE Backorder GEN WS07X21925 View Details $12.88

View on Model

5

WS02X22961 GE 40" Sensing Anode Rod Backorder GEN WS02X22961 View Details $73.70

View on Model

6

DIP TUBE Backorder GEN WS08X22142 View Details $29.28

View on Model

7

T-P VALVE Backorder GEN WS06X21923 View Details $64.44

View on Model

8

T-P INSULATION GEN WS04X21913 Contact Us For Availability

View on Model

9

WS19X22741 GE Service Wire Kit Backorder GEN WS19X22741 View Details $20.95

View on Model

10

WR04X29994 GE Refrigerator Badge Backorder GEN WR04X29994 View Details $5.25

View on Model

11

CONTROL ASSEMBLY GEN WS35X22323 Contact Us For Availability

View on Model

12

INSULATION UEELT GEN WS04X22236 Contact Us For Availability

View on Model

13

CONTROL BEZEL GEN WS31X22230 Contact Us For Availability

View on Model

14

BARRIER DIELECTRIC LE GEN WS04X21920 Contact Us For Availability

View on Model

15

CLIP SPRING THERMOSTAT Backorder GEN WS03X21911 View Details $5.20

View on Model

16

TCO 180F Backorder GEN WS17X22386 View Details $38.05

View on Model

17

TCO BRACKET Backorder GEN WS03X22401 View Details $4.83

View on Model

18

CURRENT SENSOR, TOROID GEN WS21X22238 Contact Us For Availability

View on Model

19

TANK SENSOR SPRING CLIP GEN WS03X22261 Contact Us For Availability

View on Model

20

HEATING ELEMENT W/GASKET 3000W Backorder GEN WS51X23061 View Details $43.99

View on Model

21

WS06X21924 GE Drain Valve Backorder GEN WS06X21924 View Details $42.38

View on Model

22

WS51X21912 GE Washer Small Metal Element Cove Backorder GEN WS51X21912 View Details $7.89

View on Model

23

WS04X21915 GE Insulation Lever Backorder GEN WS04X21915 View Details $4.81

View on Model

31

SCR 10-32 GX HXWP 1/2 S ZN GRN Backorder GEN WS02X22081 View Details $6.39

View on Model

32

SCR 10-32 GX PNP 1/2 S ZN GEN WS02X22082 Contact Us For Availability

View on Model

33

SCR 8-32 GX PNP 3/8 S ZN Backorder GEN WS02X21904 View Details $5.62

View on Model

34

SCR8-18 PL PNP7/8S GEN WS02X22225 Contact Us For Availability

View on Model

35

SCR 8-32 GX PNP 1.25 S ZN Backorder GEN WS02X22226 View Details $4.58

View on Model

40

T2 SENSOR TANK UPPER GEN WS17X22382 Contact Us For Availability

View on Model

41

T1 SENSOR TANK LOWER Backorder GEN WS17X22381 View Details $33.64

View on Model

50

WH22X36577 GE Wi-Fi and Bluetooth Board with In Stock GEN WH22X36577 View Details $40.48

View on Model

51

WIFI BOARD WIRE HARNESS GEN WS21X22981 Contact Us For Availability

View on Model

102

MIX TEE COMPLETE ASSEMBLY Backorder GEN WS07X22240 View Details $49.59

View on Model

103

TEMP SENSOR ASSEMBLY T7 GEN WS17X22385 Contact Us For Availability

View on Model

104

FLEX HOSE Backorder GEN WS07X22389 View Details $34.20

View on Model

105

TEMP SENSOR ASSEMBLY T6 GEN WS17X22384 Contact Us For Availability

View on Model

106

WS17X22383 GE 12V DC Thermal Cut-Out Backorder GEN WS17X22383 View Details $5.20

View on Model

107

MIXING VALVE CAM MOTOR Backorder GEN WS94X22461 View Details $27.49

View on Model

108

WATER I/O EXTENSION PIPE 2.5" GEN WS07X22387 Contact Us For Availability

View on Model

109

WATER I/O EXTENSION PIPE 6.75" GEN WS07X22388 Contact Us For Availability

View on Model

110

WASHER SHOULDER GEN WS02X22233 Contact Us For Availability

View on Model

111

REAR SHROUD MIXING VALVE GEN WS35X22232 Contact Us For Availability

View on Model

112

FRONT SHROUD MIXING VALVE GEN WS35X22231 Contact Us For Availability

View on Model

113

SCR10-16 PL PNP 7/8 S BLK GEN WS02X22227 Contact Us For Availability

View on Model

114

GROMMET INLET, BLUE GEN WS01X22235 Contact Us For Availability

View on Model

115

GROMMET INLET RED Backorder GEN WS01X22234 View Details $4.58

View on Model

9999

PM MINI MANUAL AND WIRING GEN 316000228 Contact Us For Availability
