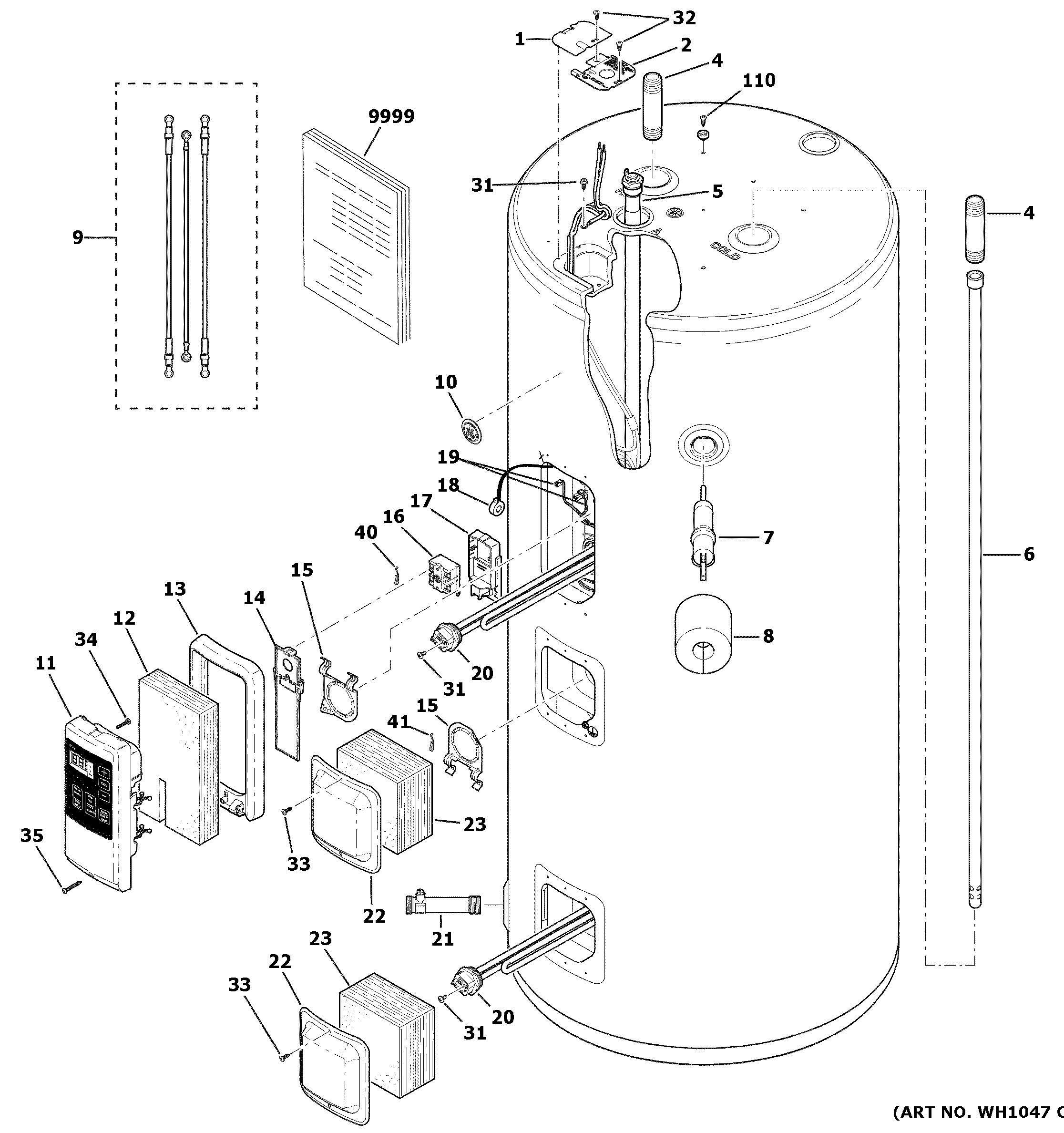

Model GE GE40S10BMM01 Water Heater (Standard Gas Or Electric) – Common Parts & Diagrams

1
J-BOX ACCESS COVER
J-BOX ACCESS COVER GEN WS51X21906 Contact Us For Availability
View on Model
2
FIXED J-BOX COVER
FIXED J-BOX COVER GEN WS51X21907 Contact Us For Availability
View on Model
4
WATER I/O EXTENSION PIPE
WATER I/O EXTENSION PIPE GEN WS07X21925 Contact Us For Availability
View on Model
6
Dip Tube
Dip Tube GEN WS08X22142 Contact Us For Availability
View on Model
7
T-P VALVE
T-P VALVE GEN WS06X21923 Contact Us For Availability
View on Model
8
T-P INSULATION
T-P INSULATION GEN WS04X21913 Contact Us For Availability
View on Model
11
CONTROL ASSEMBLY
CONTROL ASSEMBLY GEN WS35X22323 Contact Us For Availability
View on Model
12
INSULATION UEELT
INSULATION UEELT GEN WS04X22236 Contact Us For Availability
View on Model
13
CONTROL BEZEL
CONTROL BEZEL GEN WS31X22230 Contact Us For Availability
View on Model
14
BARRIER DIELECTRIC LE
BARRIER DIELECTRIC LE GEN WS04X21920 Contact Us For Availability
View on Model
15
CLIP SPRING THERMOSTAT
CLIP SPRING THERMOSTAT GEN WS03X21911 Contact Us For Availability
View on Model
16
TCO 180F
TCO 180F GEN WS17X22386 Contact Us For Availability
View on Model
17
TCO BRACKET
TCO BRACKET GEN WS03X22401 Contact Us For Availability
View on Model
18
CURRENT SENSOR, TOROID
CURRENT SENSOR, TOROID GEN WS21X22238 Contact Us For Availability
View on Model
19
TANK SENSOR SPRING CLIP
TANK SENSOR SPRING CLIP GEN WS03X22261 Contact Us For Availability
View on Model
31
SCR 10-32 GX HXWP 1/2 S ZN GRN
SCR 10-32 GX HXWP 1/2 S ZN GRN GEN WS02X22081 Contact Us For Availability
View on Model
32
SCR 10-32 GX PNP 1/2 S ZN
SCR 10-32 GX PNP 1/2 S ZN GEN WS02X22082 Contact Us For Availability
View on Model
33
SCR 8-32 GX PNP 3/8 S ZN
SCR 8-32 GX PNP 3/8 S ZN GEN WS02X21904 Contact Us For Availability
View on Model
34
SCR8-18 PL PNP7/8S
SCR8-18 PL PNP7/8S GEN WS02X22225 Contact Us For Availability
View on Model
35
SCR 8-32 GX PNP 1.25S ZN
SCR 8-32 GX PNP 1.25S ZN GEN WS02X22226 Contact Us For Availability
View on Model
40
T2 SENSOR TANK UPPER
T2 SENSOR TANK UPPER GEN WS17X22382 Contact Us For Availability
View on Model
41
T1 SENSOR TANK LOWER
T1 SENSOR TANK LOWER GEN WS17X22381 Contact Us For Availability
View on Model
102

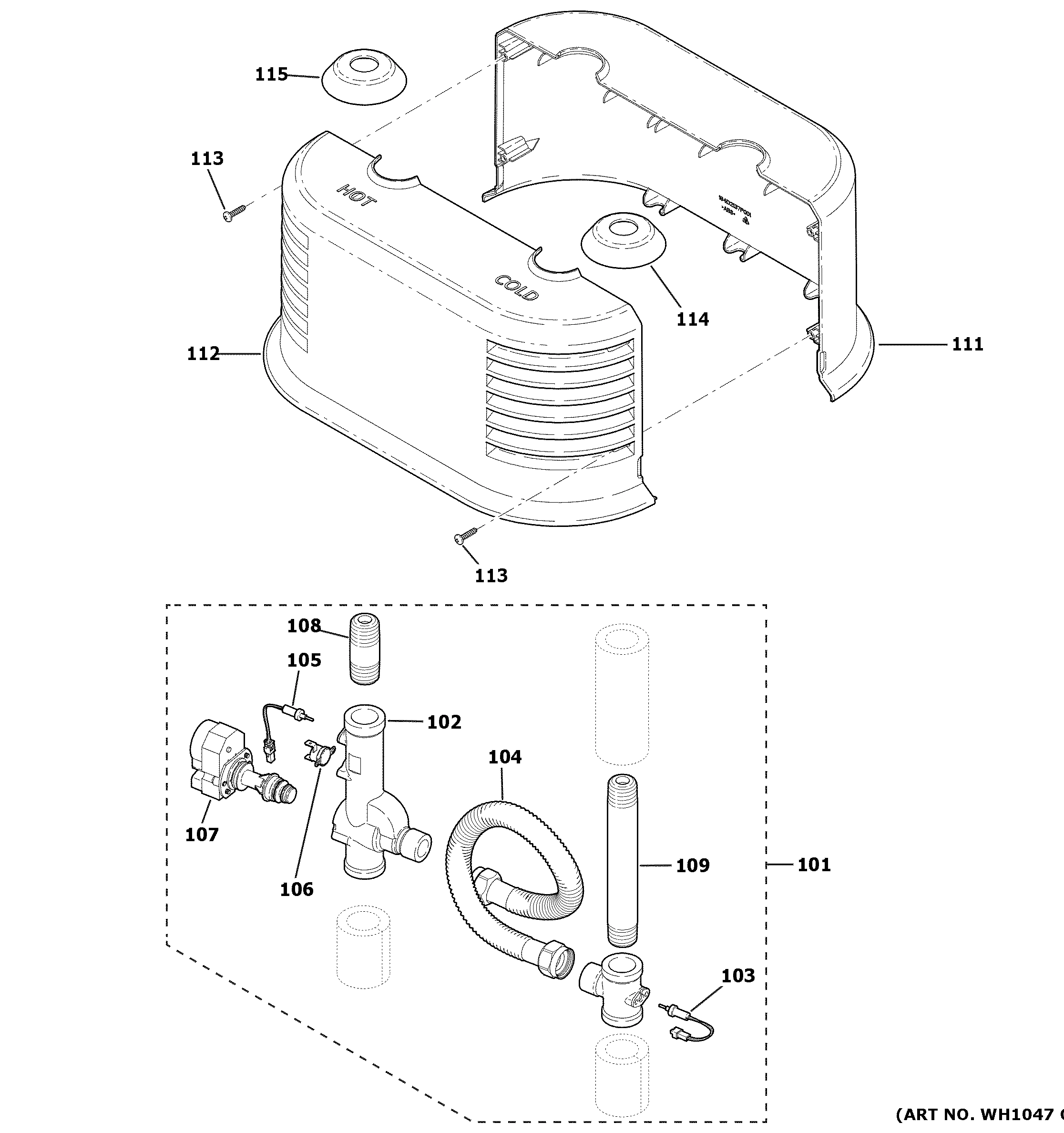

MIX TEE COMPLETE ASSEMBLY
MIX TEE COMPLETE ASSEMBLY GEN WS07X22240 Contact Us For Availability
View on Model
103
TEMP SENSOR ASSEMBLY T7
TEMP SENSOR ASSEMBLY T7 GEN WS17X22385 Contact Us For Availability
View on Model
104
FLEX HOSE
FLEX HOSE GEN WS07X22389 Contact Us For Availability
View on Model
105
TEMP SENSOR ASSEMBLY T6
TEMP SENSOR ASSEMBLY T6 GEN WS17X22384 Contact Us For Availability
View on Model
107
MIXING VALVE CAM MOTOR
MIXING VALVE CAM MOTOR GEN WS94X22461 Contact Us For Availability
View on Model
108
WATER I/O EXTENSION PIPE 2.5"
WATER I/O EXTENSION PIPE 2.5" GEN WS07X22387 Contact Us For Availability
View on Model
109
WATER I/O EXTENSION PIPE 6.75"
WATER I/O EXTENSION PIPE 6.75" GEN WS07X22388 Contact Us For Availability
View on Model
110
WASHER SHOULDER
WASHER SHOULDER GEN WS02X22233 Contact Us For Availability
View on Model
111
REAR SHROUD MIXING VALVE
REAR SHROUD MIXING VALVE GEN WS35X22232 Contact Us For Availability
View on Model
112
FRONT SHROUD MIXING VALVE
FRONT SHROUD MIXING VALVE GEN WS35X22231 Contact Us For Availability
View on Model
113
SCR10-16 PL PNP 7/8 S BLK
SCR10-16 PL PNP 7/8 S BLK GEN WS02X22227 Contact Us For Availability
View on Model
114
GROMMET INLET, BLUE
GROMMET INLET, BLUE GEN WS01X22235 Contact Us For Availability
View on Model
115
GROMMET INLET, RED
GROMMET INLET, RED GEN WS01X22234 Contact Us For Availability
View on Model
9999
PM MINI MANUAL AND WIRING
PM MINI MANUAL AND WIRING GEN 316000228 Contact Us For Availability
View on Model
