Model GE GE30T08BAM01 Water Heater (Standard Gas Or Electric) – Common Parts & Diagrams

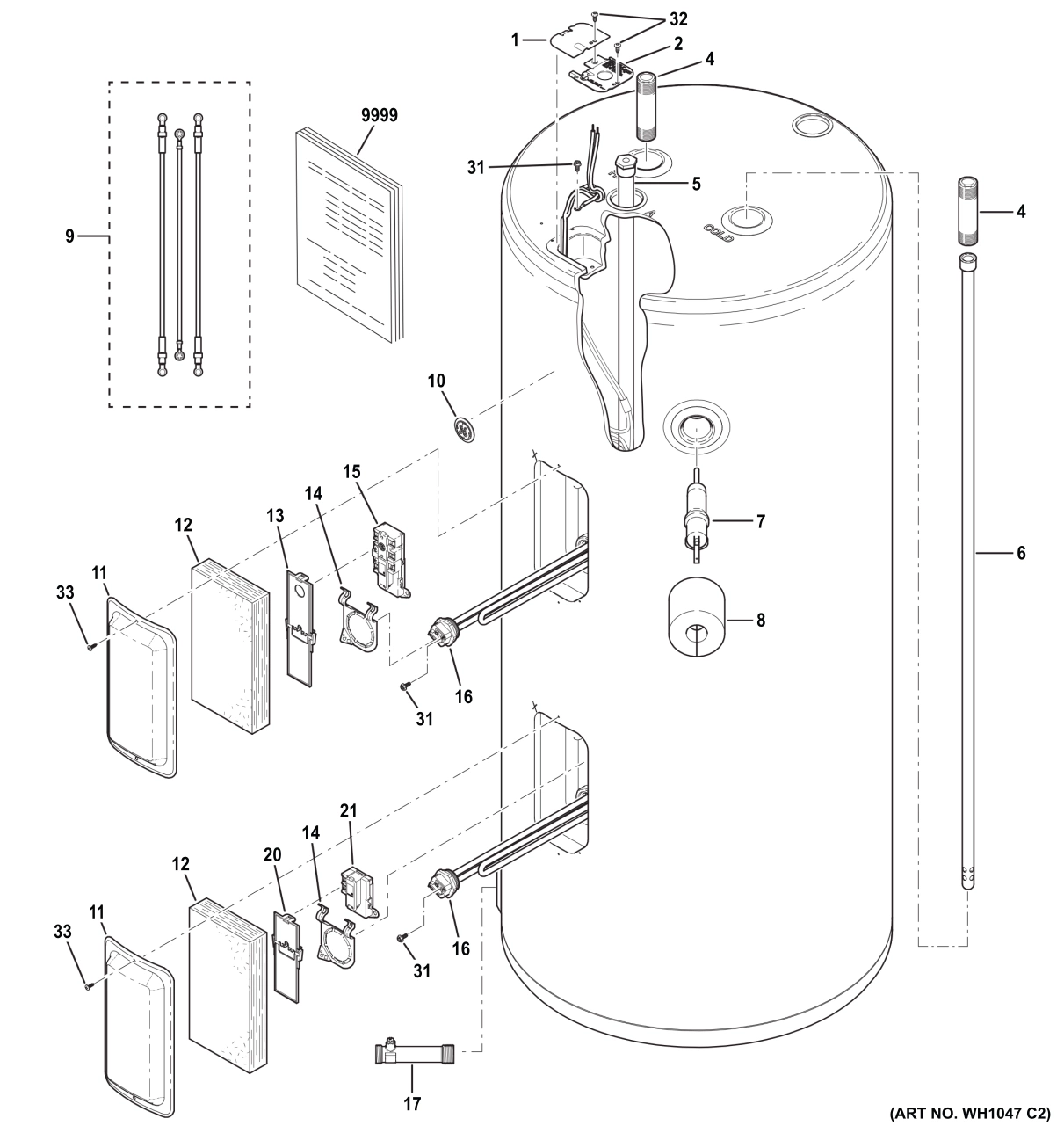

WATER HEATER ASSEMBLY
Common parts from model GE GE30T08BAM01 Water Heater (Standard Gas Or Electric)
2
FIXED J-BOX COVER GEN WS51X21907 Contact Us For Availability
4
WATER I/O EXTENSION PIPE GEN WS07X21925 Contact Us For Availability
5
ANODE ROD-MAG 40" M GEN WS02X21909 Contact Us For Availability
6
Dip Tube GEN WS08X22144 Contact Us For Availability
7
T-P VALVE GEN WS06X21923 Contact Us For Availability
8
T-P INSULATION GEN WS04X21913 Contact Us For Availability
10
GE BADGE GEN WR04X29994 Contact Us For Availability
11
ELEMENT COVER METALLARGEUE/LE GEN WS51X21905 Contact Us For Availability
12
INSULATION UE/LE (Polyester) GEN WS04X21914 Contact Us For Availability
13
BARRIER DIELECTRIC UE GEN WS04X21919 Contact Us For Availability
14
CLIP SPRING THERMOSTAT GEN WS03X21911 Contact Us For Availability
15
UE REG CNTRL/TCO GEN WS21X21917 Contact Us For Availability
17
DRAIN VALVE GEN WS06X21924 Contact Us For Availability
20
BARRIER DIELECTRIC LE GEN WS04X21920 Contact Us For Availability
21
LE REG CNTRL GEN WS21X21916 Contact Us For Availability
31
SCR 10-32 GX HXWP 1/2 S ZN GRN GEN WS02X22081 Contact Us For Availability
32
SCR 10-32 GX PNP 1/2 S ZN GEN WS02X22082 Contact Us For Availability
33
SCR 8-32 GX PNP 3/8 S ZN GEN WS02X21904 Contact Us For Availability
9999
PM USE AND CARE GEN 49-50336 Contact Us For Availability
× ![]()
