Model GE GDS22KCWAWW Refrigerator – Common Parts & Diagrams

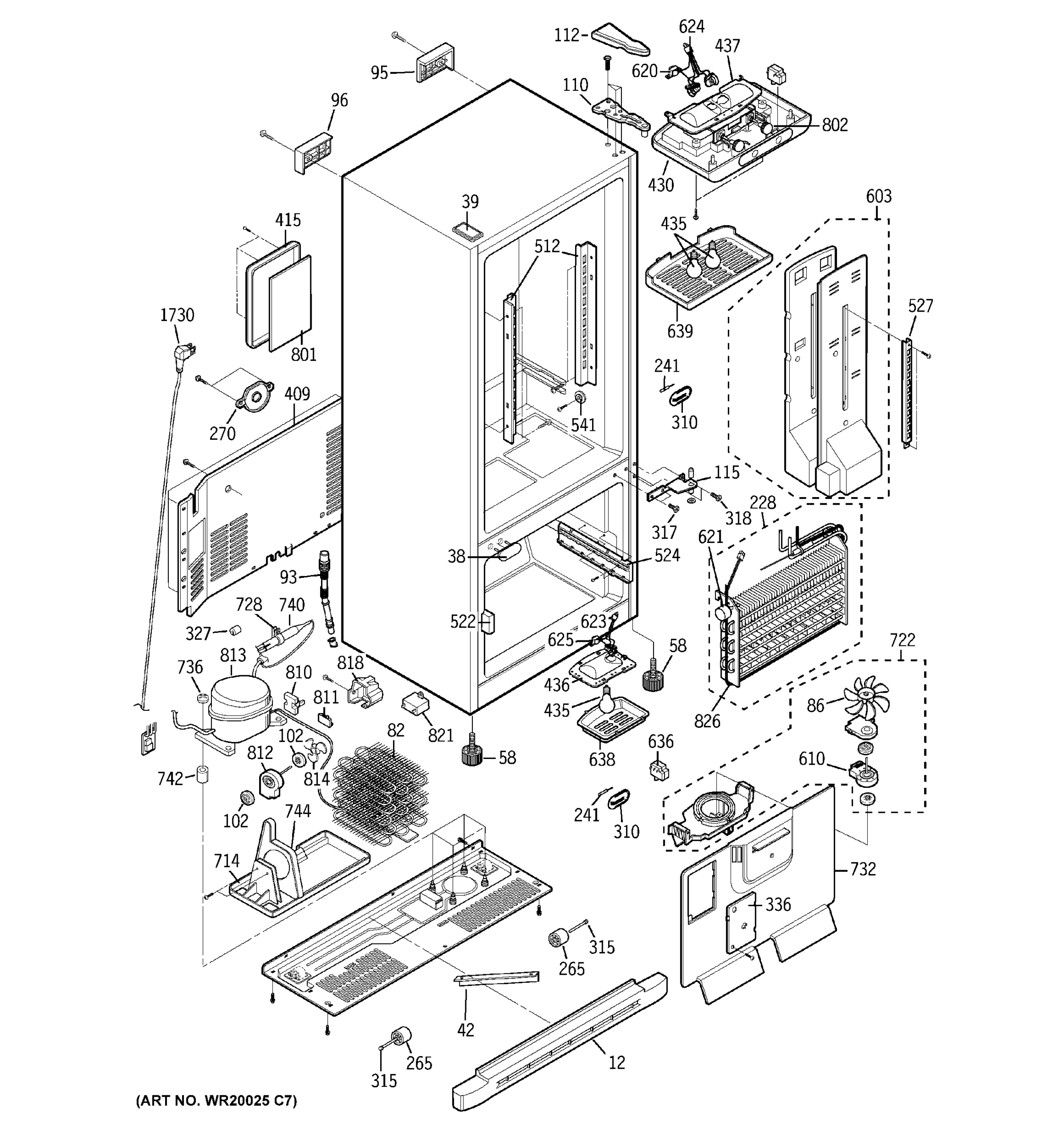

CABINET

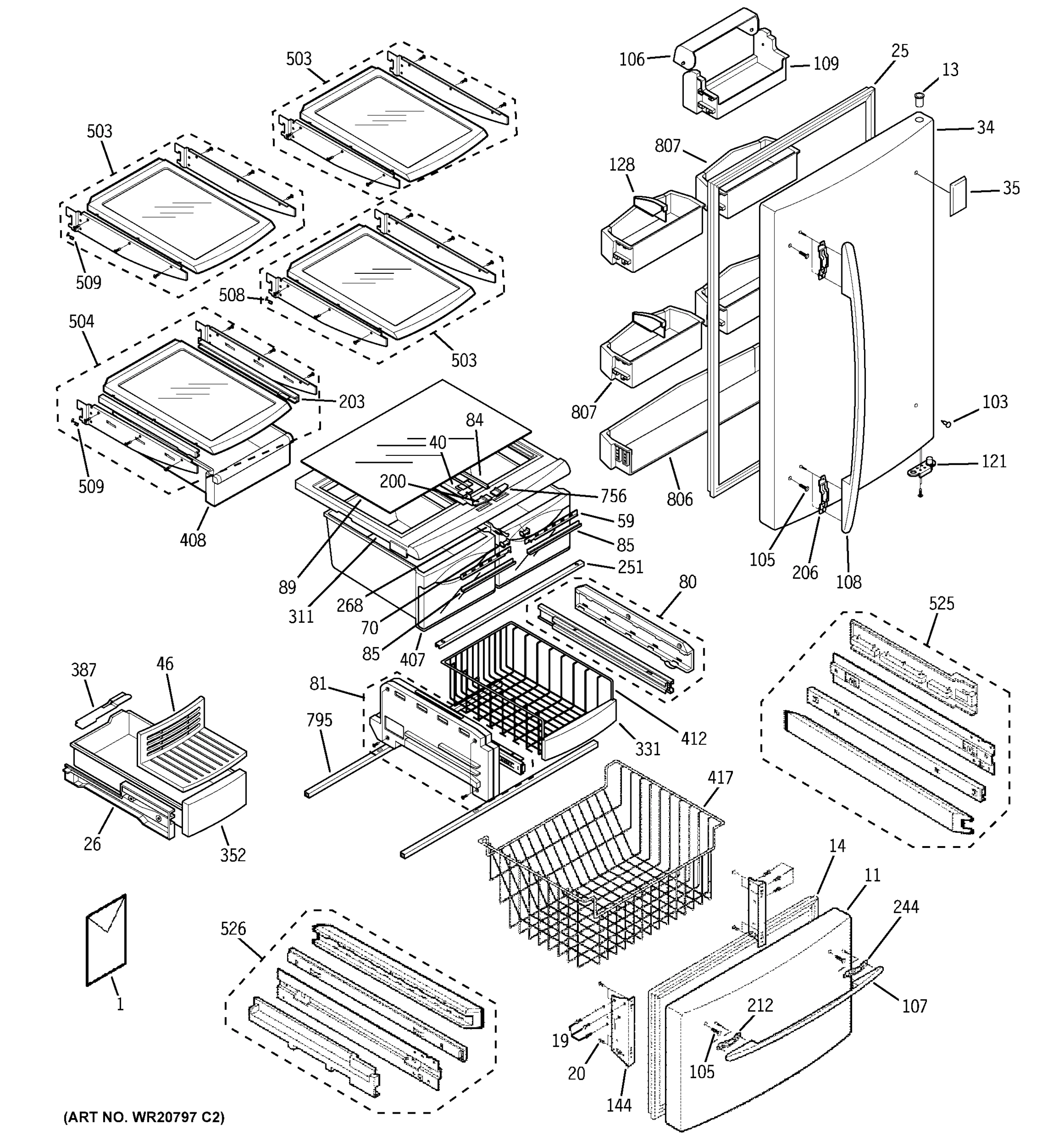

DOORS & SHELVES

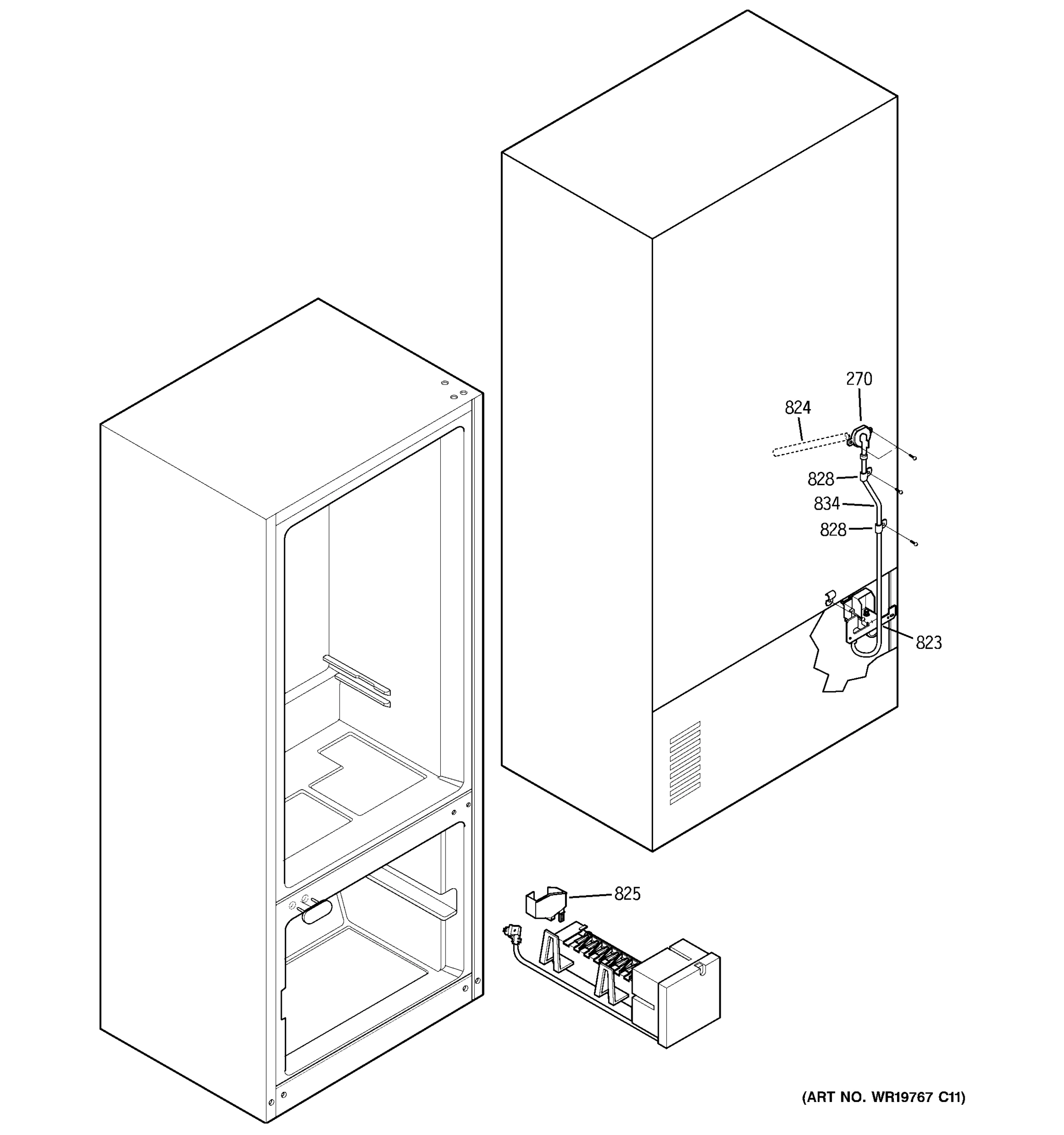

WATER SYSTEM
Common parts from model GE GDS22KCWAWW Refrigerator
12
CVR ASM LOWER WH GEN WR74X10206 Contact Us For Availability
13
BUSHING GEN WR01X10493 Contact Us For Availability
14
GASKET ASSEMBLY,F GEN WR14X10184 Contact Us For Availability
25
GASKET ASSEMBLY,R GEN WR14X10185 Contact Us For Availability
40
GEN WR02X11684 GEN WR02X11684 Contact Us For Availability
46
GEN WR30X10050 GEN WR30X10050 Contact Us For Availability
70
GEN WR02X11701 GEN WR02X11701 Contact Us For Availability
80
RAIL SLIDE ASM (RH-FZ) GEN WR17X12421 Contact Us For Availability
81
RAIL SLIDE ASM (LH-FZ) GEN WR17X12422 Contact Us For Availability
84
GEN WR14X10176 GEN WR14X10176 Contact Us For Availability
85
GEN WR14X10175 GEN WR14X10175 Contact Us For Availability
86
FAN ASS'Y BLADE GEN WR60X10147 Contact Us For Availability
89
GEN WR32X10465 GEN WR32X10465 Contact Us For Availability
93
GEN WR02X11697 GEN WR02X11697 Contact Us For Availability
102
GEN WR02X11694 GEN WR02X11694 Contact Us For Availability
105
GEN WR01X10446 GEN WR01X10446 Contact Us For Availability
106
GEN WR02X11665 GEN WR02X11665 Contact Us For Availability
112
COVER,HINGE(U) GEN WR02X11719 Contact Us For Availability
128
GEN WR02X11680 GEN WR02X11680 Contact Us For Availability
144
CONNECTOR,DOOR GEN WR02X11687 Contact Us For Availability
200
GEN WR02X11689 GEN WR02X11689 Contact Us For Availability
228
EVAPORATOR ASS'Y GEN WR85X10057 Contact Us For Availability
265
GEN WR02X11698 GEN WR02X11698 Contact Us For Availability
268
GEN WR02X11671 GEN WR02X11671 Contact Us For Availability
270
GEN WR02X11690 GEN WR02X11690 Contact Us For Availability
310
GEN WR02X11664 GEN WR02X11664 Contact Us For Availability
311
COVER,T/V GREY GRAPHICS GEN WR72X10154 Contact Us For Availability
336
COVER,GRILLE FAN GEN WR02X11669 Contact Us For Availability
352
GEN WR30X10052 GEN WR30X10052 Contact Us For Availability
387
GEN WR02X11662 GEN WR02X11662 Contact Us For Availability
407
GEN WR32X10471 GEN WR32X10471 Contact Us For Availability
408
GEN WR32X10472 GEN WR32X10472 Contact Us For Availability
412
GEN WR21X10080 GEN WR21X10080 Contact Us For Availability
417
FZR BASKET GEN WR21X10078 Contact Us For Availability
503
SHELF ASSEMBLY,R GEN WR71X10570 Contact Us For Availability
504
SHELF ASSEMBLY,R GEN WR71X10571 Contact Us For Availability
508
GEN WR02X12053 GEN WR02X12053 Contact Us For Availability
509
GEN WR02X12054 GEN WR02X12054 Contact Us For Availability
522
GEN WR02X11682 GEN WR02X11682 Contact Us For Availability
524
GEN WR02X11681 GEN WR02X11681 Contact Us For Availability
525
GEN WR17X12413 GEN WR17X12413 Contact Us For Availability
526
GEN WR17X12414 GEN WR17X12414 Contact Us For Availability
541
VEG PAN FRT SUPPORT GEN WR02X11683 Contact Us For Availability
603
DAMPER ASS'Y GEN WR09X10115 Contact Us For Availability
620
GEN WR50X10044 GEN WR50X10044 Contact Us For Availability
621
GEN WR50X10047 GEN WR50X10047 Contact Us For Availability
625
GEN WR50X10050 GEN WR50X10050 Contact Us For Availability
639
COVER LAMP FF GEN WR02X11661 Contact Us For Availability
714
GEN WR30X10048 GEN WR30X10048 Contact Us For Availability
722
EVAP FAN MOTOR ASS'Y GEN WR60X10146 Contact Us For Availability
732
EVAP FAN CVR ASS'Y GEN WR17X11594 Contact Us For Availability
756
GEN WR02X11688 GEN WR02X11688 Contact Us For Availability
795
GEN WR30X10051 GEN WR30X10051 Contact Us For Availability
806
GEN WR71X10557 GEN WR71X10557 Contact Us For Availability
807
GEN WR71X10606 GEN WR71X10606 Contact Us For Availability
810
GEN WR08X10061 GEN WR08X10061 Contact Us For Availability
814
FAN CONDENSER ASS'Y GEN WR60X10148 Contact Us For Availability
818
GEN WR02X11786 GEN WR02X11786 Contact Us For Availability
824
TUBE,INJECT GEN WR02X11712 Contact Us For Availability
826
GEN WR50X10042 GEN WR50X10042 Contact Us For Availability
828
BAND(MECH) GEN WR02X11709 Contact Us For Availability
834
GEN WR17X12006 GEN WR17X12006 Contact Us For Availability
× ![]()
