Model Maytag GDE19CT ELECTRIC DRYER – Common Parts & Diagrams
01 - CABINET-FRONT
02 - CABINET-REAR

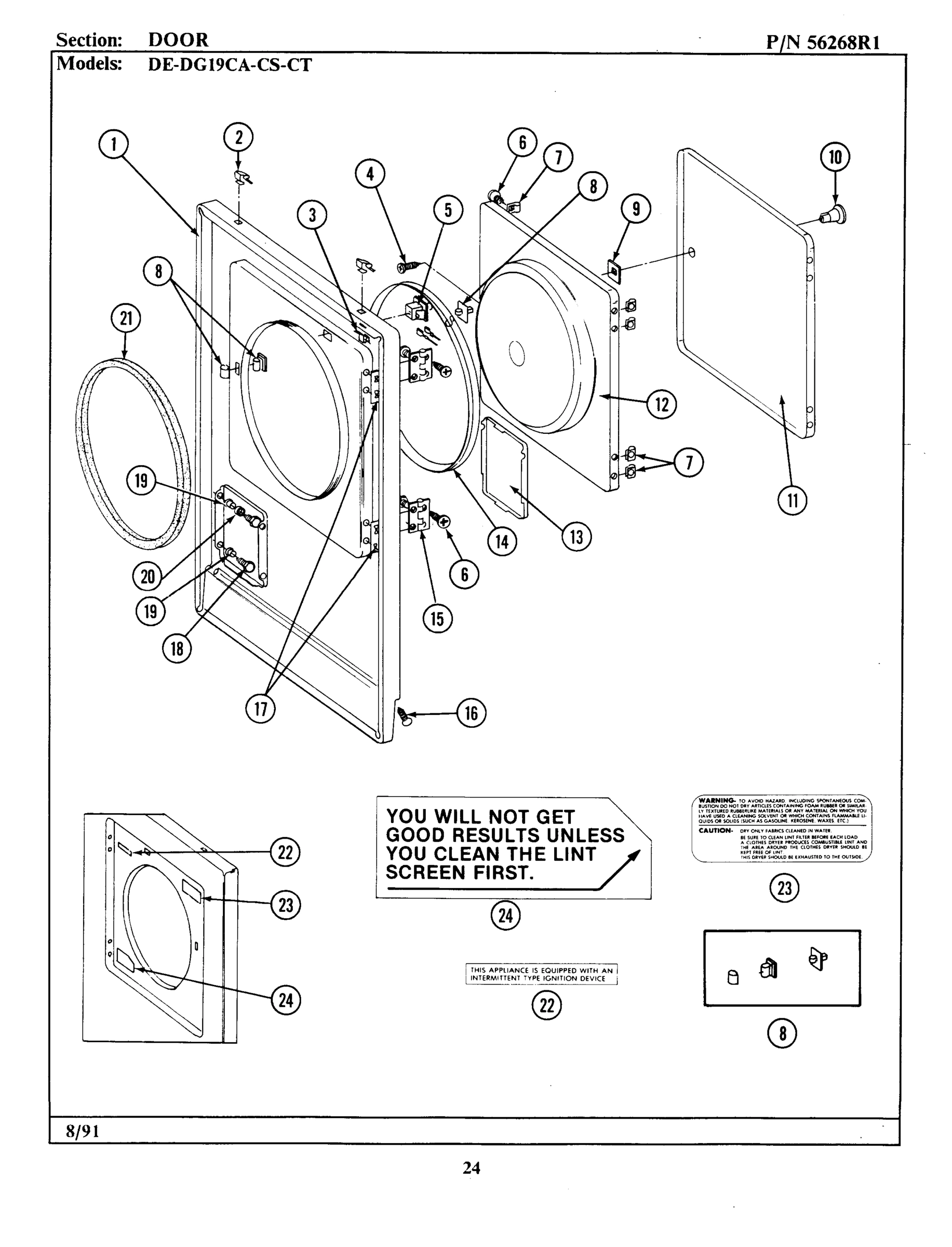

03 - DOOR

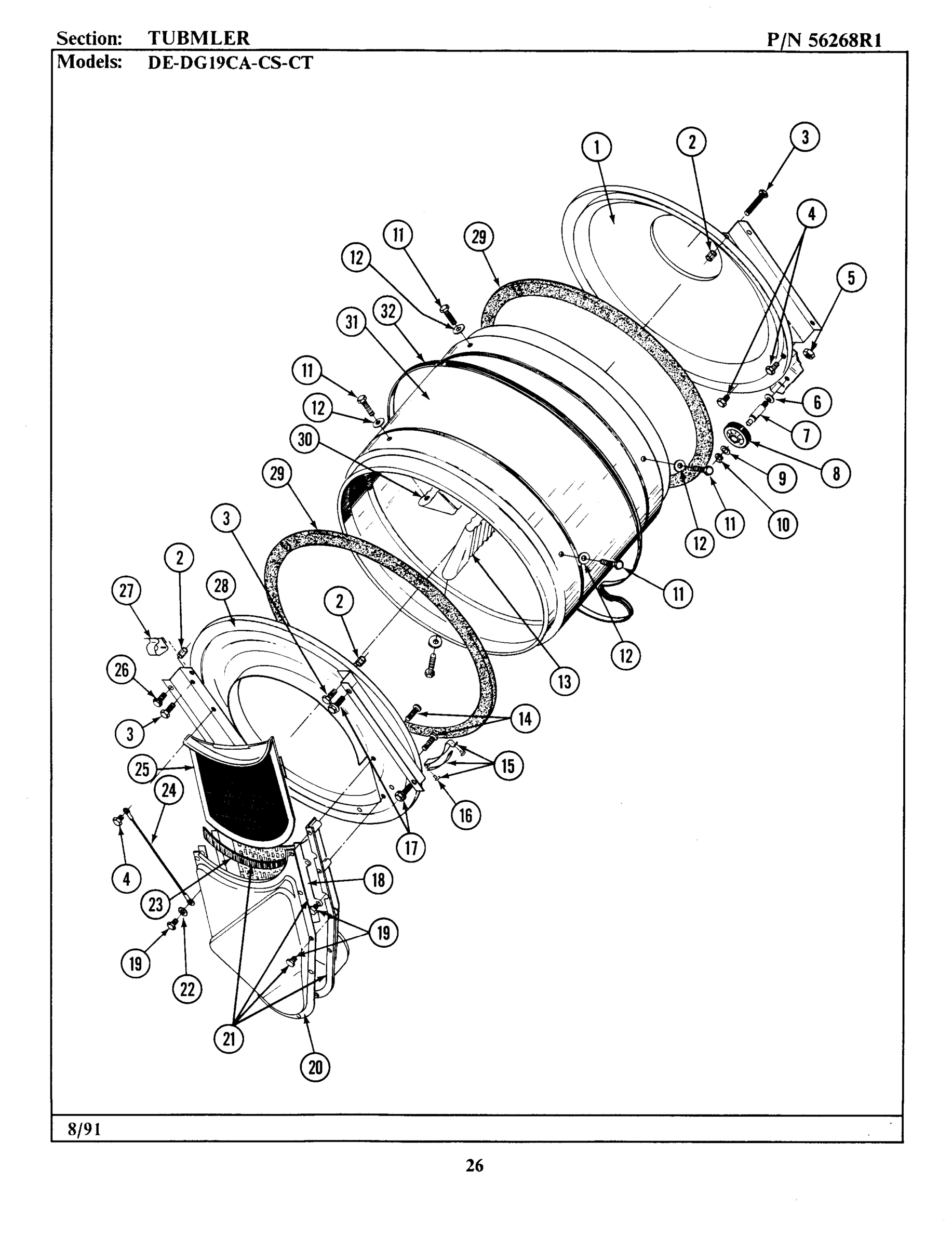

04 - TUMBLER

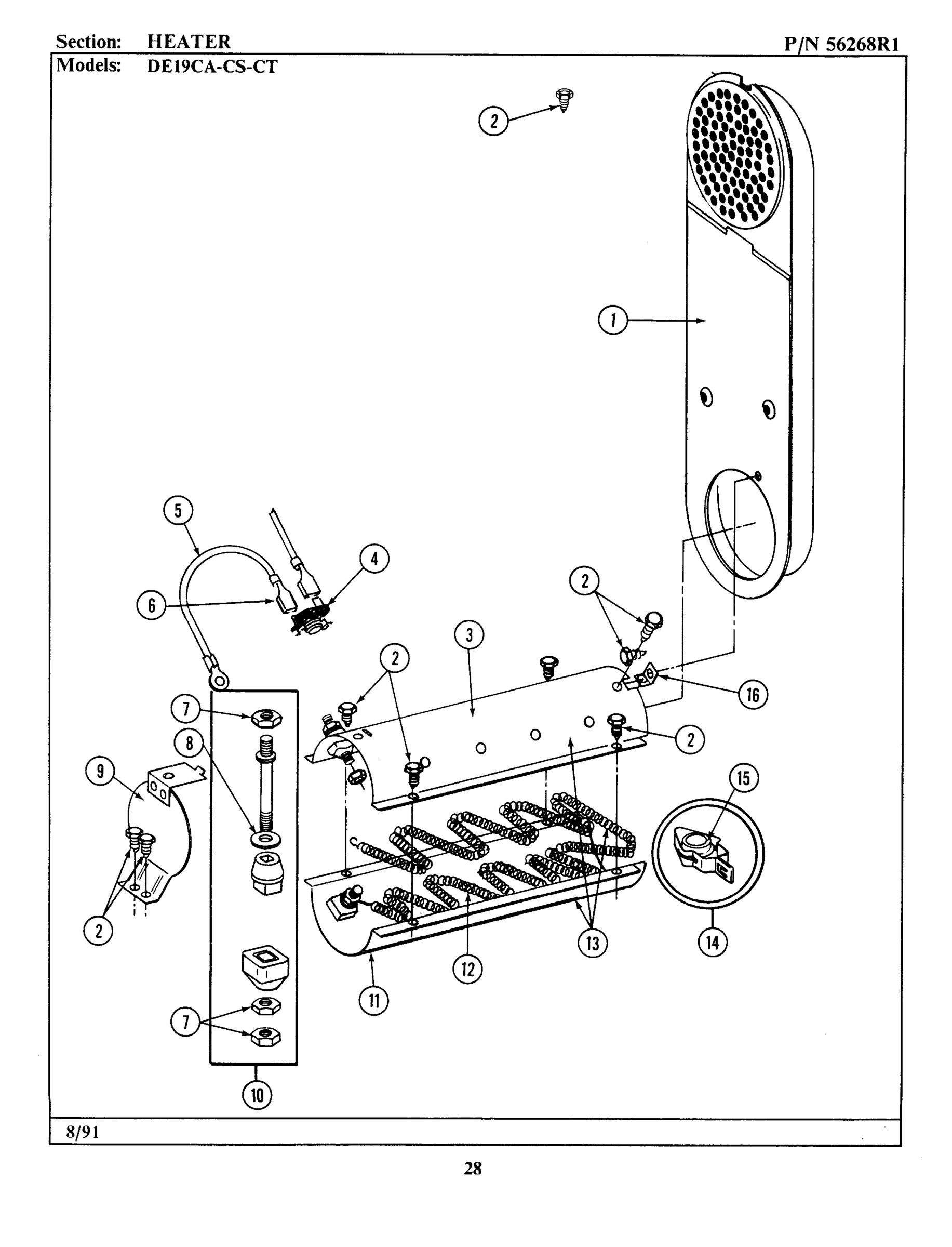

05 - HEATER

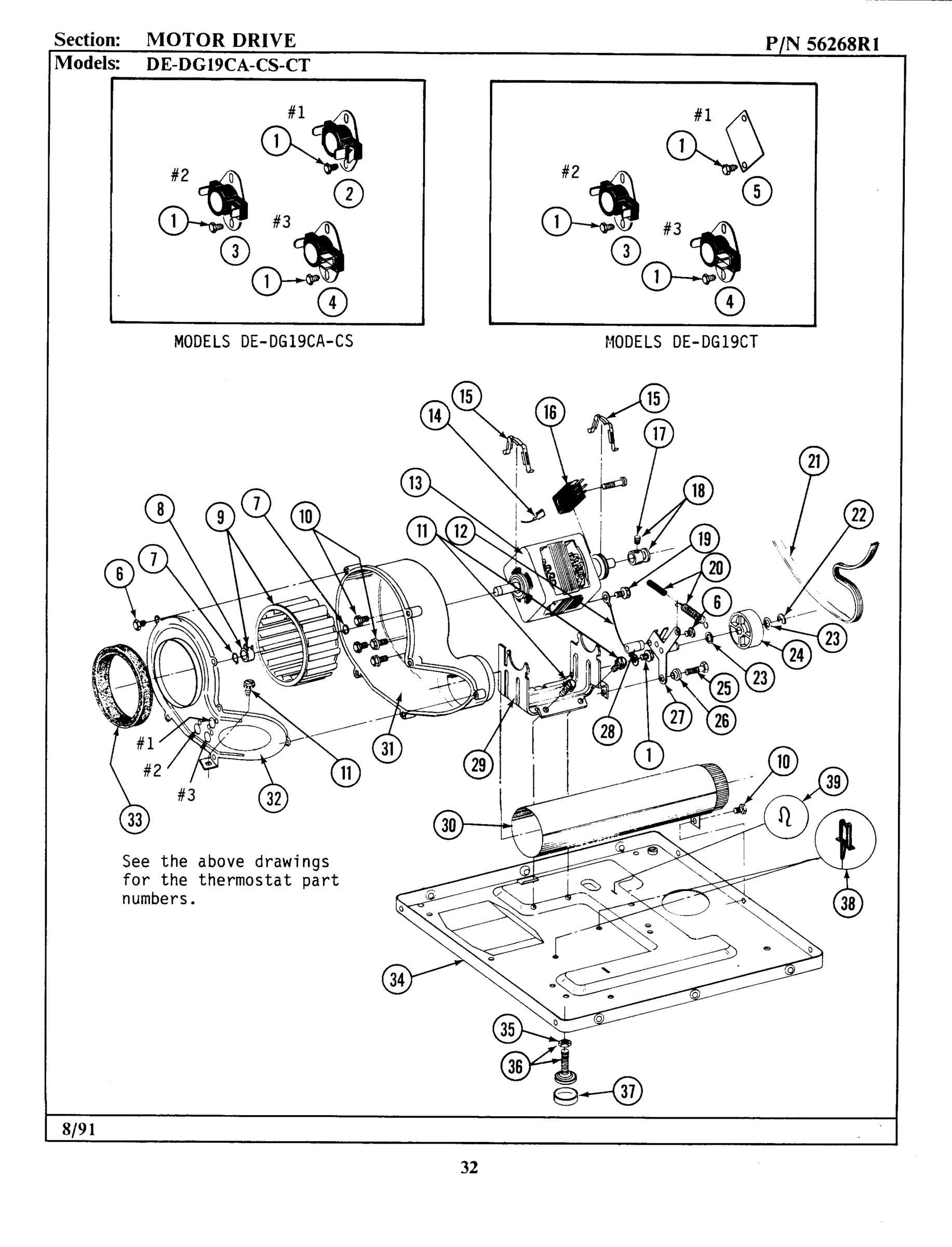

06 - MOTOR DRIVE

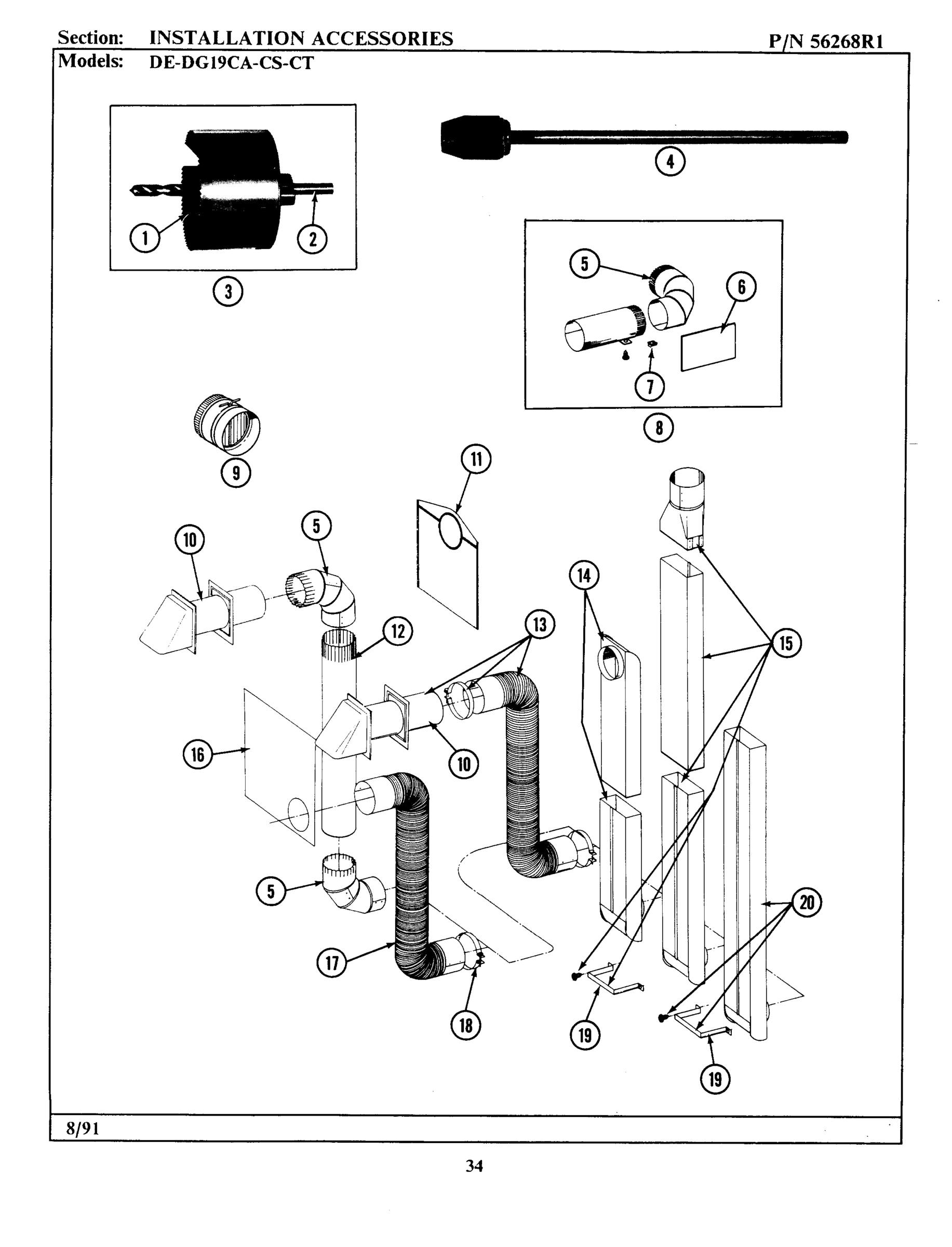

07 - INSTALLATION ACCESSORIES

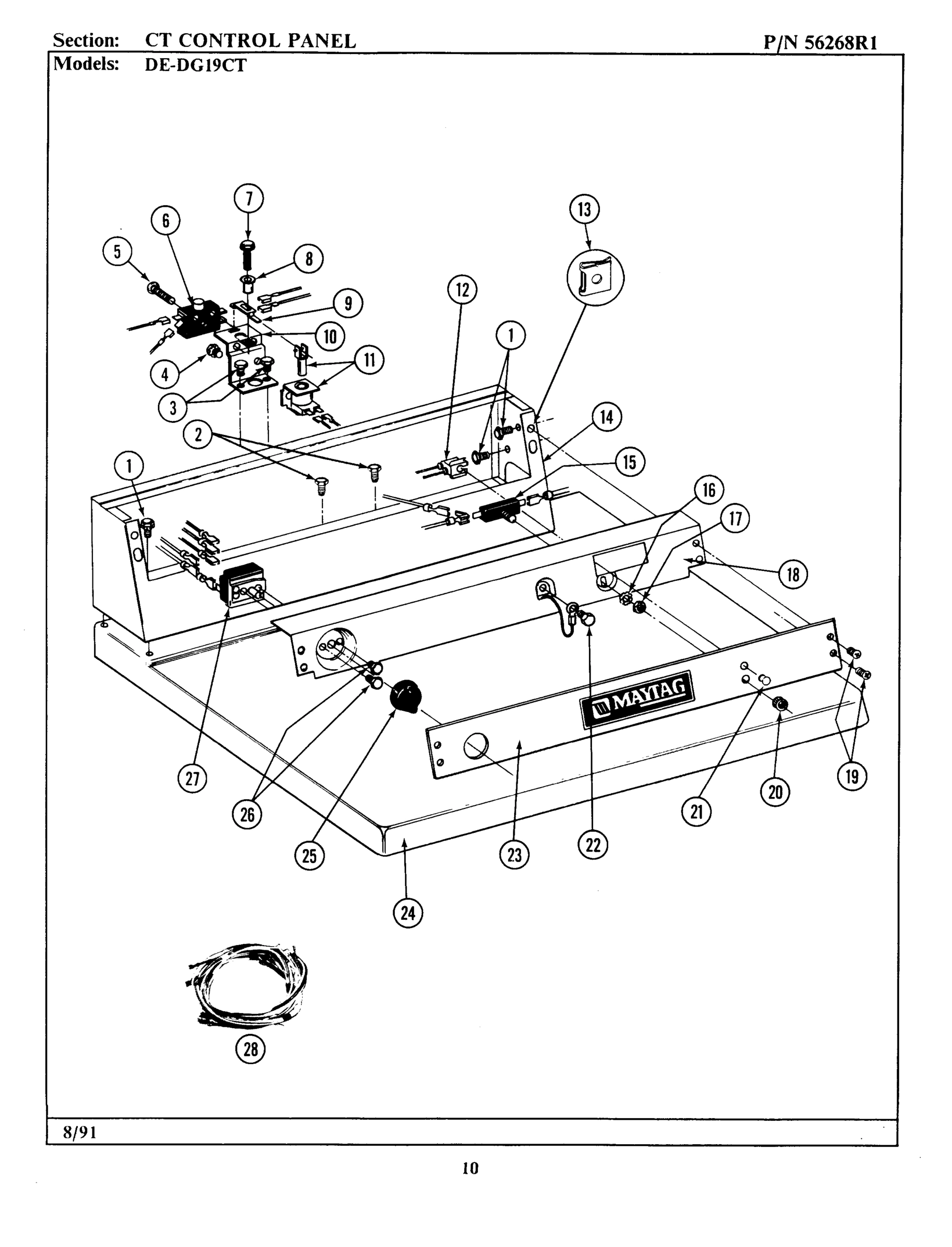

08 - CONTROL PANEL
09 - CONTROL CENTER

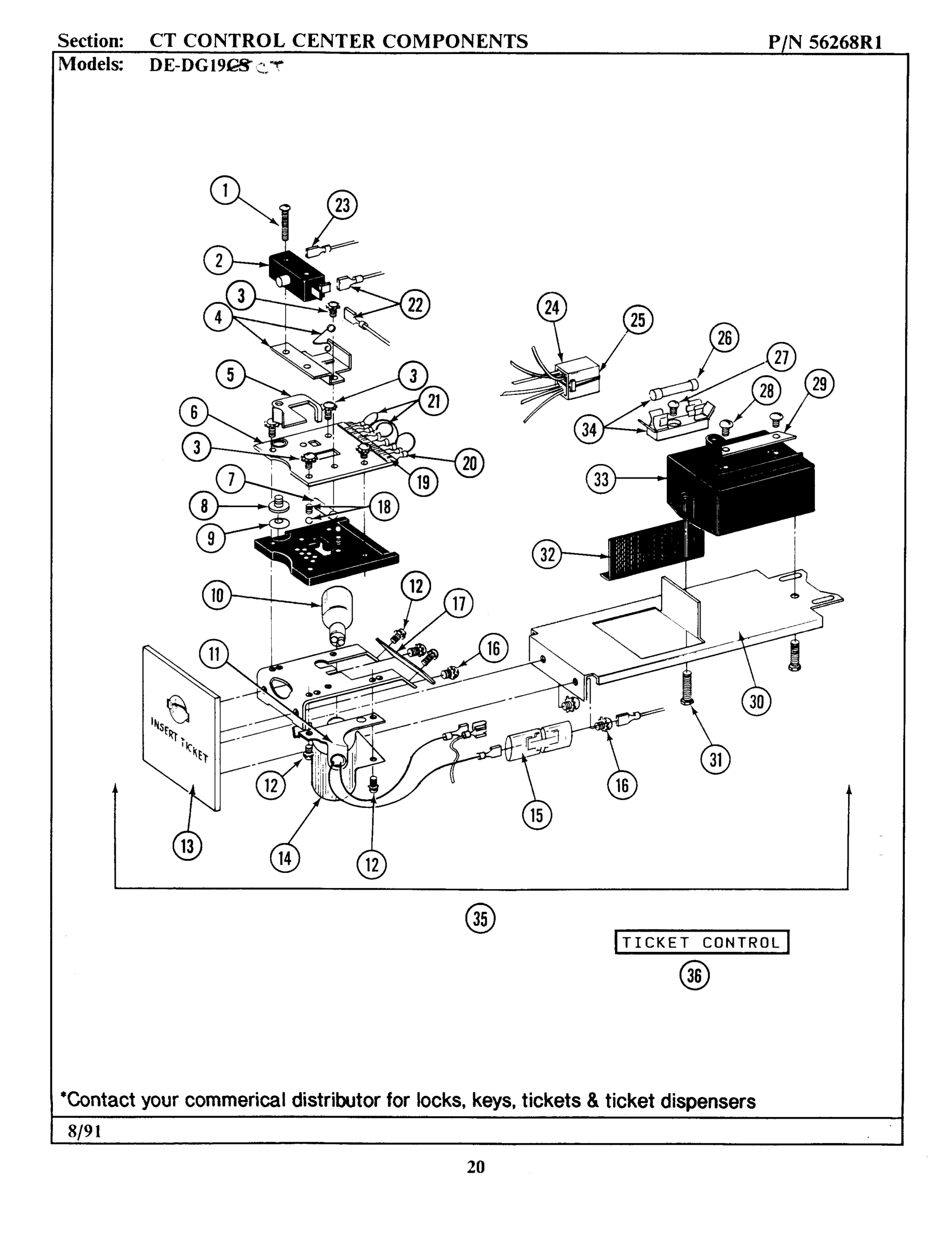

10 - CONTROL CENTER COMPONENTS
Common parts from model Maytag GDE19CT ELECTRIC DRYER
001
MAY Y306660 MAY Y306660 Contact Us For Availability
001
MAY Y303362 MAY Y303362 Contact Us For Availability
002
MAY Y303225 MAY Y303225 Contact Us For Availability
002
PART NOT USED MAY Y314322 Contact Us For Availability
002
MAY 214878 MAY 214878 Contact Us For Availability
002
MAY 204882 MAY 204882 Contact Us For Availability
003
MAY Y313575 MAY Y313575 Contact Us For Availability
004
MAY 400008 MAY 400008 Contact Us For Availability
004
MAY 212951 MAY 212951 Contact Us For Availability
004
MAY 204881 MAY 204881 Contact Us For Availability
005
MAY 312538 MAY 312538 Contact Us For Availability
005
PART NOT USED MAY Y312853 Contact Us For Availability
005
MAY Y059131 MAY Y059131 Contact Us For Availability
005
MAY 212950 MAY 212950 Contact Us For Availability
005
MAY 214218 MAY 214218 Contact Us For Availability
006
MAY 210745 MAY 210745 Contact Us For Availability
006
MAY 312302 MAY 312302 Contact Us For Availability
006
MAY Y303787 MAY Y303787 Contact Us For Availability
006
MAY 212452 MAY 212452 Contact Us For Availability
007
MAY Y313910 MAY Y313910 Contact Us For Availability
007
MAY 212949 MAY 212949 Contact Us For Availability
007
MAY 213323 MAY 213323 Contact Us For Availability
007
MAY 214660 MAY 214660 Contact Us For Availability
007
MAY 214275 MAY 214275 Contact Us For Availability
008
MAY Y303373 MAY Y303373 Contact Us For Availability
008
MAY Y304652 MAY Y304652 Contact Us For Availability
008
MAY 214220 MAY 214220 Contact Us For Availability
009
MAY Y313911 MAY Y313911 Contact Us For Availability
009
MAY 304124 MAY 304124 Contact Us For Availability
009
MAY 910309 MAY 910309 Contact Us For Availability
010
MAY Y310632 MAY Y310632 Contact Us For Availability
011
DOOR MAY Y306668 Contact Us For Availability
011
MAY Y310759 MAY Y310759 Contact Us For Availability
011
MAY Y313561 MAY Y313561 Contact Us For Availability
011
MAY Y313576 MAY Y313576 Contact Us For Availability
011
MAY 311353 MAY 311353 Contact Us For Availability
011
MAY 305393 MAY 305393 Contact Us For Availability
012
MAY 314158 MAY 314158 Contact Us For Availability
012
MAY Y313537 MAY Y313537 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
012
MAY Y059130 MAY Y059130 Contact Us For Availability
012
KNOB FOR TIMER MAY 213089 Contact Us For Availability
013
MAY Y303778 MAY Y303778 Contact Us For Availability
013
MAY 314155 MAY 314155 Contact Us For Availability
013
MAY Y303856 MAY Y303856 Contact Us For Availability
013
MAY Y059143 MAY Y059143 Contact Us For Availability
013
MAY 215003 MAY 215003 Contact Us For Availability
013
MAY Y303801 MAY Y303801 Contact Us For Availability
014
MAY 314077 MAY 314077 Contact Us For Availability
014
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
014
MAY Y059135 MAY Y059135 Contact Us For Availability
014
MAY 212276 MAY 212276 Contact Us For Availability
014
MAY 305213 MAY 305213 Contact Us For Availability
014
SHIELD FOR HEAT LAMP MAY 212533 Contact Us For Availability
015
MAY Y313270 MAY Y313270 Contact Us For Availability
015
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
015
MAY Y303318 MAY Y303318 Contact Us For Availability
015
MAY Y201110 MAY Y201110 Contact Us For Availability
016
MAY 204439 MAY 204439 Contact Us For Availability
016
MAY Y312890 MAY Y312890 Contact Us For Availability
016
PROD. No.3-3358-8 & No.3-3358-9 MAY 306207 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358-2, No.3-3 MAY Y303877 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 MAY Y303879 Contact Us For Availability
016
MAY Y059134 MAY Y059134 Contact Us For Availability
016
MAY 212519 MAY 212519 Contact Us For Availability
017
MAY Y313907 MAY Y313907 Contact Us For Availability
017
MAY Y053241 MAY Y053241 Contact Us For Availability
017
MAY Y304353 MAY Y304353 Contact Us For Availability
017
MAY Y312706 MAY Y312706 Contact Us For Availability
018
MAY Y313795 MAY Y313795 Contact Us For Availability
018
MAY Y305185 MAY Y305185 Contact Us For Availability
018
MAY Y304630 MAY Y304630 Contact Us For Availability
018
MAY 203140 MAY 203140 Contact Us For Availability
019
MAY 910343 MAY 910343 Contact Us For Availability
020
MAY 312369 MAY 312369 Contact Us For Availability
020
MAY Y312964 MAY Y312964 Contact Us For Availability
020
MAY Y303945 MAY Y303945 Contact Us For Availability
020
MAY Y312702 MAY Y312702 Contact Us For Availability
020
MAY Y311550 MAY Y311550 Contact Us For Availability
021
MAY 306657 MAY 306657 Contact Us For Availability
021
MAY 213099 MAY 213099 Contact Us For Availability
022
MAY 310557 MAY 310557 Contact Us For Availability
023
MAY Y313796 MAY Y313796 Contact Us For Availability
023
MAY Y313927 MAY Y313927 Contact Us For Availability
023
MAY Y312527 MAY Y312527 Contact Us For Availability
023
MAY 211737 MAY 211737 Contact Us For Availability
024
MAY Y313340 MAY Y313340 Contact Us For Availability
024
MAY Y305191 MAY Y305191 Contact Us For Availability
025
MAY Y306665 MAY Y306665 Contact Us For Availability
025
MAY 205663 MAY 205663 Contact Us For Availability
025
MAY 213074 MAY 213074 Contact Us For Availability
026
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
026
MAY 202713 MAY 202713 Contact Us For Availability
027
MAY Y310376 MAY Y310376 Contact Us For Availability
027
MAY Y303420 MAY Y303420 Contact Us For Availability
028
MAY 311613 MAY 311613 Contact Us For Availability
029
MAY Y055978 MAY Y055978 Contact Us For Availability
029
TUMBLER SEAL -----S MAY Y313541 Contact Us For Availability
029
COVER FOR CIRCUIT BOARD MAY 311612 Contact Us For Availability
030
MAY 314803 MAY 314803 Contact Us For Availability
030
MAY Y303442 MAY Y303442 Contact Us For Availability
031
MAY 305187 MAY 305187 Contact Us For Availability
031
MAY 306663 MAY 306663 Contact Us For Availability
031
MAY Y312893 MAY Y312893 Contact Us For Availability
032
COVER FOR BLOWER HOUSING MAY Y313770 Contact Us For Availability
033
MAY 202477 MAY 202477 Contact Us For Availability
034
MAY Y303361 MAY Y303361 Contact Us For Availability
035
TICKET RECEIVER ASSEMBLY MAY NLA Contact Us For Availability
036
MAY 202509 MAY 202509 Contact Us For Availability
038
MAY Y313262 MAY Y313262 Contact Us For Availability
039
MAY 410490 MAY 410490 Contact Us For Availability
× ![]()
