Model Electrolux GCWS2438AFA WALL OVEN, ELECTRIC, SINGLE, 24 INCH – Common Parts & Diagrams

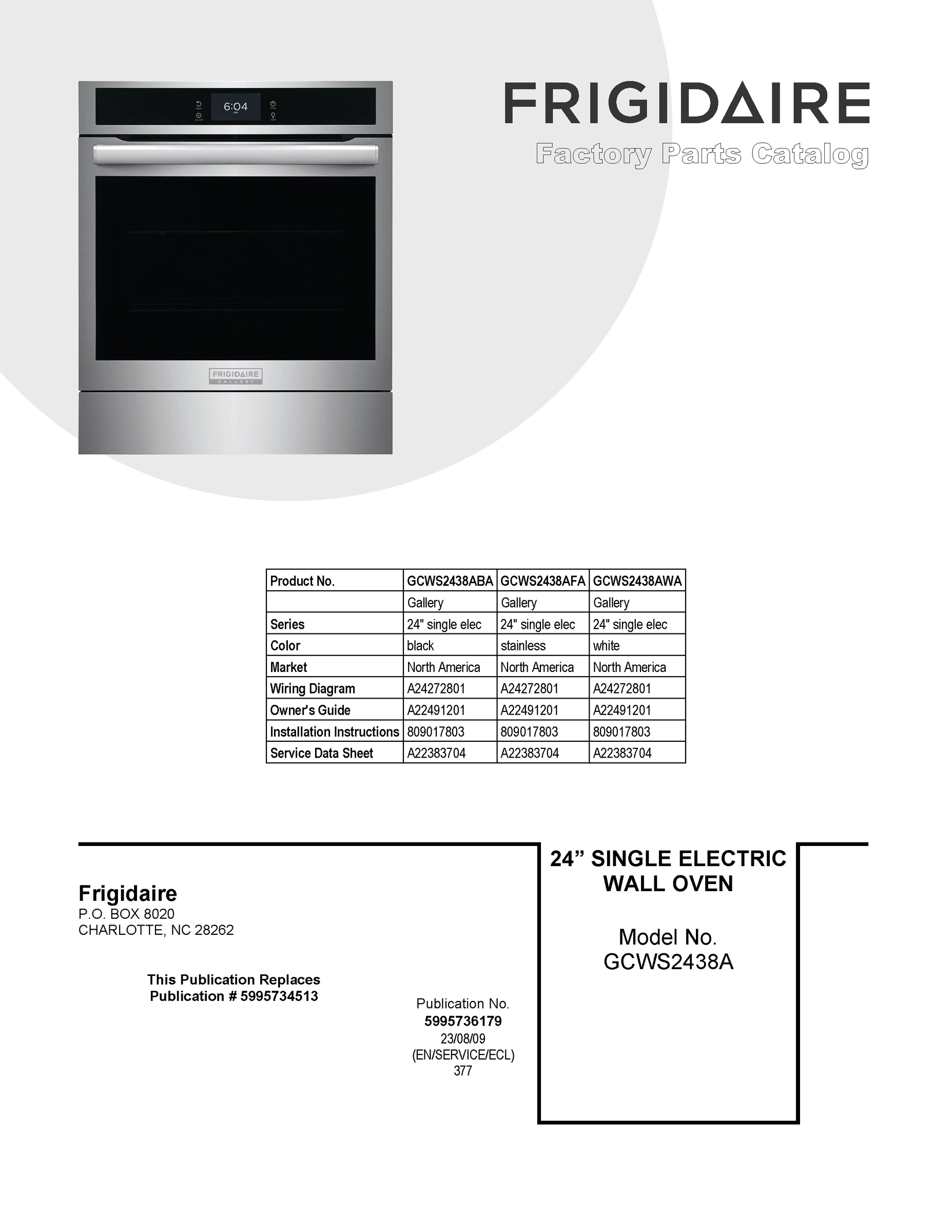

01 - COVER SHEET
02 - CONTROL PANEL
03 - BODY
04 - DOORS
05 - WIRING DIAGRAM
Common parts from model Electrolux GCWS2438AFA WALL OVEN, ELECTRIC, SINGLE, 24 INCH
1
FRAME ASSEMBLY, FRONT WCI 5304533754 Contact Us For Availability
1
DOOR ASSEMBLY, OUTER, STAINLESS, GRILL BOX WCI 5304533789 Contact Us For Availability
2
CONTROLLER, ELECTRONIC, PUX, OVEN WCI 5304535850 Contact Us For Availability
2
CHANNEL, FRONT FRAME, LH WCI 140204159028 Contact Us For Availability
3
SPACER, CONTROLLER WCI 5304533775 Contact Us For Availability
3
CHANNEL, FRONT FRAME, RH WCI 140204159010 Contact Us For Availability
4
BRACKET, GROUNDING WCI 5304533777 Contact Us For Availability
4
HANDLE, DOOR, STAINLESS WCI 5304533791 Contact Us For Availability
5
CAP, MOUNT, LH FRAME WCI 5304533755 Contact Us For Availability
5
INSULATION, OVEN, BACK WCI 140215866017 Contact Us For Availability
5
SCREW, T20 PAN, M4 X 16, HANDLE WCI 5612311166 Contact Us For Availability
6
CAP, MOUNT, RH FRAME WCI 5304533756 Contact Us For Availability
6
INSULATION, INSERT, OVEN BACK WCI 4055549499 Contact Us For Availability
7
SCREW, W/HD PH NIB, #8 X 12, SILVER WCI 4055578613 Contact Us For Availability
7
BRACE, OVEN, REAR WCI 4055578589 Contact Us For Availability
8
TRIM, SURROUND, CONTROL WCI 5304535371 Contact Us For Availability
8
SPACER, RUBBER, DOOR GLASS WCI 4055549754 Contact Us For Availability
9
PANEL, AIR DUCT, LOWER, & FLUE COVER WCI 140233381015 Contact Us For Availability
10
PANEL, AIR DUCT, MIDDLE WCI 140199855028 Contact Us For Availability
10
NUT, FAN BLADE WCI 4055549481 Contact Us For Availability
10
HINGE, DOOR, RH-W/SPRING, GRILL WCI 4055561510 Contact Us For Availability
11
PANEL, AIR DUCT, UPPER WCI 4055549515 Contact Us For Availability
11
HINGE, DOOR, LH-NO SPRING, GRILL WCI 4055562716 Contact Us For Availability
12
CATALYST, OVEN VENT WCI 3370874020 Contact Us For Availability
12
COVER, CONVECTION FAN WCI 4055548855 Contact Us For Availability
12
SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED WCI 5304533830 Contact Us For Availability
13
RETAINER, OVEN CATALYST WCI 5304533759 Contact Us For Availability
13
COVER, ELEMENT LATCH WCI 4055549440 Contact Us For Availability
14
LATCH, ELEMENT SUPPORT WCI 4055549432 Contact Us For Availability
15
COVER, BAKE ELEMENT WCI 4055549465 Contact Us For Availability
17
ELEMENT, GRILL BOOST, BROIL WCI 5304533560 Contact Us For Availability
18
CLIP, STANDOFF, PC BOARD WCI 4055549531 Contact Us For Availability
18
CLIP, ELEMENT MTG. WCI 4055548723 Contact Us For Availability
20
INSULATION, OVEN, WRAPPER WCI 4055549473 Contact Us For Availability
21
GRILL BOX, ASSEMBLY, LOWER WCI 5304533758 Contact Us For Availability
22
PANEL, GRILL TOP WCI 4055549978 Contact Us For Availability
23
BUMPER, STOP, BLACK WCI 4055470712 Contact Us For Availability
24
BRACKET, TEMP PROBE WCI 4055549598 Contact Us For Availability
26
BRACKET, TERMINAL BLOCK WCI 5304533768 Contact Us For Availability
27
PANEL, OVEN, RH SIDE WCI 140203265032 Contact Us For Availability
28
PANEL, OVEN, LH SIDE WCI 140203265040 Contact Us For Availability
29
PANEL, OVEN, BOTTOM WCI 4055548582 Contact Us For Availability
30
COVER, BOTTOM PANEL, SHIELD WCI 5304533769 Contact Us For Availability
31
PANEL, OVEN, BACK, WIRE COVER WCI 5304533770 Contact Us For Availability
33
PANEL, OVEN, TOP WCI 4055548624 Contact Us For Availability
34
HANDLE, OVEN MOVING WCI 5304533563 Contact Us For Availability
35
KIT, CABINET INSTALL WCI 140071555019 Contact Us For Availability
36
SEAL, OVEN DOOR WCI 4055549309 Contact Us For Availability
39
BRACKET, CONDUIT WCI 5304533786 Contact Us For Availability
40
TRIM, INSTALLATION, STAINLESS, LOWER WCI 5304535326 Contact Us For Availability
NI
SCREW, PAN PHIL, #6 X 9.5, ZINC WCI 4055548707 Contact Us For Availability
NI
SCREW, #2 PH AB MUSH, #8 X 1/2, BLACK WCI 4055548921 Contact Us For Availability
NI
SCREW, PAN #2PH, #8 X 50 WCI 4055549689 Contact Us For Availability
NI
HARNESS, WIRING, USER INTERFACE, PUX WCI 5304533776 Contact Us For Availability
NI
SCREW, HEX PH2 T/CUT, 6-20 X 9.3 WCI 5304533778 Contact Us For Availability
NI
CABLE TIE, PLT1M-M30 WCI 4055541587 Contact Us For Availability
NI
SCREW, PH2 NYLON WASHR, #8 X 1/2 WCI 4055549952 Contact Us For Availability
NIA
HARNESS, WIRING, DOOR LOCK WCI 5304533765 Contact Us For Availability
NIA
SCREW, PH2 HEX 1/4, M4 X 5, BLACK, DOOR HINGE WCI 85801500052716 Contact Us For Availability
× ![]()
