Model Electrolux GCWM2767ADG WALL OVEN, MICRO COMBO, 27 INCH – Common Parts & Diagrams
01 - COVER SHEET

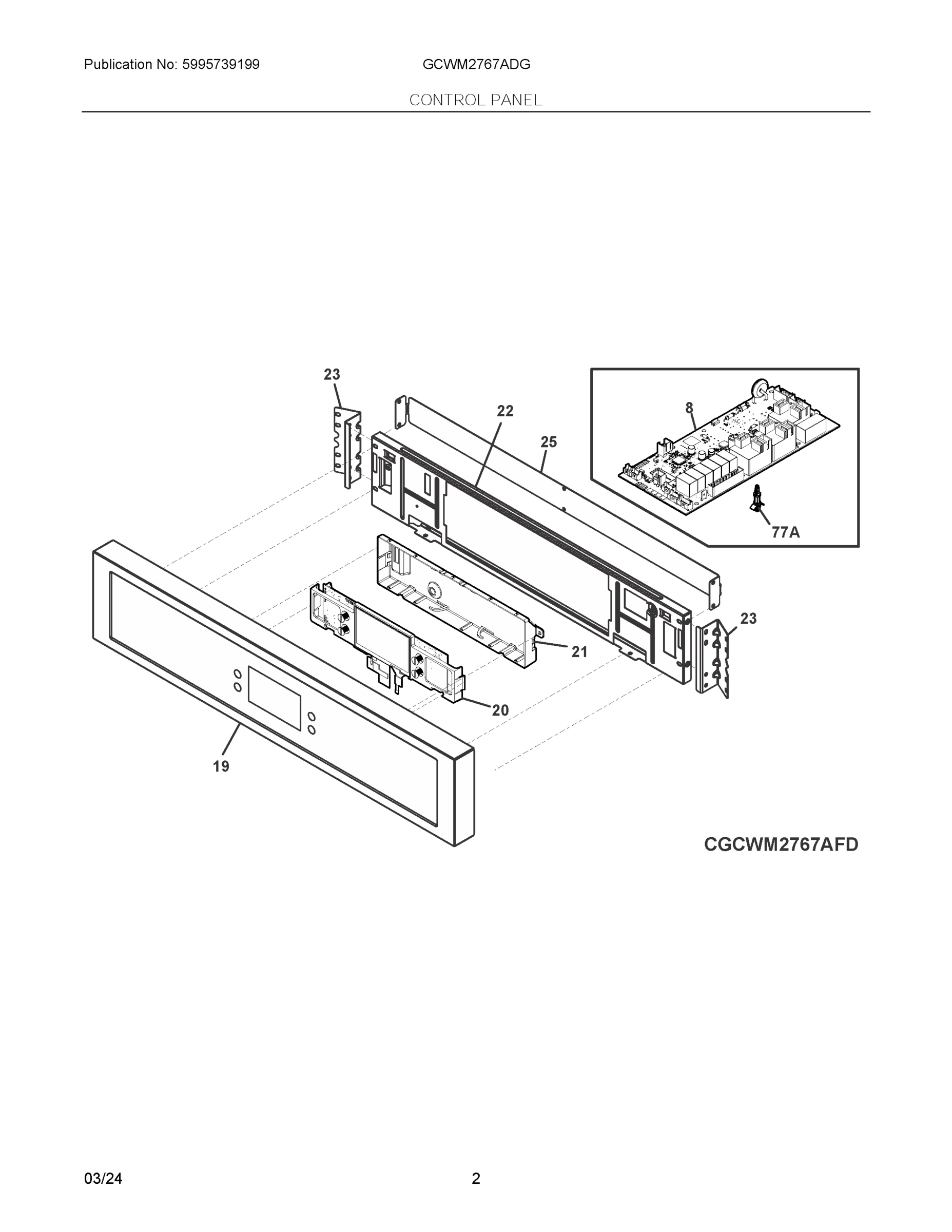

02 - CONTROL PANEL
03 - MICROWAVE OVEN
04 - LOWER OVEN
05 - DOORS
Common parts from model Electrolux GCWM2767ADG WALL OVEN, MICRO COMBO, 27 INCH
1
PANEL, MAIN BACK WCI 5304506959 Contact Us For Availability
1
DOOR GLASS, ASSEMBLY, FRONT, MICROWAVE WCI 555118433 Contact Us For Availability
2
SHIELD, INSULATION, TOP WCI 139027805 Contact Us For Availability
2
SPACER, DOOR HANDLE WCI 330158601 Contact Us For Availability
2A
SHIELD, FAN, CROSS FLOW WCI 139015900 Contact Us For Availability
2B
HOUSING, FAN, AIR DIVERTER WCI 139038901 Contact Us For Availability
3
DOOR FRAME, INNER, MICROWAVE, W/GLASS WCI 561626486 Contact Us For Availability
3A
TRIM, DOOR, BLACK, SIDE WCI 5304525458 Contact Us For Availability
4
DOOR ASSEMBLY, OUTER, BLACK STAINLESS, MICROW WCI 5304531566 Contact Us For Availability
5
BRACKET, CONDUIT MTG. WCI 5304530364 Contact Us For Availability
5
GLASS, DOOR, INNER, W/GRAPHICS WCI 807625502 Contact Us For Availability
5A
GLASS, DOOR, INNER WCI 555033602 Contact Us For Availability
6
RACK, OVEN, W/HANDLE WCI 5304514984 Contact Us For Availability
6
BAFFLE, DOOR WCI 139014203 Contact Us For Availability
6A
RACK ASSEMBLY, GLIDING, NICKEL, W/HANDLE WCI 5304518865 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7
PANEL, SERVICE, MAIN BACK WCI 5304506960 Contact Us For Availability
7A
INSULATION, 20.5 X 2.375, 1" THICK, (2) WCI 318372018 Contact Us For Availability
8
GLASS, DOOR, INNER, (2), EKO WCI 139085803 Contact Us For Availability
9
TRAY, STEAM, MIDNIGHT BLACK WCI 316081903 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139002917 Contact Us For Availability
10
SCREW, HANDLE MTG. WCI 5304414648 Contact Us For Availability
10A
SCREW, TRUSS, 8-32 X 17.65 WCI 5304528301 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545501 Contact Us For Availability
11
COVER, DOOR GLASS, TOP, SEPARATOR WCI A06645500 Contact Us For Availability
12
INNER DOOR, ASSEMBLY, MICROWAVE WCI 555040920 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, GLASS/STEEL, BLACK STAI WCI 5304525833 Contact Us For Availability
14
GASKET, DOOR COVER, MICROWAVE WCI 808082001 Contact Us For Availability
15
LAMP ASSEMBLY, HALOGEN, G9, 40W, 120V WCI 5304530343 Contact Us For Availability
15
TAPE, DRIP, FRONT, DOOR GLASS WCI 808140001 Contact Us For Availability
16
DUCT, COOLING, XFLOW WCI 139024203 Contact Us For Availability
16
COVER, DOOR TOP, PLASTIC WCI 5304525161 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264735 Contact Us For Availability
17
DUCT, SUCTION BYPASS, 2 CHANNEL WCI 139038501 Contact Us For Availability
18
COVER, COLUMN, RH WCI 5304531554 Contact Us For Availability
19
COVER, COLUMN, LH WCI 5304531555 Contact Us For Availability
20
STOPPER, PLASTIC, RH DOOR WCI 5304525159 Contact Us For Availability
21
STOPPER, PLASTIC, LH DOOR WCI 5304525160 Contact Us For Availability
23
HINGE, DOOR, BLUE, SOFT CLOSE WCI 808930405 Contact Us For Availability
23A
HINGE, DOOR, MICROWAVE WCI A06683602 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
29
GASKET, DOOR, MICROWAVE WCI 807177101 Contact Us For Availability
30
SUPPORT, LH HINGE WCI 387886701 Contact Us For Availability
31
SUPPORT, RH HINGE WCI 387886702 Contact Us For Availability
32
MAGNETRON WCI 555030400 Contact Us For Availability
33
SENSOR, PT500 WCI 555044200 Contact Us For Availability
34
TRANSFORMER, 60HZ, 120V WCI 555030502 Contact Us For Availability
35
CAPACITOR, 60HZ WCI 315795903 Contact Us For Availability
36
DIODE, HIGH VOLTAGE WCI 555042802 Contact Us For Availability
37
PROBE, TEMP WCI 5304525427 Contact Us For Availability
39
FILTER, VOLTAGE, RFI WCI A20022801 Contact Us For Availability
39
HANDLE, DOOR, BLACK STAINLESS WCI 5304525824 Contact Us For Availability
40
PC BOARD, POWER, OVC-P WCI A18493801 Contact Us For Availability
42
CLIP, PC BOARD, (4) WCI 330647300 Contact Us For Availability
43
CLIP, PC BOARD, FLAT TOP WCI 330647301 Contact Us For Availability
44
FUSE HOLDER, ASSEMBLY, 412 #, 20A, W/FUSE WCI 318647300 Contact Us For Availability
45
HOLDER, CABLE, ROUND WCI 387963800 Contact Us For Availability
49
PLATE, SUPPORT WCI 5304531545 Contact Us For Availability
50
SUPPORT, SIDE WCI 5304531556 Contact Us For Availability
52
TRIM, VENT, BLACK WCI 5304531539 Contact Us For Availability
53
PROBE, MEAT TEMP, RED WCI 5304504202 Contact Us For Availability
53
SPACER, SIDE, RH WCI 5304531546 Contact Us For Availability
53A
SPACER, SIDE, LH WCI 5304531547 Contact Us For Availability
54
RECEPTACLE ASSY, MEAT PROBE WCI 139017203 Contact Us For Availability
54
COVER, CABL WCI 5304531550 Contact Us For Availability
56
WCI A15654501 WCI A15654501 Contact Us For Availability
56
TRIM, FILLER, BLACK, RH WCI 5304531548 Contact Us For Availability
56A
SCREW, 8-18 X 5/16, BLACK WCI 5303324184 Contact Us For Availability
56A
TRIM, FILLER, BLACK, LH WCI 5304531549 Contact Us For Availability
57
WCI A13881201 WCI A13881201 Contact Us For Availability
57
BOX, BAKE ELEMENT WCI 5304506949 Contact Us For Availability
58
WCI A13804901 WCI A13804901 Contact Us For Availability
58
INSULATION, BAKE ELEMENT, LOWER WCI 5304506952 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER, 27", TOP & SIDES WCI 139001701 Contact Us For Availability
58C
INSULATION, OVEN, BACK WCI 5304506954 Contact Us For Availability
58D
INSULATION, BAKE ELEMENT, FRONT WCI 5304506965 Contact Us For Availability
58E
INSULATION, BAKE ELEMENT, SIDE WCI 5304506966 Contact Us For Availability
59
WCI A18994801 WCI A18994801 Contact Us For Availability
59
DUCT, COOLING, LOWER OVEN WCI 139015700 Contact Us For Availability
60
WCI 5304531540 WCI 5304531540 Contact Us For Availability
62
TERMINAL BLOCK WCI 5304535277 Contact Us For Availability
66
ELEMENT, BROIL, 6 PASS, 4000W WCI 5304514924 Contact Us For Availability
67
ELEMENT, HIDDEN BAKE, 2500W WCI 5304506946 Contact Us For Availability
70
SHIELD, INSULATION, SIDES, (2) WCI 139000601 Contact Us For Availability
71
SHIELD, REAR WIRE, MAIN BACK WCI 139022001 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
80
BRACKET, SUPPORT, CHASSIS/FAN WCI 139021101 Contact Us For Availability
82
SHIELD, INSULATION, LOWER WCI 5304506947 Contact Us For Availability
83
SHIELD, BAKE ELEMENT, REAR WCI 5304506951 Contact Us For Availability
86
RECEPTACLE, HINGE, SOFT CLOSE WCI 808930503 Contact Us For Availability
87
BRACKET, CABLE MTG. WCI 139021901 Contact Us For Availability
89
MOTOR, LATCH ASSEMBLY, 2 TERMINAL WCI 5304528835 Contact Us For Availability
90
TRIM, BOTTOM, BLACK WCI 5304531544 Contact Us For Availability
91
WCI 5304500329 WCI 5304500329 Contact Us For Availability
99
WCI 318256201 WCI 318256201 Contact Us For Availability
107
WCI 5304527949 WCI 5304527949 Contact Us For Availability
108A
WCI 139015300 WCI 139015300 Contact Us For Availability
109
WCI 5304525455 WCI 5304525455 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
119
WCI 318578509 WCI 318578509 Contact Us For Availability
125
WCI 139008507 WCI 139008507 Contact Us For Availability
127
WCI 139042600 WCI 139042600 Contact Us For Availability
142
WCI 5304506953 WCI 5304506953 Contact Us For Availability
161
WCI 139006500 WCI 139006500 Contact Us For Availability
185
WCI 318531800 WCI 318531800 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
WCI 5304470882 WCI 5304470882 Contact Us For Availability
NI
WCI 349475501 WCI 349475501 Contact Us For Availability
NI
WCI 405522329 WCI 405522329 Contact Us For Availability
NI
WCI 5029617300 WCI 5029617300 Contact Us For Availability
NI
WCI 5304526533 WCI 5304526533 Contact Us For Availability
NI
WCI 5304531553 WCI 5304531553 Contact Us For Availability
NI
WCI 387856311 WCI 387856311 Contact Us For Availability
NI
WCI 5304528293 WCI 5304528293 Contact Us For Availability
NI
WCI 5304531542 WCI 5304531542 Contact Us For Availability
NI
WCI 5304531552 WCI 5304531552 Contact Us For Availability
NI
WCI 5304531557 WCI 5304531557 Contact Us For Availability
NI
WCI 5304531567 WCI 5304531567 Contact Us For Availability
NI
WCI 5304535368 WCI 5304535368 Contact Us For Availability
NI
SCREW, PT T20, 4 X 10, (8) WCI 349479701 Contact Us For Availability
NIA
WCI 316205500 WCI 316205500 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIA
WCI 555031101 WCI 555031101 Contact Us For Availability
NIA
WCI 561045004 WCI 561045004 Contact Us For Availability
NIA
WCI 139022101 WCI 139022101 Contact Us For Availability
NIA
WCI 316001017 WCI 316001017 Contact Us For Availability
NIA
WCI 387872717 WCI 387872717 Contact Us For Availability
NIA
WCI 5304525451 WCI 5304525451 Contact Us For Availability
× ![]()
