Model Frigidaire GCGT1041A DRYER – Common Parts & Diagrams

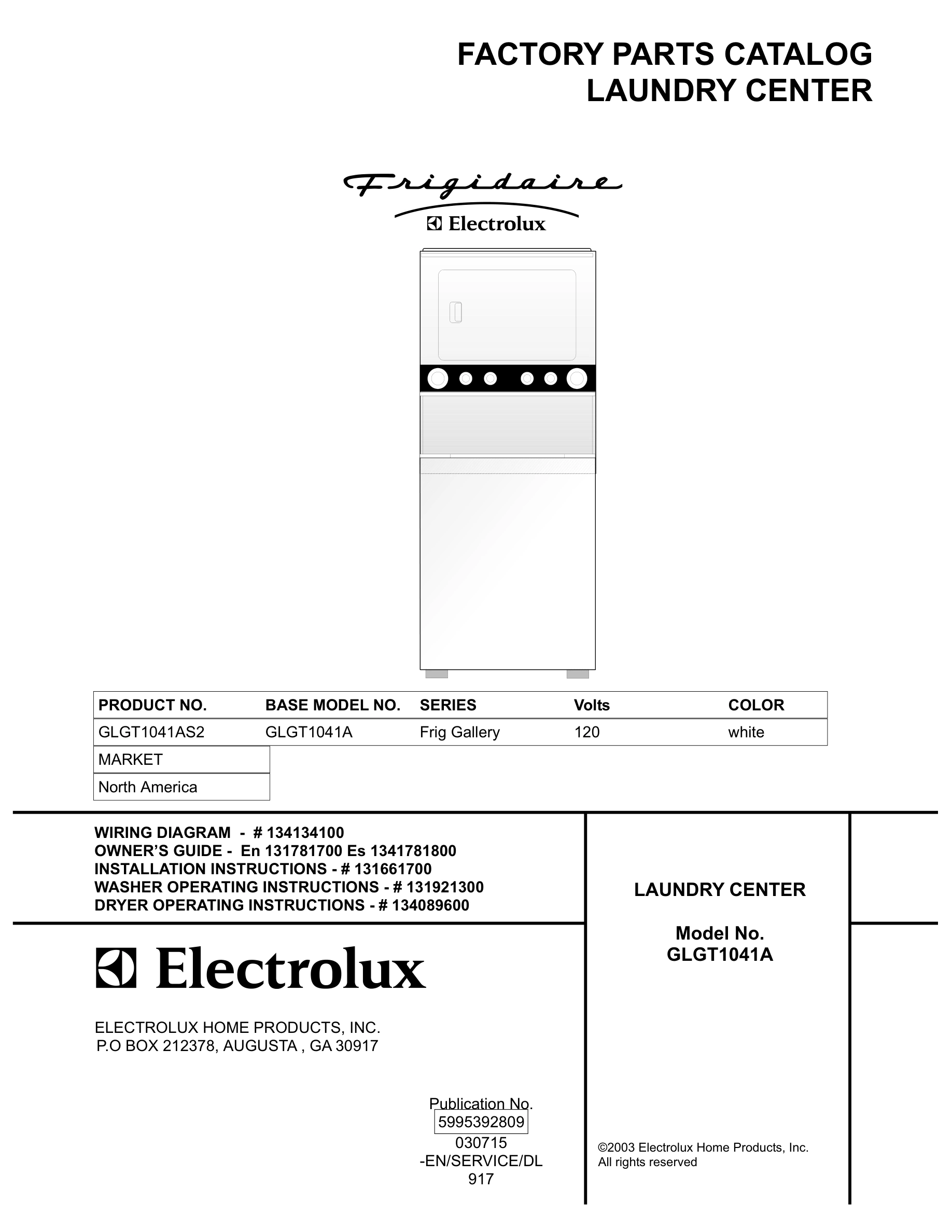

01 - COVER

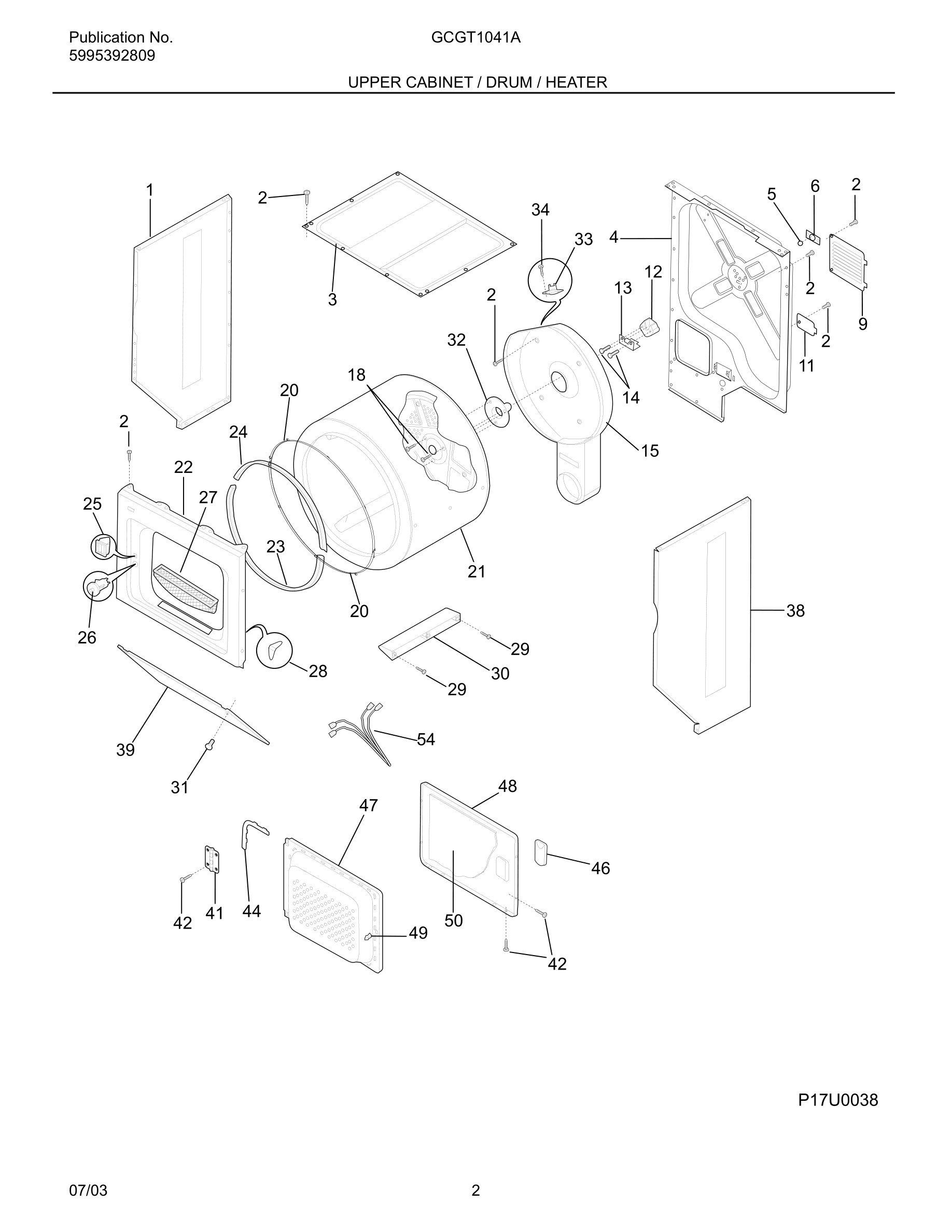

03 - UPPER CABINET / DRUM / HEATER

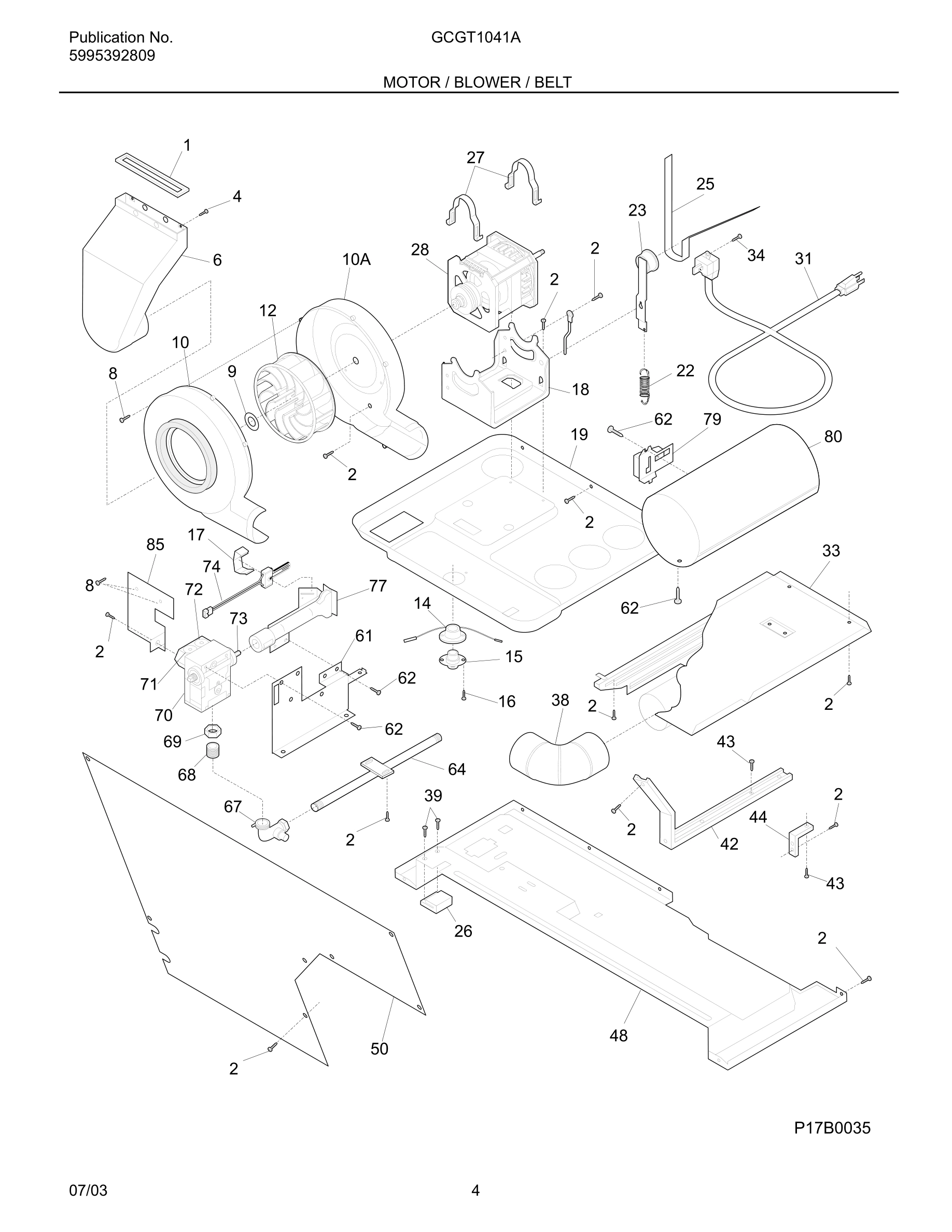

05 - MOTOR / BLOWER / BELT

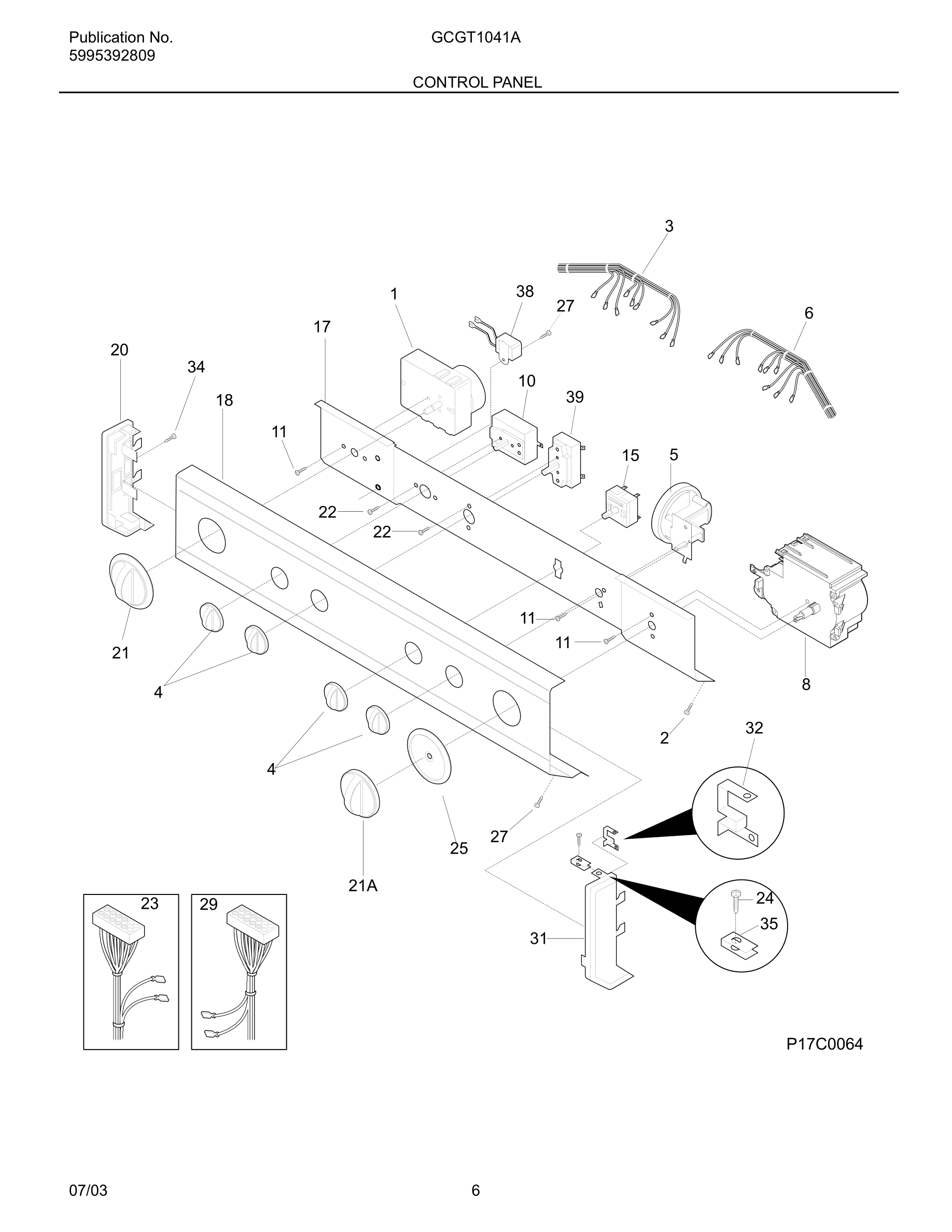

07 - CONTROL PANEL

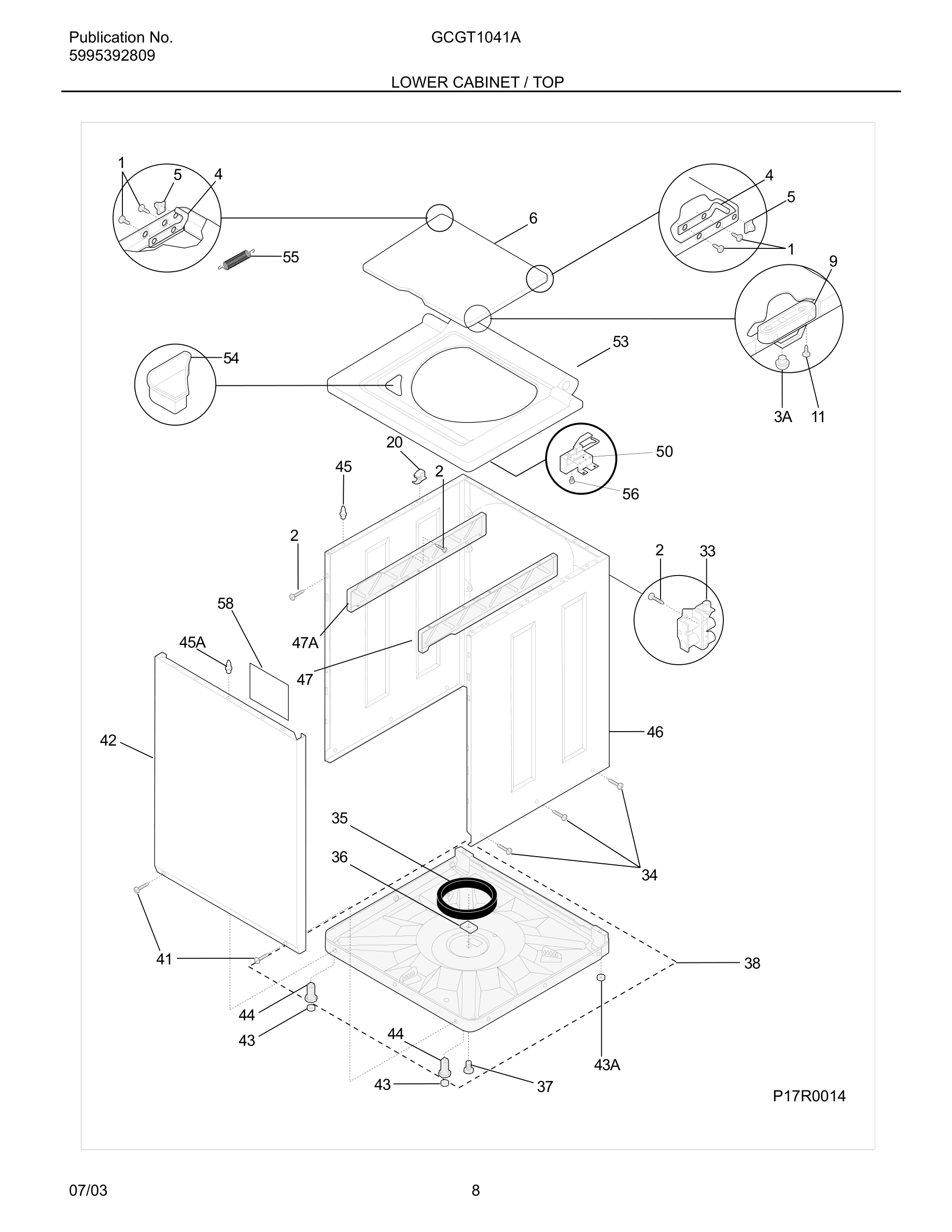

09 - LOWER CABINET / TOP

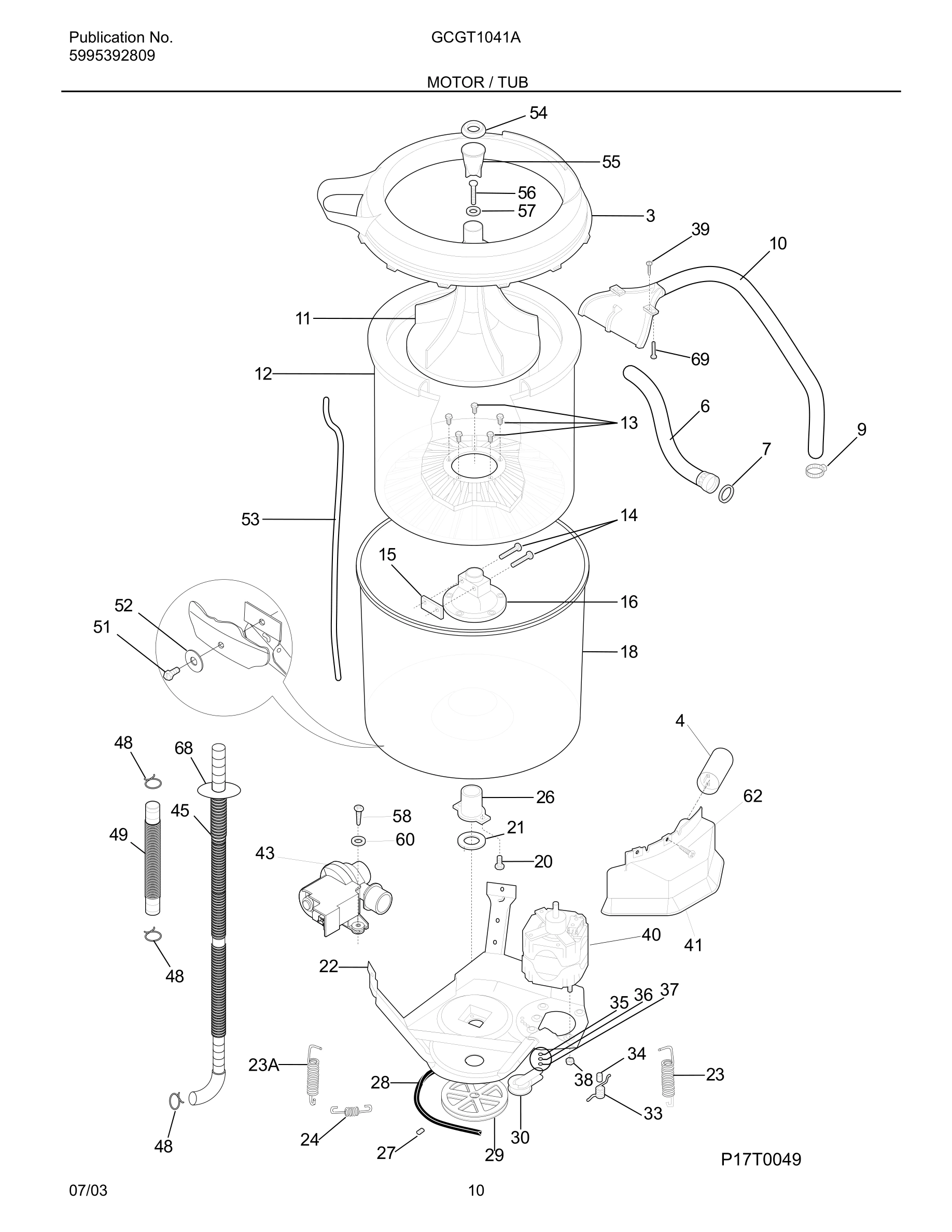

11 - MOTOR / TUB

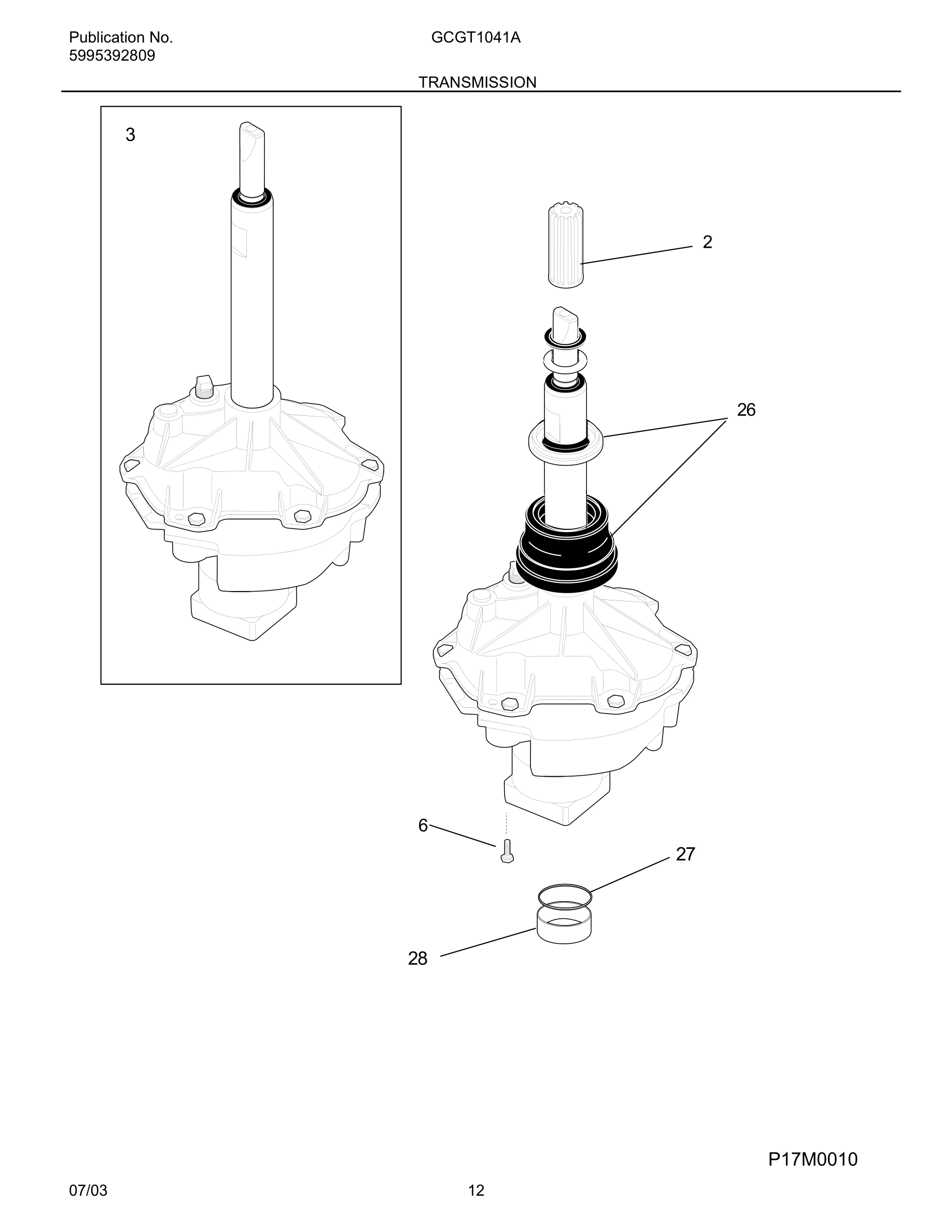

13 - TRANSMISSION

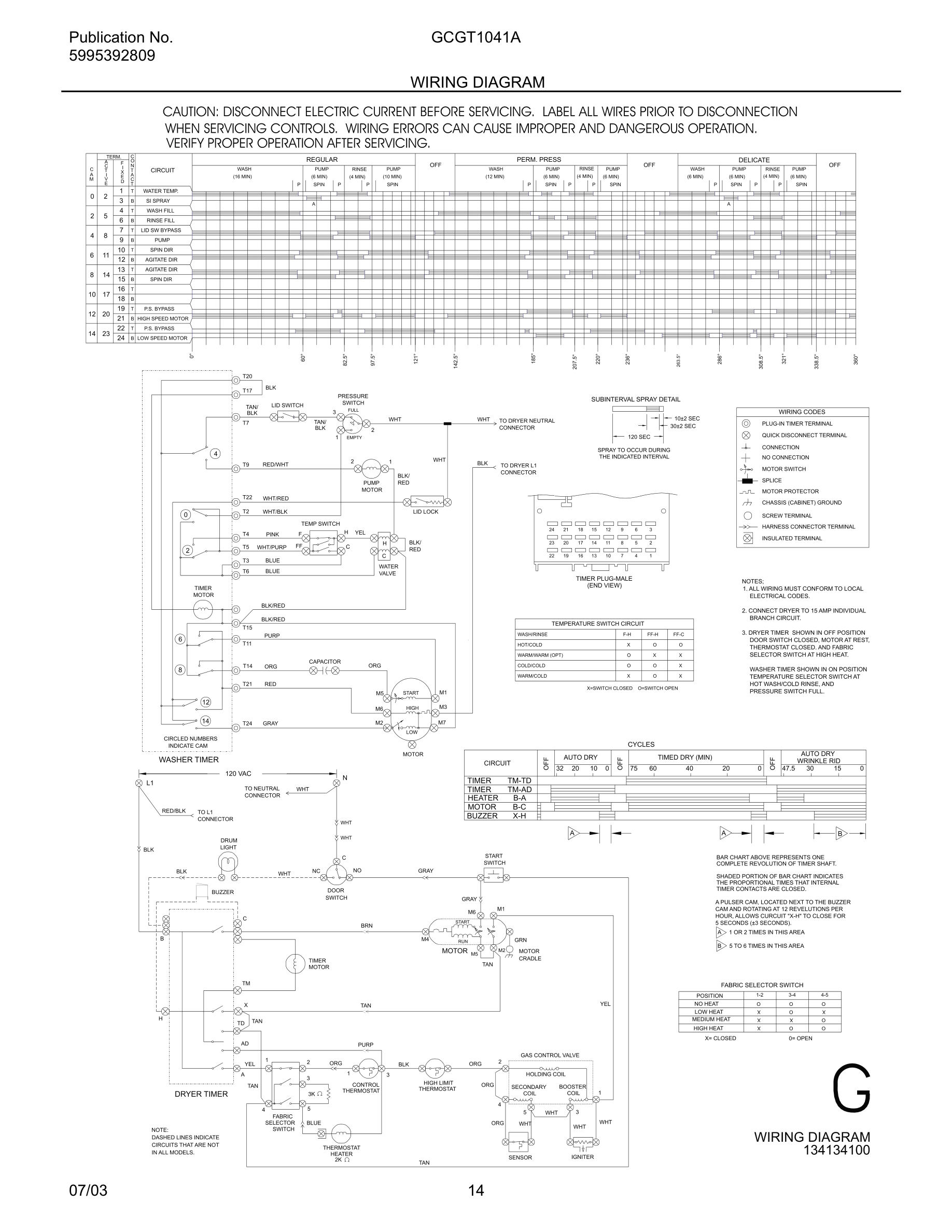

14 - WIRING DIAGRAM
Common parts from model Frigidaire GCGT1041A DRYER
6
Screw,hex washer head ,1/4-20 x 0.437 WCI 134197900 Contact Us For Availability
8
Screw,pan head ,6-18AB x 0.60 WCI 3205245 Contact Us For Availability
8#
Timer,washer WCI 134049600 Contact Us For Availability
11
Agitator WCI 131427200 Contact Us For Availability
14#
Thermostat,heater WCI 131658101 No Longer Available
15
Housing,heater ,w/duct & seal WCI 5303207394 Contact Us For Availability
15#
Thermostat,control WCI 131322600 No Longer Available
16
Trunnion WCI 131545101 Contact Us For Availability
18
Tub,splash ,w/air dome,brg WCI 131557201 Contact Us For Availability
18
Cradle,motor mount ,with idler stud WCI 131413600 Contact Us For Availability
20
End Cap,white ,LH WCI 131288101 Contact Us For Availability
21
Drum,dryer ,painted ,service kit WCI 134122572 Contact Us For Availability
21A
Knob,washer timer ,white WCI 134043200 No Longer Available
22
Leg & Dome Assy WCI 131373610 Contact Us For Availability
22
Panel,front ,white ,svce kit w/plug WCI 134031600 Contact Us For Availability
22
Screw,switch mtg ,6-32 x 0 .19 ,(2), sems WCI 3161259 Contact Us For Availability
23*
Insert,spring adjuster ,vertical WCI 5303212877 Contact Us For Availability
24
Spring,horizontal WCI 131373900 Contact Us For Availability
25
Indicator,timer pointer, white/dark gray,wash WCI 131976804 Contact Us For Availability
26#
Seal Assy,tub ,transmission WCI 5303279394 Contact Us For Availability
27
Clamp,motor mtg. WCI 131419800 Contact Us For Availability
28
Clip,guide ,(3) WCI 5303281074 No Longer Available
29#
Pulley,xmsn drive WCI 131498301 Contact Us For Availability
30#
Idler Arm Assy,VAW ,with pulley WCI 131862900 Contact Us For Availability
31
End Cap,white ,RH WCI 131288211 Contact Us For Availability
33
Spring,torsional WCI 3204425 No Longer Available
33#
Valve,water ,115 V WCI 131900200 Contact Us For Availability
35
Snubber Ring WCI 5308002385 Contact Us For Availability
36
Washer,pivot shaft WCI 5303261031 Contact Us For Availability
37
Washer,spring type WCI 5303161306 Contact Us For Availability
38
Nut,hex flange ,motor mounting WCI 5303318708 Contact Us For Availability
38
Base Assembly WCI 5303311213 Contact Us For Availability
38#
Buzzer WCI 5303286537 Contact Us For Availability
42
Panel,front ,white WCI 131104303 Contact Us For Availability
43
Pad,leveling leg ,front WCI 131422100 Contact Us For Availability
45
Pin,panel locator ,side WCI 131346400 Contact Us For Availability
45*
Cushion,drain hose ,base WCI 131663500 Contact Us For Availability
48
Panel,outer door ,white WCI 131789303 Contact Us For Availability
50#
Lock,lid ,w/ext switch WCI 134101800 Contact Us For Availability
54
Dispenser,bleach WCI 3204394 Contact Us For Availability
54
Cap,dispenser WCI 131266800 Contact Us For Availability
54#
Wiring Harness,door switch ,w/o light WCI 131498900 Contact Us For Availability
55
Cup,dispenser WCI 131206100 Contact Us For Availability
56
Screw,agitator mtg ,5/16-18 x 1.250 WCI 131468900 Contact Us For Availability
× ![]()
