Model Electrolux GCG32CW4 RANGE – Common Parts & Diagrams

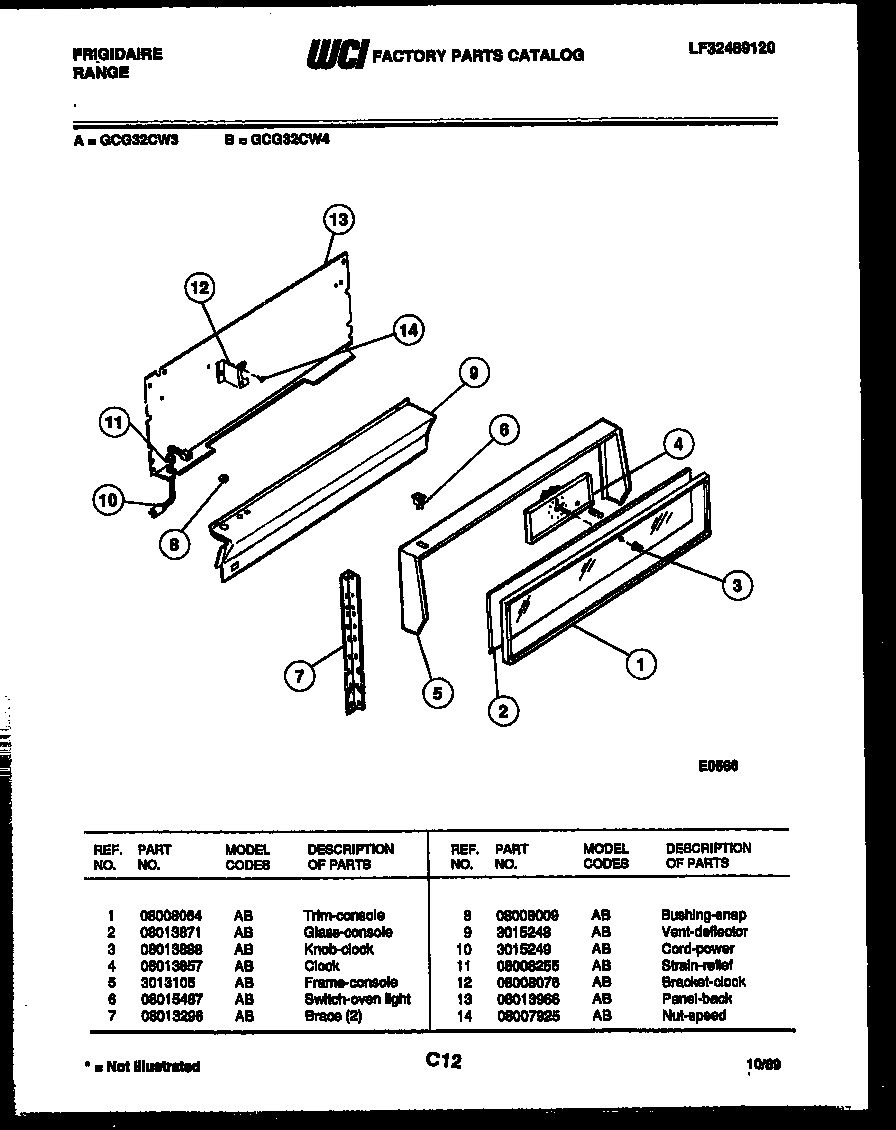

02 - CONTROL PANEL

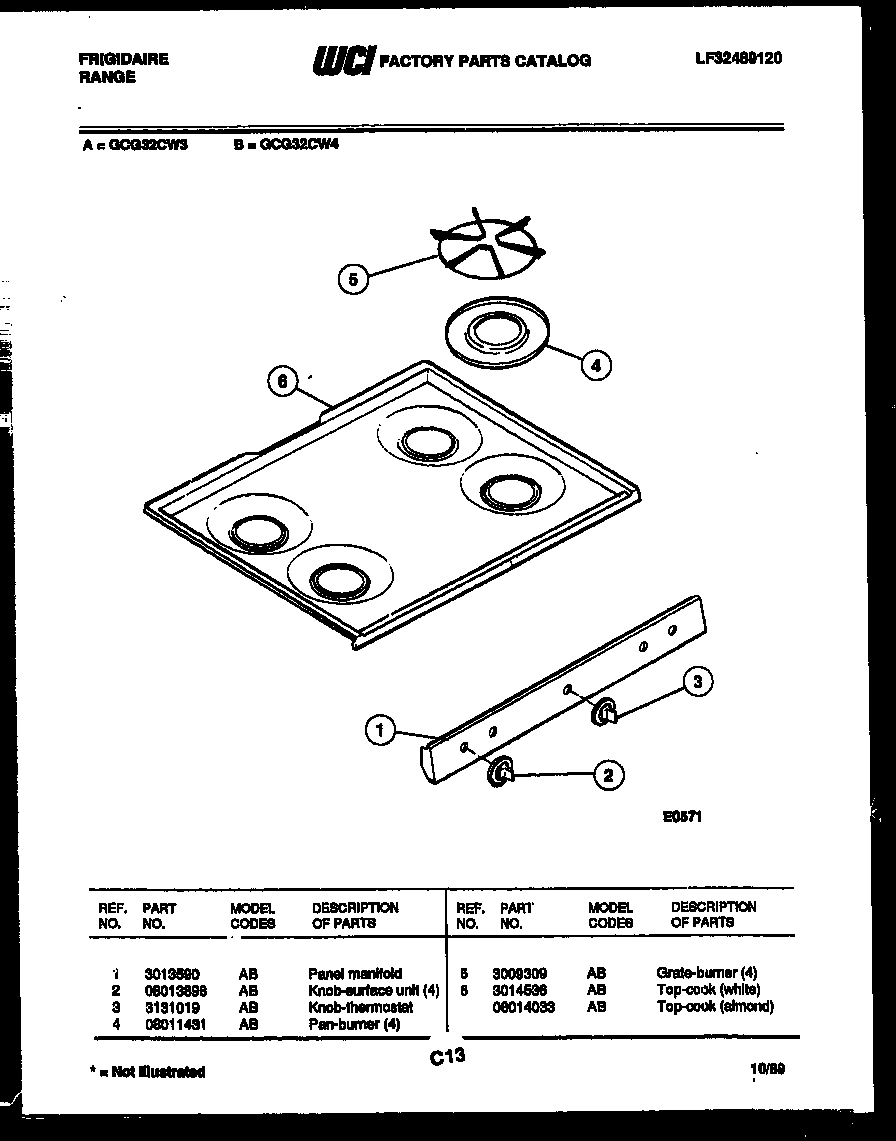

03 - COOKTOP PARTS
04 - DOOR PARTS
05 - BROILER DRAWER PARTS
06 - BODY PARTS
07 - BURNER, MANIFOLD AND GAS CONTROL
Common parts from model Electrolux GCG32CW4 RANGE
*13913
WCI 3934059 WCI 3934059 Contact Us For Availability
1
PANEL MANIFOLD WCI 3013590 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
1
WCI 3017712 WCI 3017712 Contact Us For Availability
1
PANEL-BODYSIDE (WHITE) (2) WCI 3051061 Contact Us For Availability
2
WCI 08013871 WCI 08013871 Contact Us For Availability
2
KNOB-SURFACE UNIT (4) WCI 08013898 Contact Us For Availability
2
WCI 08008058 WCI 08008058 Contact Us For Availability
2
PAN-BROILER WCI 3016973 Contact Us For Availability
2
GROMMET-REAR WCI 3016129 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
3
WCI 08013888 WCI 08013888 Contact Us For Availability
3
WCI 3131019 WCI 3131019 Contact Us For Availability
3
WCI 3018345 WCI 3018345 Contact Us For Availability
3
GROMMET-FRONT WCI 3051063 Contact Us For Availability
3
WCI 08014021 WCI 08014021 Contact Us For Availability
4
WCI 08013857 WCI 08013857 Contact Us For Availability
4
PAN-BURNER (4) WCI 08011431 Contact Us For Availability
4
WCI 08012609 WCI 08012609 Contact Us For Availability
4
LINER-DRAWER WCI 3018344 Contact Us For Availability
4
WCI 08008018 WCI 08008018 Contact Us For Availability
4
NUT - WING WCI 08007979 Contact Us For Availability
4A
SHIELD-BURNER BOX LH WCI 08011552 Contact Us For Availability
5
FRAME-CONSOLE WCI 3013105 Contact Us For Availability
5
WCI 3009309 WCI 3009309 Contact Us For Availability
5
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
5
THERMOSTAT WCI 08013926 Contact Us For Availability
6
TOP-COOK (WHITE) WCI 3014536 Contact Us For Availability
6
SPACER (2) WCI 08007963 Contact Us For Availability
6
WCI 3051041 WCI 3051041 Contact Us For Availability
6
SEAL-OVEN DOOR WCI 08008022 Contact Us For Availability
6
WCI 08007980 WCI 08007980 Contact Us For Availability
7
WCI 08013296 WCI 08013296 Contact Us For Availability
7
FRAME - FRONT WCI 3205578 Contact Us For Availability
7
WCI 3202752 WCI 3202752 Contact Us For Availability
8
WCI 08008009 WCI 08008009 Contact Us For Availability
8
HANDLE WCI 08013882 Contact Us For Availability
8
HINGE-OVEN DOOR RH WCI 3204670 Contact Us For Availability
8
WCI 3009495 WCI 3009495 Contact Us For Availability
9
WCI 3015248 WCI 3015248 Contact Us For Availability
9
TRIM MOULDING WCI 08008059 Contact Us For Availability
9
PANEL-DRAWER (WHITE) WCI 3017169 Contact Us For Availability
9
SPRING-DOOR (2) WCI 08008028 Contact Us For Availability
9
LOXIT - NUT (2) WCI 08008363 Contact Us For Availability
10
CORD - POWER WCI 3015249 Contact Us For Availability
10
PANEL-DOOR (WHITE) WCI 3014980 Contact Us For Availability
10
WCI 3017184 WCI 3017184 Contact Us For Availability
10
SHELF-RACK (2) WCI 08068027 Contact Us For Availability
10
WCI 3131099 WCI 3131099 Contact Us For Availability
11
WCI 08008255 WCI 08008255 Contact Us For Availability
11
WCI 08008057 WCI 08008057 Contact Us For Availability
11
HINGE-BROILER DOOR RH WCI 3131028 Contact Us For Availability
11
LINER-OVEN-BOTTOM WCI 3018282 Contact Us For Availability
11
COVER - OVEN VALVE WCI 08007986 Contact Us For Availability
11A
HINGE-BROILER DOOR LH WCI 3131029 Contact Us For Availability
12
WCI 08008076 WCI 08008076 Contact Us For Availability
12
RETAINER-OUTER GLASS (2) WCI 08007938 Contact Us For Availability
12
WCI 08007969 WCI 08007969 Contact Us For Availability
12
SCREW-LEVELER (4) WCI 08068019 Contact Us For Availability
12
WCI 08008051 WCI 08008051 Contact Us For Availability
13
PANEL - BACK WCI 08013966 Contact Us For Availability
13
TRACK-BROILER DRAWER RH WCI 3051055 Contact Us For Availability
13
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
13
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
13A
TRACK-BROILER DRAWER LH WCI 3051056 Contact Us For Availability
14
WCI 08007925 WCI 08007925 Contact Us For Availability
14
WCI 08007973 WCI 08007973 Contact Us For Availability
14
WCI 08068047 WCI 08068047 Contact Us For Availability
14
TERMINAL BOARD WCI 08007985 Contact Us For Availability
15
WCI 3018709 WCI 3018709 Contact Us For Availability
15
VALVE - OVEN SAFETY WCI 08009419 Contact Us For Availability
15A
WCI 3018710 WCI 3018710 Contact Us For Availability
15B
WCI 3018713 WCI 3018713 Contact Us For Availability
15C
WCI 3018712 WCI 3018712 Contact Us For Availability
16
RETAINER-INSULATION WCI 08011515 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17
WCI 08008002 WCI 08008002 Contact Us For Availability
17A
WCI 3017172 WCI 3017172 Contact Us For Availability
18
Support,oven rear WCI 3051096 Contact Us For Availability
18
WCI 08013925 WCI 08013925 Contact Us For Availability
19
WCI 3017173 WCI 3017173 Contact Us For Availability
19
VALVE - TOP BURNER (4) WCI 08013940 Contact Us For Availability
20
WCI 08011650 WCI 08011650 Contact Us For Availability
20
WCI 3131096 WCI 3131096 Contact Us For Availability
21
WCI 08008357 WCI 08008357 Contact Us For Availability
21
SUPPORT-TOP BURNER (2) WCI 3203964 Contact Us For Availability
22
IGNITOR - TOP (2) WCI 3203970 Contact Us For Availability
23
MAIN BACK WCI 3013340 Contact Us For Availability
23
WCI 3131079 WCI 3131079 Contact Us For Availability
24
BURNER BOX BOTTOM WCI 3017174 Contact Us For Availability
24
WCI 3131080 WCI 3131080 Contact Us For Availability
25
WCI 3051511 WCI 3051511 Contact Us For Availability
25
WCI 08013856 WCI 08013856 Contact Us For Availability
× ![]()
