Model Frigidaire GCFD3661AF0 RANGE – Common Parts & Diagrams

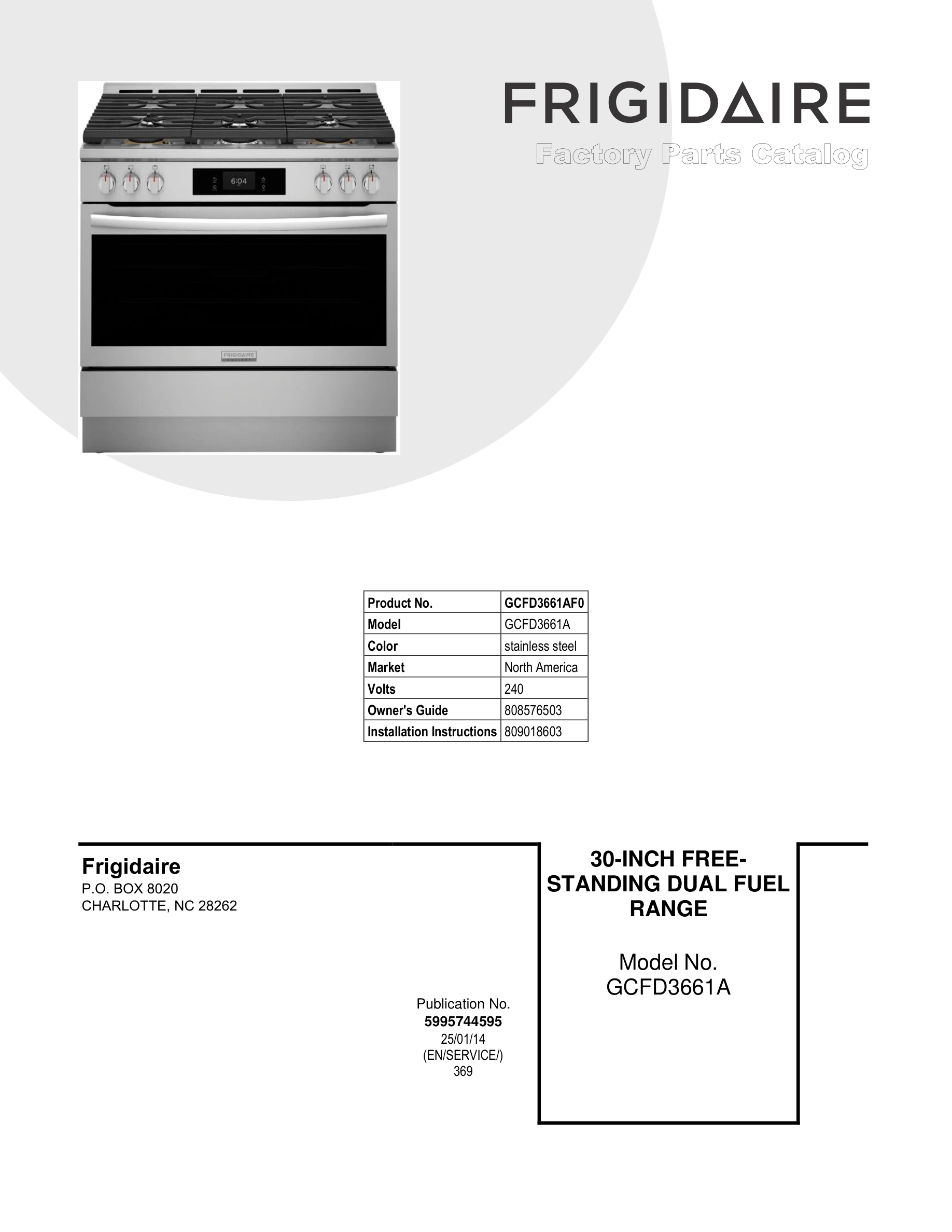

01 - COVER

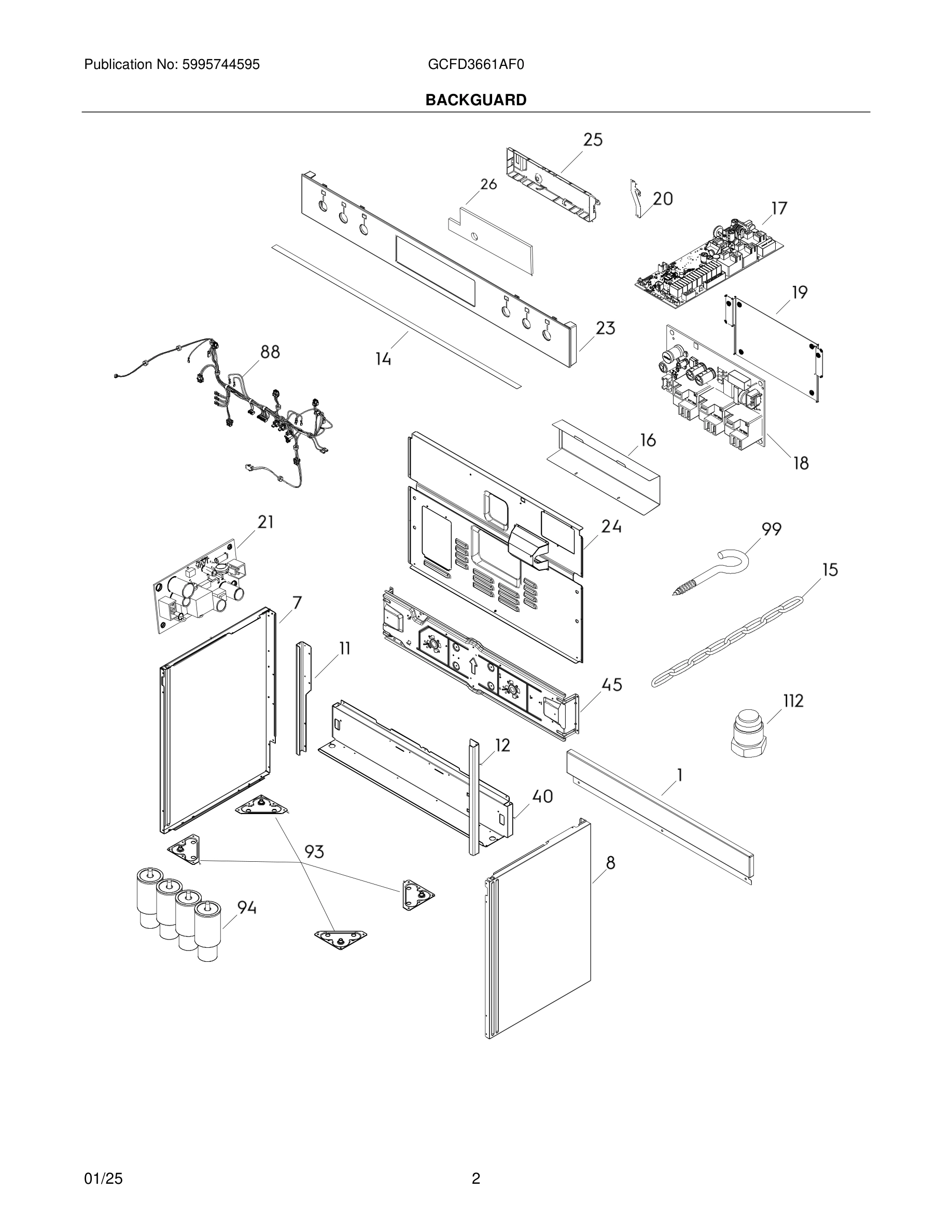

03 - BACKGUARD

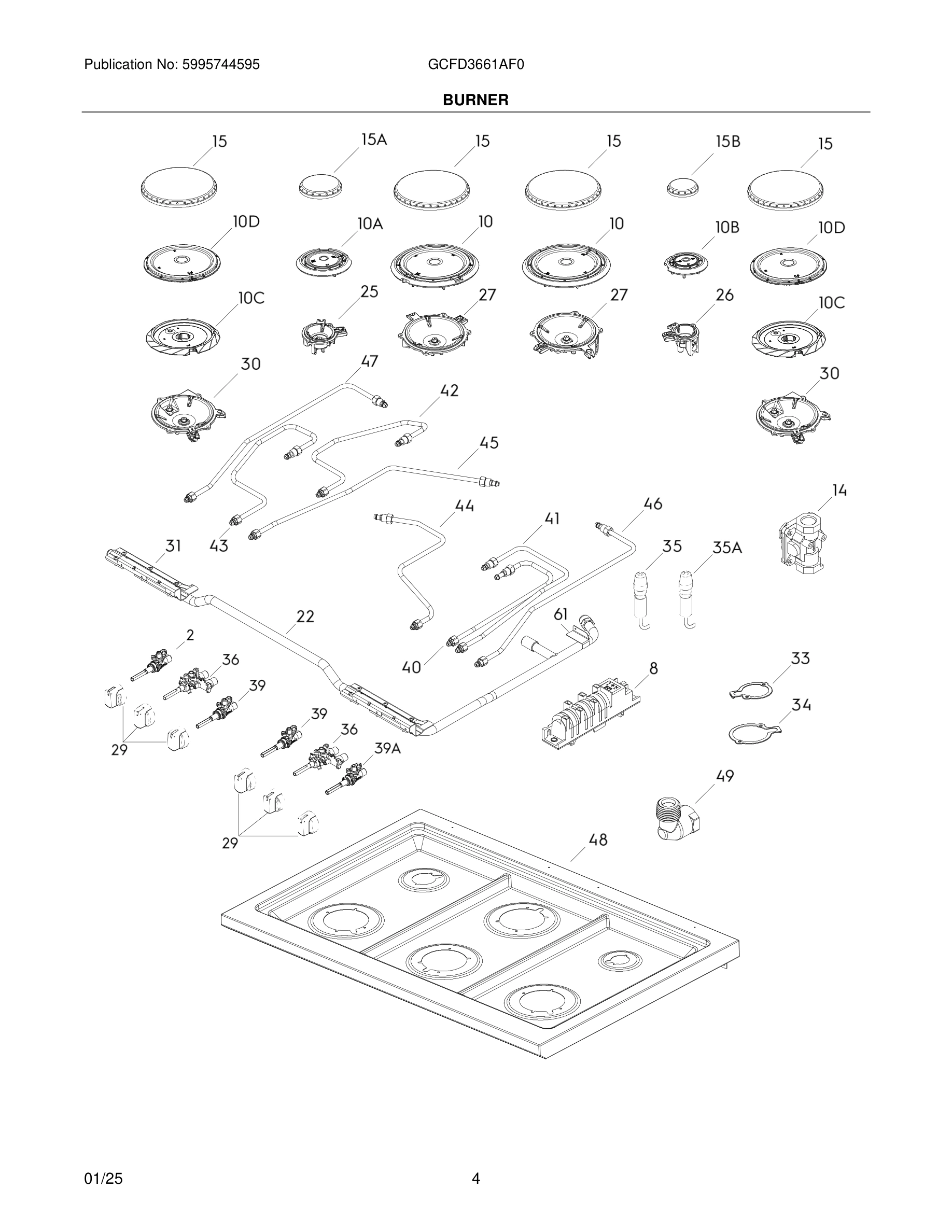

05 - BURNER

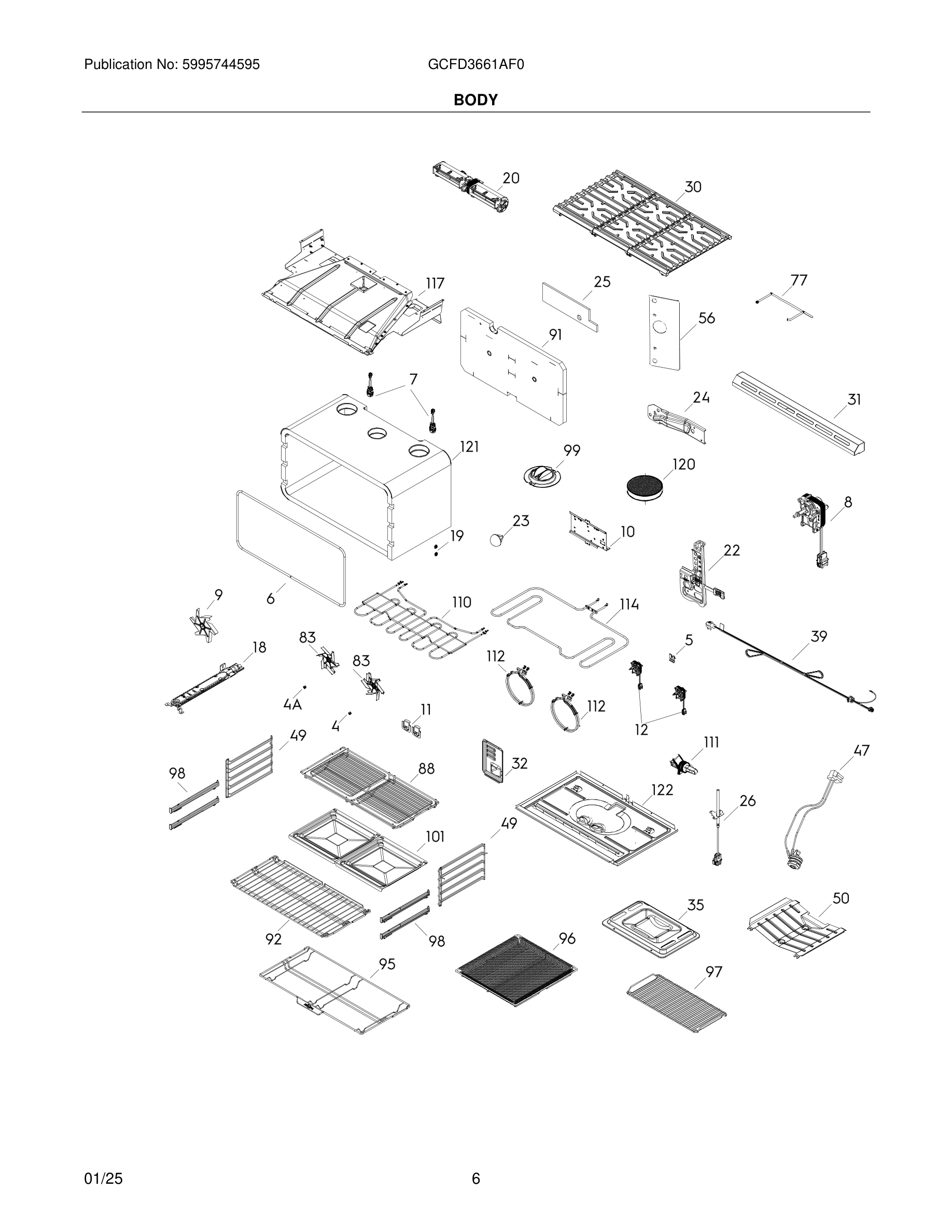

07 - BODY

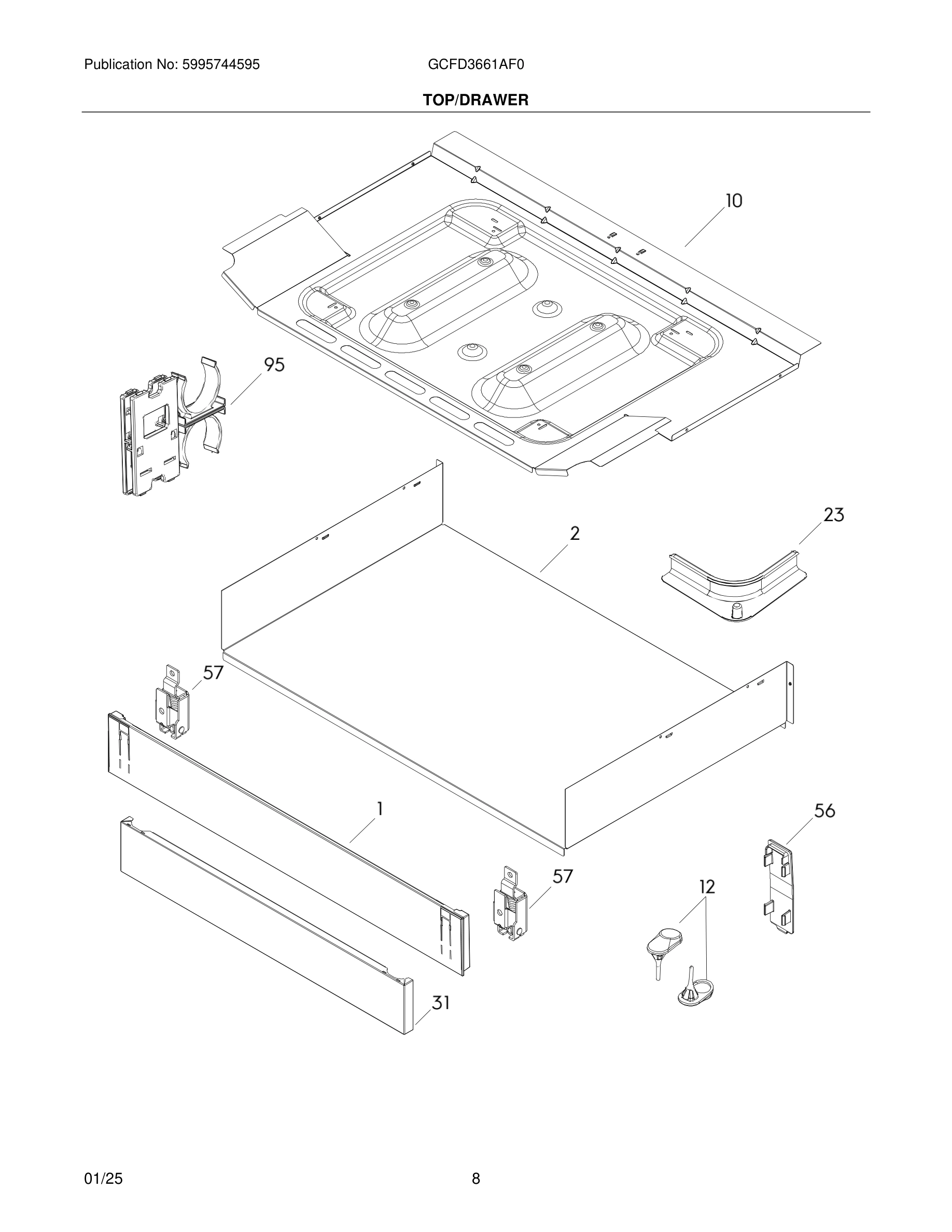

09 - TOP/DRAWER

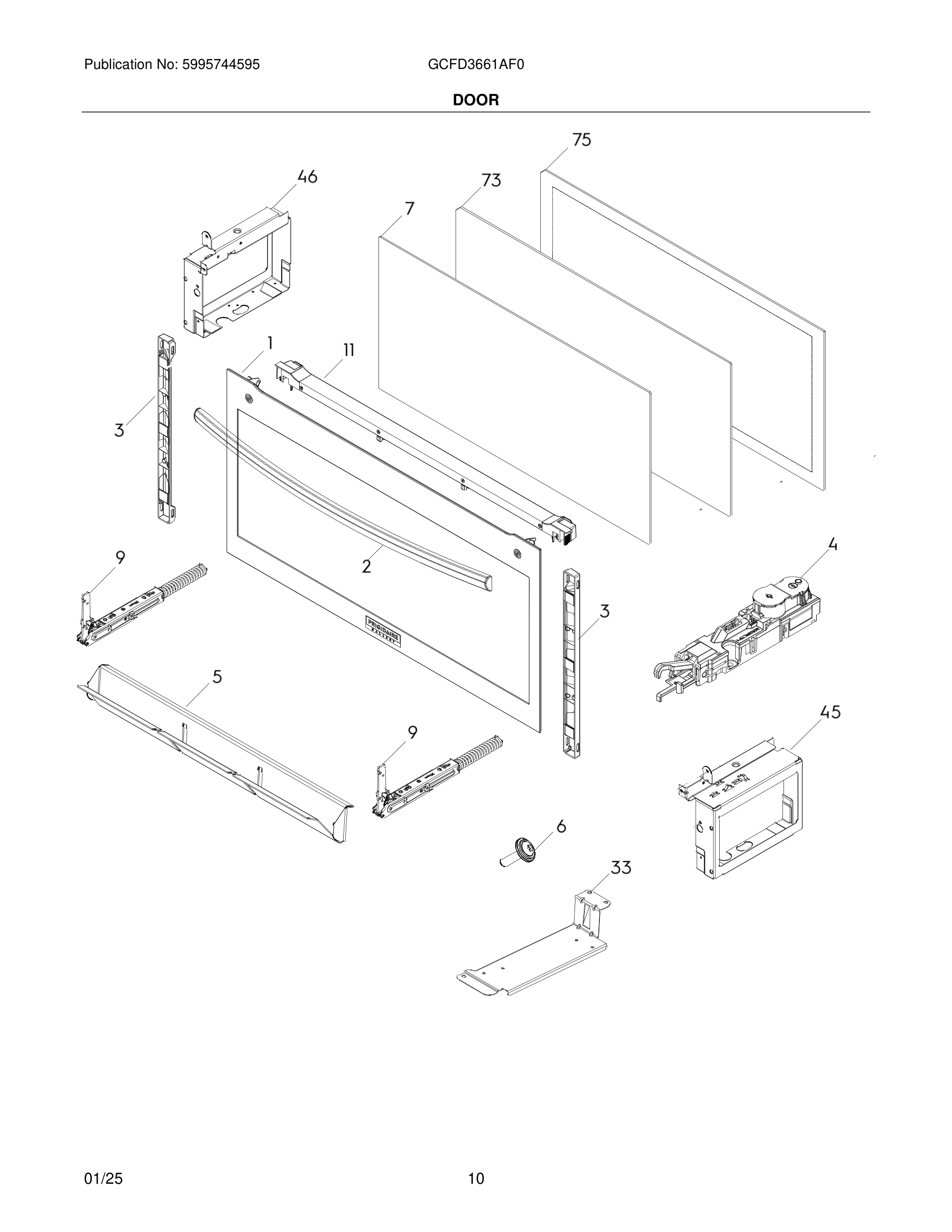

11 - DOOR
Common parts from model Frigidaire GCFD3661AF0 RANGE
*
Cable Tie, push mount, black WCI 5304533818 Contact Us For Availability
*
Screw, 2.9x13 WCI 5304536232 Contact Us For Availability
*
Screw, M4x16 WCI 8583053385016 Contact Us For Availability
*
Screw, M4x8, phil WCI 8583053386022 Contact Us For Availability
*
Probe, food, assembly WCI 807822609 Contact Us For Availability
*
Screw, PAN PHIL, #6 x 9.5, zinc WCI 4055548707 Contact Us For Availability
*
Clip, thermostat, BIOS WCI 4055548848 Contact Us For Availability
*
Screw, #2 PH AB MUSH, #8 x 1/2, black WCI 4055548921 Contact Us For Availability
*
Screw, PH2 nylon washr, #8 x 1/2 WCI 4055549952 Contact Us For Availability
*
Screw #8, 3/8 W/HD WCI 4055563318 Contact Us For Availability
*
Kit Terminal WCI 5304536206 Contact Us For Availability
*
Screw, #8 x 3/8 mush WCI 85807010090377 Contact Us For Availability
*
Screw, #8 x 1/2 hex ni WCI 85807010150064 Contact Us For Availability
*
Cable Tie, PLT1M-M30 WCI 4055541587 Contact Us For Availability
*
Screw #8, Tx20 WCI 4055563078 Contact Us For Availability
*
Screw, PH2 HEX 1/4, M4 x 5, black, door hinge WCI 85801500052716 Contact Us For Availability
*#
Harness, wiring, Link 3-wire WCI 5304536207 Contact Us For Availability
1
Door, complete, storage WCI 5304536204 Contact Us For Availability
1
Door, complete, stainless WCI 5304536198 Contact Us For Availability
2
Panel, storage, drawer WCI 380096719 Contact Us For Availability
2
Handle, door, assembly WCI 5304536199 Contact Us For Availability
4
Nut, fan motor, RH WCI 4055471017 Contact Us For Availability
4#
Door, lock, global WCI 5304536188 Contact Us For Availability
4A
Nut, fan motor, LH WCI 4055471025 Contact Us For Availability
5
Support, element, heating WCI 4055471116 Contact Us For Availability
5
Spacer, door glass WCI 5304536202 Contact Us For Availability
6
Gasket, seal, oven WCI 4055494738 Contact Us For Availability
6
Screw, T20 PAN, m4 x 16, handle WCI 5612311166 Contact Us For Availability
7
Glass, inner door WCI 5304536201 Contact Us For Availability
8
Panel, arctic, LH WCI 5304536178 Contact Us For Availability
10
Bracket, rear, oven WCI 5304536174 Contact Us For Availability
10
Panel, storage, drawer WCI 5304536181 Contact Us For Availability
10C
Burner, double, 18K, bottom WCI 5304535123 Contact Us For Availability
10D
Burner, double, 18K, top WCI 5304535122 Contact Us For Availability
11
Bracket, reinforcement, LH WCI 5304536179 Contact Us For Availability
11
Clip, element mtg. WCI 4055548723 Contact Us For Availability
11
Trim, door vent, top WCI 5304536203 Contact Us For Availability
12
Bracket, reinforcement, RH WCI 5304536180 Contact Us For Availability
12
Bumper, storage door WCI 5890010431 Contact Us For Availability
12#
Motor, fan, 120V WCI 5304536173 Contact Us For Availability
14
Gasket, control panel WCI 85802080034637 Contact Us For Availability
14#
Regulator, pressure WCI 5304509817 Contact Us For Availability
15
Chain, anti-tilt WCI 5304536182 Contact Us For Availability
16
Bracket, counterweight WCI 5304536183 Contact Us For Availability
19
Bracket, mounting, joey board WCI 5304536175 Contact Us For Availability
19
Clip, side rails WCI 5614852019 Contact Us For Availability
20
Bracket, earth C/P WCI 5304536184 Contact Us For Availability
21#
Board, backlit, knob choke WCI 5304536187 Contact Us For Availability
22
Shield, terminal block WCI 5304536191 Contact Us For Availability
23
Bumper, stop, black WCI 4055470712 Contact Us For Availability
23
Cover, storage door, corner WCI 140074187018 Contact Us For Availability
24
Panel Assembly, back, gas vulcan WCI 5304536176 Contact Us For Availability
24
Bracket, temp probe WCI 4055549598 Contact Us For Availability
25#
Ignitor, vesta med, assembly WCI 5304536243 Contact Us For Availability
26
Insulation, glassfiber WCI 5304536194 Contact Us For Availability
26#
Ignitor, vesta small, assembly WCI 5304536244 Contact Us For Availability
27#
Burner, assembly, xlarge WCI 5304536245 Contact Us For Availability
29
Knob, assembly WCI 5304536195 Contact Us For Availability
30
Trivet, grate kit WCI 5304536208 Contact Us For Availability
30#
Orifice holder, assembly, 18K WCI 5304536246 Contact Us For Availability
31
Bracket, gas rail, 6 burner WCI 5304536247 Contact Us For Availability
31
Trim, vent, top WCI 5304536209 Contact Us For Availability
31
Panel, plinth, 90cm WCI 5304536210 Contact Us For Availability
32*#
Harness, backlit, burner WCI 5304536231 Contact Us For Availability
33
Seal, gasket, burner WCI 5304536229 Contact Us For Availability
33
Bracket, door lock, mount WCI 140195734011 Contact Us For Availability
34
Seal, gasket, small, burner WCI 5304536230 Contact Us For Availability
35
Spark Plug, 540mm WCI 5304536233 Contact Us For Availability
35A#
Spark Plug, 840mm WCI 5304536234 Contact Us For Availability
36
Gas valve, dual enterprise, burner WCI 5304536249 Contact Us For Availability
39
Gas tap, 2000 WCI 5304536250 Contact Us For Availability
39A#
Gas tap, 500 WCI 5304536251 Contact Us For Availability
40
Brace, lower WCI 140208023014 Contact Us For Availability
40#
Tube, gas burner, outer RF WCI 5304536235 Contact Us For Availability
41#
Tube, gas burner, inner RF WCI 5304536236 Contact Us For Availability
42#
Tube, gas burner, outer LF WCI 5304536237 Contact Us For Availability
43#
Tube, gas burner, inner LF WCI 5304536238 Contact Us For Availability
44#
Tube, gas burner, MF WCI 5304536239 Contact Us For Availability
45
Brace, oven, rear WCI 140211814011 Contact Us For Availability
45
Hinge, receiver, RH WCI 140226412017 Contact Us For Availability
45#
Tube, gas burner, MR WCI 5304536240 Contact Us For Availability
46
Hinge, receiver, LH WCI 140226412025 Contact Us For Availability
46#
Tube, gas burner, RR WCI 5304536241 Contact Us For Availability
47
Receptable, food sensor WCI 5304536224 Contact Us For Availability
47#
Tube, gas burner, LR WCI 5304536242 Contact Us For Availability
49
Fitting elbow, 1/2'' WCI 5304536205 Contact Us For Availability
49
Rack, set, oven WCI 140263259016 Contact Us For Availability
56
Cap, storage door WCI 85800070092946 Contact Us For Availability
57
Hinge, storage door WCI 85800450033197 Contact Us For Availability
61
Spring, HOB, burner WCI 140033817010 Contact Us For Availability
77
Spring, hot air, motor WCI 140126103013 Contact Us For Availability
83
Impeller, fan, oven WCI 140117617013 Contact Us For Availability
88
Rack, air fryer, assembly WCI 140188856011 Contact Us For Availability
88#
Harness, wiring, main dual WCI 5304536190 Contact Us For Availability
91
Insulation, back, oven WCI 140129471011 Contact Us For Availability
92
Rack, shelf WCI 140130981016 Contact Us For Availability
95
Shelf, air fry WCI 140177100017 Contact Us For Availability
95
Clip, plinth WCI 140169115015 Contact Us For Availability
96
Tray, air fry WCI 140177094012 Contact Us For Availability
97
Rack, insert, oven WCI 140181661012 Contact Us For Availability
98
Glider, slide double WCI 140181583018 Contact Us For Availability
99
Hook, 4.2x60 WCI 5304536211 Contact Us For Availability
99
Retainer, pyro WCI 140023772019 Contact Us For Availability
101
Tray, full width WCI 140185619016 Contact Us For Availability
110
Heating element, grill, 1700W WCI 5304536170 Contact Us For Availability
111
Clip, standoff WCI 85806270010026 Contact Us For Availability
112
Manifold, plug WCI 5304536197 Contact Us For Availability
112
Element heating, fan, ring WCI 5304536171 Contact Us For Availability
114
Element heating, bottom, 1800W WCI 5304536172 Contact Us For Availability
117
Panel Assembly, Deck, gas vulcan WCI 5304536185 Contact Us For Availability
120
Catalyst, pyro WCI 140003385014 Contact Us For Availability
121
Insulation, oven WCI 140016063020 Contact Us For Availability
122
Shield, heater, lower oven WCI 140124778014 Contact Us For Availability
× ![]()
