Model LG GCC-4241N 24X SLIM COMBO (L2) – Common Parts & Diagrams

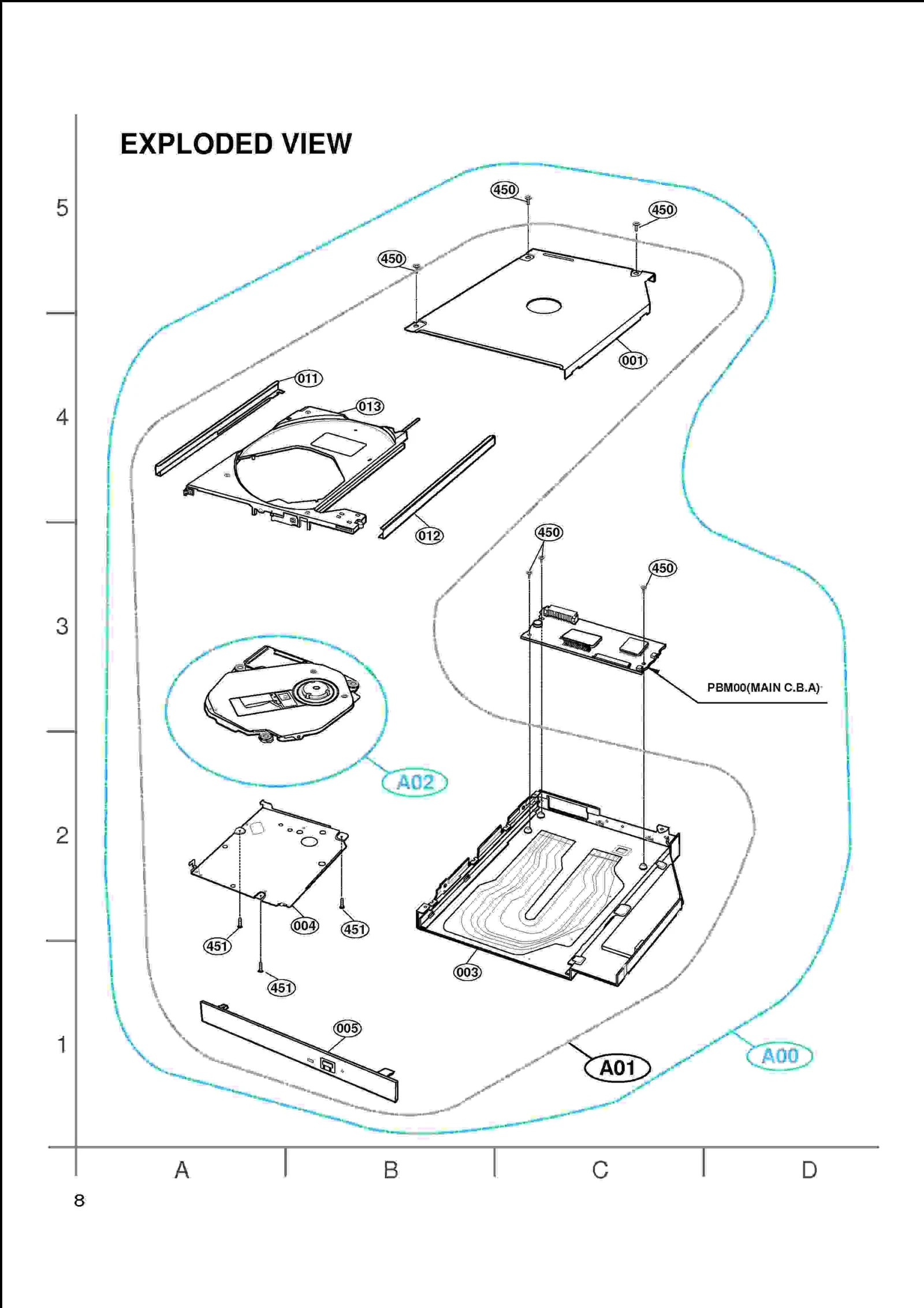

Diagram 0
Diagram 1
Common parts from model LG GCC-4241N 24X SLIM COMBO (L2)
001
LGE 3090H-1027A LGE 3090H-1027A Contact Us For Availability
003
LGE 3141H-1051A LGE 3141H-1051A Contact Us For Availability
004
LGE 3550H-1089A LGE 3550H-1089A Contact Us For Availability
005
LGE 3061H-1095B LGE 3061H-1095B Contact Us For Availability
011
LGE 3750H-1017A LGE 3750H-1017A Contact Us For Availability
012
LGE 3750H-1018A LGE 3750H-1018A Contact Us For Availability
013
LGE 3391H-1018A LGE 3391H-1018A Contact Us For Availability
451
Screw,Customized LGE 1SZZH-1077A Contact Us For Availability
802
LGE 3890H-1637A LGE 3890H-1637A Contact Us For Availability
A00
LGE 4405H-1202Q LGE 4405H-1202Q Contact Us For Availability
A01
LGE 4405H-1203Q LGE 4405H-1203Q Contact Us For Availability
A02
LGE 3041H-1106A LGE 3041H-1106A Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE 0CK223BF56A Contact Us For Availability
C110
Capacitor,Ceramic,Chip LGE 0CK682BH5CA Contact Us For Availability
C112
Capacitor,Ceramic,Chip LGE 0CK472BH56A Contact Us For Availability
C113
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C116
LGE 0CK272BK56A LGE 0CK272BK56A Contact Us For Availability
C118
Capacitor,Ceramic,Chip LGE 0CK561BK56A Contact Us For Availability
C124
Capacitor,Ceramic,Chip LGE 0CK473BD56A Contact Us For Availability
C125
Capacitor,Ceramic,Chip LGE 0CK821BK56A Contact Us For Availability
C129
Capacitor,Ceramic,Chip LGE 0CC470BK41A Contact Us For Availability
C131
Capacitor,Ceramic,Chip LGE 0CK104BD56A Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CK104BF94A Contact Us For Availability
C220
Capacitor,Ceramic,Chip LGE 0CK224CCG1A Contact Us For Availability
C221
LGE 0CK273BD56A LGE 0CK273BD56A Contact Us For Availability
C222
Capacitor,Ceramic,Chip LGE 0CK334CCG1A Contact Us For Availability
C231
Capacitor,Ceramic,Chip LGE 0CC151BKF1A Contact Us For Availability
C232
Capacitor,Ceramic,Chip LGE 0CK153BF56A Contact Us For Availability
C237
Capacitor,Ceramic,Chip LGE 0CK221BK56A Contact Us For Availability
C238
Capacitor,Ceramic,Chip LGE 0CC100BK41A Contact Us For Availability
C242
Capacitor,Ceramic,Chip LGE 0CK562BH56A Contact Us For Availability
C246
Capacitor,Ceramic,Chip LGE 0CK220BK4CA Contact Us For Availability
C251
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CC101BK41A Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C310
LGE 0CK225DC56A LGE 0CK225DC56A Contact Us For Availability
C401
Capacitor,Ceramic,Chip LGE 0CK225CCG7A Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE 0CK106EC56A Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
C507
Capacitor,TA,Niobium LGE 0CZZH336261 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CK103BF56A Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
D801
LGE 0DZRM00258A LGE 0DZRM00258A Contact Us For Availability
IC101
LGE 0ILNRMA010A LGE 0ILNRMA010A Contact Us For Availability
IC201
LGE 0IMCRMA021D LGE 0IMCRMA021D Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRRH020A Contact Us For Availability
IC502
LGE 0IPMGSH008A LGE 0IPMGSH008A Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMREB006A Contact Us For Availability
IC601
IC,ELITE MEMORY TECH LGE 0IEB121616A Contact Us For Availability
IC601
LGE 0IMMRCX002A LGE 0IMMRCX002A Contact Us For Availability
IC602
LGE 0IMMRMR016C LGE 0IMMRMR016C Contact Us For Availability
IC602
LGE 0IMMRMR016A LGE 0IMMRMR016A Contact Us For Availability
IC602
LGE 0IMMRSW009A LGE 0IMMRSW009A Contact Us For Availability
L501
LGE 0LCSG00001A LGE 0LCSG00001A Contact Us For Availability
PBM00
LGE 6871H-T08AA LGE 6871H-T08AA Contact Us For Availability
Q201
TR,Bipolar LGE 0TRRH80050A Contact Us For Availability
Q303
TR,Array LGE GTRRH80008A Contact Us For Availability
Q304
TR,Bipolar LGE 0TRMA80001A Contact Us For Availability
Q304
TR,Bipolar LGE 0TRRH80048A Contact Us For Availability
Q305
TR,Bipolar LGE 0TR144009DA Contact Us For Availability
Q401
TR,Array LGE GTRRH80009A Contact Us For Availability
Q501
LGE 0TRRH80049A LGE 0TRRH80049A Contact Us For Availability
Q502
LGE 0TRRH80040A LGE 0TRRH80040A Contact Us For Availability
Q502
TR,Bipolar LGE 0TR461739AA Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R116
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R223
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R237
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R240
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R257
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R267
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R310
Resistor,Chip LGE 0RJ0392C672 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
RA102
LGE 0RJ5600C684 LGE 0RJ5600C684 Contact Us For Availability
RA202
LGE 0RJ0000C684 LGE 0RJ0000C684 Contact Us For Availability
RA206
Resistor,Chip LGE 0RJ1002C684 Contact Us For Availability
RA804
Resistor,Array LGE 0RJ0332C684 Contact Us For Availability
RA805
Resistor,Array LGE 0RZZH082273 Contact Us For Availability
SW302
Switch,Tact LGE 6600RRT001Y Contact Us For Availability
TH501
LGE 6600AR9458C LGE 6600AR9458C Contact Us For Availability
TH502
LGE 6600AR9458B LGE 6600AR9458B Contact Us For Availability
X201
Resonator,Ceramic LGE 6212BB2002A Contact Us For Availability
× ![]()
