Model Electrolux GC932EXW1 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - POWER CONTROL

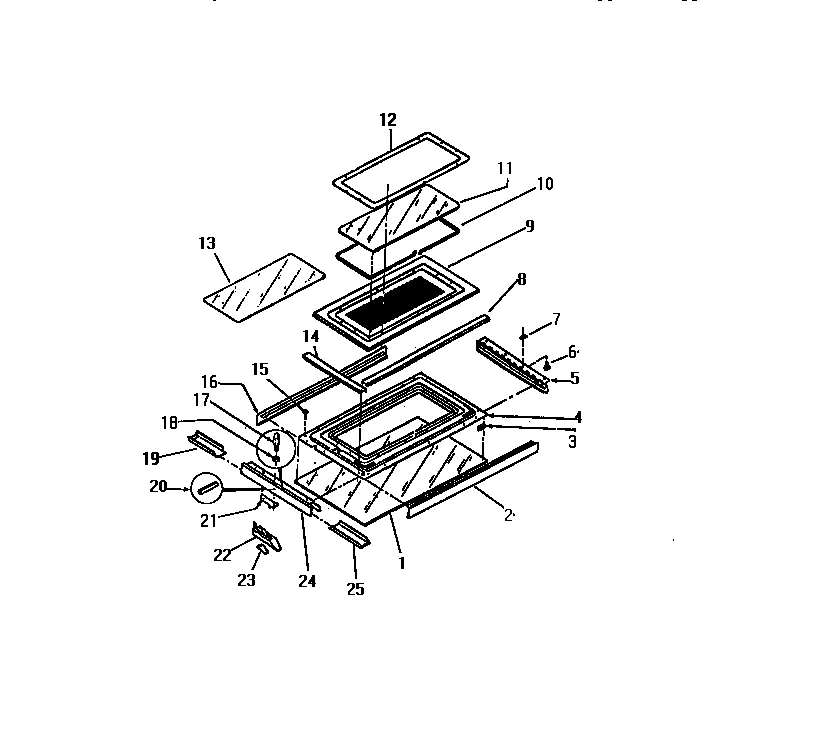

04 - UPPER DOOR

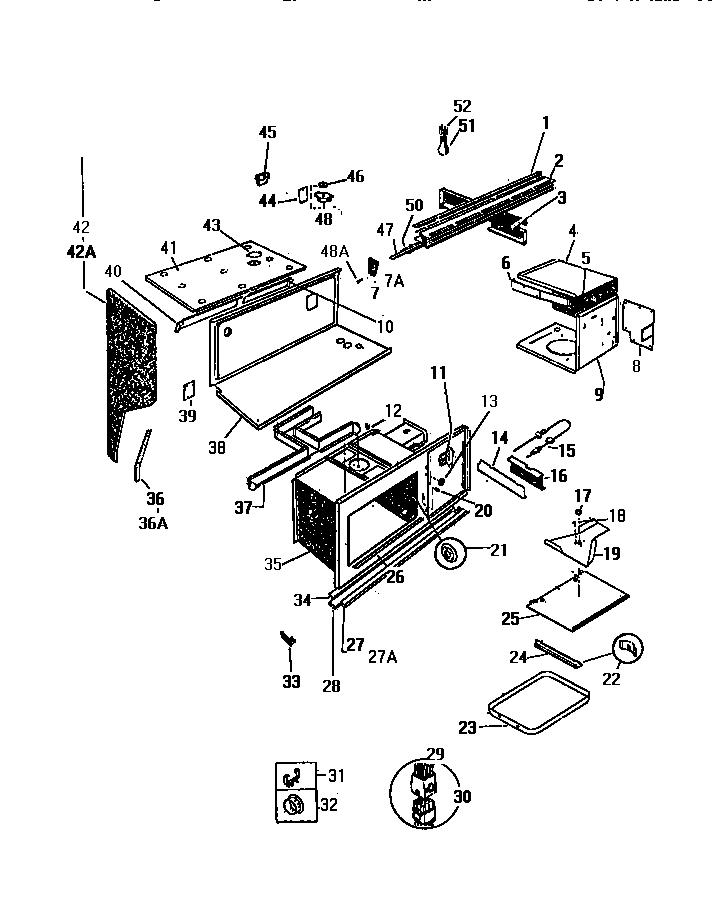

05 - UPPER BODY

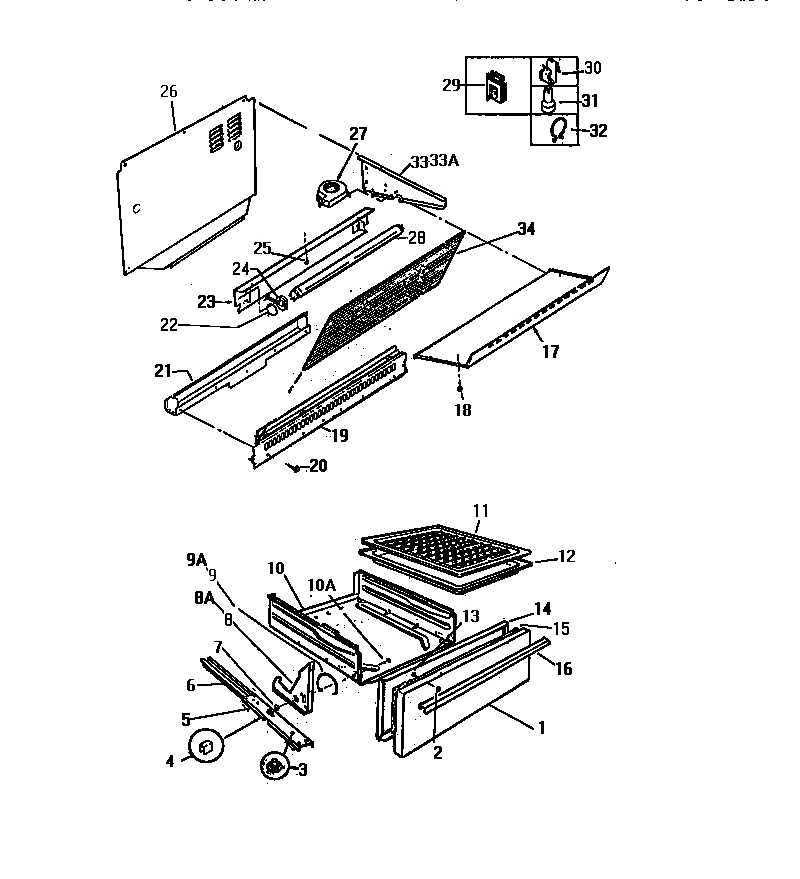

06 - SPLASHER & LOWER DRAWER

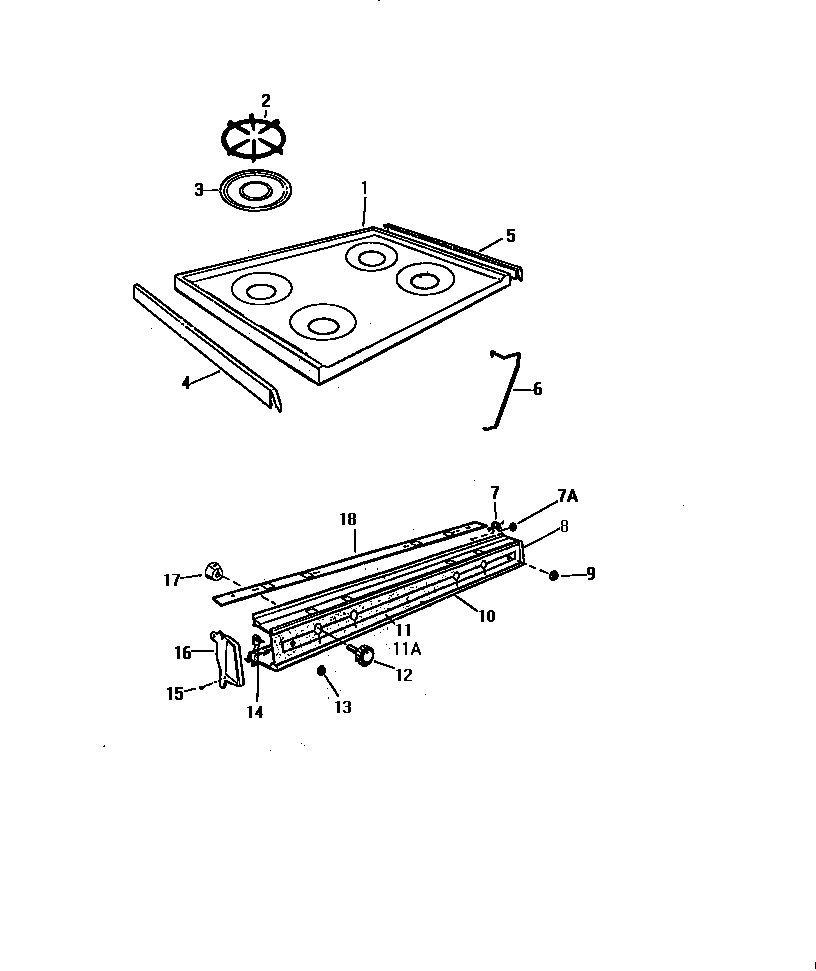

07 - CONTROL PANEL & TOP

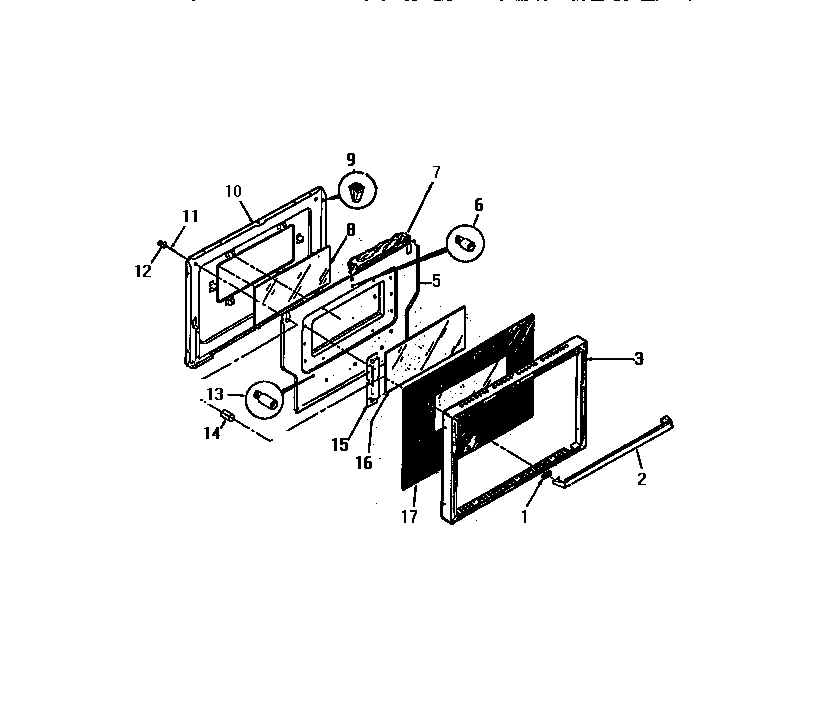

08 - LOWER OVEN DOOR

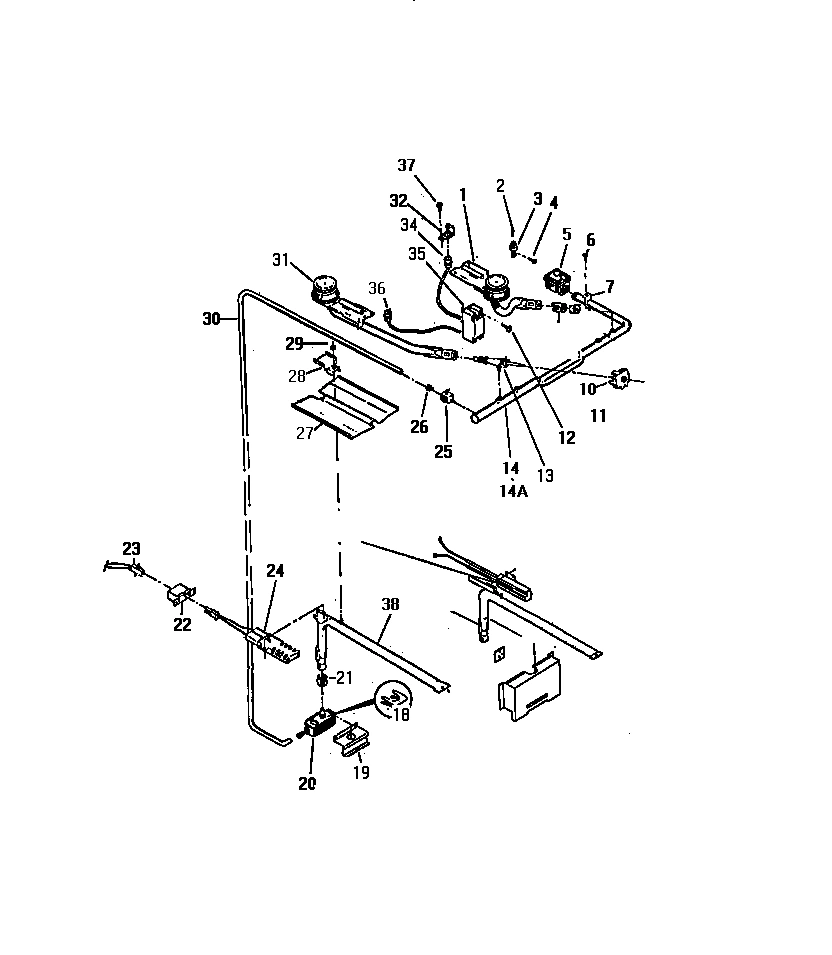

09 - BURNERS, MANIFOLD & CONTROLS

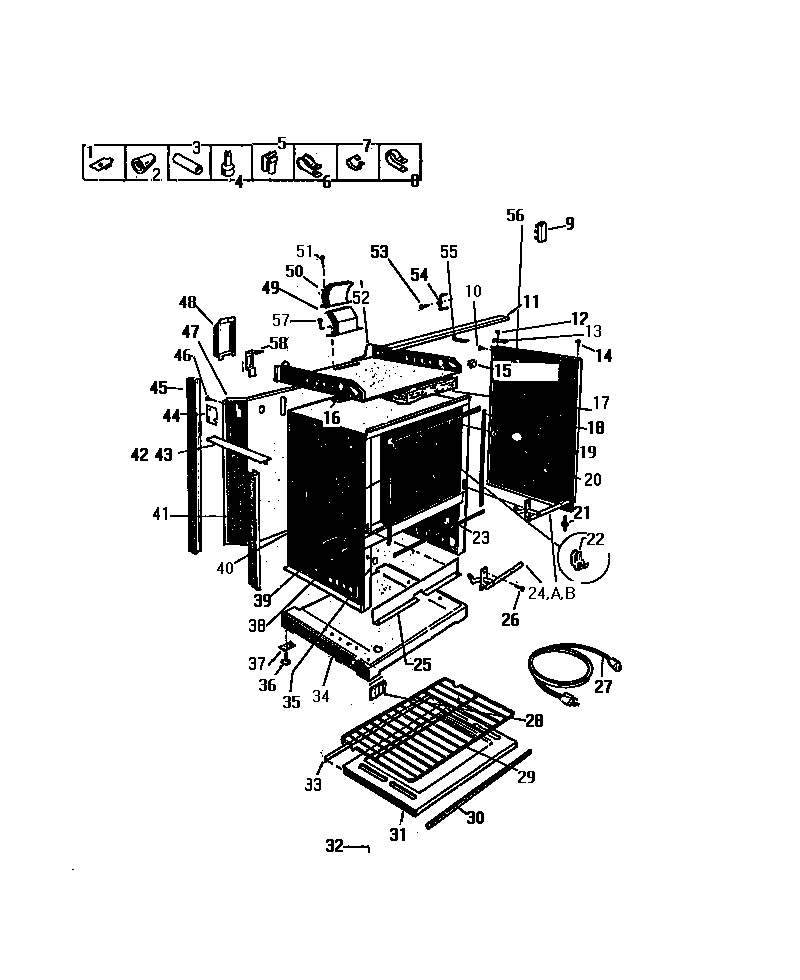

10 - LOWER OVEN DOOR

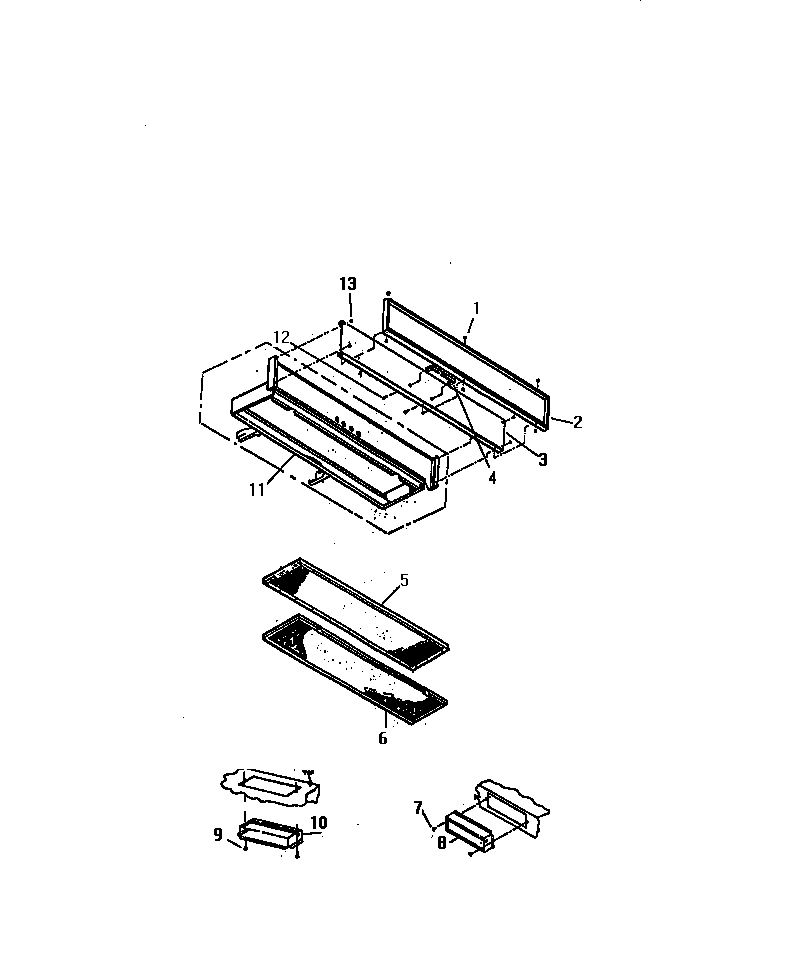

11 - VENT HOOD, HV35FK & HD35FK

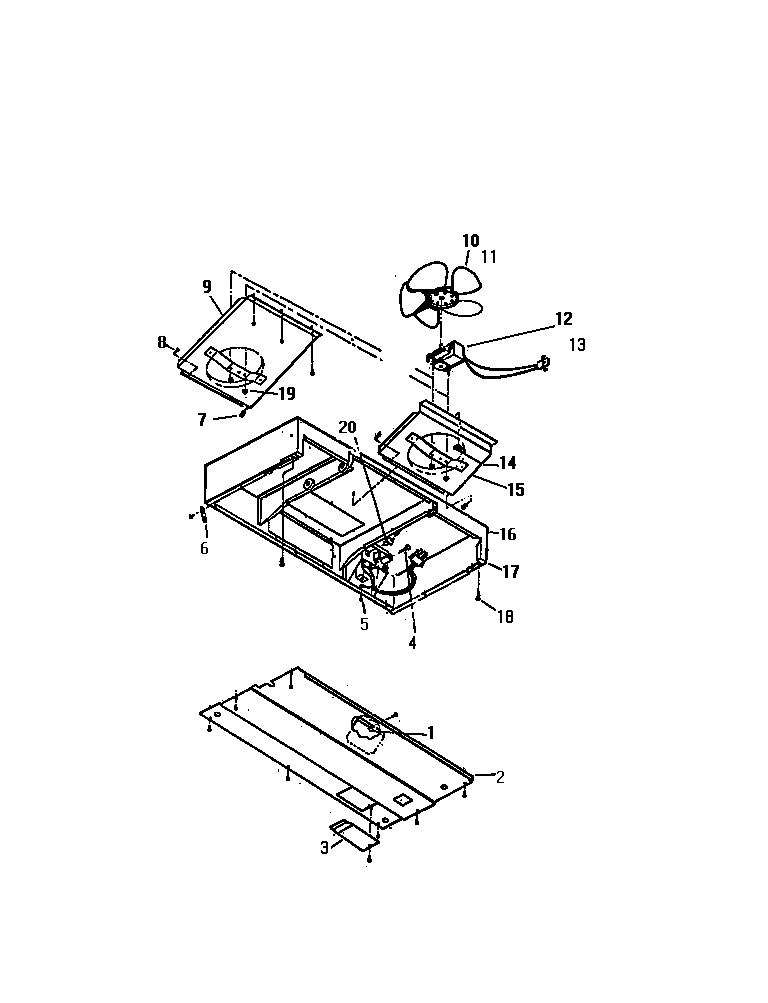

12 - VEN HOOD, HV35FK & HD35FK
Common parts from model Electrolux GC932EXW1 RANGE
*38040
SCREW, CONTROL PANEL (8A X 1/2`` PH. FL. HD.) WCI 636T069P05 Contact Us For Availability
*38041
SCREW, CONTROL PANEL, 8A X 1/2`` ROUND WCI 636T090P51 Contact Us For Availability
*38045
SCREW, 8A X 3/8`` PH. OV. 6 HD. WCI 636T090P34 Contact Us For Availability
*38046
SCREW (8A X 1/2 PH. TR. W/FL. WR.) WCI 636T090P05 Contact Us For Availability
*38048
WCI 331T117P01 WCI 331T117P01 Contact Us For Availability
*38049
WCI 241T039P01 WCI 241T039P01 Contact Us For Availability
*38050
WCI Q279922 WCI Q279922 Contact Us For Availability
*38051
WCI 789T053P30 WCI 789T053P30 Contact Us For Availability
*38052
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*38053
WCI 615T038P01 WCI 615T038P01 Contact Us For Availability
*38054
WCI 615T030P01 WCI 615T030P01 Contact Us For Availability
*38055
WCI 636T090P38 WCI 636T090P38 Contact Us For Availability
*38056
WCI 636T091P02 WCI 636T091P02 Contact Us For Availability
*38057
SCREW (6-32 X 3/8`` PH RD. W/ WASHER) WCI 636T095P11 Contact Us For Availability
*38058
SCREW (8A X 1/2 PH. HD. W/ WASHER) WCI 636T090P46 Contact Us For Availability
*38059
PLUG BUTTON WCI 557T028P01 Contact Us For Availability
*38060
WCI Q280062 WCI Q280062 Contact Us For Availability
*38062
WCI 636T1399P01 WCI 636T1399P01 Contact Us For Availability
*38065
SCREW, DOOR ASSY (8-18 X 1/2 PH. WR. HD.) WCI 636T139P01 Contact Us For Availability
*38067
NUT, FUSE PLATE, WALL (20 AMP, RECEPTACLE) WCI 554T353P01 Contact Us For Availability
*38068
RECEPTACLE, WALL (20 AMP) WCI 597T040P01 Contact Us For Availability
*38075
WCI Q49587 WCI Q49587 Contact Us For Availability
*38078
WCI Q213187 WCI Q213187 Contact Us For Availability
*38079
WCI Q213193 WCI Q213193 Contact Us For Availability
*38080
SCREW, INTERLOCK SWITCH (6) WCI 636T095P16 Contact Us For Availability
*38082
WCI 636T090P18 WCI 636T090P18 Contact Us For Availability
*38083
WCI 636T069P15 WCI 636T069P15 Contact Us For Availability
*38084
SCREW, CONTROL ASSY (4-40 X 1/4``) WCI 636T074P10 Contact Us For Availability
1
WCI 174T172P03 WCI 174T172P03 Contact Us For Availability
1
COVER, MICROWAVE SEAL WCI 174T264P03 Contact Us For Availability
1
WCI 423T015P02 WCI 423T015P02 Contact Us For Availability
1
WCI 276T086P42 WCI 276T086P42 Contact Us For Availability
1
RETAINER, VENT TRIM WCI 612T101F01 Contact Us For Availability
1
WCI Q318039 WCI Q318039 Contact Us For Availability
1
WCI Q279911 WCI Q279911 Contact Us For Availability
1
SPACER (2) WCI 665T125P01 Contact Us For Availability
1
BURNER, TOP FRONT (2) WCI 080T013P01 Contact Us For Availability
1
NUT, FUSE, FASTENER (8AJ TYPE) WCI 241T017P67 Contact Us For Availability
1
WCI 99150486 WCI 99150486 Contact Us For Availability
1
WCI 98005303 WCI 98005303 Contact Us For Availability
2
WCI 696T146P06 WCI 696T146P06 Contact Us For Availability
2
NUT WCI 479T069P31 Contact Us For Availability
2
WCI 233T027P02 WCI 233T027P02 Contact Us For Availability
2
TRIM, TOP VENT WCI 740T454P01 Contact Us For Availability
2
WCI 709T053P12 WCI 709T053P12 Contact Us For Availability
2
WCI Q279685 WCI Q279685 Contact Us For Availability
2
HANDLE WCI 296T088P01 Contact Us For Availability
2
WCI 260T007P02 WCI 260T007P02 Contact Us For Availability
2
COVER, SCREW TIP PROTECTOR WCI 174T133P02 Contact Us For Availability
2
WCI 99650004 WCI 99650004 Contact Us For Availability
2
WCI 98006302 WCI 98006302 Contact Us For Availability
3
PANEL, SWITCH MOUNTING WCI 511T048P01 Contact Us For Availability
3
WCI 262T010P01 WCI 262T010P01 Contact Us For Availability
3
SPACER (3/4 X 3/4 X 4``) WCI 655T165P01 Contact Us For Availability
3
WCI Q279975 WCI Q279975 Contact Us For Availability
3
FRAME WCI 740T483P08 Contact Us For Availability
3
RECEPTACLE, FUSE HOLDER WCI 597T034S01 Contact Us For Availability
3
SLEEVE, INSULATOR WCI 660T032P01 Contact Us For Availability
3
WCI 98005335 WCI 98005335 Contact Us For Availability
3
WCI 98005301 WCI 98005301 Contact Us For Availability
4
WCI 196T035P04 WCI 196T035P04 Contact Us For Availability
4
WCI 664T003P01 WCI 664T003P01 Contact Us For Availability
4
WCI Q279981 WCI Q279981 Contact Us For Availability
4
COVER, BOTTOM DUCT WCI 072T731F01 Contact Us For Availability
4
WCI 106T028P01 WCI 106T028P01 Contact Us For Availability
4
TRIM, LH WCI 740T430W01 Contact Us For Availability
4
WCI 636T089P06 WCI 636T089P06 Contact Us For Availability
4
WCI 99370331 WCI 99370331 Contact Us For Availability
4
WCI 98270531 WCI 98270531 Contact Us For Availability
5
WCI 045T066P01 WCI 045T066P01 Contact Us For Availability
5
WCI 115T695P08 WCI 115T695P08 Contact Us For Availability
5
EXTRUSION, HINGE ASSY WCI 233T026S13 Contact Us For Availability
5
BUSHING, WIRE (3) WCI 102T028P01 Contact Us For Availability
5
WCI 135T282F02 WCI 135T282F02 Contact Us For Availability
5
TRIM, RH WCI 740T430W02 Contact Us For Availability
5
SHIELD, WOOL WCI 655T303F03 Contact Us For Availability
5
PRESSURE REGULATOR WCI 166T008P11 Contact Us For Availability
5
WCI Q213191 WCI Q213191 Contact Us For Availability
5
WCI 99010135 WCI 99010135 Contact Us For Availability
5
WCI 99150471 WCI 99150471 Contact Us For Availability
6
BUTTON, SW KNOB (2) WCI 106T024P01 Contact Us For Availability
6
COVER, DUCT LABEL ASSY WCI 174T253S02 Contact Us For Availability
6
CHANNEL, LOWER GLIDE (2) WCI 136T281F02 Contact Us For Availability
6
ROD (2) WCI 618T038P04 Contact Us For Availability
6
WCI Q213197 WCI Q213197 Contact Us For Availability
6
SCREW WCI 636T100P03 Contact Us For Availability
6
WCI 145T055P01 WCI 145T055P01 Contact Us For Availability
6
WCI 99010136 WCI 99010136 Contact Us For Availability
6
WCI 98005306 WCI 98005306 Contact Us For Availability
7
WCI 358T145P01 WCI 358T145P01 Contact Us For Availability
7
WCI 239T134P01 WCI 239T134P01 Contact Us For Availability
7
WCI Q279659 WCI Q279659 Contact Us For Availability
7
END CAP, UPPER TRIM, LH WCI 123T081P05 Contact Us For Availability
7
WCI Q279611 WCI Q279611 Contact Us For Availability
7
SWITCH, FLUORESCENT LGIHT WCI 695T166P01 Contact Us For Availability
7
INSULATION WCI 328T049P29 Contact Us For Availability
7
WCI 008T276F04 WCI 008T276F04 Contact Us For Availability
7
WCI Q279917 WCI Q279917 Contact Us For Availability
7
WCI 99420313 WCI 99420313 Contact Us For Availability
7A
END CAP, UPPER TRIM, RH WCI 123T081P06 Contact Us For Availability
7A
WCI 789T063P39 WCI 789T063P39 Contact Us For Availability
8
WCI 358T147P01 WCI 358T147P01 Contact Us For Availability
8
MOTOR WCI 115T463P03 Contact Us For Availability
8
SEAL, DOOR, TOP AND BOTTOM WCI 643T014P01 Contact Us For Availability
8
COVER, BOTTOM, DUCT EXTENSION WCI 174T267P01 Contact Us For Availability
8
WCI Q318037 WCI Q318037 Contact Us For Availability
8
END CAP, RH WCI 123T086P02 Contact Us For Availability
8
MIXER, AIR (4) WCI 451T004R01 Contact Us For Availability
8
WCI Q279836 WCI Q279836 Contact Us For Availability
8
WCI 97005594 WCI 97005594 Contact Us For Availability
8
WCI 99450477 WCI 99450477 Contact Us For Availability
8A
WCI Q318038 WCI Q318038 Contact Us For Availability
9
KNOB, TIMER (3) WCI 358T146P01 Contact Us For Availability
9
WCI Q279982 WCI Q279982 Contact Us For Availability
9
WCI 211T044F04 WCI 211T044F04 Contact Us For Availability
9
WCI 676T079P01 WCI 676T079P01 Contact Us For Availability
9
WCI Q280063 WCI Q280063 Contact Us For Availability
9
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
9
MOUNTING SCREW DAMPER (2) (VERTICAL DUCTING) WCI 99170245 Contact Us For Availability
9
WCI 97005799 WCI 97005799 Contact Us For Availability
9A
WCI 676T079P02 WCI 676T079P02 Contact Us For Availability
9A
HEX NUT (NON-ILLUSTRATED) WCI 479T069P09 Contact Us For Availability
9B
WCI 636T096P13 WCI 636T096P13 Contact Us For Availability
9C
WCI 636T096P36 WCI 636T096P36 Contact Us For Availability
10
WCI 740T406P04 WCI 740T406P04 Contact Us For Availability
10
ROD, MOTOR SUPPORT (2) WCI 618T048P01 Contact Us For Availability
10
TAPE, FOAM (IF EQUIPPED) WCI 707R001P01 Contact Us For Availability
10
SHEILD, UPPER, RH VENT WCI 655T307F02 Contact Us For Availability
10
WCI Q318036 WCI Q318036 Contact Us For Availability
10
CONTROL PANEL WCI 233T045P01 Contact Us For Availability
10
WCI Q318035 WCI Q318035 Contact Us For Availability
10
WCI 97006594 WCI 97006594 Contact Us For Availability
10
WCI 99020136 WCI 99020136 Contact Us For Availability
10A
PIN, HINGE WCI 550T041P01 Contact Us For Availability
11
CHANNEL (2) WCI 136T309F01 Contact Us For Availability
11
GLASS, INNER DOOR (IF EQUIPPED) WCI 276T081P02 Contact Us For Availability
11
WCI 597T035P01 WCI 597T035P01 Contact Us For Availability
11
WCI 319T012P05 WCI 319T012P05 Contact Us For Availability
11
SCREW (2) WCI 636T138P06 Contact Us For Availability
11
WCI Q318034 WCI Q318034 Contact Us For Availability
11
WCI Q318031 WCI Q318031 Contact Us For Availability
11
WCI 97005890 WCI 97005890 Contact Us For Availability
11
WCI 99020137 WCI 99020137 Contact Us For Availability
12
WCI 277T204S06 WCI 277T204S06 Contact Us For Availability
12
DIODE, HI VOLTAGE WCI 115T198P01 Contact Us For Availability
12
WCI Q279983 WCI Q279983 Contact Us For Availability
12
WCI Q318002 WCI Q318002 Contact Us For Availability
12
WCI 358T142P98 WCI 358T142P98 Contact Us For Availability
12
WCI 789T063P42 WCI 789T063P42 Contact Us For Availability
12
WCI 636T091P12 WCI 636T091P12 Contact Us For Availability
12
WCI 99160304 WCI 99160304 Contact Us For Availability
12
WCI 99080134 WCI 99080134 Contact Us For Availability
13
WCI 148T176P01 WCI 148T176P01 Contact Us For Availability
13
WCI 115T737P01 WCI 115T737P01 Contact Us For Availability
13
WCI 380T022P01 WCI 380T022P01 Contact Us For Availability
13
WCI 445T004P01 WCI 445T004P01 Contact Us For Availability
13
WCI 045T064P03 WCI 045T064P03 Contact Us For Availability
13
WCI Q213198 WCI Q213198 Contact Us For Availability
13
VALVE, TOP BURNERS (4) WCI 774T099P05 Contact Us For Availability
13
GLIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
13
WCI 93230029 WCI 93230029 Contact Us For Availability
13
WCI 99080133 WCI 99080133 Contact Us For Availability
14
SCREW (4) WCI 636T101P14 Contact Us For Availability
14
WCI 643T014P02 WCI 643T014P02 Contact Us For Availability
14
WCI 008T480P01 WCI 008T480P01 Contact Us For Availability
14
WCI Q318044 WCI Q318044 Contact Us For Availability
14
SWITCH, OVEN LIGHT WCI 695T164P03 Contact Us For Availability
14
SPACER, HANDLE MOUNTING WCI 665T131P03 Contact Us For Availability
14
WCI 439T046P13 WCI 439T046P13 Contact Us For Availability
14
SCREW WCI 636T089P22 Contact Us For Availability
14
WCI 99260472 WCI 99260472 Contact Us For Availability
15
FASTENER WCI 241T017P44 Contact Us For Availability
15
SCREW, DOOR ASSY, 8A X 3/8 PH. TR. HD. WCI 636T046P02 Contact Us For Availability
15
WCI 655T378P01 WCI 655T378P01 Contact Us For Availability
15
PROBE, ROAST CONTROL WCI 115T563P03 Contact Us For Availability
15
INSULATION WCI 328T015P15 Contact Us For Availability
15
CLAMP, CABLE WCI 241T003P01 Contact Us For Availability
15
WCI 072T684F01 WCI 072T684F01 Contact Us For Availability
15
WCI 97006800 WCI 97006800 Contact Us For Availability
16
WCI 612T104F01 WCI 612T104F01 Contact Us For Availability
16
WCI 233T016P04 WCI 233T016P04 Contact Us For Availability
16
WCI 008T378F11 WCI 008T378F11 Contact Us For Availability
16
WCI 296T081P01 WCI 296T081P01 Contact Us For Availability
16
END CAP, LH WCI 123T086P01 Contact Us For Availability
16
GLASS, MIDDLE WCI 276T088P05 Contact Us For Availability
16
WCI 655T301F01 WCI 655T301F01 Contact Us For Availability
16
WCI 97006797 WCI 97006797 Contact Us For Availability
17
NUT WCI 479T069P01 Contact Us For Availability
17
WCI 636T111P03 WCI 636T111P03 Contact Us For Availability
17
PANEL, UPPER SPLASHER WCI 513T073F18 Contact Us For Availability
17
DIAL, TOP VALVE (4) WCI 196T034P02 Contact Us For Availability
17
GLASS, OUTER WCI 276T098P02 Contact Us For Availability
17
WCI Q134234 WCI Q134234 Contact Us For Availability
17
WCI 97006798 WCI 97006798 Contact Us For Availability
18
WCI 521T085W03 WCI 521T085W03 Contact Us For Availability
18
NUT (8-32 SPECIAL) WCI 479T069P30 Contact Us For Availability
18
WCI 636T095P31 WCI 636T095P31 Contact Us For Availability
18
WCI 277T185P03 WCI 277T185P03 Contact Us For Availability
18
WCI Q213192 WCI Q213192 Contact Us For Availability
18
SEAL, OVEN DOOR SIDE, RH & LH (2) WCI 115T647P03 Contact Us For Availability
18
WCI 98005593 WCI 98005593 Contact Us For Availability
19
WCI 554T338F02 WCI 554T338F02 Contact Us For Availability
19
WCI 322T010P02 WCI 322T010P02 Contact Us For Availability
19
FAN WCI 239T043S02 Contact Us For Availability
19
WCI 740T448W01 WCI 740T448W01 Contact Us For Availability
19
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
19
WCI Q63749 WCI Q63749 Contact Us For Availability
19
WCI 99260428 WCI 99260428 Contact Us For Availability
20
WCI 697T032P08 WCI 697T032P08 Contact Us For Availability
20
WCI 157T029P03 WCI 157T029P03 Contact Us For Availability
20
WCI 550T037P02 WCI 550T037P02 Contact Us For Availability
20
WCI 287T003P08 WCI 287T003P08 Contact Us For Availability
20
WCI 774T117S05 WCI 774T117S05 Contact Us For Availability
20
SOCKET, OVEN LIGHT WCI 662T012P02 Contact Us For Availability
20
WCI 99030033 WCI 99030033 Contact Us For Availability
21
THERMOSTAT, OVEN WCI 722T038P11 Contact Us For Availability
21
WCI 676T072P02 WCI 676T072P02 Contact Us For Availability
21
NUT, PROBE RECEPTACLE WCI 479T084P01 Contact Us For Availability
21
WCI Q213195 WCI Q213195 Contact Us For Availability
21
WCI 457T005R01 WCI 457T005R01 Contact Us For Availability
21
PIN (2) WCI 550T034P01 Contact Us For Availability
22
PLUG, 9 PIN WCI 558T032P01 Contact Us For Availability
22
WCI 355T448S01 WCI 355T448S01 Contact Us For Availability
22
WCI 296T083P08 WCI 296T083P08 Contact Us For Availability
22
WCI Q279955 WCI Q279955 Contact Us For Availability
22
WCI 331T052P01 WCI 331T052P01 Contact Us For Availability
22
TUBE, IGNITER WCI 750T207F01 Contact Us For Availability
23
SWITCH, SELECTOR (2 POS) WCI 697T047P04 Contact Us For Availability
23
WCI 558T028P01 WCI 558T028P01 Contact Us For Availability
23
WCI 321T021P09 WCI 321T021P09 Contact Us For Availability
23
WCI 763T006P01 WCI 763T006P01 Contact Us For Availability
23
WCI Q213185 WCI Q213185 Contact Us For Availability
23
HARNESS WCI 355T577S01 Contact Us For Availability
23
SEAL, DOOR TOP & BOTTOM (2) WCI 647T081P02 Contact Us For Availability
24
WCI 643T013P01 WCI 643T013P01 Contact Us For Availability
24
WCI 737T055P02 WCI 737T055P02 Contact Us For Availability
24
EXTRUSION WCI 233T012P06 Contact Us For Availability
24
GLIDE, TRAY (2) WCI 280T053P01 Contact Us For Availability
24
RECEPTACLE WCI 597T047P01 Contact Us For Availability
24
IGNITER, OVEN WCI 316T023P06 Contact Us For Availability
24
CAM, OVEN DOOR, LH WCI 117T013S13 Contact Us For Availability
24A
CAM, OVEN DOOR, RH WCI 117T013S14 Contact Us For Availability
24B
DOOR ADJUSTMENT KIT (NON-ILLUSTRATED WCI 355T588S01 Contact Us For Availability
25
SCREW, 8-32 X 1/4`` WCI 636T096P01 Contact Us For Availability
25
WCI 355T515S02 WCI 355T515S02 Contact Us For Availability
25
INSERT, DOOR BOTTOM WCI 322T013P01 Contact Us For Availability
25
COVER, FAN WCI 174T242P01 Contact Us For Availability
25
SCREW WCI 636T128P01 Contact Us For Availability
25
WCI 774T121P01 WCI 774T121P01 Contact Us For Availability
25
SHIELD, WOOL (LOWER FRONT) WCI 655T308F02 Contact Us For Availability
26
WCI 139T026P02 WCI 139T026P02 Contact Us For Availability
26
TRIM, MAIN FRONT WCI 740T479P01 Contact Us For Availability
26
WCI Q213194 WCI Q213194 Contact Us For Availability
26
WCI 247T079P01 WCI 247T079P01 Contact Us For Availability
27
WCI 740T408F03 WCI 740T408F03 Contact Us For Availability
27
WCI 046T003P03 WCI 046T003P03 Contact Us For Availability
27
WCI 024T160F01 WCI 024T160F01 Contact Us For Availability
27
CORD, POWER SUPPLY WCI 171T030P01 Contact Us For Availability
28
WCI Q64633 WCI Q64633 Contact Us For Availability
28
WCI 655T369F01 WCI 655T369F01 Contact Us For Availability
28
CHANNEL, STIFFENER (2) WCI 136T283F01 Contact Us For Availability
29
BLOCK & TERMINAL KIT (INCLUDES 10 MALE & 10 F WCI 355T442S01 Contact Us For Availability
29
WCI 030T012P01 WCI 030T012P01 Contact Us For Availability
29
WCI 591T073P02 WCI 591T073P02 Contact Us For Availability
30
BLOCK & TEMRINAL KIT (INCLUDES 1 MALE & 1 FEM WCI 355T442S02 Contact Us For Availability
30
TUBE, LOWER OVEN SUPPOY (7/16`` X 55``) WCI 750T095P12 Contact Us For Availability
30
SEAL, BROILER DOOR WCI 647T068P02 Contact Us For Availability
31
WCI Q279717 WCI Q279717 Contact Us For Availability
31
BURNER TOP READ, (2) WCI 080T013P02 Contact Us For Availability
31
WCI Q318025 WCI Q318025 Contact Us For Availability
32
FASTENER, PURSE LOCK WCI Q279635 Contact Us For Availability
32
WCI 107T028P01 WCI 107T028P01 Contact Us For Availability
32
SCREW (2) (KNROLD HD.)(NON-ILLUSTRATED) WCI 636T134P01 Contact Us For Availability
33
WCI 123T062P01 WCI 123T062P01 Contact Us For Availability
33
WCI 289T069F01 WCI 289T069F01 Contact Us For Availability
33
WCI 008T479F01 WCI 008T479F01 Contact Us For Availability
33A
WCI Q213186 WCI Q213186 Contact Us For Availability
34
MAIN BASE WCI Q318003 Contact Us For Availability
34
WCI 277T164P21 WCI 277T164P21 Contact Us For Availability
34
WCI 036T049S10 WCI 036T049S10 Contact Us For Availability
35
WCI 00000 WCI 00000 Contact Us For Availability
35
BUTTON, GLIDE, FRONT FRAME WCI 106T027P02 Contact Us For Availability
36
TRIM SIDE, LH WCI 740T309F01 Contact Us For Availability
36
WCI 036T049S11 WCI 036T049S11 Contact Us For Availability
36
LEG (4) WCI 636M004P01 Contact Us For Availability
36A
TRIM SIDE, RH WCI 740T309F02 Contact Us For Availability
37
WCI 211T046P01 WCI 211T046P01 Contact Us For Availability
37
SCREW WCI 636T140P02 Contact Us For Availability
37
WCI 241T01P10 WCI 241T01P10 Contact Us For Availability
38
WCI Q318045 WCI Q318045 Contact Us For Availability
38
WCI 079T025P09 WCI 079T025P09 Contact Us For Availability
38
SHOULDER SCREW WCI 636T066P06 Contact Us For Availability
39
WCI 694T065F01 WCI 694T065F01 Contact Us For Availability
39
SPRING (2) WCI 675T041P01 Contact Us For Availability
40
WCI Q213163 WCI Q213163 Contact Us For Availability
40
RETAINER, LOWER OVEN BURNER WCI 612T094P01 Contact Us For Availability
41
WCI Q279652 WCI Q279652 Contact Us For Availability
41
TRIM, LH & RH (2) WCI 740T431F01 Contact Us For Availability
42
WCI Q279838 WCI Q279838 Contact Us For Availability
42
SIDE TRIM, COUNTERTOP, LH WCI 740T365P02 Contact Us For Availability
42A
WCI Q279823 WCI Q279823 Contact Us For Availability
43
COVER, HOOD OUTLET WCI 174T204F01 Contact Us For Availability
43
SIDE TRIM, COUNTERTOP, RH WCI 740T365P01 Contact Us For Availability
44
WCI 174T169F01 WCI 174T169F01 Contact Us For Availability
44
SUPPORT PLATE, UPPER OVEN (2) WCI 694T088F01 Contact Us For Availability
45
RECEPTACLE, HOOD WCI 597T028S05 Contact Us For Availability
45
WCI 136T148W05 WCI 136T148W05 Contact Us For Availability
46
WCI 789T061P01 WCI 789T061P01 Contact Us For Availability
47
SEAL, MICROWAVE (UPPER & LOWER) WCI 643T013P03 Contact Us For Availability
47
WCI 021T043F04 WCI 021T043F04 Contact Us For Availability
48
WCI 115T463P01 WCI 115T463P01 Contact Us For Availability
48
COVER, IGNITER CONNECTOR WCI 174T220F01 Contact Us For Availability
48A
SCREW, MOTOR MOUTING (4) WCI 636T069P07 Contact Us For Availability
49
WCI 250T013W01 WCI 250T013W01 Contact Us For Availability
50
COVER MICROWAVE SEAL (UPPER & LOWER, 2) WCI 174T188P02 Contact Us For Availability
50
WCI Q213188 WCI Q213188 Contact Us For Availability
51
WCI 374T024P01 WCI 374T024P01 Contact Us For Availability
51
SCREW WCI 636T090P47 Contact Us For Availability
52
SOCKET, LIGHT WCI 662T027P02 Contact Us For Availability
52
WCI Q318032 WCI Q318032 Contact Us For Availability
54
HINGE, TOP (2) WCI 302T019P01 Contact Us For Availability
56
WCI Q318026 WCI Q318026 Contact Us For Availability
57
WCI 072T612F02 WCI 072T612F02 Contact Us For Availability
58
SCREW WCI 636T140P01 Contact Us For Availability
× ![]()
