Model Whirlpool GC430 DISPOSAL – Common Parts & Diagrams

Common parts from model Whirlpool GC430 DISPOSAL

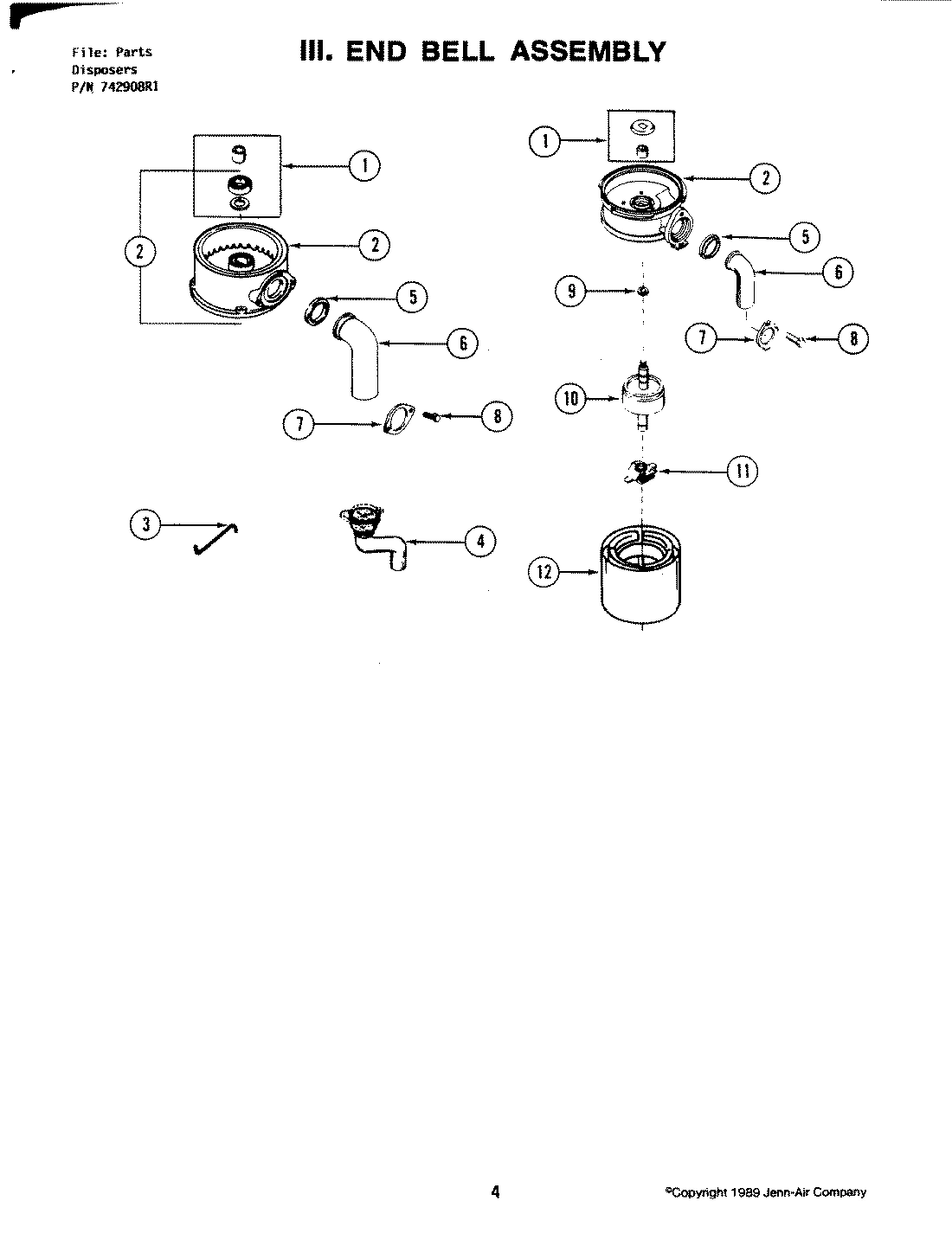

02 - END BELL ASSEMBLY

Print

• This Diagram
• All Diagrams

1

4211300 Whirlpool Disposer Stopper Backorder WPL 4211300 View Details $10.45

View on Model

1

8174312 Whirlpool Disposer Switch Backorder WPL 8174312 View Details $139.29

View on Model

1

SLINGER KIT WPL 752557 Contact Us For Availability

View on Model

1

BODY-CONTAIN WPL 752528 Contact Us For Availability

View on Model

2

FLANGE, STRAINER WPL 752550 Contact Us For Availability

View on Model

2

O-RING WPL Y752506 Contact Us For Availability

View on Model

3

4211606 Whirlpool Disposer Seal Backorder WPL 4211606 View Details $11.17

View on Model

3

SHIELD, WIRE WPL 752542 Contact Us For Availability

View on Model

4

COVER, TERMINAL WPL 752538 Contact Us For Availability

View on Model

4

FLANGE, BACKUP WPL Y752548 Contact Us For Availability

View on Model

5

SCREW, TERMINAL COVER WPL 752554 Contact Us For Availability

View on Model

5

FLANGE, MOUNTING WPL 752546 Contact Us For Availability

View on Model

6

4211317 Whirlpool Disposer Tail Pipe Backorder WPL 4211317 View Details $30.29

View on Model

6

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 View Details $3.02

View on Model

7

RING, RETAINING WPL Y752549 Contact Us For Availability

View on Model

8

4211615 Whirlpool Disposer Gasket Backorder WPL 4211615 View Details $11.91

View on Model

8

END FRAME, LOWER WPL Y752537 Contact Us For Availability

View on Model

9

WASHER, THRUST RUBBER WPL 752525 Contact Us For Availability

View on Model

9

FLANGE, BODY WPL Y752551 Contact Us For Availability

View on Model

11

4211322 Whirlpool Disposer Actuator Backorder WPL 4211322 View Details $38.48

View on Model

×
