Model Whirlpool GC4000XE DISPOSER – Common Parts & Diagrams

Common parts from model Whirlpool GC4000XE DISPOSER

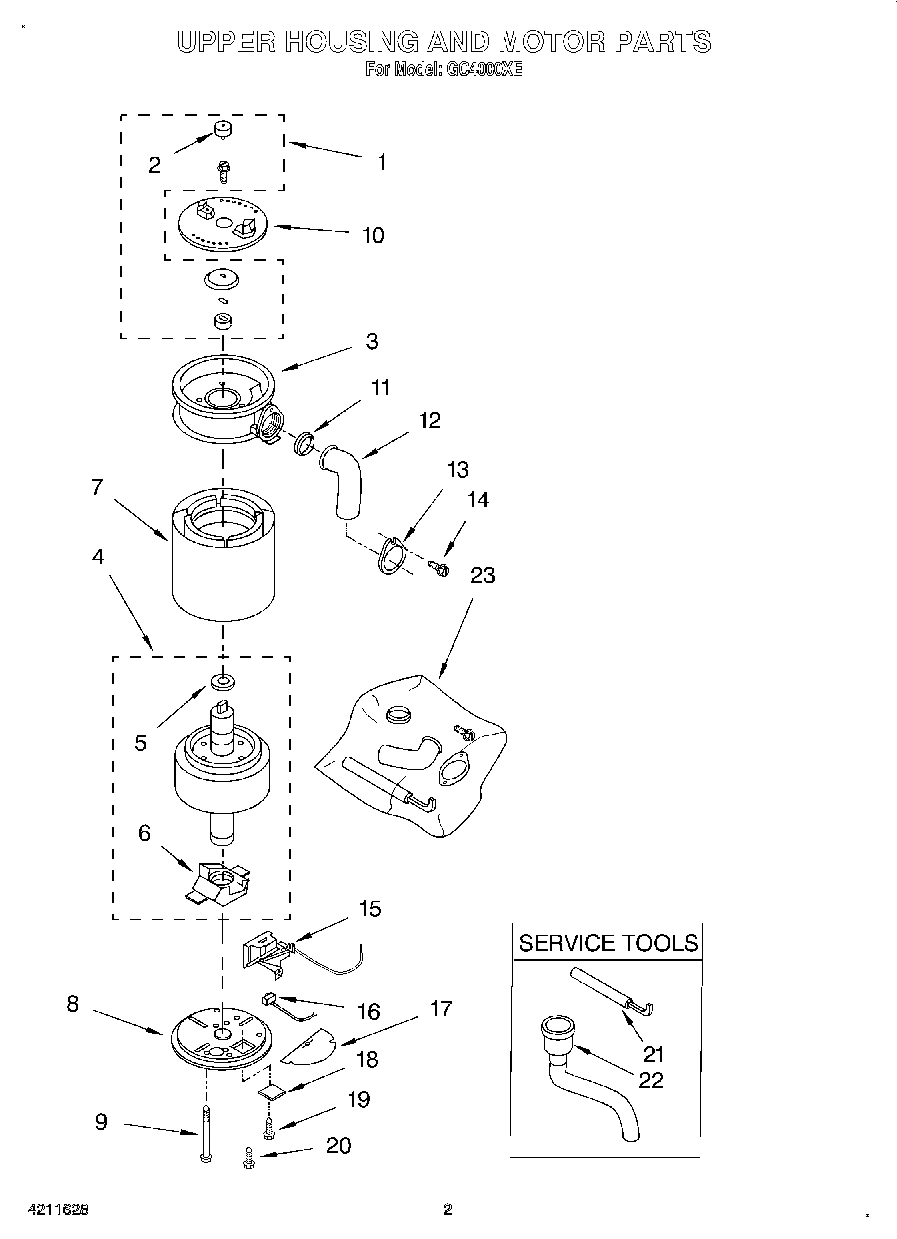

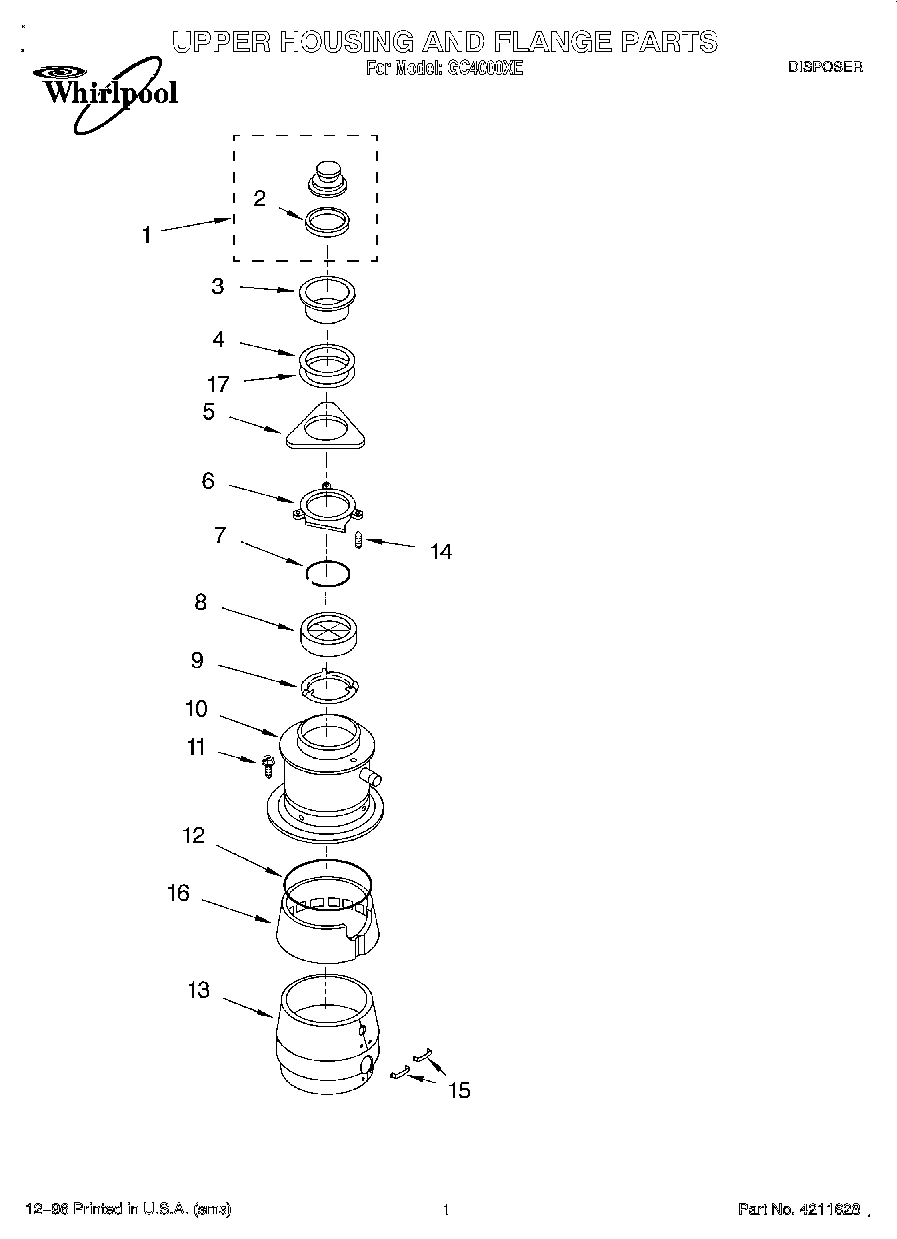

01 - SECTION

Print

• This Diagram
• All Diagrams

Guide, Use And Care WPL LIT4211613 Contact Us For Availability

View on Model

Instructions, Installation WPL LIT4211624 Contact Us For Availability

View on Model

2

4211578 Whirlpool Disposer Sleeve Backorder WPL 4211578 View Details $37.92

View on Model

2

Gasket, Stopper WPL 4211333 Contact Us For Availability

View on Model

3

End Bell Assembly (Upper) WPL 4211623 Contact Us For Availability

View on Model

4

4211606 Whirlpool Disposer Seal Backorder WPL 4211606 View Details $10.76

View on Model

4

Rotor & Shaft Assembly WPL 4211582 Contact Us For Availability

View on Model

5

4211321 Whirlpool Washer Backorder WPL 4211321 View Details $4.98

View on Model

6

4211322 Whirlpool Disposer Actuator Backorder WPL 4211322 View Details $33.29

View on Model

7

Stator Assembly WPL 4211619 Contact Us For Availability

View on Model

8

WP4211334 Whirlpool Disposer Gasket In Stock WPL WP4211334 View Details $12.28

View on Model

8

End Frame Assembly, Lower WPL 4211515 Contact Us For Availability

View on Model

9

Bolt, Thru WPL 4211348 Contact Us For Availability

View on Model

10

Container, Body Assembly WPL 4211554 Contact Us For Availability

View on Model

10

Shredder WPL 4211342 Contact Us For Availability

View on Model

11

Screw WPL 4211335 Contact Us For Availability

View on Model

11

Gasket, Tailpipe WPL 4211344 Contact Us For Availability

View on Model

12

4211317 Whirlpool Disposer Tail Pipe Backorder WPL 4211317 View Details $26.21

View on Model

12

O-Ring WPL 4211337 Contact Us For Availability

View on Model

13

Flange, Tailpipe WPL 4211345 Contact Us For Availability

View on Model

13

Trim, Shell Assembly WPL 4211622 Contact Us For Availability

View on Model

14

4211305 Whirlpool Disposer Screw Backorder WPL 4211305 View Details $9.59

View on Model

14

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 View Details $8.82

View on Model

15

8174312 Whirlpool Disposer Switch Backorder WPL 8174312 View Details $120.42

View on Model

15

Clip, Shell Trim WPL 4211339 Contact Us For Availability

View on Model

16

882726 Whirlpool Disposer Overload Protector Backorder WPL 882726 View Details $74.83

View on Model

16

Insulation, Top WPL 4211444 Contact Us For Availability

View on Model

17

WP4211302 Whirlpool Disposer Seal In Stock WPL WP4211302 View Details $2.51

View on Model

17

Shield, Wire WPL 4211326 Contact Us For Availability

View on Model

18

Cover, Terminal WPL 4211611 Contact Us For Availability

View on Model

19

WP98008545 Whirlpool Screw Backorder WPL WP98008545 View Details $2.64

View on Model

20

Screw, Tailpipe WPL 4211330 Contact Us For Availability

View on Model

21

WP8174310 Whirlpool Disposer Wrench Backorder WPL WP8174310 View Details $9.57

View on Model

22

4211396 Whirlpool Disposer Adapter Backorder WPL 4211396 View Details $163.51

View on Model

23

Kit, Installation (Includes No. 11, 12, 13 14 WPL 4211565 Contact Us For Availability

View on Model

×
