Model Maytag GC3277XUWM GAS RANGE – Common Parts & Diagrams
01 - CONTROL PANEL
02 - DOOR/DRAWER

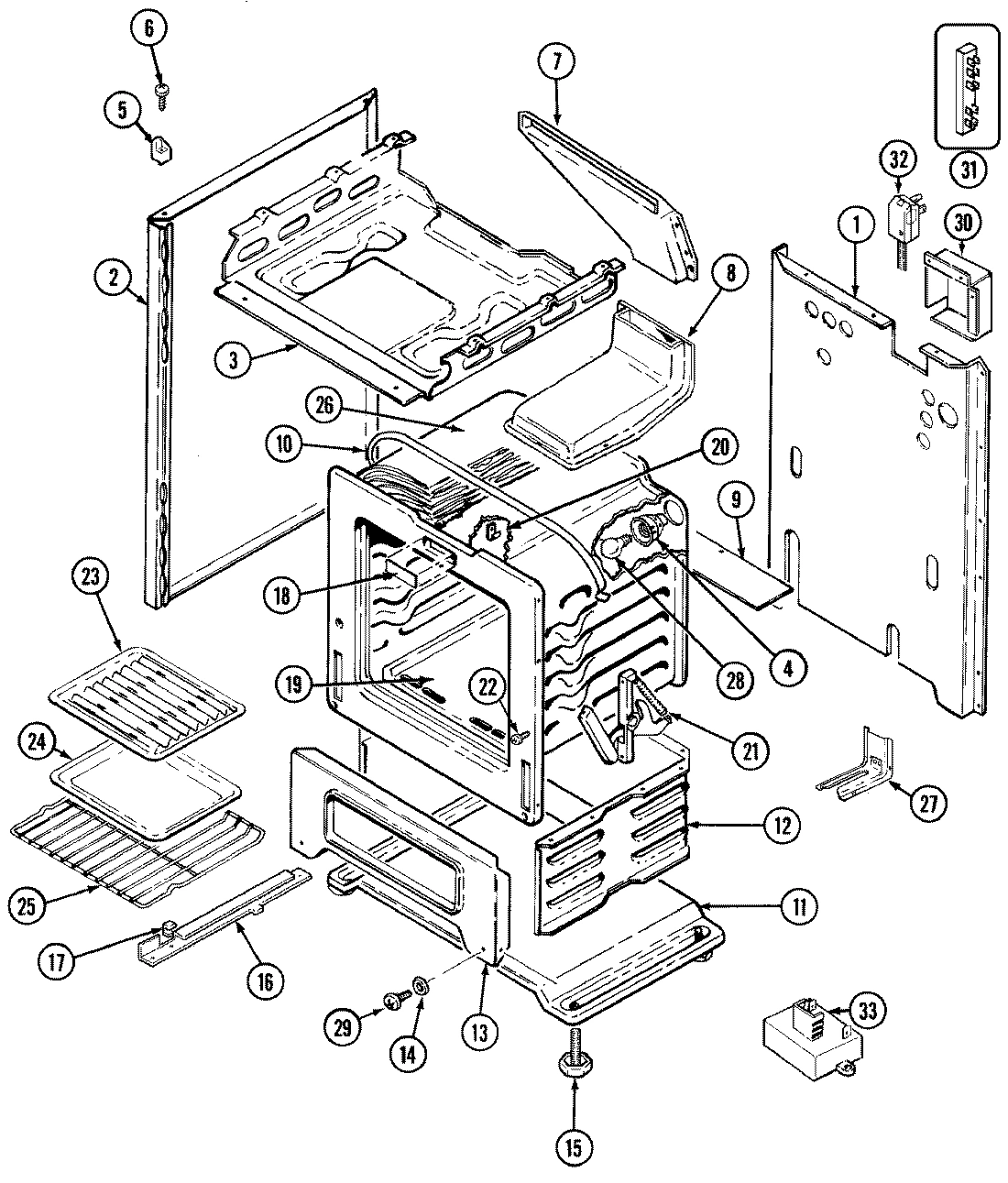

03 - OVEN

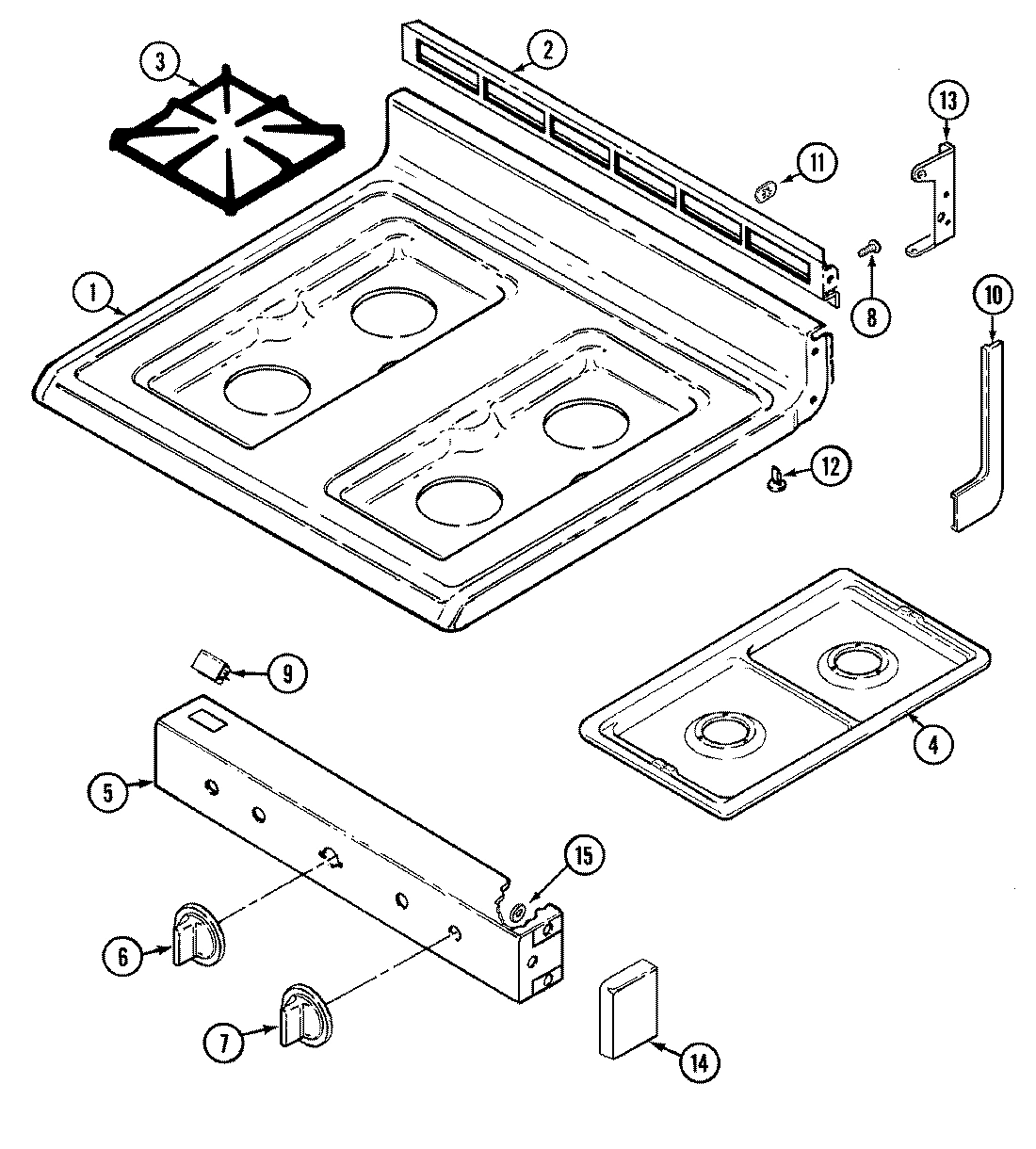

04 - TOP ASSEMBLY

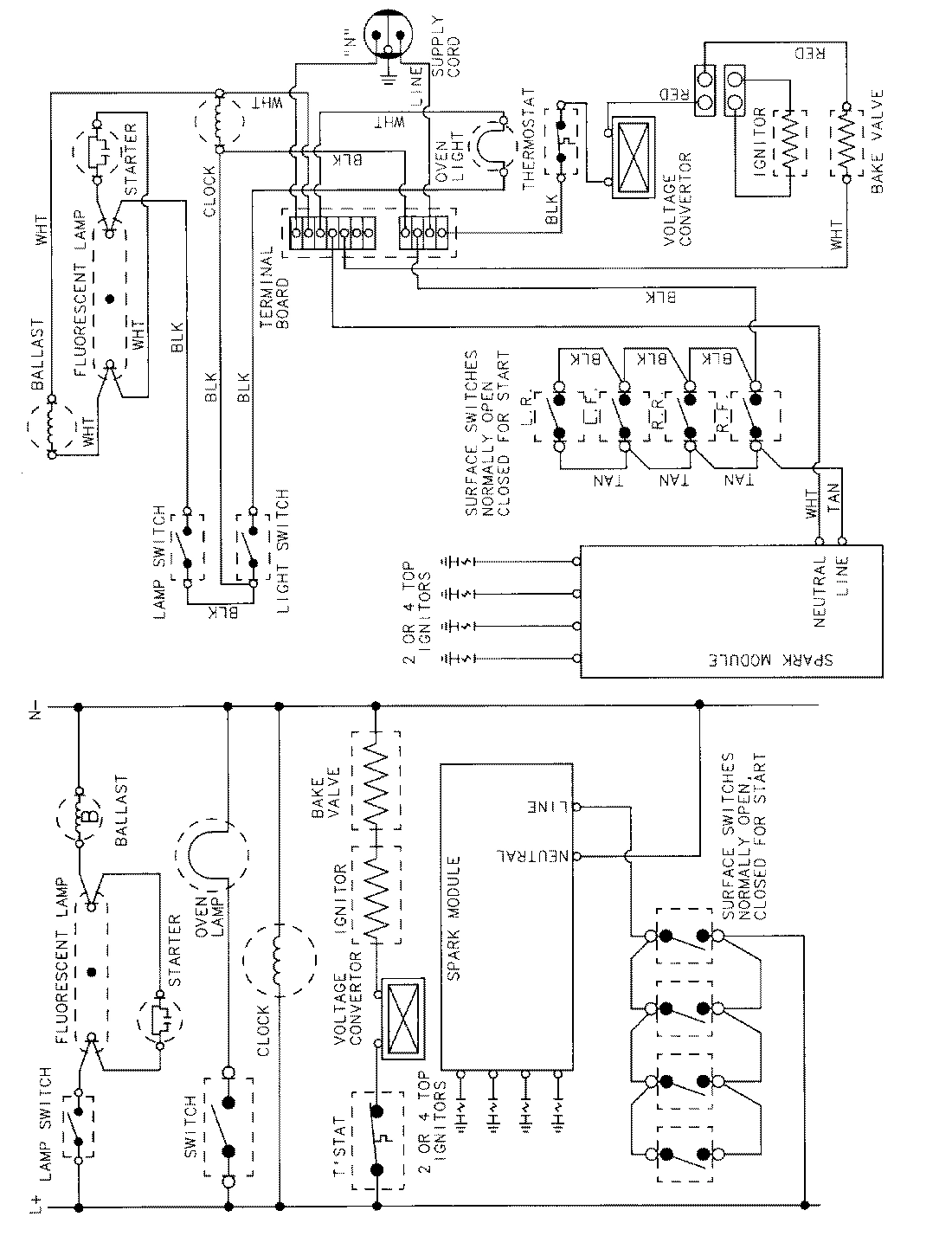

05 - WIRING INFORMATION
Common parts from model Maytag GC3277XUWM GAS RANGE
1
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
1
MAY 4003W028-67 MAY 4003W028-67 Contact Us For Availability
1
MAY 7103P125-60 MAY 7103P125-60 Contact Us For Availability
1
MAY 2001W085-81 MAY 2001W085-81 Contact Us For Availability
2
MAY 7701P144-60 MAY 7701P144-60 Contact Us For Availability
2
MAY 4016F044-45 MAY 4016F044-45 Contact Us For Availability
2
MAY 3608F042-09 MAY 3608F042-09 Contact Us For Availability
3
MAY 7101P331-60 MAY 7101P331-60 Contact Us For Availability
3
MAY 7703P633-60 MAY 7703P633-60 Contact Us For Availability
3
MAY 8016P010-60 MAY 8016P010-60 Contact Us For Availability
3
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
4
MAY 7118P015-60 MAY 7118P015-60 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM MAY 3601F239-45 Contact Us For Availability
4
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
4
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
5
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
5
MAY 7101P329-60 MAY 7101P329-60 Contact Us For Availability
5
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
5
MAY 2201F077-19 MAY 2201F077-19 Contact Us For Availability
5
MAY 2616F102-09 MAY 2616F102-09 Contact Us For Availability
6
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
6
MAY 7103P022-60 MAY 7103P022-60 Contact Us For Availability
6
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
6
MAY 7731P064-60 MAY 7731P064-60 Contact Us For Availability
7
MAY 8010P075-60 MAY 8010P075-60 Contact Us For Availability
7
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
7
MAY 7733P065-60 MAY 7733P065-60 Contact Us For Availability
8
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
8
MAY 3601F240-80 MAY 3601F240-80 Contact Us For Availability
8
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
8
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
8
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
9
MAY 7726P059-60 MAY 7726P059-60 Contact Us For Availability
9
MAY 7726P060-60 MAY 7726P060-60 Contact Us For Availability
9
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
9
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
10
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
10
MAY 4804F033-60 MAY 4804F033-60 Contact Us For Availability
10
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
10
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
10
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
11
MAY 3801F340-45 MAY 3801F340-45 Contact Us For Availability
11
MAY 7113P012-60 MAY 7113P012-60 Contact Us For Availability
11
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
12
MAY 7803P064-60 MAY 7803P064-60 Contact Us For Availability
12
MAY 7803P065-60 MAY 7803P065-60 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
12
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
13
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
13
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
13
MAY 7602P122-60 MAY 7602P122-60 Contact Us For Availability
13
MAY 7902P319-60 MAY 7902P319-60 Contact Us For Availability
13
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
13
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
14
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
14
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
14
MAY 7713P018-60 MAY 7713P018-60 Contact Us For Availability
15
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
15
MAY 2402W204-19 MAY 2402W204-19 Contact Us For Availability
15
MAY 3404F018-51 MAY 3404F018-51 Contact Us For Availability
15
MAY 3404F021-51 MAY 3404F021-51 Contact Us For Availability
15
MAY 7112P092-60 MAY 7112P092-60 Contact Us For Availability
16
MAY 3807F416-45 MAY 3807F416-45 Contact Us For Availability
17
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
17
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
17
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
18
MAY 2403F028-62 MAY 2403F028-62 Contact Us For Availability
18
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
19
MAY 7701P012-60 MAY 7701P012-60 Contact Us For Availability
19
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
20
MAY 4002F211-80 MAY 4002F211-80 Contact Us For Availability
21
MAY 4804F025-60 MAY 4804F025-60 Contact Us For Availability
21
MAY 4011F230-80 MAY 4011F230-80 Contact Us For Availability
22
MAY 2404F035-19 MAY 2404F035-19 Contact Us For Availability
22
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
23
MAY 3407F012-19 MAY 3407F012-19 Contact Us For Availability
23
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
24
MAY 3404F022-51 MAY 3404F022-51 Contact Us For Availability
24
MAY 3404F023-51 MAY 3404F023-51 Contact Us For Availability
24
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
24
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
25
MAY 8016P011-60 MAY 8016P011-60 Contact Us For Availability
25
MAY 8016P013-60 MAY 8016P013-60 Contact Us For Availability
25
MAY 2618F110-62 MAY 2618F110-62 Contact Us For Availability
26
MAY 3418F079-51 MAY 3418F079-51 Contact Us For Availability
26
MAY 3418F080-51 MAY 3418F080-51 Contact Us For Availability
26
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
26
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
27
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
28
MAY 4804F039-60 MAY 4804F039-60 Contact Us For Availability
28
MAY 4804F044-60 MAY 4804F044-60 Contact Us For Availability
30
MAY 7407P027-60 MAY 7407P027-60 Contact Us For Availability
31
MAY 7402P045-60 MAY 7402P045-60 Contact Us For Availability
32
MAY 4005F385-51 MAY 4005F385-51 Contact Us For Availability
33
MAY 7510P046-60 MAY 7510P046-60 Contact Us For Availability
NI
MAY 16002080 MAY 16002080 Contact Us For Availability
NI
MAY 2002F001-01 MAY 2002F001-01 Contact Us For Availability
NI
MAY 5180D138-60 MAY 5180D138-60 Contact Us For Availability
NI
MAY 74001446 MAY 74001446 Contact Us For Availability
NI
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
NI
MAY 15001307 MAY 15001307 Contact Us For Availability
× ![]()
