Model Whirlpool GC3177WUW GAS RANGE – Common Parts & Diagrams

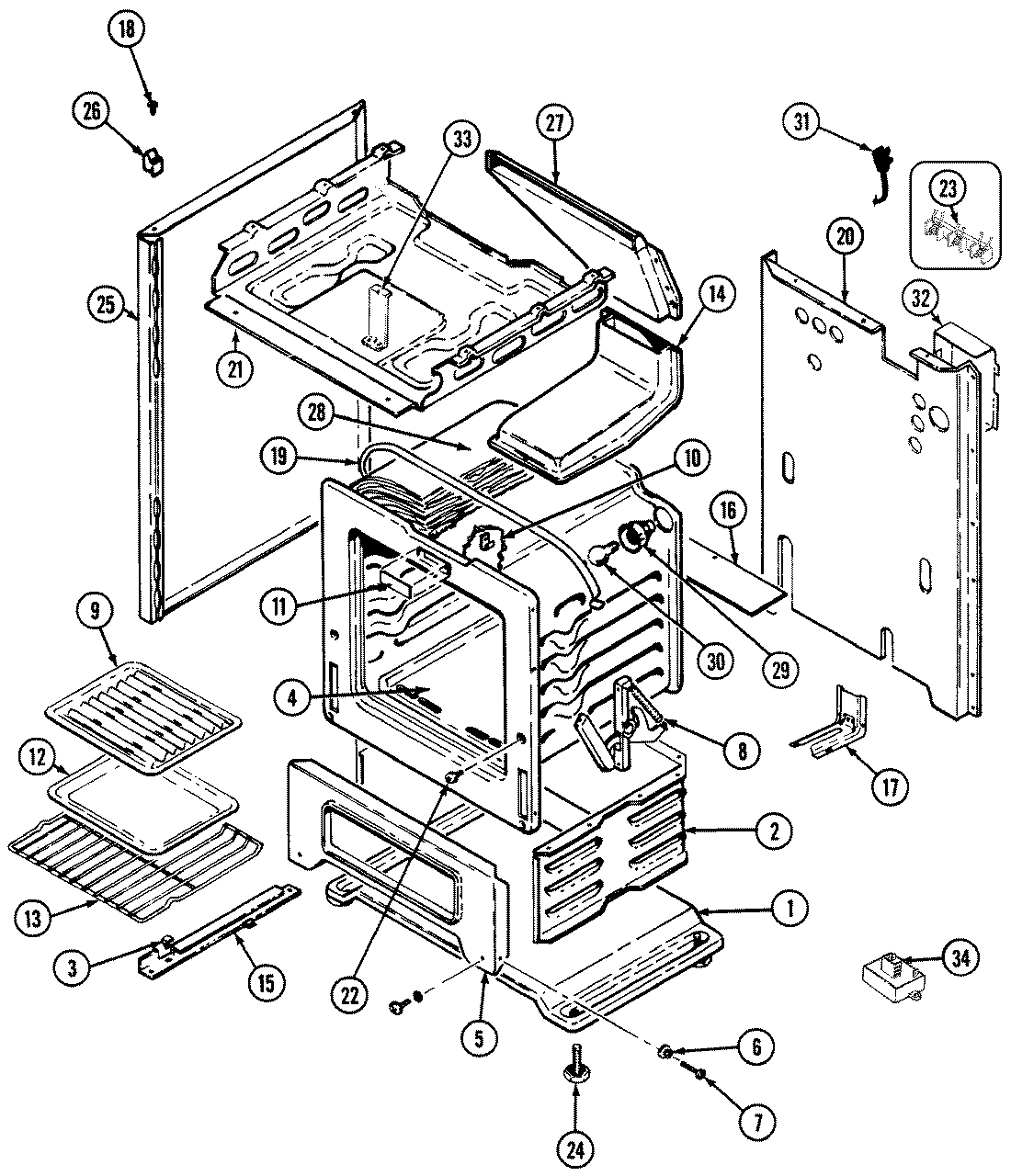

04 - OVEN

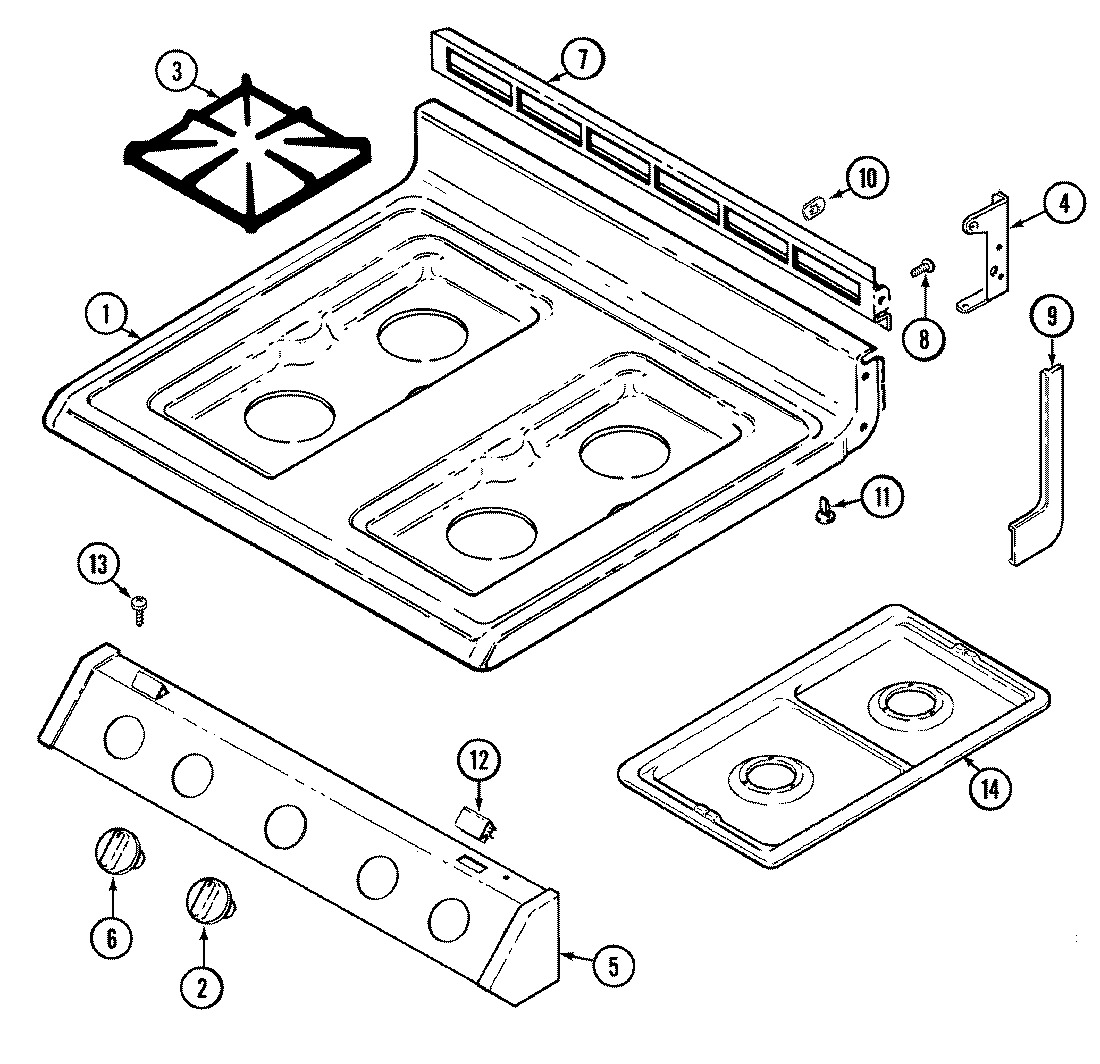

01 - CONTROL PANEL

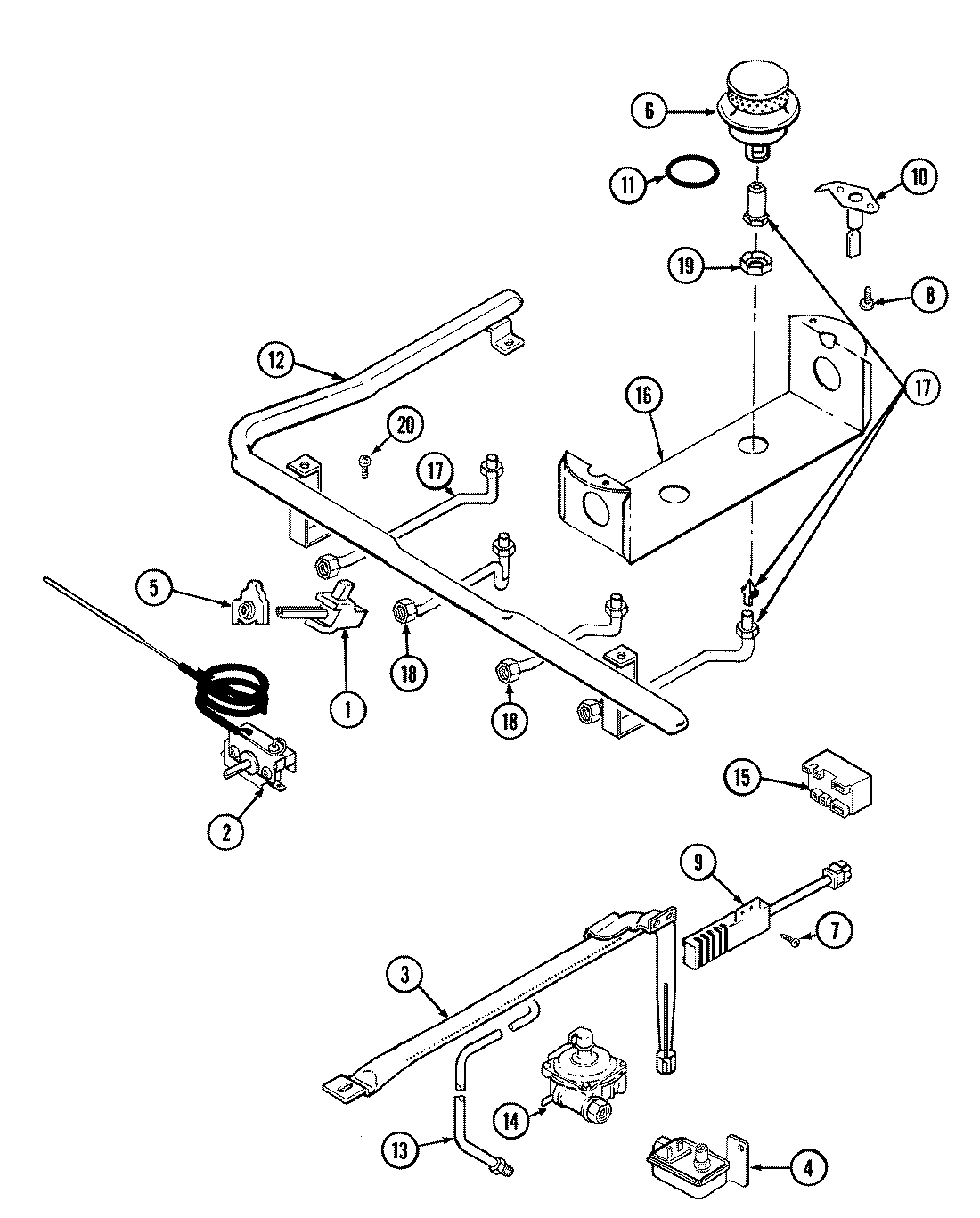

03 - GAS CONTROLS

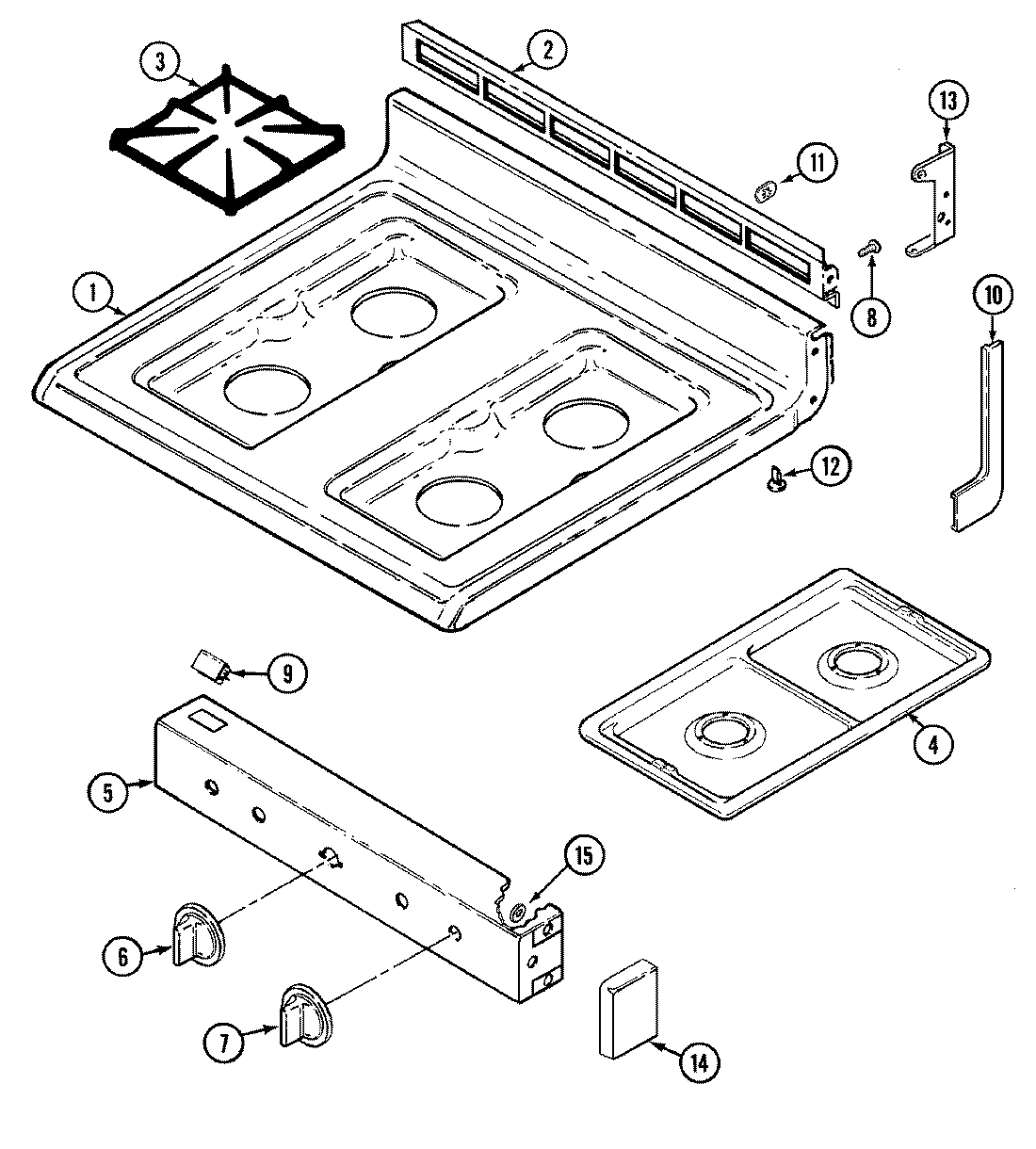

05 - TOP ASSEMBLY

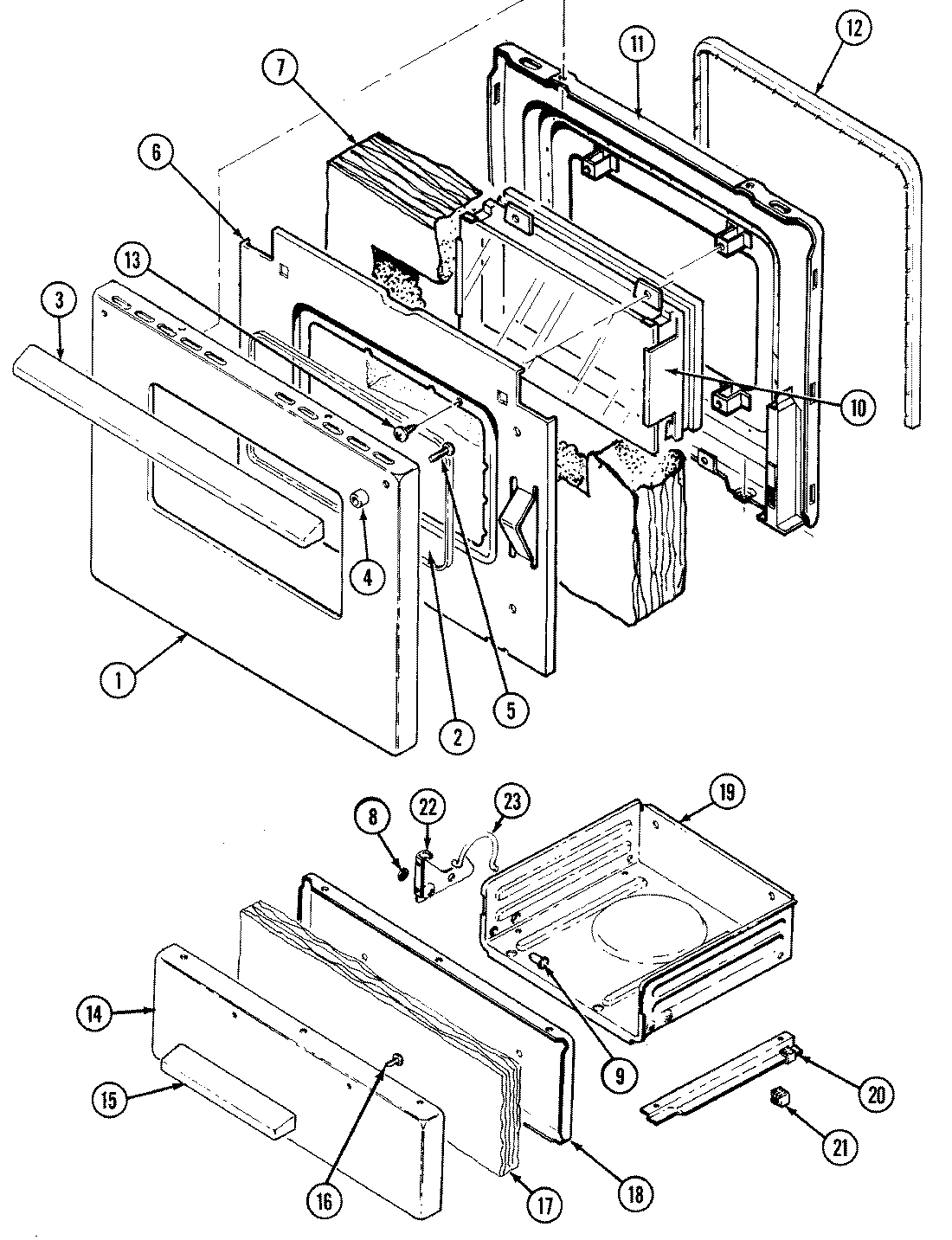

02 - DOOR/DRAWER
Common parts from model Whirlpool GC3177WUW GAS RANGE
1
NUT WPL 7103P12560 Contact Us For Availability
1
BASE WPL 74001448 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
COVER, WIRE WPL 4005F44845 Contact Us For Availability
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, BURNER WPL 7502P25060 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08581 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F12162 Contact Us For Availability
2
SIDES, BROILER WPL 4016F04445 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
2
THERMOSTAT WPL 7404P08760 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
3
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
3
SCREW WPL 7101P33160 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P63360 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
3
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
4
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
VALVE, OVEN WPL 7501P13960 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
5
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
5
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
SCREW WPL 7101P32960 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13460 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
6
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
6
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
6
KNOB, THERMOSTAT (BLK) WPL 7731P09660 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
7
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
7
SCREW WPL 7101P32860 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 7733P05860 Contact Us For Availability
7
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
8
HINGE WPL 7106P05660 Contact Us For Availability
8
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
8
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
8
NUT, GRIP WPL 7103P02260 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
9
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
10
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
10
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
10
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
10
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01560 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
BRACKET, CLOCK WPL 3801F34045 Contact Us For Availability
11
NUT, SPEED WPL 7103P04460 Contact Us For Availability
11
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
11
LINING, DOOR WPL 2402W21219 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
12
TUBING - REGULATOR & PIPE WPL 3414F10444 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
12
GLIDE WPL 8016P01560 Contact Us For Availability
12
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
13
RACK, OVEN WPL 7801P04760 Contact Us For Availability
13
SCREW WPL 7101P29060 Contact Us For Availability
13
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
13
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
13
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
13
CLOCK (BLK) WPL 7602P12260 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
13
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
14
BOX, VENT WPL 4006W11345 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
14
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
14
REGULATOR WPL 7510P06460 Contact Us For Availability
14
PANEL, BROILER DRW (WHT) WPL 2403F02862 Contact Us For Availability
15
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
15
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
15
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02660 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
15
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
16
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
16
ORIFICE FITTING ASSEMBLY WPL 5187D03260 Contact Us For Availability
16
ORIFICE FITTING ASSEMBLY WPL 5187D03660 Contact Us For Availability
16
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
17
SCREW WPL 7101P34460 Contact Us For Availability
17
SCREW WPL 7101P29660 Contact Us For Availability
17
INSULATION WPL 4804F02560 Contact Us For Availability
18
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
18
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
18
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
18
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
19
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
19
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
20
BACK, MAIN WPL 4002F21180 Contact Us For Availability
20
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
20
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
20
SCREW WPL 7101P06160 Contact Us For Availability
21
BOX, BURNER WPL 4011F23080 Contact Us For Availability
21
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
21
GLIDE WPL 8016P01360 Contact Us For Availability
22
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
22
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
22
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
23
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
23
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
23
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
24
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F11062 Contact Us For Availability
26
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
26
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
27
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
28
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
28
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
29
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
30
LAMP, OVEN WPL 7407P02760 Contact Us For Availability
31
CORD, POWER WPL 7402P04360 Contact Us For Availability
31
CORD, POWER WPL 7402P04560 Contact Us For Availability
32
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
33
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
34
SCREW WPL 7101P14760 Contact Us For Availability
34
REGULATOR, VOLTAGE WPL 7510P04660 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04360 Contact Us For Availability
× ![]()
