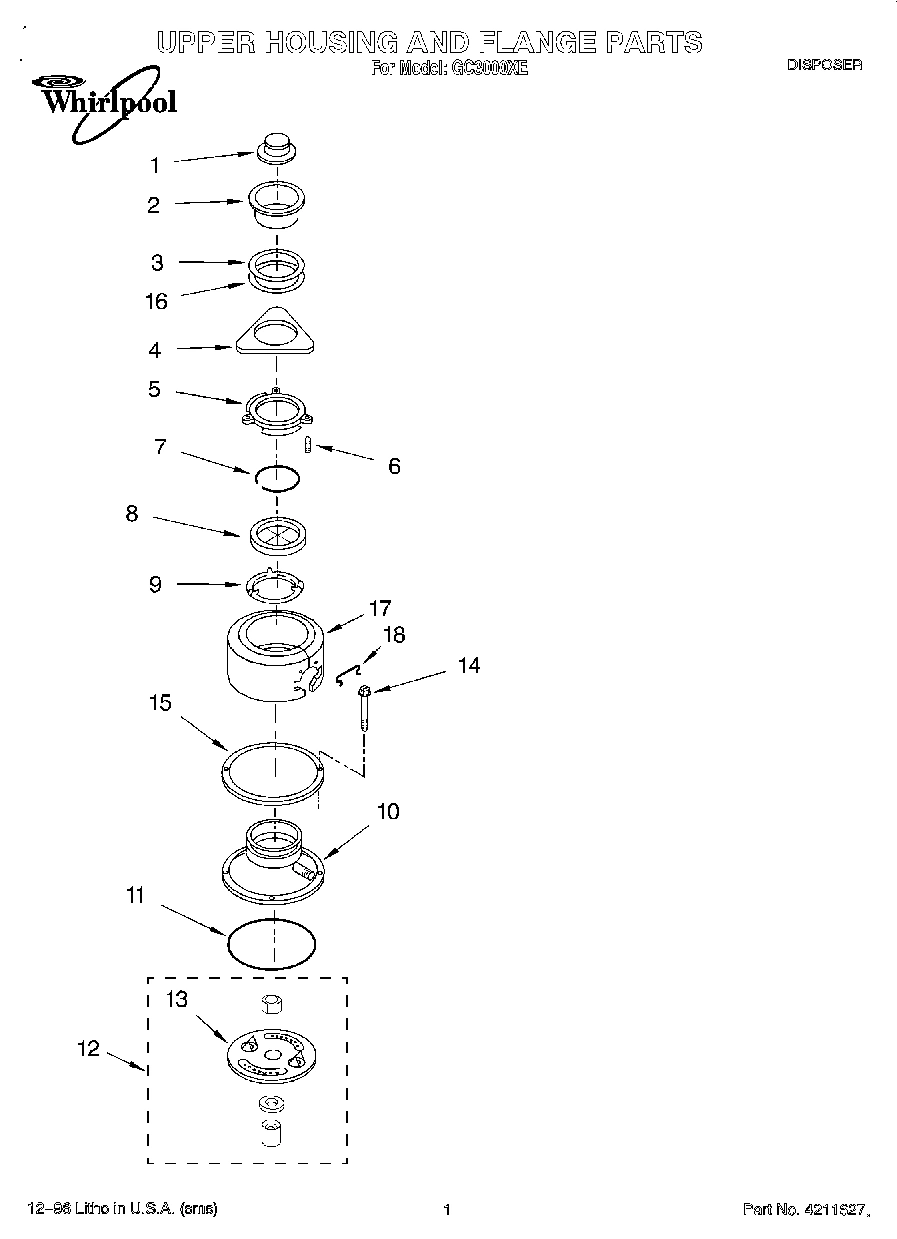

Model Whirlpool GC3000XE DISPOSER – Common Parts & Diagrams

1
Stopper Assembly
Stopper Assembly WPL 4211300 Contact Us For Availability
View on Model
2
Flange, Strainer
Flange, Strainer WPL 4211605 Contact Us For Availability
View on Model
3
Seal, Sink Flange
Seal, Sink Flange WPL 4211606 Contact Us For Availability
View on Model
3
Washer, Thrust
Washer, Thrust WPL 4211315 Contact Us For Availability
View on Model
4
Rotor & Shaft Assembly
Rotor & Shaft Assembly WPL 4211320 Contact Us For Availability
View on Model
4
Flange, Backup
Flange, Backup WPL 4211303 Contact Us For Availability
View on Model
5
Washer
Washer WPL 4211321 Contact Us For Availability
View on Model
5
Flange, Mounting
Flange, Mounting WPL 4211304 Contact Us For Availability
View on Model
6
Actuator Assembly, Centrifugal
Actuator Assembly, Centrifugal WPL 4211322 Contact Us For Availability
View on Model
6
Screw, Backup (3)
Screw, Backup (3) WPL 4211305 Contact Us For Availability
View on Model
7
Stator Assembly
Stator Assembly WPL 4211619 Contact Us For Availability
View on Model
7
Ring, Retaining
Ring, Retaining WPL 4211306 Contact Us For Availability
View on Model
8
Gasket, Mounting
Gasket, Mounting WPL 4211615 Contact Us For Availability
View on Model
9
Flange, Body
Flange, Body WPL 4211308 Contact Us For Availability
View on Model
10
End Frame Assembly, Lower
End Frame Assembly, Lower WPL 4211515 Contact Us For Availability
View on Model
10
Container, Body Assembly
Container, Body Assembly WPL 4211608 Contact Us For Availability
View on Model
11
O-Ring
O-Ring WPL 4211310 Contact Us For Availability
View on Model
12
Gasket, Tailpipe
Gasket, Tailpipe WPL 4211316 Contact Us For Availability
View on Model
12
Kit, Sleeve And Seal (Includes Nut, Slinger,
Kit, Sleeve And Seal (Includes Nut, Slinger, WPL 4211578 Contact Us For Availability
View on Model
13
Tailpipe
Tailpipe WPL 4211317 Contact Us For Availability
View on Model
13
Shredder Assembly, Rotating
Shredder Assembly, Rotating WPL 4211618 Contact Us For Availability
View on Model
14
Flange, Tailpipe
Flange, Tailpipe WPL 4211318 Contact Us For Availability
View on Model
14
Bolt, Thru
Bolt, Thru WPL 4211518 Contact Us For Availability
View on Model
15
Screw, Tailpipe
Screw, Tailpipe WPL 4211319 Contact Us For Availability
View on Model
15
Ring, Clamping
Ring, Clamping WPL 4211607 Contact Us For Availability
View on Model
16
Shield, Wire
Shield, Wire WPL 4211326 Contact Us For Availability
View on Model
17
Cover, Terminal
Cover, Terminal WPL 4211611 Contact Us For Availability
View on Model
17
Trim, Shell Assy.
Trim, Shell Assy. WPL 4211616 Contact Us For Availability
View on Model
18
Clip, Trim Shell
Clip, Trim Shell WPL 4211617 Contact Us For Availability
View on Model
19
Screw, Ground
Screw, Ground WPL 4211330 Contact Us For Availability
View on Model
21
Adapter, Sink
Adapter, Sink WPL 4211396 Contact Us For Availability
View on Model
22
Kit, Installation (Includes No. 12, 13, 14, 1
Kit, Installation (Includes No. 12, 13, 14, 1 WPL 4211564 Contact Us For Availability
View on Model
